Human FOXP3 ELISA Kit is a single-wash 90-min SimpleStep ELISA® for the quantitative measurement of Human FOXP3 in Cell Lysate samples.
Images
Key facts
- Detection method
Colorimetric
- Sample types
Cell Lysate
- Assay type
Sandwich (quantitative)
- Reactive species
Human
- Range
0.625 - 40 ng/mL
- Assay time
1h 30m
- Sensitivity
= 0.325 ng/mL
Reactivity data
| Application | Reactivity | Dilution info | Notes |
|---|---|---|---|
Application sELISA | Reactivity Reacts | Dilution info - | Notes - |
Target data
Function
Transcriptional regulator which is crucial for the development and inhibitory function of regulatory T-cells (Treg) (PubMed:17377532, PubMed:21458306, PubMed:23947341, PubMed:24354325, PubMed:24722479, PubMed:24835996, PubMed:30513302, PubMed:32644293). Plays an essential role in maintaining homeostasis of the immune system by allowing the acquisition of full suppressive function and stability of the Treg lineage, and by directly modulating the expansion and function of conventional T-cells (PubMed:23169781). Can act either as a transcriptional repressor or a transcriptional activator depending on its interactions with other transcription factors, histone acetylases and deacetylases (PubMed:17377532, PubMed:21458306, PubMed:23947341, PubMed:24354325, PubMed:24722479). The suppressive activity of Treg involves the coordinate activation of many genes, including CTLA4 and TNFRSF18 by FOXP3 along with repression of genes encoding cytokines such as interleukin-2 (IL2) and interferon-gamma (IFNG) (PubMed:17377532, PubMed:21458306, PubMed:23947341, PubMed:24354325, PubMed:24722479). Inhibits cytokine production and T-cell effector function by repressing the activity of two key transcription factors, RELA and NFATC2 (PubMed:15790681). Mediates transcriptional repression of IL2 via its association with histone acetylase KAT5 and histone deacetylase HDAC7 (PubMed:17360565). Can activate the expression of TNFRSF18, IL2RA and CTLA4 and repress the expression of IL2 and IFNG via its association with transcription factor RUNX1 (PubMed:17377532). Inhibits the differentiation of IL17 producing helper T-cells (Th17) by antagonizing RORC function, leading to down-regulation of IL17 expression, favoring Treg development (PubMed:18368049). Inhibits the transcriptional activator activity of RORA (PubMed:18354202). Can repress the expression of IL2 and IFNG via its association with transcription factor IKZF4 (By similarity).
Alternative names
IPEX, JM2, FOXP3, Forkhead box protein P3, Scurfin
What's included?
Recommended products
Human FOXP3 ELISA Kit is a single-wash 90-min SimpleStep ELISA® for the quantitative measurement of Human FOXP3 in Cell Lysate samples.
Key facts
- Detection method
Colorimetric
- Sample types
Cell Lysate
- Assay type
Sandwich (quantitative)
- Reactive species
Human
- Range
0.625 - 40 ng/mL
- Assay time
1h 30m
- Assay Platform
Pre-coated microplate (12 x 8 well strips)
- Sensitivity
= 0.325 ng/mL
Precision
Intra assay
| Sample | n | mean | SD | C.V. |
|---|---|---|---|---|
Sample Extract | n 8 | mean - | SD - | C.V. 6.9 |
Inter assay
| Sample | n | mean | SD | C.V. |
|---|---|---|---|---|
Sample Extract | n 4 | mean - | SD - | C.V. 7.4 |
Recovery
Sample specific recovery
| Sample type | Average % | Range |
|---|---|---|
Sample type Cell Lysate | Average % = 107 | Range 91 - 120 % |
Storage
- Shipped at conditions
Blue Ice
- Appropriate short-term storage conditions
+4°C
- Appropriate long-term storage conditions
+4°C
- Storage information
+4°C
Notes
Human FOXP3 ELISA Kit (ab289644) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Human FOXP3 in cell extract samples. It uses our proprietary SimpleStep ELISA® technology. Quantitate Human FOXP3 with 0.325 ng/ml sensitivity.
SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:
-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips
A 384-well SimpleStep ELISA® microplate (Pre-coated 384 well Microplate SimpleStep ELISA® ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.
Supplementary info
This supplementary information is collated from multiple sources and compiled automatically.
- Activity summary
FOXP3 also recognized as Forkhead box P3 is a transcription factor critical for immune system function. It weighs approximately 47 kDa. FOXP3 is mainly expressed in regulatory T cells (Tregs) which play a role in maintaining immune tolerance. Scientists primarily identify its presence in the nucleus where it facilitates transcriptional regulation. Methods like 'FOXP3 IHC' and 'FOXP3 IHC mouse' are useful for detecting this protein in tissue samples while 'FOXP3 antibodies' aid in research on this target. Techniques like 'FOXP3 staining' and 'FOXP3 flow cytometry' further allow for the analysis of its expression and function.
- Biological function summary
This transcription factor operates by regulating the expression of a variety of genes involved in Treg cell development and function. FOXP3 can interact with other proteins to form complexes that modulate gene expression. Its role is essential in enabling Tregs to suppress immune responses a process necessary for preventing autoimmunity. The interaction extends to other key regulators within Tregs such as the protein complex 221D which may have overlapping functional responsibilities. 'FOXP3 236a/E7' reflects its genetic variants detectable in different studies providing insights into its biological functions.
- Pathways
FOXP3 is a significant player within the immune regulation pathway. It integrates into the TGF-beta signaling pathway in which it controls the expression of genes important for Treg functions. The protein recruits other transcription factors like NF-kB coordinating intricate network regulations within immune cells. FOXP3's activity orchestrates the balance between immune activation and suppression ensuring a well-functioning immune response that prevents overreactions leading to autoimmune conditions.
- Associated diseases and disorders
FOXP3 mutations or dysregulation can link to autoimmune diseases like immune dysregulation polyendocrinopathy enteropathy X-linked syndrome (IPEX). This transcription factor's malfunction implicates cancer where inadequate Treg function can either suppress antitumor immunity or result in tumor progression. Proteins such as CTLA-4 which is also involved in immune regulation connect to FOXP3 in these contexts emphasizing FOXP3’s significant role in maintaining immune homeostasis and its impact on disease development.
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
3 product images
Sandwich ELISA - Human FOXP3 ELISA Kit (ab289644)
Interpolated concentrations of FOXP3 in human FOXP3 overexpressing HEK293 cell extract.
The concentration of FOXP3 was measured in human FOXP3 overexpressing HEK293 cell extract and in empty plasmid transfected HEK293 cell extract, based on a 20 μg/mL extract load. The mean concentration was determined to be 24.73 ng/mL in FOXP3 overexpressing HEK293 cell extract and undetectable in empty plasmid transfected HEK293 cell extract.
Sandwich ELISA - Human FOXP3 ELISA Kit (ab289644)

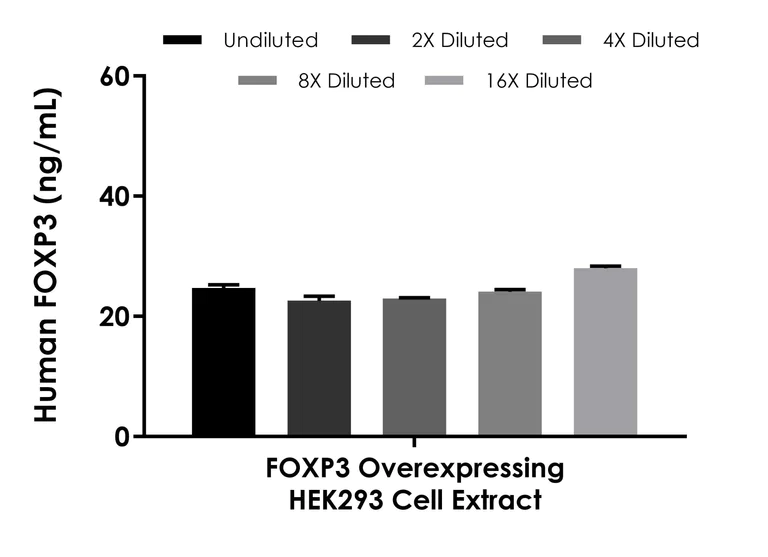

Interpolated concentrations of human FOXP3 in FOXP3 overexpressing HEK293 cell extract.
Interpolated concentration of overexpressed FOXP3 was measured in duplicate at different sample concentrations. Undiluted samples are 20 μg/mL FOXP3 overexpressing HEK293 cell extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

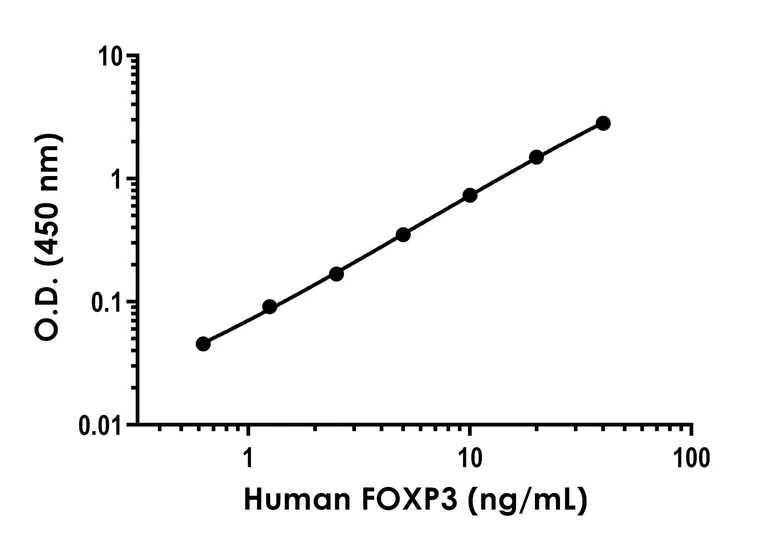

Sandwich ELISA - Human FOXP3 ELISA Kit (ab289644)
