AB322378

Human Fractalkine (CX3CL1) ELISA Kit- Extracellular

Recombinant
SimpleStep
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Human Fractalkine (CX3CL1) ELISA Kit- Extracellular is a single-wash 90-min Simplestep used to quantify Human Fractalkine (CX3CL1) with a sensitivity of 13.41 pg/mL. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders and 384-well plate for higher throughput
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

FKN, NTT, SCYD1, A-152E5.2, CX3CL1, Fractalkine, C-X3-C motif chemokine 1, CX3C membrane-anchored chemokine, Neurotactin, Small-inducible cytokine D1

8 Images

Sandwich ELISA - Human Fractalkine (CX3CL1) ELISA Kit- Extracellular (AB322378)

sELISA

Supplier Data

Sandwich ELISA - Human Fractalkine (CX3CL1) ELISA Kit- Extracellular (AB322378)

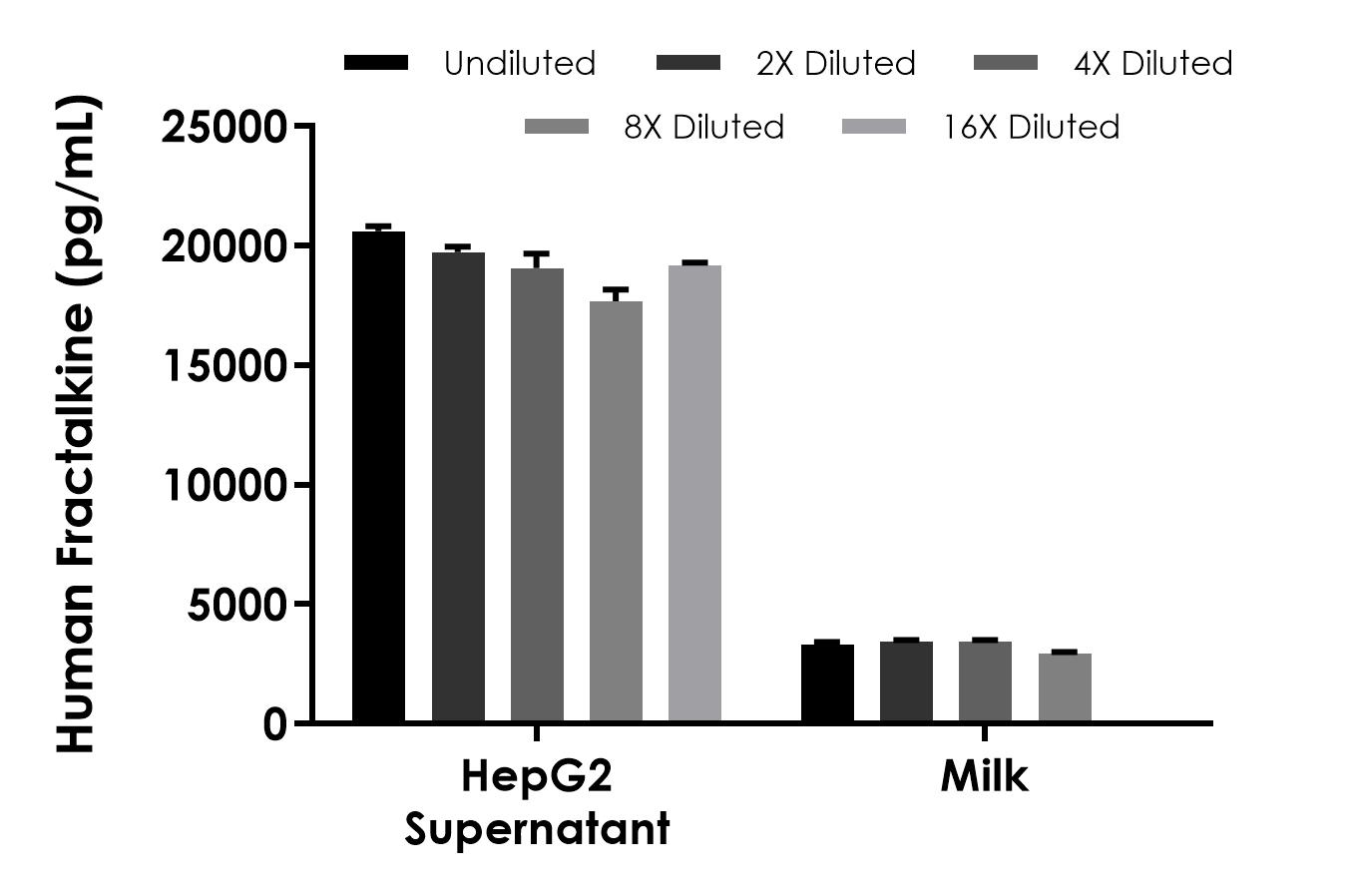

Interpolated concentration of native Fractalkine was measured in duplicate at different sample concentrations. Undiluted samples are as follows : HepG2 supernatant 12.5% and milk 25%. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

sELISA

Supplier Data

Sandwich ELISA - Human Fractalkine (CX3CL1) ELISA Kit- Extracellular (AB322378)

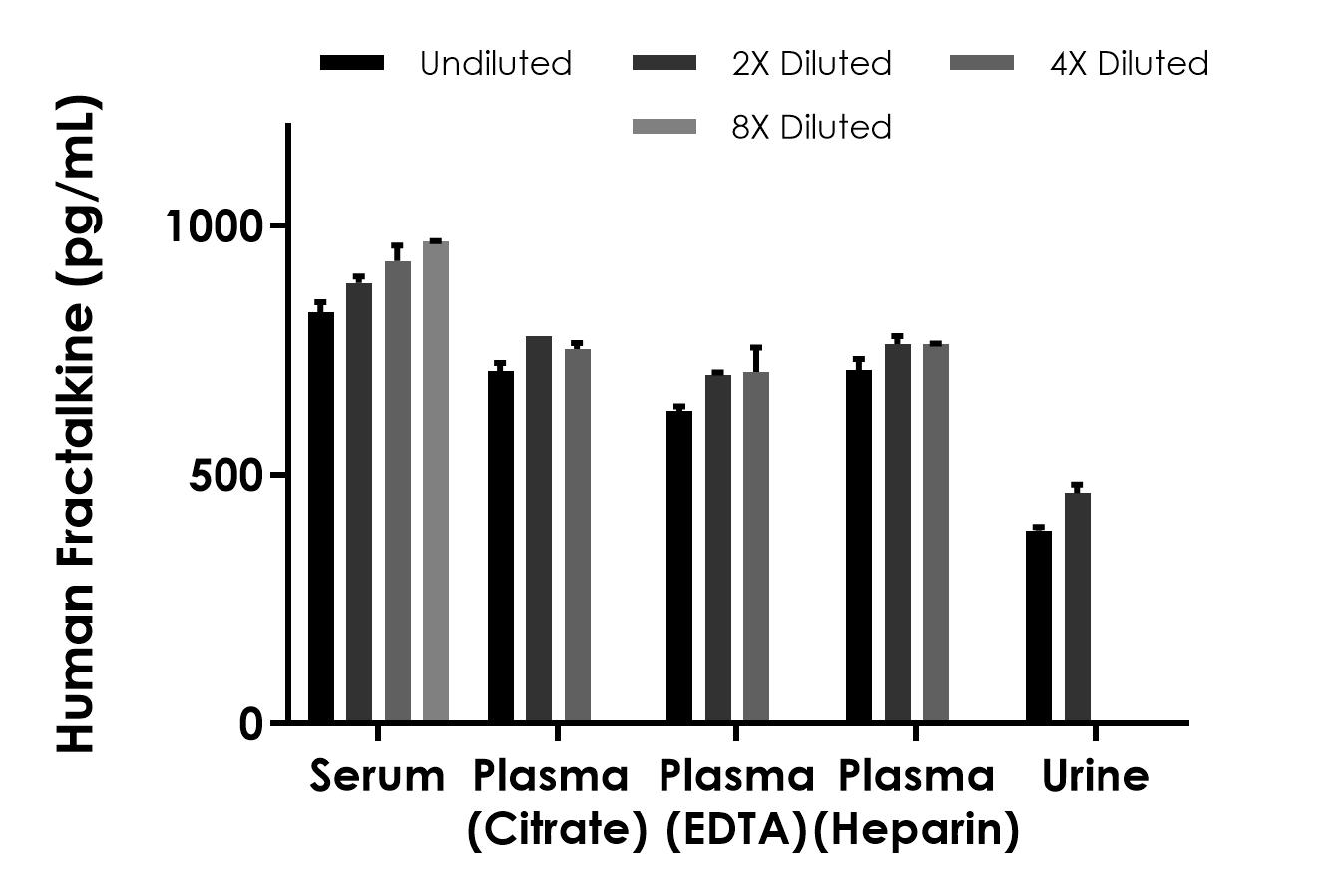

Interpolated concentration of native Fractalkine was measured in duplicate at different sample concentrations. Undiluted samples are serum 50%, plasma (citrate) 50%, plasma (EDTA) 50%, plasma (heparin) 50%, and urine (pooled gender) 25%. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

sELISA

Supplier Data

Sandwich ELISA - Human Fractalkine (CX3CL1) ELISA Kit- Extracellular (AB322378)

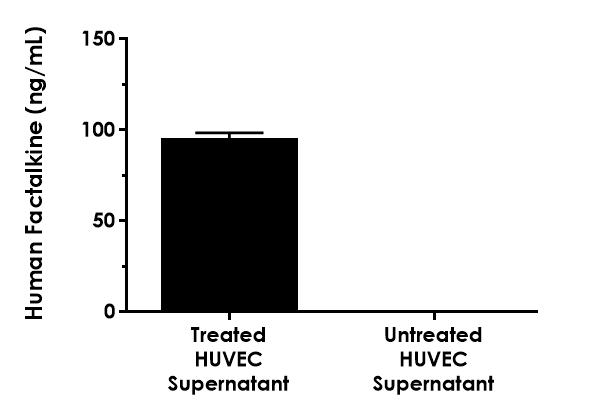

Supernatant from HUVEC cells grown in the presence and absence of 40 ng/ml TNF alpha and 50 ng/mL IFN gamma for 24 hours was measured in duplicate. Interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD n=2). The mean Fractalkine concentration was determined to be 95.58 ng/ml in treated HUVEC supernatant and not detectable in untreated HUVEC supernatant.

sELISA

Supplier Data

Sandwich ELISA - Human Fractalkine (CX3CL1) ELISA Kit- Extracellular (AB322378)

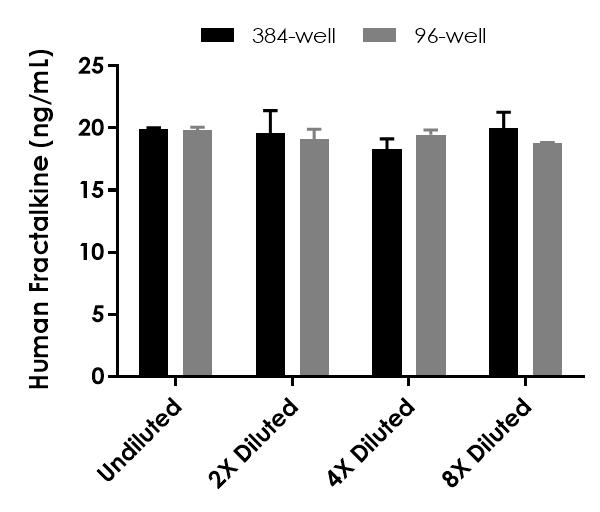

Interpolated concentration of native Fractalkine was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 12.5% HepG2 supernatant. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

sELISA

Supplier Data

Sandwich ELISA - Human Fractalkine (CX3CL1) ELISA Kit- Extracellular (AB322378)

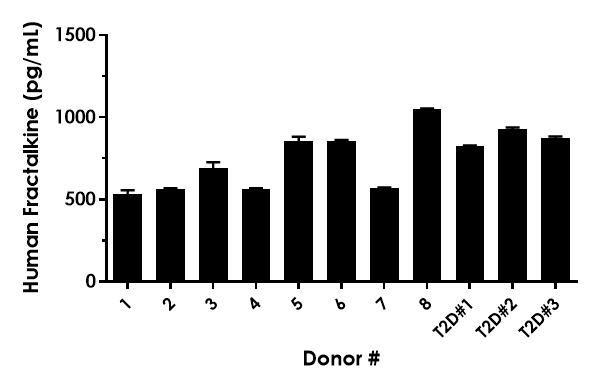

Serum of ten individual healthy human male donors and three individual type 2 diabetes (T2D) donors was measured in duplicate. Interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). The mean Fractalkine concentration in healthy donors was determined to be 710.5 pg/mL with a range of 517.6 – 1,053.6 pg/mL. The mean Fractalkine concentration in type 2 diabetes donors was determined to be 875.4 pg/mL with a range of 828.0 – 926.5 pg/mL.

sELISA

Supplier Data

Sandwich ELISA - Human Fractalkine (CX3CL1) ELISA Kit- Extracellular (AB322378)

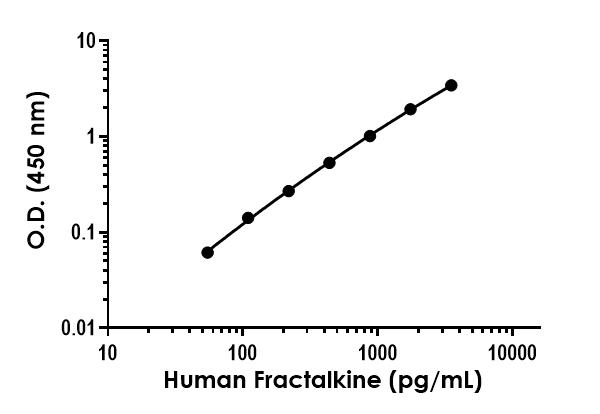

Example of human Fractalkine standard curve in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Supplier Data

Sandwich ELISA - Human Fractalkine (CX3CL1) ELISA Kit- Extracellular (AB322378)

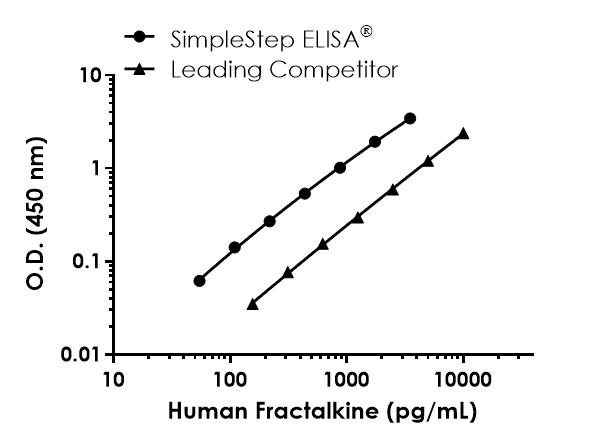

Standard curve comparison between Human Fractalkine SimpleStep ELISA kit (ab322378) and traditional ELISA kit from leading competitor. The SimpleStep ELISA kit shows increased sensitivity.

sELISA

Supplier Data

Sandwich ELISA - Human Fractalkine (CX3CL1) ELISA Kit- Extracellular (AB322378)

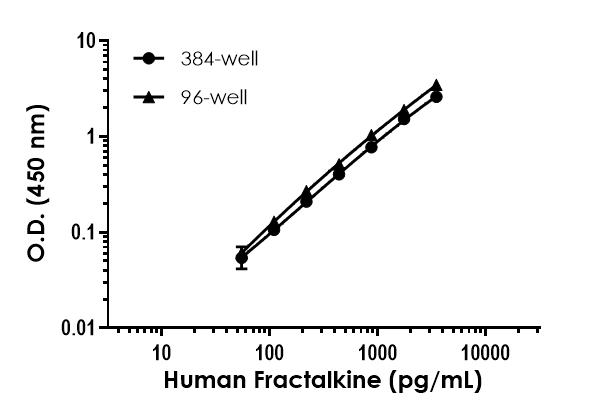

Example of human Fractalkine standard curve in Sample Diluent NS in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Serum, Citrate plasma, EDTA Plasma, Heparin Plasma, Cell culture supernatant, Urine

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 13.41 pg/mL

Range

54.688 - 3500 pg/mL

Assay time

1h 30m

Assay Platform

Microplate (12 x 8 well strips)

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

Human Fractalkine (CX3CL1) SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Fractalkine (CX3CL1) protein in Serum, Cit Plasma, EDTA Plasma, Hep Plasma, Cell culture supernatant, Urine, Milk, Cerebral Spinal Fluid. Quantitate Human Fractalkine (CX3CL1) with 13.41 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less

-High sensitivity, specificity and reproducibility from superior antibodies

-Fully validated in biological samples

-96-wells plate breakable into 12 x 8 wells strips, available in 10-pack (10 x 96-well plates)

-Also available in a fully validated 384-well format.

style

left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 2.2" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 1.6" } ]

style

left-column

Recovery

[ { "sample": "Cell Lysate", "range": "101 - 107 %", "average": "= 103" }, { "sample": "Tissue Extracts", "range": "106 - 112 %", "average": "= 109" } ]

style

left-column

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab322378-10x96Tests", "assetComponentDetails": [ { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB322378-CMP08" }, { "size":"20 x 1 Vial", "name":"Human Fractalkine (CX3CL1) Lyophilized Recombinant Protein", "number":"AB322378-CMP03" }, { "size":"10 x 600 µL", "name":"10X Human Fractalkine (CX3CL1) Detector Antibody", "number":"AB322378-CMP02" }, { "size":"10 x 1 Vial", "name":"Lyophilized Human Fractalkine (CX3CL1) Capture Antibody", "number":"AB322378-CMP01" }, { "size":"2 x 250 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB322378-CMP06" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB322378-CMP07" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB322378-CMP05" }, { "size":"10 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB322378-CMP04" }, { "size":"10 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB322378-CMP09" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB322378-CMP10" } ] }, "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab322378-1x384Tests", "assetComponentDetails": [ { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB322378-CMP08" }, { "size":"2 x 1 Vial", "name":"Human Fractalkine (CX3CL1) Lyophilized Recombinant Protein", "number":"AB322378-CMP03" }, { "size":"1 x 600 µL", "name":"10X Human Fractalkine (CX3CL1) Detector Antibody", "number":"AB322378-CMP02" }, { "size":"1 x 1 Vial", "name":"Lyophilized Human Fractalkine (CX3CL1) Capture Antibody", "number":"AB322378-CMP01" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB322378-CMP06" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB322378-CMP07" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB322378-CMP05" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB322378-CMP04" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB322378-CMP10" }, { "size":"1 x 1 Unit", "name":"384 well CaptSure™ microplates", "number":"AB322378-CMP11" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab322378-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB322378-CMP08", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human Fractalkine (CX3CL1) Lyophilized Recombinant Protein", "number":"AB322378-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Fractalkine (CX3CL1) Detector Antibody", "number":"AB322378-CMP02", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Lyophilized Human Fractalkine (CX3CL1) Capture Antibody", "number":"AB322378-CMP01", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB322378-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB322378-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB322378-CMP09", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB322378-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB322378-CMP10", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB322378-CMP04", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

Chemokine that acts as a ligand for both CX3CR1 and integrins ITGAV : ITGB3 and ITGA4 : ITGB1 (PubMed : 12055230, PubMed : 21829356, PubMed : 23125415, PubMed : 9782118, PubMed : 9931005). The CX3CR1-CX3CL1 signaling exerts distinct functions in different tissue compartments, such as immune response, inflammation, cell adhesion and chemotaxis (PubMed : 12055230, PubMed : 9024663, PubMed : 9177350, PubMed : 9782118). Regulates leukocyte adhesion and migration processes at the endothelium (PubMed : 9024663, PubMed : 9177350). Can activate integrins in both a CX3CR1-dependent and CX3CR1-independent manner (PubMed : 23125415, PubMed : 24789099). In the presence of CX3CR1, activates integrins by binding to the classical ligand-binding site (site 1) in integrins (PubMed : 23125415, PubMed : 24789099). In the absence of CX3CR1, binds to a second site (site 2) in integrins which is distinct from site 1 and enhances the binding of other integrin ligands to site 1 (PubMed : 23125415, PubMed : 24789099).. Processed fractalkine. The soluble form is chemotactic for T-cells and monocytes, but not for neutrophils.. Fractalkine. The membrane-bound form promotes adhesion of those leukocytes to endothelial cells.. (Microbial infection) Mediates the cytoadherence of erythrocytes infected with parasite P.falciparum (strain 3D7) with endothelial cells by interacting with P.falciparum CBP1 and CBP2 expressed at the surface of erythrocytes (PubMed : 27653778). The adhesion prevents the elimination of infected erythrocytes by the spleen (Probable).

See full target information CX3CL1

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
