AB326408

Human GFAP ELISA Kit, Chemiluminescent - Intracellular

Be the first to review this product! Submit a review

|

(0 Publication)

Human GFAP ELISA Kit, Chemiluminescent - Intracellular is a 55-min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Human GFAP with higher sensitivity and broader measuring range.

- Single 30 min incubation and single-wash step for results in less than an hour.
- Chemiluminescent detection allows a broad dynamic range: 0.05 - 100 ng/ml with a sensitivity of 0.02ng/mL.
- Design your own immunoassay: we also offer the conjugation-ready antibody pair.
-Patent pending

View Alternative Names

Glial fibrillary acidic protein, GFAP

4 Images
Sandwich ELISA - Human GFAP ELISA Kit, Chemiluminescent - Intracellular (AB326408)
  • sELISA

Lab

Sandwich ELISA - Human GFAP ELISA Kit, Chemiluminescent - Intracellular (AB326408)

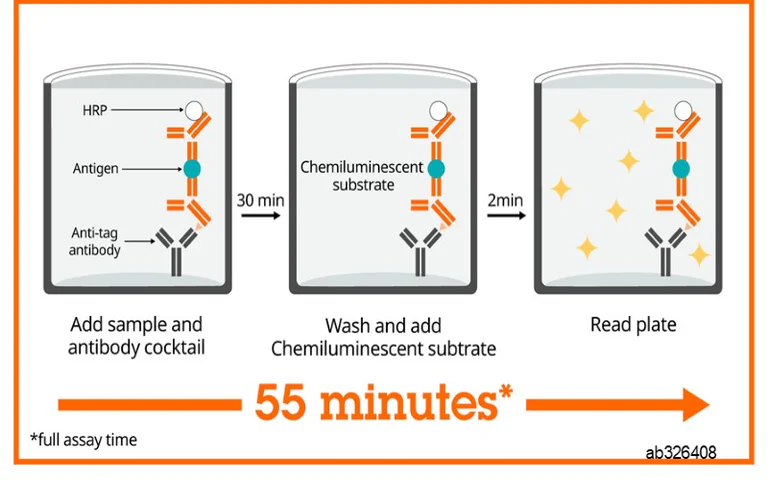

SimpleStep ELISA® Ignite technology allows the formation of the antibody-antigen complex in one single step, reducing assay time to 55 minutes. Add samples or standards and antibody mix to wells all at once, incubate, wash, and add your final substrate. See protocol for a detailed step-by-step guide.

Sandwich ELISA - Human GFAP ELISA Kit, Chemiluminescent - Intracellular (AB326408)
  • sELISA

Lab

Sandwich ELISA - Human GFAP ELISA Kit, Chemiluminescent - Intracellular (AB326408)

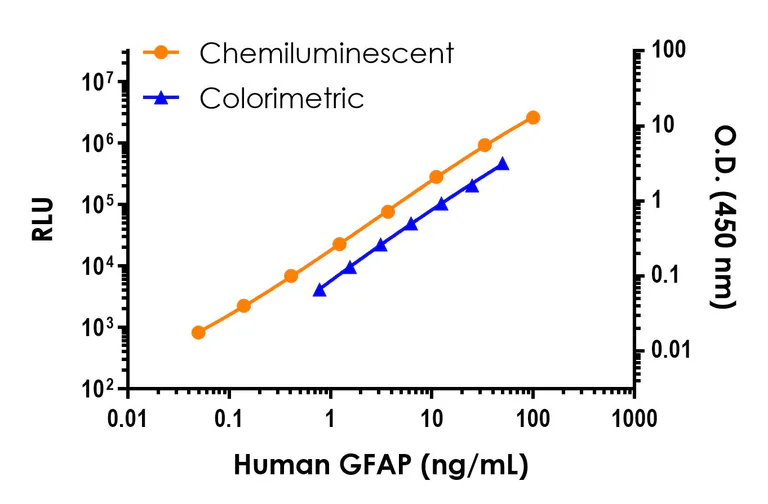

Standard curve comparison between the Chemiluminescent Human GFAP SimpleStep ELISA and colorimetric Human GFAP SimpleStep ELISA (ab223867) in 1X Cell Extraction Buffer PTR. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human GFAP ELISA Kit, Chemiluminescent - Intracellular (AB326408)
  • sELISA

Lab

Sandwich ELISA - Human GFAP ELISA Kit, Chemiluminescent - Intracellular (AB326408)

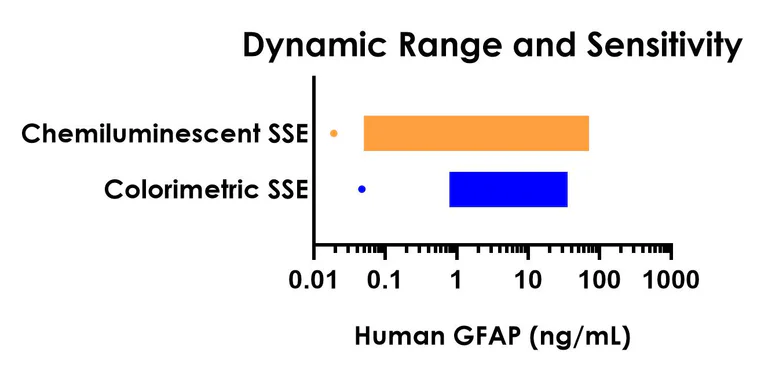

Dynamic range comparison between the Chemiluminescent Human GFAP SimpleStep ELISA and colorimetric Human GFAP SimpleStep ELISA (ab223867). The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and increased dynamic range.

Sandwich ELISA - Human GFAP ELISA Kit, Chemiluminescent - Intracellular (AB326408)
  • sELISA

Supplier Data

Sandwich ELISA - Human GFAP ELISA Kit, Chemiluminescent - Intracellular (AB326408)

Interpolated concentrations of native GFAP in Human brain extract based on a 100 ng/mL extract load.

The concentrations of GFAP were measured in duplicate and interpolated from the GFAP standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean GFAP concentration was determined to be 46.27 ng/mL per 100 ng/ml extract load.

Key facts

Detection method

Luminescent

Sample types

Tissue Extracts

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 0.02 ng/mL

Range

0.05 - 100 ng/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human GFAP ELISA Kit, Chemiluminescent - Intracellular (ab326408) is a rapid single-wash sandwich 55-min ELISA to measure Human GFAP in Tissue Extracts with a sensitivity of 0.02 ng/mL.

How the assay works

Human GFAP ELISA Kit, Chemiluminescent - Intracellular (ab326408) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colorimetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Human GFAP (ab326408) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-GFAP antibody [EPR19996-132] BSA and Azide free (Capture) ab242692
- Anti-GFAP antibody [EPR19996] BSA and Azide free (Detector) ab242937
style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Brain Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 5.3" }, { "reproducibilityType": "Inter", "sample": "Brain Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 11.8" } ]
style
left-column

Recovery

[ { "sample": "Tissue Extracts", "range": "116 - 119 %", "average": "= 117" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab326408-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB326408-CMP09", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human GFAP Capture Antibody", "number":"AB326408-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB326408-CMP10", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB326408-CMP05", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human GFAP Lyophilized Recombinant Protein", "number":"AB326408-CMP03", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CP2", "number":"AB326408-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human GFAP Detector Antibody", "number":"AB326408-CMP02", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB326408-CMP08", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB326408-CMP06", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB326408-CMP07", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

GFAP, a class-III intermediate filament, is a cell-specific marker that, during the development of the central nervous system, distinguishes astrocytes from other glial cells.
See full target information GFAP
style
left-column
style
left-column
websiteProtocolBooklet
en
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
