AB46086

Human GM-CSF Receptor alpha ELISA Kit (CD116)

Be the first to review this product! Submit a review

|

(0 Publication)

Human GM-CSF Receptor alpha ELISA Kit (CD116) is a Sandwich (quantitative) ELISA for the measurement of Human GM-CSF Receptor alpha (CD116) in Human in Biofluids, Cell Culture Media samples.

View Alternative Names

CD116, CSF2R, CSF2RY, CSF2RA, Granulocyte-macrophage colony-stimulating factor receptor subunit alpha, GM-CSF-R-alpha, GMCSFR-alpha, GMR-alpha, CDw116

1 Images
Sandwich ELISA - Human GM-CSF Receptor alpha ELISA Kit (CD116) (AB46086)
  • sELISA

Supplier Data

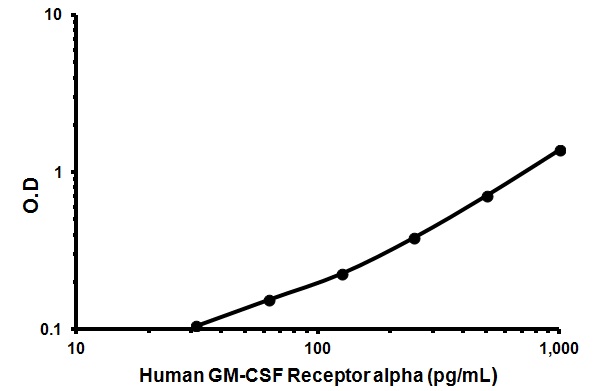

Sandwich ELISA - Human GM-CSF Receptor alpha ELISA Kit (CD116) (AB46086)

Representative Standard Curve using ab46086

Key facts

Detection method

Colorimetric

Sample types

Plasma, Cell culture supernatant, Serum

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

< 16 pg/mL

Range

31.25 - 1000 pg/mL

Assay time

3h 45m

Assay Platform

Microplate

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Abcam's GM-CSF Receptor alpha (CD116) Human in vitro ELISA (Enzyme-Linked Immunosorbent Assay) kit is designed for the quantitative measurement of GM-CSF R alpha in serum, plasma, and cell culture supernatants.

A monoclonal antibody specific for GM-CSF R alpha has been coated onto the wells of the microtiter strips provided. Samples, including standards of known GM-CSF R alpha concentrations, control specimens or unknowns are pipetted into these wells. During the first incubation, the standards or samples and a biotinylated monoclonal antibody specific for GM-CSF R alpha are simultaneously incubated. After washing, the enzyme Streptavidin-HRP, that binds the biotinylated antibody is added, incubated and washed. A TMB substrate solution is added which acts on the bound enzyme to induce a colored reaction product. The intensity of this colored product is directly proportional to the concentration of GM-CSF R alpha present in the samples.

This kit will recognize both endogenous and recombinant Human GM-CSF R alpha.

style
left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Sample A", "replicates": 6, "mean": "555 pg/mL", "standardDeviation": "22.2", "coefficientOfVariability": "4" }, { "reproducibilityType": "Inter", "sample": "Sample B", "replicates": 6, "mean": "120.7 pg/mL", "standardDeviation": "2.2", "coefficientOfVariability": "1.8" }, { "reproducibilityType": "Intra", "sample": "Sample A", "replicates": 31, "mean": "700.2 pg/mL", "standardDeviation": "20.4", "coefficientOfVariability": "2.9" }, { "reproducibilityType": "Intra", "sample": "Sample B", "replicates": 32, "mean": "378 pg/mL", "standardDeviation": "12.8", "coefficientOfVariability": "3.4" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab46086-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"HRP Diluent", "number":"AB46086-CMP07" }, { "size":"2 x 1 Vial", "name":"Control", "number":"AB46086-CMP04" }, { "size":"1 x 11 mL", "name":"Stop Reagent", "number":"AB46086-CMP06" }, { "size":"1 x 10 mL", "name":"200X Wash Buffer", "number":"AB46086-CMP09" }, { "size":"1 x 1 Unit", "name":"GM-CSF Receptor alpha Microplate (12 x 8 well strips)", "number":"AB46086-CMP03" }, { "size":"2 x 5 µL", "name":"Streptavidin-HRP", "number":"AB46086-CMP08" }, { "size":"1 x 7 mL", "name":"Biotinylated Antibody Diluent", "number":"AB46086-CMP01" }, { "size":"2 x 1 Vial", "name":"GM-CSF Receptor alpha Standard (Lyophilized)", "number":"AB46086-CMP05" }, { "size":"1 x 11 mL", "name":"Chromogen TMB Substrate Solution", "number":"AB46086-CMP11" }, { "size":"1 x 400 µL", "name":"Biotinylated anti-GM-CSF R alpha", "number":"AB46086-CMP02" }, { "size":"1 x 15 mL", "name":"10X Standard Diluent Buffer", "number":"AB46086-CMP10" } ] }, "2x96Tests": { "sellingSize": "2 x 96 Tests", "publicAssetCode":"ab46086-2x96Tests", "assetComponentDetails": [ { "size":"1 x 23 mL", "name":"HRP Diluent", "number":"AB46086-CMP07", "productcode":"" }, { "size":"1 x 24 mL", "name":"Chromogen TMB Substrate Solution", "number":"AB46086-CMP11", "productcode":"" }, { "size":"2 x 11 mL", "name":"Stop Reagent", "number":"AB46086-CMP06", "productcode":"" }, { "size":"2 x 400 µL", "name":"Biotinylated anti-GM-CSF R alpha", "number":"AB46086-CMP02", "productcode":"" }, { "size":"1 x 25 mL", "name":"10X Standard Diluent Buffer", "number":"AB46086-CMP10", "productcode":"" }, { "size":"2 x 10 mL", "name":"200X Wash Buffer", "number":"AB46086-CMP09", "productcode":"" }, { "size":"4 x 1 Vial", "name":"GM-CSF Receptor alpha Standard (Lyophilized)", "number":"AB46086-CMP05", "productcode":"" }, { "size":"1 x 13 mL", "name":"Biotinylated Antibody Diluent", "number":"AB46086-CMP01", "productcode":"" }, { "size":"4 x 1 Vial", "name":"Control", "number":"AB46086-CMP04", "productcode":"" }, { "size":"2 x 1 Unit", "name":"GM-CSF Receptor alpha Microplate (12 x 8 well strips)", "number":"AB46086-CMP03", "productcode":"" }, { "size":"4 x 5 µL", "name":"Streptavidin-HRP", "number":"AB46086-CMP08", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The GM-CSF receptor alpha also known as CD116 is a protein that plays role in the immune response. It is a component of the GM-CSF receptor complex and has an approximate molecular weight of 74 kDa. This receptor is found on the surface of various cell types like monocytes macrophages and neutrophils. It binds specifically to granulocyte-macrophage colony-stimulating factor (GM-CSF) which leads to the activation of downstream signaling pathways important for cell survival and proliferation.
Biological function summary

GM-CSF receptor alpha binds GM-CSF with high affinity and is part of a receptor complex that includes beta common chain (βc). The receptor complex initiates signaling cascades that modulate immune functions such as differentiation of myeloid cells and macrophage activation. These interactions support various immune processes like inflammation and pathogen defense. GM-CSF receptor alpha is essential to ensure proper cellular responses to environmental cues.

Pathways

GM-CSF receptor alpha is involved in the JAK-STAT and MAPK pathways. Upon ligand binding it activates JAK2 which in turn triggers STAT5 phosphorylation — important for transcription of immune-related genes. Simultaneously it initiates the MAPK (mitogen-activated protein kinase) pathway further promoting cell differentiation and proliferation. Each of these signaling events connect GM-CSF receptor alpha to other proteins like JAK2 and STAT5 which collaborate to sustain proper immune activity.

GM-CSF receptor alpha is linked to pulmonary alveolar proteinosis and rheumatoid arthritis. In pulmonary alveolar proteinosis dysregulation of GM-CSF receptor signaling leads to impaired surfactant clearance resulting in respiratory complications. In rheumatoid arthritis increased GM-CSF signaling contributes to inflammation and joint damage. Proteins like βc and GM-CSF interact with GM-CSF receptor alpha amplifying the pathological signals in these conditions highlighting its potential as a therapeutic target.
style
left-column

Product protocols

style
left-column

Target data

Low affinity receptor for granulocyte-macrophage colony-stimulating factor. Transduces a signal that results in the proliferation, differentiation, and functional activation of hematopoietic cells.
See full target information CSF2RA
