AB46142

Human Granzyme B ELISA Kit (CTLA-1)

Be the first to review this product! Submit a review

|

(10 Publications)

Human Granzyme B ELISA Kit (CTLA-1) is a Sandwich ELISA for the measurement of Human Granzyme B (CTLA-1) in Human in Biofluids, Cell Culture Media samples.

View Alternative Names

CGL1, CSPB, CTLA1, GRB, GZMB, Granzyme B, C11, CTLA-1, Cathepsin G-like 1, Cytotoxic T-lymphocyte proteinase 2, Fragmentin-2, Granzyme-2, Human lymphocyte protein, SECT, T-cell serine protease 1-3E, CTSGL1, Lymphocyte protease, HLP

2 Images
Sandwich ELISA - Human Granzyme B ELISA Kit (CTLA-1) (AB46142)
  • sELISA

Lab

Sandwich ELISA - Human Granzyme B ELISA Kit (CTLA-1) (AB46142)

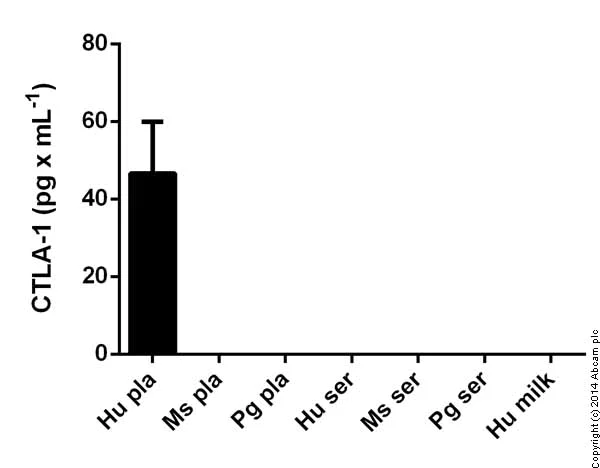

Hu Granzyme B (CTLA-1) measured in biologicals showing quantity (pg) per mL of tested sample

Sandwich ELISA - Human Granzyme B ELISA Kit (CTLA-1) (AB46142)
  • sELISA

Lab

Sandwich ELISA - Human Granzyme B ELISA Kit (CTLA-1) (AB46142)

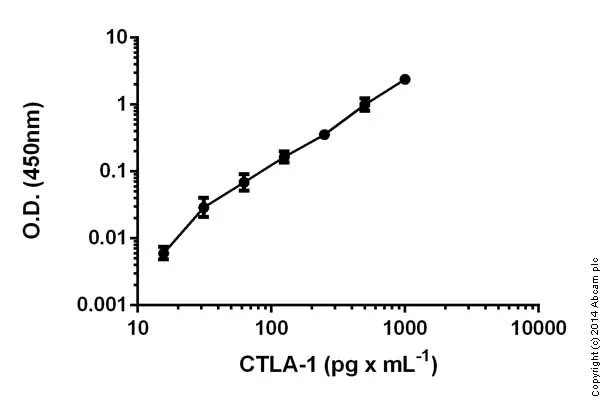

Representative Standard Curve using ab46142

Key facts

Detection method

Colorimetric

Sample types

Plasma, Cell culture supernatant, Serum

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

< 20 pg/mL

Range

31.25 - 1000 pg/mL

Assay time

3h 45m

Assay Platform

Microplate

style
left-column

Complementary Products

Assay Kits

AB46068

Human Perforin ELISA Kit (PRF1)

ELISA - Human Perforin ELISA Kit (PRF1) (AB46068)

  • 0
  • 0
Assay Kits

AB174443

Human IFN gamma ELISA Kit

SimpleStep

ELISA - Human IFN gamma ELISA Kit (AB174443)

  • 0
  • 0
Assay Kits

AB270883

Human IL-2 ELISA Kit

SimpleStep

ELISA - Human IL-2 ELISA Kit (AB270883)

  • 0
  • 0
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Abcam's Granzyme B (CTLA-1) Human in vitro ELISA (Enzyme-Linked Immunosorbent Assay) kit is designed for the quantitative measurement of Granzyme B in Human serum, plasma, buffered solutions and cell culture medium.

A monoclonal antibody specific Granzyme B has been coated onto the wells of the microtiter strips provided. Samples, including standards of known Granzyme B concentrations, control specimens or unknowns are pipetted into these wells. During the first incubation, the standards or samples and a biotinylated monoclonal antibody specific for Granzyme B are simultaneously incubated. After washing, the enzyme Streptavidin-HRP, that binds the biotinylated antibody is added, incubated and washed. A TMB substrate solution is added which acts on the bound enzyme to induce a colored reaction product. The intensity of this colored product is directly proportional to the concentration of Granzyme B present in the samples.

This kit will recognize both endogenous and recombinant Human Granzyme B.

style
left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Sample A", "replicates": 8, "mean": "536 pg/mL", "standardDeviation": "30", "coefficientOfVariability": "5.59" }, { "reproducibilityType": "Inter", "sample": "Sample B", "replicates": 8, "mean": "138 pg/mL", "standardDeviation": "9", "coefficientOfVariability": "6.76" }, { "reproducibilityType": "Intra", "sample": "Sample A", "replicates": 15, "mean": "356 pg/mL", "standardDeviation": "18", "coefficientOfVariability": "5.06" }, { "reproducibilityType": "Intra", "sample": "Sample B", "replicates": 15, "mean": "73 pg/mL", "standardDeviation": "5", "coefficientOfVariability": "7.38" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "67 - 78 %", "average": "= 73" } ]
style
left-column

What's included?

{ "values": { "2x96Tests": { "sellingSize": "2 x 96 Tests", "publicAssetCode":"ab46142-2x96Tests", "assetComponentDetails": [ { "size":"2 x 10 mL", "name":"200X Wash Buffer", "number":"AB46142-CMP08" }, { "size":"1 x 23 mL", "name":"HRP Diluent", "number":"AB46142-CMP06" }, { "size":"4 x 5 µL", "name":"Streptavidin-HRP", "number":"AB46142-CMP07" }, { "size":"2 x 11 mL", "name":"Stop Reagent", "number":"AB46142-CMP05" }, { "size":"1 x 24 mL", "name":"Chromogen TMB Substrate Solution", "number":"AB46142-CMP10" }, { "size":"2 x 400 µL", "name":"Biotinylated anti-Granzyme B", "number":"AB46142-CMP01" }, { "size":"2 x 1 Unit", "name":"Granzyme B Microplate (12 x 8 well strips)", "number":"AB46142-CMP03" }, { "size":"4 x 1 Vial", "name":"Granzyme B Standard (Lyophilized)", "number":"AB46142-CMP04" }, { "size":"1 x 25 mL", "name":"10X Standard Diluent Buffer", "number":"AB46142-CMP09" }, { "size":"1 x 13 mL", "name":"Biotinylated Antibody Diluent", "number":"AB46142-CMP02" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab46142-1x96Tests", "assetComponentDetails": [ { "size":"1 x 11 mL", "name":"Stop Reagent", "number":"AB46142-CMP05", "productcode":"" }, { "size":"2 x 5 µL", "name":"Streptavidin-HRP", "number":"AB46142-CMP07", "productcode":"" }, { "size":"1 x 10 mL", "name":"200X Wash Buffer", "number":"AB46142-CMP08", "productcode":"" }, { "size":"1 x 11 mL", "name":"Chromogen TMB Substrate Solution", "number":"AB46142-CMP10", "productcode":"" }, { "size":"1 x 12 mL", "name":"HRP Diluent", "number":"AB46142-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Granzyme B Microplate (12 x 8 well strips)", "number":"AB46142-CMP03", "productcode":"" }, { "size":"1 x 400 µL", "name":"Biotinylated anti-Granzyme B", "number":"AB46142-CMP01", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Granzyme B Standard (Lyophilized)", "number":"AB46142-CMP04", "productcode":"" }, { "size":"1 x 15 mL", "name":"10X Standard Diluent Buffer", "number":"AB46142-CMP09", "productcode":"" }, { "size":"1 x 7.5 mL", "name":"Biotinylated Antibody Diluent", "number":"AB46142-CMP02", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Granzyme B also known as GZMB GB11 or granzyme B protein is a serine protease with a molecular mass of approximately 32 kDa. It is expressed mainly in cytotoxic T lymphocytes and natural killer (NK) cells. This enzyme plays a mechanical role in inducing apoptosis in target cells serving as an effector protein in the immune system's defense against virally infected cells or transformed cancer cells. The activity of granzyme B relies on its ability to cleave after aspartate residues in substrate proteins leading to the activation of apoptotic pathways.
Biological function summary

Granzyme B participates prominently in the immune response by activating caspases particularly caspase-3 which promotes the breakdown of cellular components necessary for apoptosis. Granzyme B does not function in isolation but acts in concert with other immune system factors such as perforin to effectively induce cell death. Perforin creates pores in the target cell membrane allowing granzyme B to enter and instigate the apoptosis sequence. The enzyme also contributes to the processing of cytokines which enhances the immune response further.

Pathways

Studies have determined that granzyme B is critical in the apoptosis pathway particularly in the granule exocytosis pathway. It closely interacts with proteins such as perforin and other granzymes to mediate apoptosis in target cells. Granzyme B also plays a role in the inflammatory response and can influence pathways associated with cytotoxic T cell signaling. Its pathway interactions ensure effective elimination of damaged or infected cells maintaining tissue homeostasis.

Granzyme B has associations with autoimmune diseases and cancer. Abnormally high levels of granzyme B can contribute to tissue damage and inflammation in autoimmune conditions like rheumatoid arthritis. In the context of cancer granzyme B aids in tumor surveillance and destruction when functioning correctly but impaired granzyme B activity can lead to evasion of immune detection by cancerous cells. Perforin also plays a role in these conditions closely working with granzyme B to either protect against or drive disease progression.
style
left-column

Product protocols

style
left-column

Target data

Abundant protease in the cytosolic granules of cytotoxic T-cells and NK-cells which activates caspase-independent pyroptosis when delivered into the target cell through the immunological synapse (PubMed : 1985927, PubMed : 3262682, PubMed : 3263427). It cleaves after Asp (PubMed : 1985927, PubMed : 8258716). Once delivered into the target cell, acts by catalyzing cleavage of gasdermin-E (GSDME), releasing the pore-forming moiety of GSDME, thereby triggering pyroptosis and target cell death (PubMed : 31953257, PubMed : 32188940). Seems to be linked to an activation cascade of caspases (aspartate-specific cysteine proteases) responsible for apoptosis execution. Cleaves caspase-3, -9 and -10 (CASP3, CASP9 and CASP10, respectively) to give rise to active enzymes mediating apoptosis (PubMed : 9852092). Cleaves and activates CASP7 in response to bacterial infection, promoting plasma membrane repair (By similarity).
See full target information GZMB
