AB226903

Human ICA 512 / PTPRN ELISA Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Human ICA 512 / PTPRN ELISA Kit is a single-wash 90-min Simplestep used to quantify Human ICA 512 / PTPRN with a sensitivity of 3.52 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

ICA3, ICA512, PTPRN, Receptor-type tyrosine-protein phosphatase-like N, R-PTP-N, Islet cell antigen 512, Islet cell autoantigen 3, PTP IA-2, ICA 512

4 Images
Sandwich ELISA - Human ICA 512 / PTPRN ELISA Kit (AB226903)
  • sELISA

Supplier Data

Sandwich ELISA - Human ICA 512 / PTPRN ELISA Kit (AB226903)

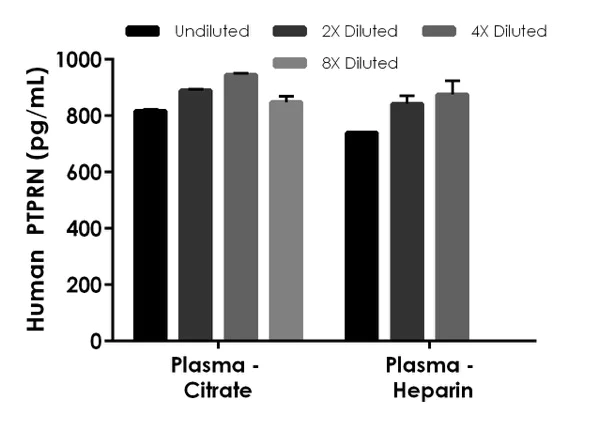

Interpolated concentrations of native PTPRN in Human plasmas.

The concentrations of PTPRN were measured in duplicates, interpolated from the PTPRN standard curves and corrected for sample dilution. Undiluted samples are as follows : plasma (citrate) 25%, plasma (heparin) 25%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean PTPRN concentration was determined to be 874.85 pg/mL in plasma (citrate) and 819.33 pg/mL in plasma (heparin).

Sandwich ELISA - Human ICA 512 / PTPRN ELISA Kit (AB226903)
  • sELISA

Supplier Data

Sandwich ELISA - Human ICA 512 / PTPRN ELISA Kit (AB226903)

Interpolated concentrations of native PTPRN in Human SH-SY5Y cell extract and human pancreas extract based on a 500 μg/mL extract load.

The concentrations of PTPRN were measured in duplicate and interpolated from the PTPRN standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean PTPRN concentration was determined to be 1478.61 pg/mL in SH-SY5Y extract and 489 pg/mL in human pancreas.

Sandwich ELISA - Human ICA 512 / PTPRN ELISA Kit (AB226903)
  • sELISA

Supplier Data

Sandwich ELISA - Human ICA 512 / PTPRN ELISA Kit (AB226903)

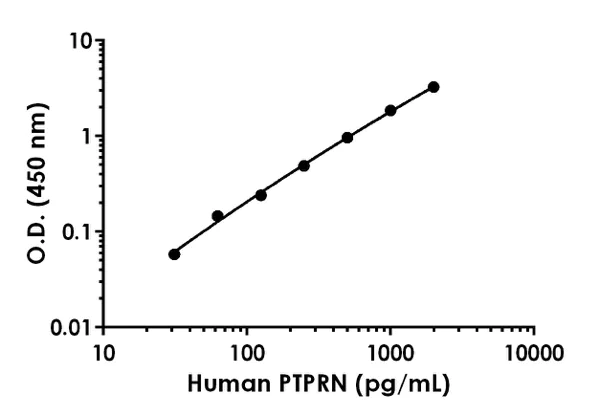

Example of Human PTPRN standard curve in Cell Extraction Buffer PTR.

Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human ICA 512 / PTPRN ELISA Kit (AB226903)
  • sELISA

Supplier Data

Sandwich ELISA - Human ICA 512 / PTPRN ELISA Kit (AB226903)

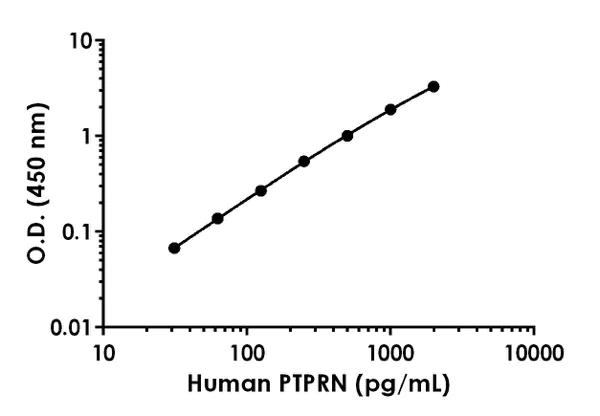

Example of Human PTPRN standard curve in Sample Diluent NS.

Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Cell culture extracts, Tissue, Heparin Plasma, Citrate plasma

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 3.52 pg/mL

Range

31.25 - 2000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Human ICA 512 / PTPRN ELISA Kit (ab226903) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of ICA 512 / PTPRN protein in cit plasma, hep plasma, tissue, and cell culture extracts. It uses our proprietary SimpleStep ELISA® technology. Quantitate Human ICA 512 / PTPRN with 3.52 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Precision

[ { "reproducibilityType": "Inter", "sample": "Cell Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "6.6" }, { "reproducibilityType": "Intra", "sample": "Cell Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.9" } ]

Recovery

[ { "sample": "Cell culture extracts", "range": "91 - 94 %", "average": "= 92" }, { "sample": "Tissue", "range": "85 - 90 %", "average": "= 87" }, { "sample": "Heparin Plasma", "range": "82 - 87 %", "average": "= 85" }, { "sample": "Citrate plasma", "range": "76 - 82 %", "average": "= 79" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab226903-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB226903-CMP06", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB226903-CMP12", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB226903-CMP08", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB226903-CMP04", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB226903-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB226903-CMP11", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human ICA 512 / PTPRN Lyophilized Recombinant Protein", "number":"AB226903-CMP03", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB226903-CMP10", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human ICA 512 / PTPRN Capture Antibody", "number":"AB226903-CMP01", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human ICA 512 / PTPRN Detector Antibody", "number":"AB226903-CMP02", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB226903-CMP09", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB226903-CMP05", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Product protocols

Target data

Plays a role in vesicle-mediated secretory processes (PubMed : 24843546). Required for normal accumulation of secretory vesicles in hippocampus, pituitary and pancreatic islets (By similarity). Required for the accumulation of normal levels of insulin-containing vesicles and preventing their degradation (PubMed : 24843546). Plays a role in insulin secretion in response to glucose stimuli (PubMed : 24843546). Required for normal accumulation of the neurotransmitters norepinephrine, dopamine and serotonin in the brain (By similarity). In females, but not in males, required for normal accumulation and secretion of pituitary hormones, such as luteinizing hormone (LH) and follicle-stimulating hormone (FSH) (By similarity). Required to maintain normal levels of renin expression and renin release (By similarity). Seems to lack intrinsic enzyme activity (By similarity). May regulate catalytic active protein-tyrosine phosphatases such as PTPRA through dimerization (By similarity).. ICA512-transmembrane fragment. ICA512-TMF regulates dynamics and exocytosis of insulin secretory granules (SGs); binding of ICA512-TMF to SNTB2/beta-2-syntrophin is proposed to restrain SGs mobility and exocytosis by tethering them to the actin cytoskeleton depending on UTRN; the function is inhibited by cytoplasmic ICA512-CFF dimerizing with ICA512-TMF and displacing SNTB2.. ICA512-cleaved cytosolic fragment. ICA512-CCF translocated to the nucleus promotes expression of insulin and other granule-related genes; the function implicates binding to and regulating activity of STAT5B probably by preventing its dephosphorylation and potentially by inducing its sumoylation by recruiting PIAS4 (PubMed : 15596545, PubMed : 16622421, PubMed : 18178618). Enhances pancreatic beta-cell proliferation by converging with signaling by STAT5B and STAT3 (PubMed : 15596545, PubMed : 16622421, PubMed : 18178618). ICA512-CCF located in the cytoplasm regulates dynamics and exocytosis of insulin secretory granules (SGs) by dimerizing with ICA512-TMF and displacing SNTB2 thus enhancing SGs mobility and exocytosis (PubMed : 18824546, PubMed : 20886068).
See full target information PTPRN
