AB309184

Human ICAM1 Catchpoint ELISA Kit - Extracellular

Be the first to review this product! Submit a review

|

(0 Publication)

Human ICAM1 Catchpoint ELISA Kit - Extracellular is a single-wash 90-min Simplestep used to quantify Human ICAM1 Catchpoint with a sensitivity of 14.063 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader

View Alternative Names

CD54, Intercellular adhesion molecule 1, ICAM-1, Major group rhinovirus receptor, ICAM1

5 Images
Sandwich ELISA - Human ICAM1 Catchpoint ELISA Kit - Extracellular (AB309184)
  • sELISA

Supplier Data

Sandwich ELISA - Human ICAM1 Catchpoint ELISA Kit - Extracellular (AB309184)

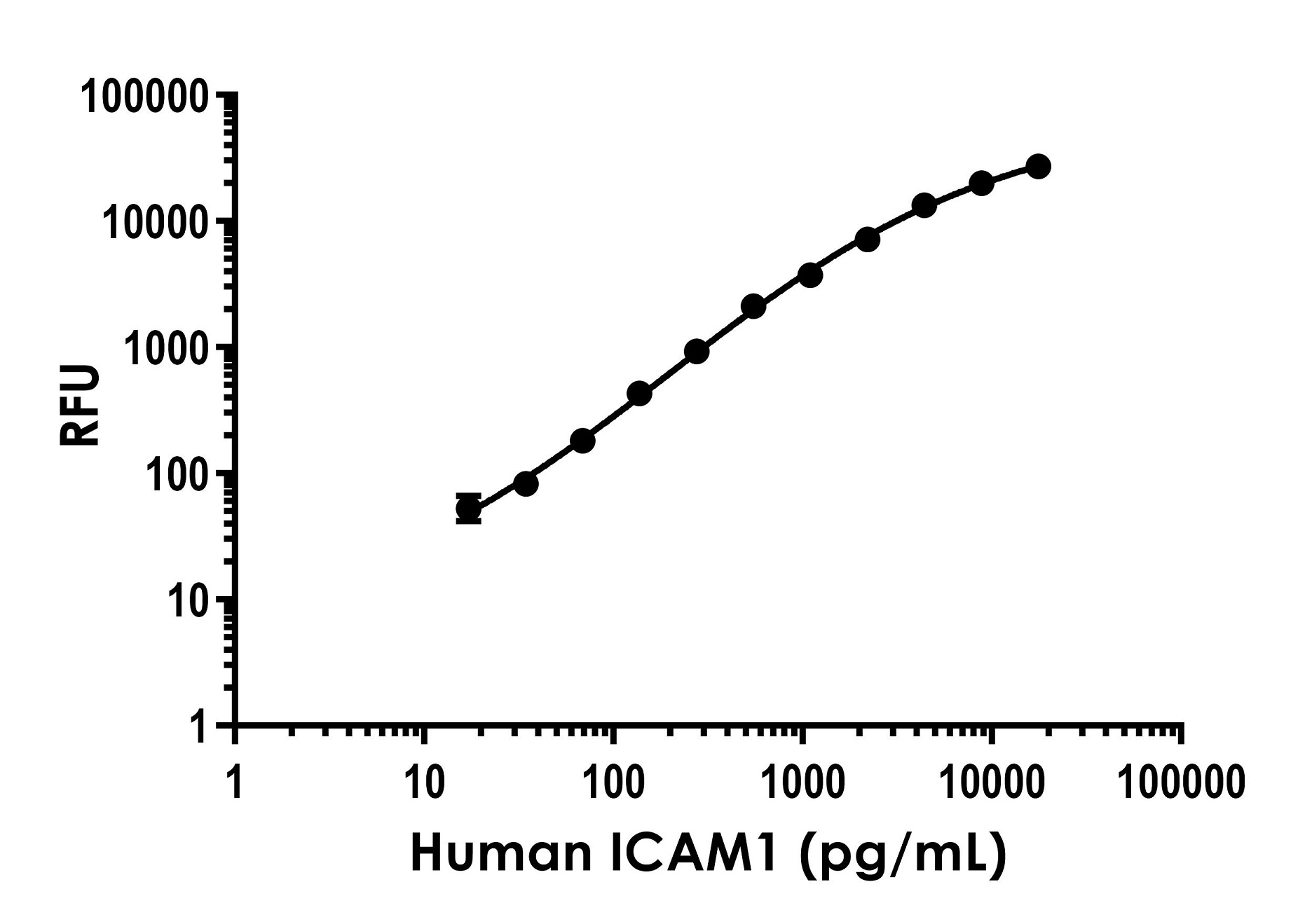

Example of human ICAM1 standard curve. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human ICAM1 Catchpoint ELISA Kit - Extracellular (AB309184)
  • sELISA

Supplier Data

Sandwich ELISA - Human ICAM1 Catchpoint ELISA Kit - Extracellular (AB309184)

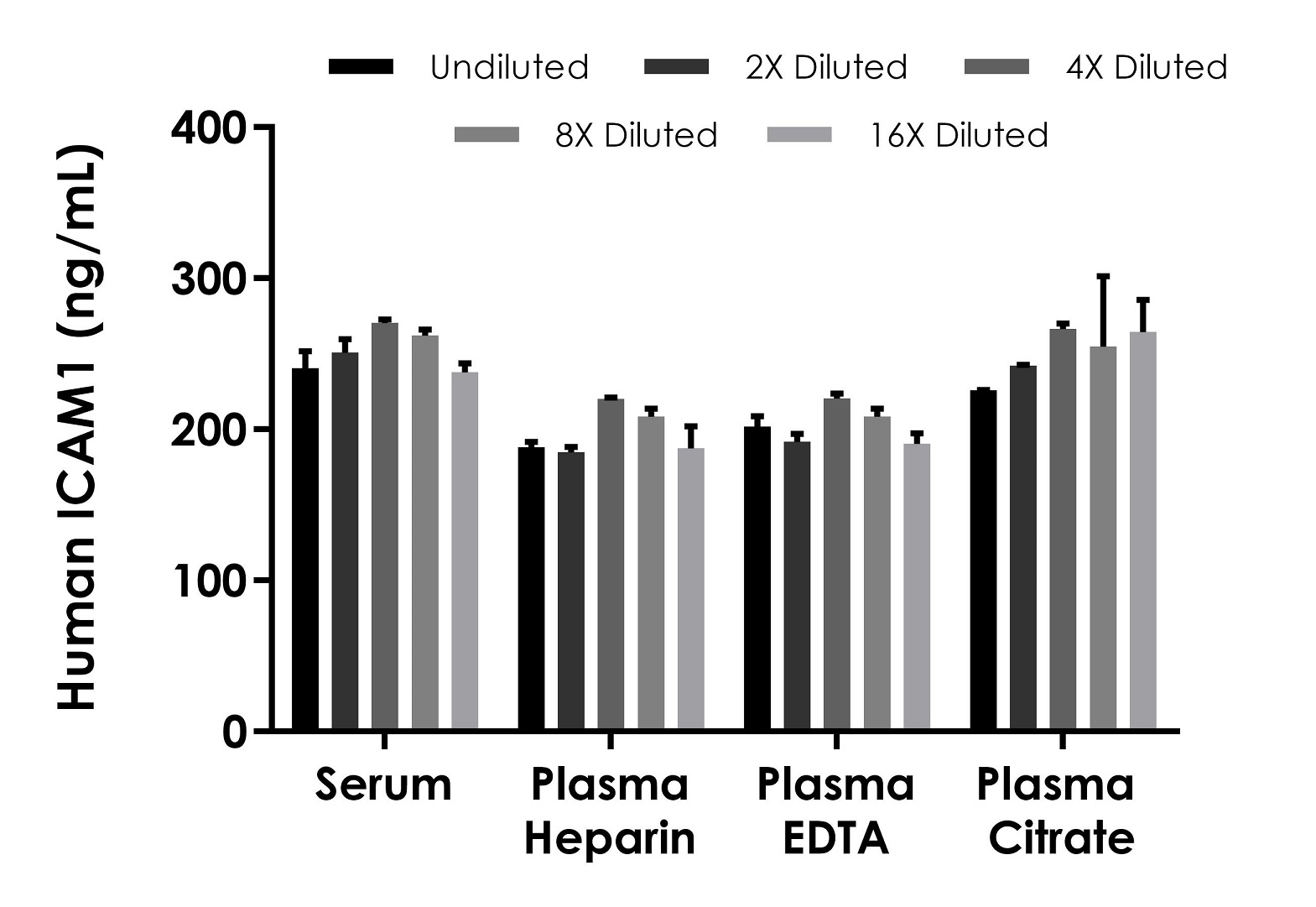

Interpolated concentration of native ICAM1 was measured in duplicate at different sample concentrations. Undiluted samples are 1 : 200 serum, plasma (heparin), plasma (EDTA) and plasma (citrate). The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Sandwich ELISA - Human ICAM1 Catchpoint ELISA Kit - Extracellular (AB309184)
  • sELISA

Supplier Data

Sandwich ELISA - Human ICAM1 Catchpoint ELISA Kit - Extracellular (AB309184)

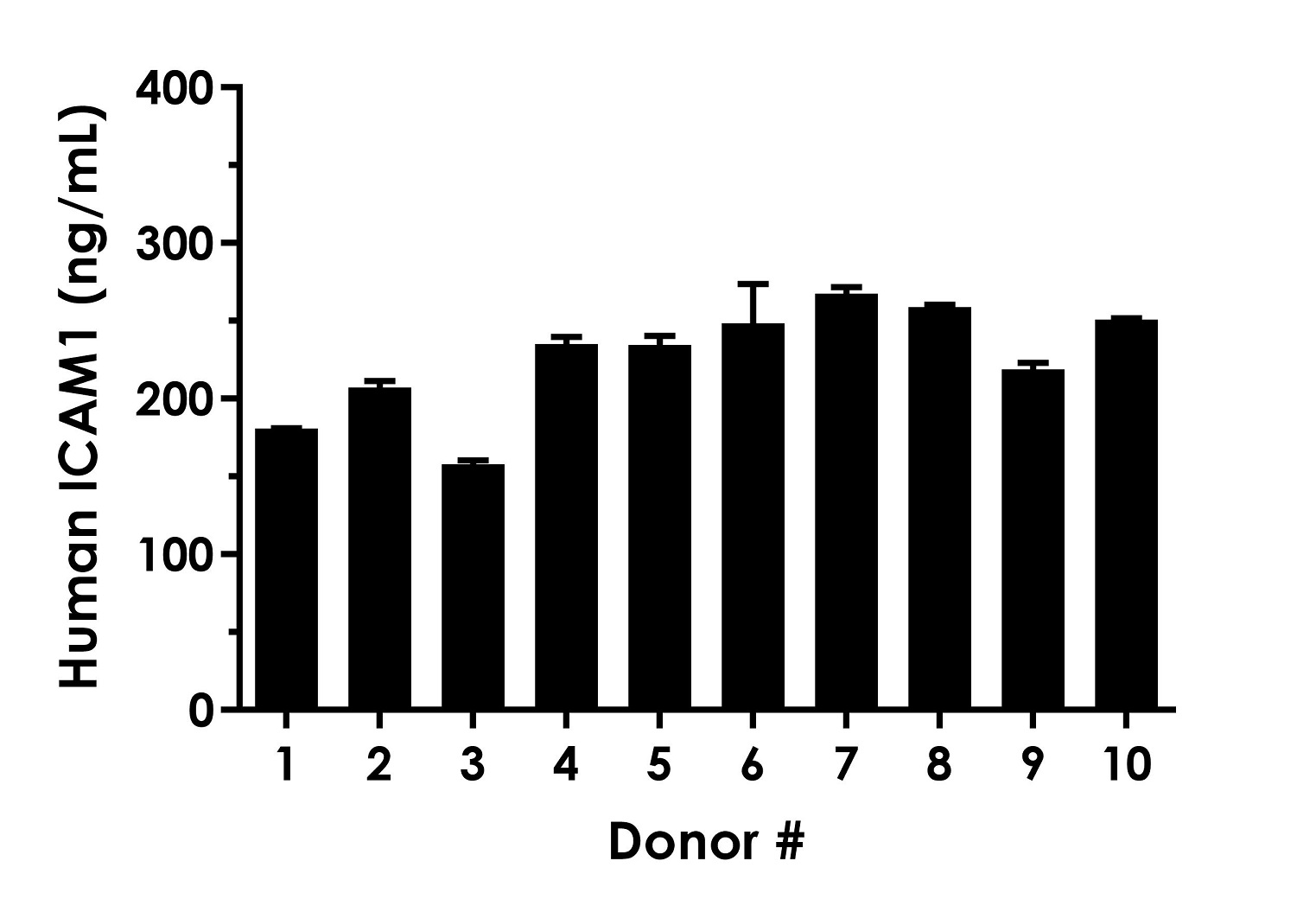

Serum of ten individual healthy human female donors was measured in duplicate. Interpolated dilution factor corrected values are plotted (mean +- SD, n=2). The mean ICAM1 concentration was determined to be 226 ng/mL with a range of 158 – 268 ng/mL.

Sandwich ELISA - Human ICAM1 Catchpoint ELISA Kit - Extracellular (AB309184)
  • sELISA

Supplier Data

Sandwich ELISA - Human ICAM1 Catchpoint ELISA Kit - Extracellular (AB309184)

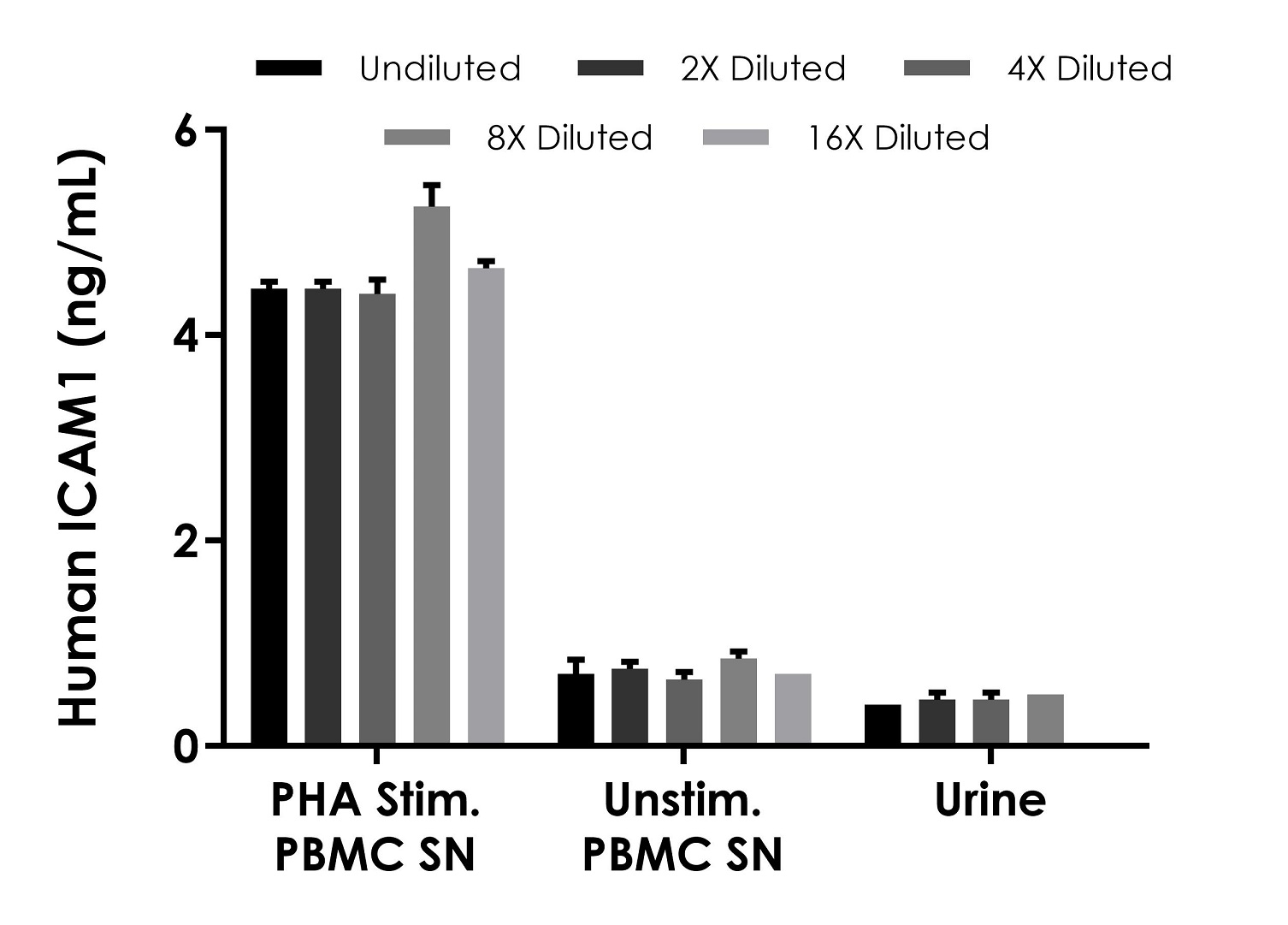

Interpolated concentration of native ICAM1 was measured in duplicate at different sample concentrations. Undiluted samples are as follows : urine 50%, 1.5 % PHA-M 24 hours stimulated PBMC supernatant 30%, and unstimulated PBMC supernatant 50%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Sandwich ELISA - Human ICAM1 Catchpoint ELISA Kit - Extracellular (AB309184)
  • sELISA

Supplier Data

Sandwich ELISA - Human ICAM1 Catchpoint ELISA Kit - Extracellular (AB309184)

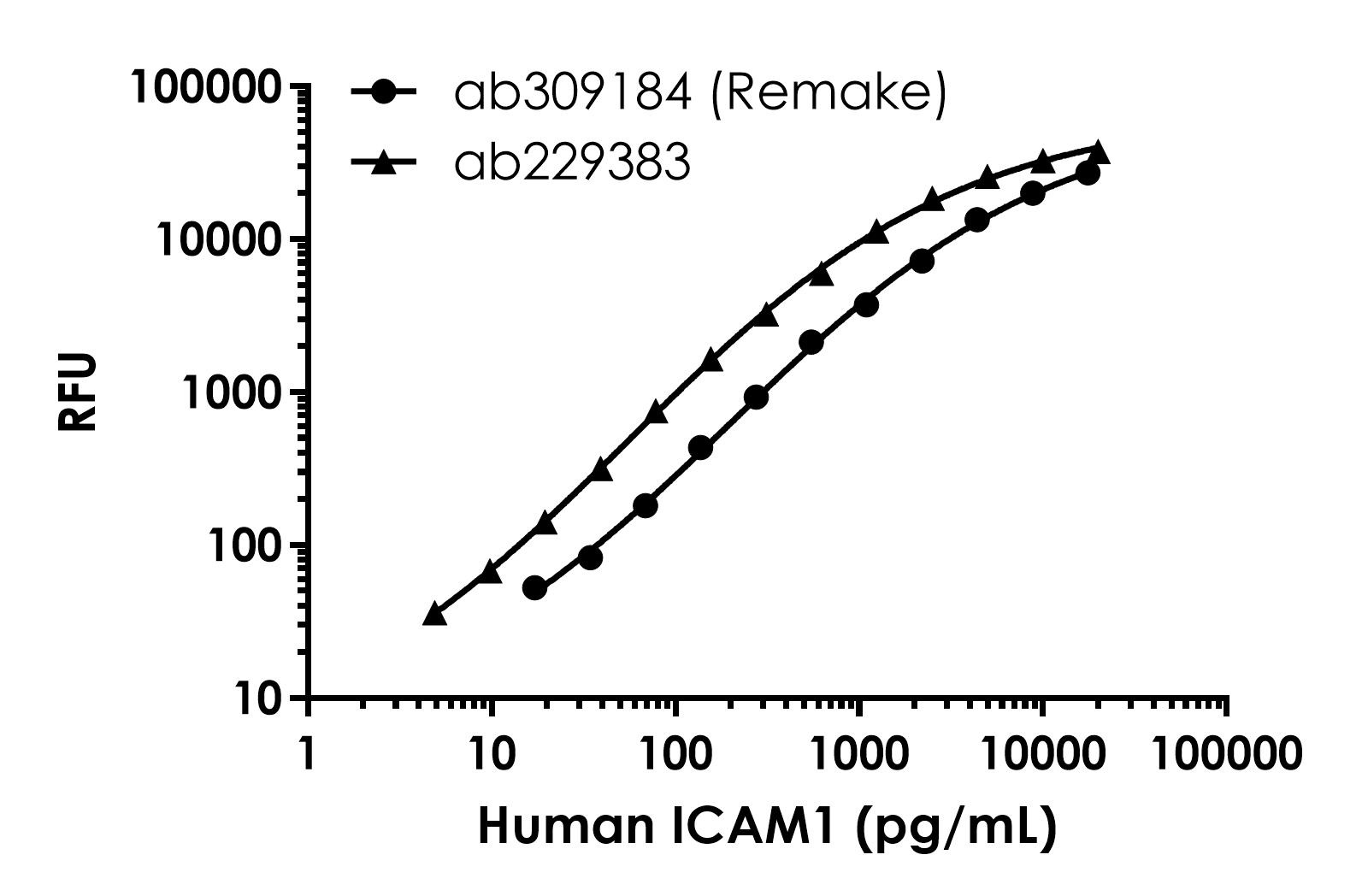

Standard curve comparison between the original Human ICAM1 Catchpoint SimpleStep ELISA (ab229383) and current Human ICAM1 Catchpoint SimpleStep ELISA (ab309184)

Key facts

Detection method

Colorimetric

Sample types

Cell culture supernatant, EDTA Plasma, Heparin Plasma, Serum, Urine, Citrate plasma

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 14.063 pg/mL

Range

34.38 - 2200 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human ICAM1 - Extracellular Catchpoint SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of ICAM1 - Extracellular Catchpoint protein in human serum, Heparin plasma, EDTA plasma, urine and cell culture supernatant. Quantitate Human ICAM1 - Extracellular Catchpoint with 14.063 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

style
left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "0.031" }, { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "0.1" } ]
style
left-column

Recovery

[ { "sample": "Cell culture supernatant", "range": "89 - 91 %", "average": "= 90" }, { "sample": "Citrate plasma", "range": "76 - 92 %", "average": "= 83" }, { "sample": "EDTA Plasma", "range": "85 - 95 %", "average": "= 89" }, { "sample": "Heparin Plasma", "range": "87 - 101 %", "average": "= 94" }, { "sample": "Serum", "range": "81 - 100 %", "average": "= 91" }, { "sample": "Urine", "range": "89 - 101 %", "average": "= 95" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab309184-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB309184-CMP14" }, { "size":"1 x 120 µL", "name":"100X Stoplight Red Substrate", "number":"AB309184-CMP12" }, { "size":"2 x 1 Vial", "name":"Human ICAM1 - Extracellular Catchpoint Lyophilized Recombinant Protein", "number":"AB309184-CMP07" }, { "size":"1 x 50 µL", "name":"500X Hydrogen Peroxide (H2O2, 3%)", "number":"AB309184-CMP13" }, { "size":"1 x 600 µL", "name":"10X Human ICAM1 - Extracellular Catchpoint Detector Antibody", "number":"AB309184-CMP01" }, { "size":"1 x 12 mL", "name":"Stoplight Red Substrate Buffer", "number":"AB309184-CMP11" }, { "size":"1 x 600 µL", "name":"10X Human ICAM1 - Extracellular Catchpoint Capture Antibody", "number":"AB309184-CMP06" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT", "number":"AB309184-CMP10" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB309184-CMP04" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS", "number":"AB309184-CMP09" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB309184-CMP05" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab309184-1x96Tests", "assetComponentDetails": [ { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB309184-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human ICAM1 - Extracellular Catchpoint Capture Antibody", "number":"AB309184-CMP06", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human ICAM1 - Extracellular Catchpoint Lyophilized Recombinant Protein", "number":"AB309184-CMP07", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human ICAM1 - Extracellular Catchpoint Detector Antibody", "number":"AB309184-CMP01", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB309184-CMP08", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB309184-CMP02", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB309184-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB309184-CMP03", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

ICAM proteins are ligands for the leukocyte adhesion protein LFA-1 (integrin alpha-L/beta-2). During leukocyte trans-endothelial migration, ICAM1 engagement promotes the assembly of endothelial apical cups through ARHGEF26/SGEF and RHOG activation.. (Microbial infection) Acts as a receptor for major receptor group rhinovirus A-B capsid proteins.. (Microbial infection) Acts as a receptor for Coxsackievirus A21 capsid proteins.. (Microbial infection) Upon Kaposi's sarcoma-associated herpesvirus/HHV-8 infection, is degraded by viral E3 ubiquitin ligase MIR2, presumably to prevent lysis of infected cells by cytotoxic T-lymphocytes and NK cell.
See full target information ICAM1
