Human ICAM1 ELISA Kit (CD54) is a single-wash 90-min Simplestep used to quantify Human ICAM1 (CD54) with a sensitivity of 1.6 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.
- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Cited in over 25 citations
Images
Publications
Filter by
- Heliyon 9:e173662023circSnd1 promotes atherosclerosis progression through the miR-485-3p/Olr1 signaling pathway.Applications:Unspecified applicationReactive species:Unspecified reactive speciesLin Yang,Yuhao Lin,Chao Wang,Pengcheng FanPubMed 37426804
- Journal of applied toxicology : JAT 43:1613-16292023Integrative proteomics and metabolomics analysis of non-observable acute effect level PM induced accumulative effects in AC16 cells.Applications:Unspecified applicationReactive species:Unspecified reactive speciesBingru Nan,Xia Sun,Shijing Yang,Qingyu Huang,Heqing ShenPubMed 37278136
- Redox biology 62:1026812023MiR-27b attenuates mitochondrial oxidative stress and inflammation in endothelial cells.Applications:Unspecified applicationReactive species:Unspecified reactive speciesNunzia D'Onofrio,Francesco Prattichizzo,Elisa Martino,Camilla Anastasio,Luigi Mele,Rosalba La Grotta,Celestino Sardu,Antonio Ceriello,Raffaele Marfella,Giuseppe Paolisso,Maria Luisa BalestrieriPubMed 37003179
- Medicine 102:e323842023Effects of amlodipine combined with atorvastatin on Th17/Treg imbalance and vascular microcirculation in hypertensive patients with atherosclerosis: A double-blind, single-center randomized controlled trial.Applications:Unspecified applicationReactive species:Unspecified reactive speciesGui Yang,Youjiang QiuPubMed 36820569
- Frontiers in immunology 13:10908772022Piperlongumine alleviates corneal allograft rejection suppressing angiogenesis and inflammation.Applications:Unspecified applicationReactive species:Unspecified reactive speciesXiangyu Fan,Jini Qiu,Tianjie Yuan,Jing Zhang,Jianjiang XuPubMed 36591243
- Radiology and oncology 56:501-5072022Plasma sICAM-1 correlates with tumor volume before primary radiochemotherapy of head and neck squamous cell carcinoma patients.Applications:Unspecified applicationReactive species:Unspecified reactive speciesKerstin Clasen,Stefan Welz,Heidrun Faltin,Daniel Zips,Franziska EckertPubMed 36503712
- Oxidative medicine and cellular longevity 2021:81894852021Autophagic Flux Unleashes GATA4-NF-B Axis to Promote Antioxidant Defense-Dependent Survival of Colorectal Cancer Cells under Chronic Acidosis.Applications:Unspecified applicationReactive species:Unspecified reactive speciesXiaojie Liu,Minnan Zhao,Xue Sun,Zhenzhen Meng,Xiaojing Bai,Yanchao Gong,Limei Xu,Xiaohe Hao,Tingting Yang,Zhao Wei,Xiyu Zhang,Haiyang Guo,Peishan Li,Qiao Liu,Yaoqin Gong,Yufang Shi,Changshun ShaoPubMed 34987705
- Journal of clinical medicine 10:2021Evaluation of the Differences in the Expression of Biogenic Amine-Related mRNAs and Proteins in Endometrioid Endometrial Cancer.Applications:Unspecified applicationReactive species:Unspecified reactive speciesMichał Czerwiński,Anna Bednarska-Czerwińska,Nikola Zmarzły,Dariusz Boroń,Marcin Oplawski,Beniamin Oskar GrabarekPubMed 34768392
- Frontiers in cardiovascular medicine 8:6829592021Correlation of Long Non-coding RNA LncRNA-FA2H-2 With Inflammatory Markers in the Peripheral Blood of Patients With Coronary Heart Disease.Applications:Unspecified applicationReactive species:Unspecified reactive speciesFengxia Guo,Yanhua Sha,Bing Hu,Gang LiPubMed 34235188
- Neuroimmunomodulation 28:266-2752021Activation of Insulin-Like Growth Factor-2 Ameliorates Retinal Cell Damage and Exerts Protection in in vitro Model of Diabetic Retinopathy.Applications:Unspecified applicationReactive species:Unspecified reactive speciesYantao Zhao,Zhaohui Xiong,Yuping Chen,Guoqiang Wang,Yan ZhaoPubMed 33951651
Key facts
- Detection method
- Colorimetric
- Sample types
- Adherent cells, Cell culture extracts, Cell culture supernatant, Citrate plasma, EDTA Plasma, Heparin Plasma, Serum
- Assay type
- Sandwich (quantitative)
- Reactive species
- Human
- Range
- 39.06 - 2500 pg/mL
- Assay time
- 1h 30m
- Sensitivity
- = 1.6 pg/mL
Reactivity data
| Application | Reactivity | Dilution info | Notes |
|---|---|---|---|
Application sELISA | Reactivity Reacts | Dilution info - | Notes - |
Associated Products
Select an associated product type
2 products for Alternative Product
Target data
Function
ICAM proteins are ligands for the leukocyte adhesion protein LFA-1 (integrin alpha-L/beta-2). During leukocyte trans-endothelial migration, ICAM1 engagement promotes the assembly of endothelial apical cups through ARHGEF26/SGEF and RHOG activation. (Microbial infection) Acts as a receptor for major receptor group rhinovirus A-B capsid proteins. (Microbial infection) Acts as a receptor for Coxsackievirus A21 capsid proteins. (Microbial infection) Upon Kaposi's sarcoma-associated herpesvirus/HHV-8 infection, is degraded by viral E3 ubiquitin ligase MIR2, presumably to prevent lysis of infected cells by cytotoxic T-lymphocytes and NK cell.
Alternative names
CD54, Intercellular adhesion molecule 1, ICAM-1, Major group rhinovirus receptor, ICAM1
What's included?
Recommended products
Human ICAM1 ELISA Kit (CD54) is a single-wash 90-min Simplestep used to quantify Human ICAM1 (CD54) with a sensitivity of 1.6 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.
- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Cited in over 25 citations
Key facts
- Detection method
- Colorimetric
- Sample types
- Adherent cells, Cell culture extracts, Cell culture supernatant, Citrate plasma, EDTA Plasma, Heparin Plasma, Serum
- Assay type
- Sandwich (quantitative)
- Reactive species
- Human
- Range
- 39.06 - 2500 pg/mL
- Assay time
- 1h 30m
- Assay Platform
- Microplate
- Sensitivity
- = 1.6 pg/mL
Precision
Intra assay
| Sample | n | C.V. |
|---|---|---|
Sample Overall | n 6 | C.V. 6 |
Inter assay
| Sample | n | C.V. |
|---|---|---|
Sample Overall | n 24 | C.V. 7 |
Recovery
Sample specific recovery
| Sample type | Average % | Range |
|---|---|---|
Sample type Serum | Average % = 103 | Range 99 - 110 % |
Sample type Cell culture media | Average % = 98 | Range 91 - 102 % |
Sample type Extraction Buffer | Average % = 87 | Range 82 - 97 % |
Sample type Plasma | Average % = 113 | Range 96 - 126 % |
Storage
- Shipped at conditions
- Blue Ice
- Appropriate short-term storage conditions
- +4°C
- Appropriate long-term storage conditions
- +4°C
- Storage information
- +4°C
Notes
Human ICAM-1 ELISA kit (CD54) (ab174445) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of ICAM-1 protein in human cell culture supernatant, plasma, serum and cell lysate samples. It uses our proprietary SimpleStep ELISA® technology. Quantitate human ICAM-1 with 1.6 pg/ml sensitivity.

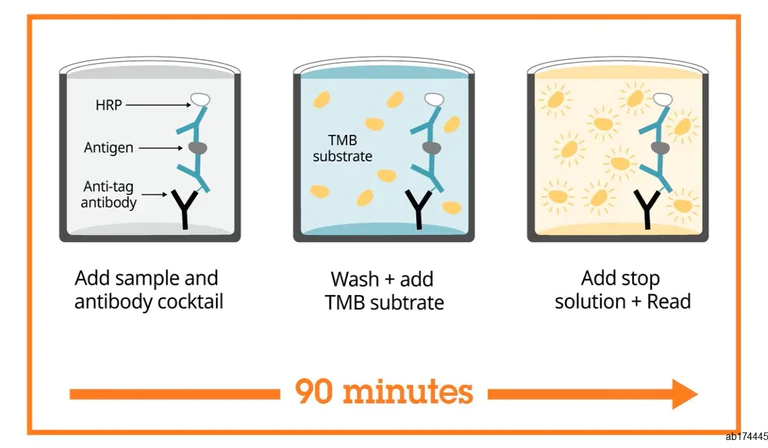

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:
-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips
A 384-well SimpleStep ELISA® microplate (Pre-coated 384 well Microplate SimpleStep ELISA® ab203359) is available to use as an alternative to the 96-well microplate provided with SimpeStep ELISA® kits.
ICAM1, is a cell surface glycoprotein typically expressed in endothelial cells and cells of the immune system. The extracellular portion of ICAM-1 forms five immunoglobulin like domains attached to a single hydrophobic transmembrane region and a short cytoplasmic tail. ICAM-1, binds to the Leukocyte Integrins LFA-1 (CD11a/CD18) and Mac-1 (CD11b/CD18) as well as to non integrin ligands such as CD43, fibrinogen, hyaluronan, Rhinoviruses and Plasmodium falciparum-infected erythrocytes. Binding to LFA-1 facilitates trans-endothelial leukocyte migration to areas of inflammation via promotion of endothelial apical cups assembly.
ICAM-1 expression increases in the vascular endothelium, macrophages and lymphocytes in response to cytokine stimulation (IL-1 and TNF). Furthermore, ligation of ICAM-1 up-regulates its own expression in a positive-feedback loop to maintain a pro-inflammatory environment conducive to leukocytes endothelial transmigration.
Soluble ICAM-1 is reported to be present in normal serum, cerebrospinal fluid, urine and bronchoalveolar lavage fluid. Elevated levels of soluble ICAM-1 have been associated with multiple organ failure, atherosclerosis, autoimmune disorders, diabetes, obesity, hypertension, liver disease as well as cancer, and several studies have correlated serum levels of sICAM-1 with the severity of these diseases.
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
5 product images
Sandwich ELISA - Human ICAM1 ELISA Kit (CD54) (ab174445)

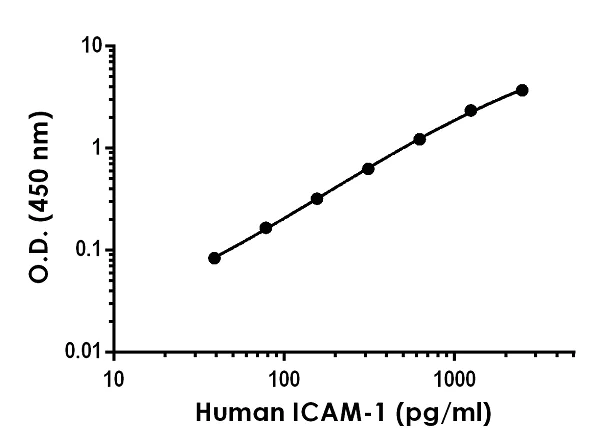

Example ICAM-1 standard curve.
Background-subtracted data values (mean +/- SD) are graphed.
Sandwich ELISA - Human ICAM1 ELISA Kit (CD54) (ab174445)

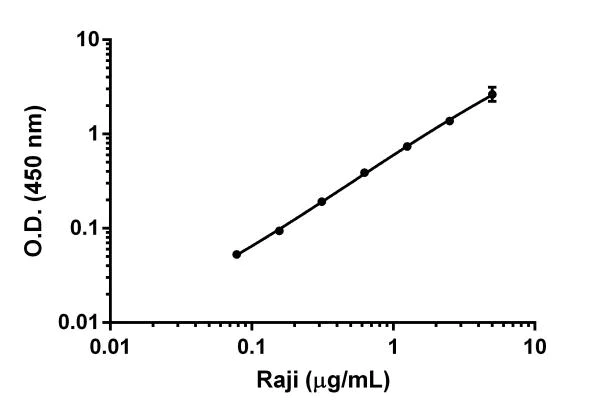

Example of ICAM-1 dynamic range in Raji cell lysates.
The curve was prepared by loading 5 μg/mL of Raji cell extracts, followed by a 1:2 titration series. Background-subtracted data values (mean +/- SD) are graphed.
ELISA - Human ICAM1 ELISA Kit (CD54) (ab174445)

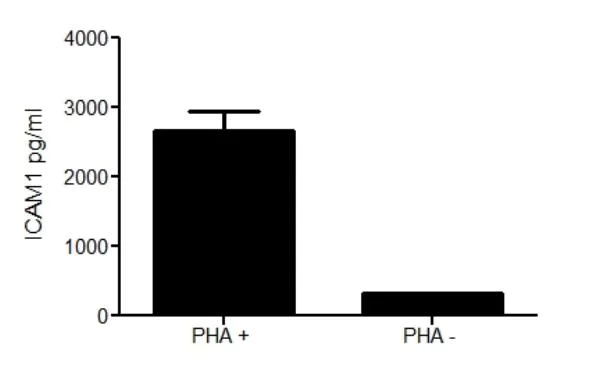

Specificity of ICAM-1 signal on stimulated and non stimulated media supernatants.
Human PBMCs were cultured in RPMI supplemented with 10% fetal calf serum, 2 mM L-glutamine, 100 U/mL penicillin, and 100 μg/mL streptomycin. Cells were cultured for 2 days at 37⁰C in the presence or absence of PHA. The concentrations of ICAM-1 were interpolated from the calibration curve and corrected for sample dilution. The mean ICAM-1 concentration was determined to be 320 pg/mL in unstimulated PBMC supernatants and 2,654 pg/mL in stimulated PBMC supernatants.
ELISA - Human ICAM1 ELISA Kit (CD54) (ab174445)

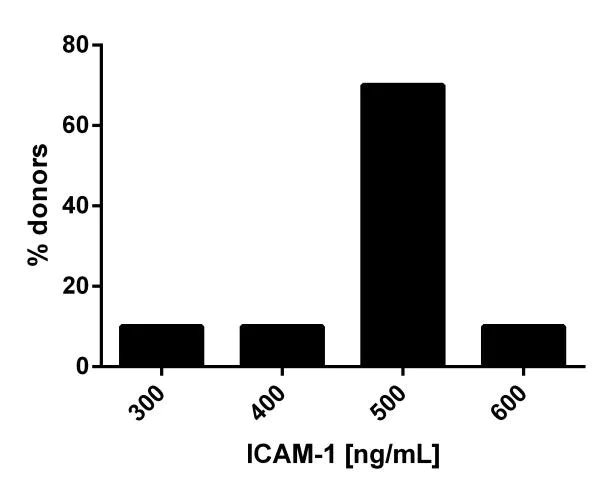

Frequency histogram of ICAM-1 levels in serum of individual normal healthy donors.
The levels of ICAM-1 in serum samples were tested from ten individual healthy donors. Levels were interpolated from the standard curve and corrected for sample dilution. The levels of ICAM-1 are shown for the percentage of individuals within each 100 ng/mL bin center of the distribution. The mean level of ICAM-1 was 469 ng/mL with a range of 347 to 629 ng/mL and a standard deviation of 77 ng/mL.
ELISA - Human ICAM1 ELISA Kit (CD54) (ab174445)

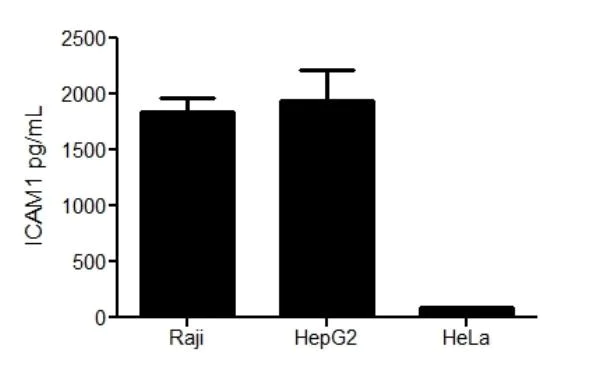

Comparison of ICAM-1 levels in three Human cell culture lysates.
The levels of ICAM-1 protein were assessed in three Human cell line lysates loaded at 2.5 μg/mL of protein. The raw OD 450 nm signal for each sample was interpolated from an ICAM1 standard curve.
