Human ICAM1 ELISA Kit - Extracellular is a single-wash 90-min SimpleStep ELISA® for the quantitative measurement of Human ICAM1 - Extracellular in Serum, Heparin Plasma, Citrate plasma, EDTA Plasma, Urine, Cell culture supernatant samples.
Images
Key facts
- Detection method
Colorimetric
- Sample types
Serum, Heparin Plasma, Citrate plasma, EDTA Plasma, Urine, Cell culture supernatant
- Assay type
Sandwich (quantitative)
- Reactive species
Human
- Range
34.375 - 2200 pg/mL
- Assay time
1h 30m
- Sensitivity
= 14.063 pg/mL
Reactivity data
| Application | Reactivity | Dilution info | Notes |
|---|---|---|---|
Application sELISA | Reactivity Reacts | Dilution info - | Notes - |
Target data
Function
ICAM proteins are ligands for the leukocyte adhesion protein LFA-1 (integrin alpha-L/beta-2). During leukocyte trans-endothelial migration, ICAM1 engagement promotes the assembly of endothelial apical cups through ARHGEF26/SGEF and RHOG activation.(Microbial infection) Acts as a receptor for major receptor group rhinovirus A-B capsid proteins.(Microbial infection) Acts as a receptor for Coxsackievirus A21 capsid proteins.(Microbial infection) Upon Kaposi's sarcoma-associated herpesvirus/HHV-8 infection, is degraded by viral E3 ubiquitin ligase MIR2, presumably to prevent lysis of infected cells by cytotoxic T-lymphocytes and NK cell.
Alternative names
Intercellular adhesion molecule 1, ICAM-1, Major group rhinovirus receptor, ICAM1
What's included?
Recommended products
Human ICAM1 ELISA Kit - Extracellular is a single-wash 90-min SimpleStep ELISA® for the quantitative measurement of Human ICAM1 - Extracellular in Serum, Heparin Plasma, Citrate plasma, EDTA Plasma, Urine, Cell culture supernatant samples.
Alternative names
Intercellular adhesion molecule 1, ICAM-1, Major group rhinovirus receptor, ICAM1
Key facts
- Detection method
Colorimetric
- Sample types
Serum, Heparin Plasma, Citrate plasma, EDTA Plasma, Urine, Cell culture supernatant
- Assay type
Sandwich (quantitative)
- Reactive species
Human
- Range
34.375 - 2200 pg/mL
- Assay time
1h 30m
- Assay Platform
Pre-coated microplate (12 x 8 well strips)
- Sensitivity
= 14.063 pg/mL
- General recovery
91%
Precision
Intra assay
| Sample | n | mean | SD | C.V. |
|---|---|---|---|---|
Sample Serum | n 8 | mean - | SD - | C.V. 6.5 |
Inter assay
| Sample | n | mean | SD | C.V. |
|---|---|---|---|---|
Sample Serum | n 3 | mean - | SD - | C.V. 3.1 |
Recovery
Sample specific recovery
| Sample type | Average % | Range |
|---|---|---|
Sample type Serum | Average % = 91 | Range 81 - 100 % |
Sample type Heparin Plasma | Average % = 94 | Range 87 - 101 % |
Sample type Citrate plasma | Average % = 83 | Range 76 - 92 % |
Sample type EDTA Plasma | Average % = 89 | Range 85 - 95 % |
Sample type Urine | Average % = 95 | Range 89 - 101 % |
Sample type Cell culture supernatant | Average % = 90 | Range 89 - 91 % |
Storage
- Shipped at conditions
Blue Ice
- Appropriate short-term storage conditions
+4°C
- Appropriate long-term storage conditions
+4°C
- Storage information
+4°C
Notes
Human ICAM1 - Extracellular SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of ICAM1 - Extracellular protein in human serum, Heparin plasma, Citrate plasma, EDTA plasma, urine and cell culture supernatant. Quantitate Human ICAM1 - Extracellular with 14.063 pg/ml sensitivity.
SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:
-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips
A 384-well SimpleStep ELISA® microplate (Pre-coated 384 well Microplate SimpleStep ELISA® ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
6 product images
Sandwich ELISA - Human ICAM1 ELISA Kit - Extracellular (ab309172)
Example of human ICAM1 standard curve. Background-subtracted data values (mean +/- SD) are graphed
Sandwich ELISA - Human ICAM1 ELISA Kit - Extracellular (ab309172)

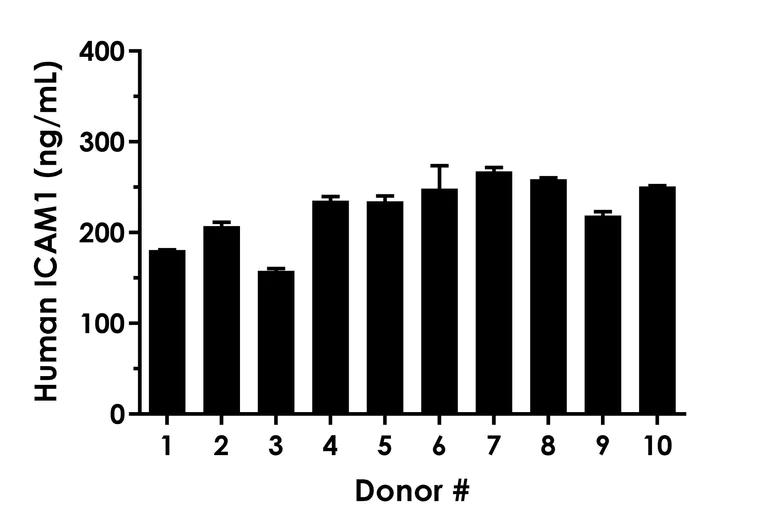

Serum of ten individual healthy human female donors was measured in duplicate. Interpolated dilution factor corrected values are plotted (mean +- SD, n=2). The mean ICAM1 concentration was determined to be 226 ng/mL with a range of 158 – 268 ng/mL.
Sandwich ELISA - Human ICAM1 ELISA Kit - Extracellular (ab309172)

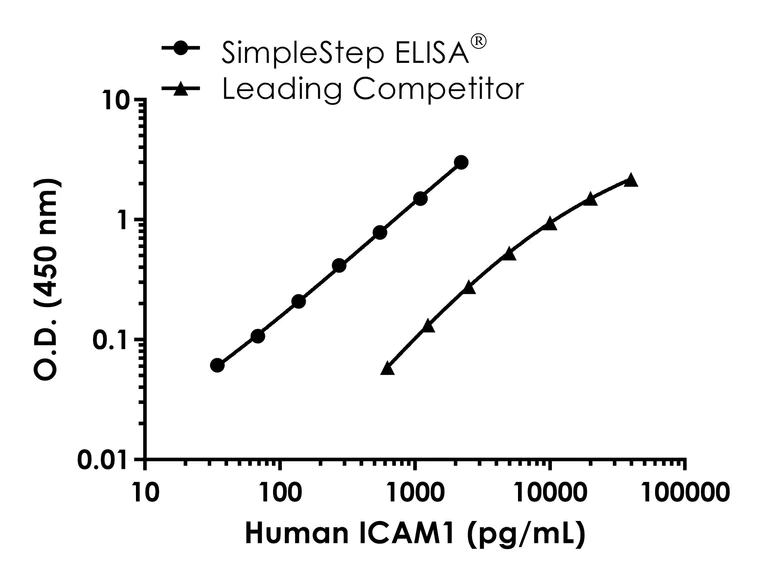

Standard curve comparison between Human ICAM1 SimpleStep ELISA kit (ab309172) and traditional ELISA kit from leading competitor. The SimpleStep ELISA kit shows increased sensitivity
Sandwich ELISA - Human ICAM1 ELISA Kit - Extracellular (ab309172)

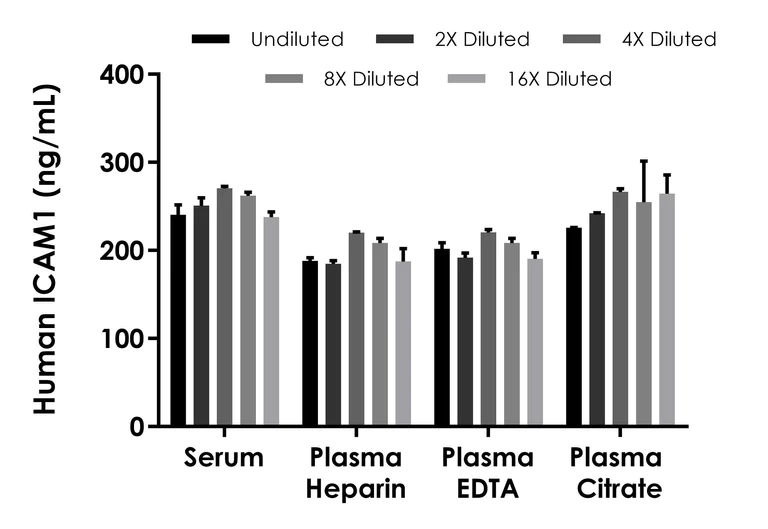

Interpolated concentration of native ICAM1 was measured in duplicate at different sample concentrations. Undiluted samples are 1:200 serum, plasma (heparin), plasma (EDTA) and plasma (citrate). The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS
Sandwich ELISA - Human ICAM1 ELISA Kit - Extracellular (ab309172)

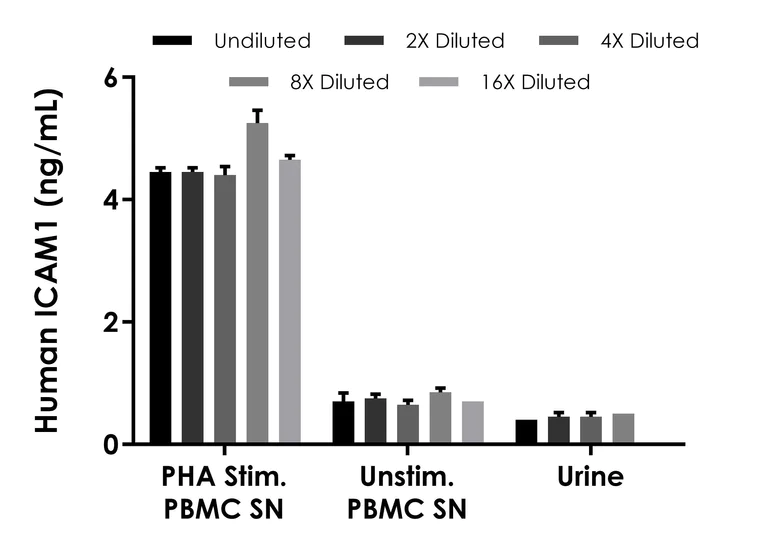

Interpolated concentration of native ICAM1 was measured in duplicate at different sample concentrations. Undiluted samples are as follows: urine 50%, 1.5 % PHA-M 24 hours stimulated PBMC supernatant (SN) 30%, and unstimulated PBMC supernatant 50%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS
Sandwich ELISA - Human ICAM1 ELISA Kit - Extracellular (ab309172)

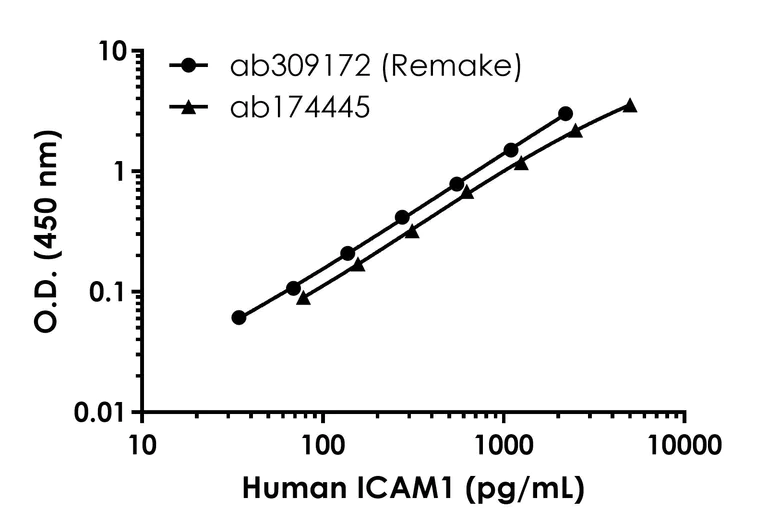

Standard curve comparison between the original Human ICAM1 SimpleStep ELISA (Human ICAM1 ELISA Kit (CD54) ab174445) and current Human ICAM1 SimpleStep ELISA (ab309172)
