AB230936

Human IGFBP4 ELISA Kit

Be the first to review this product! Submit a review

|

(1 Publication)

Human IGFBP4 ELISA Kit is a single-wash 90-min Simplestep used to quantify Human IGFBP4 with a sensitivity of 32.6 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

IBP4, IGFBP4, Insulin-like growth factor-binding protein 4, IBP-4, IGF-binding protein 4, IGFBP-4

6 Images
ELISA - Human IGFBP4 ELISA Kit (AB230936)
  • ELISA

Supplier Data

ELISA - Human IGFBP4 ELISA Kit (AB230936)
Sandwich ELISA - Human IGFBP4 ELISA Kit (AB230936)
  • sELISA

Supplier Data

Sandwich ELISA - Human IGFBP4 ELISA Kit (AB230936)

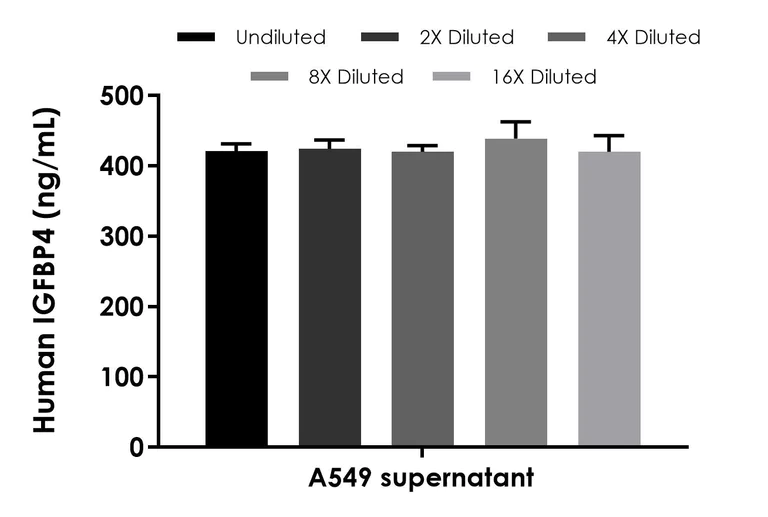

Interpolated concentration of native IGFBP4 was measured in duplicate at different sample concentrations. Undiluted samples are 1 : 100 A549 cell culture supernatant. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Wash Buffer PT.

Sandwich ELISA - Human IGFBP4 ELISA Kit (AB230936)
  • sELISA

Supplier Data

Sandwich ELISA - Human IGFBP4 ELISA Kit (AB230936)

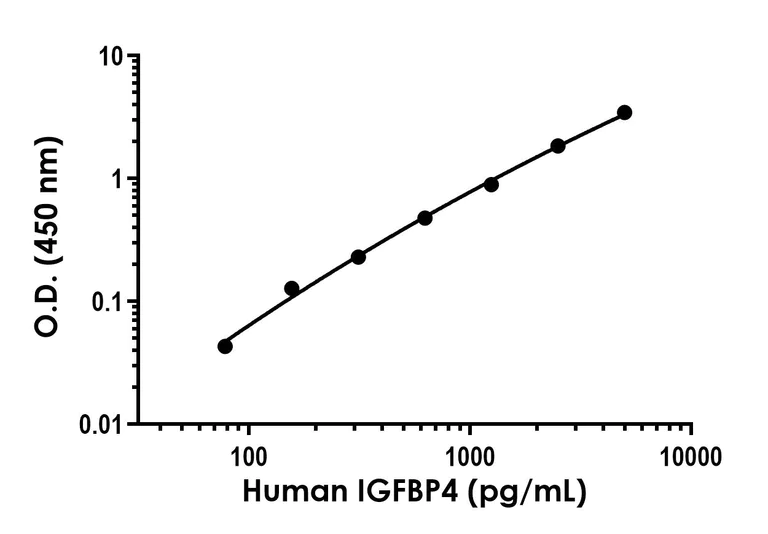

Example of human IGFBP4 standard curve in 1X Wash Buffer PT. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human IGFBP4 ELISA Kit (AB230936)
  • sELISA

Supplier Data

Sandwich ELISA - Human IGFBP4 ELISA Kit (AB230936)

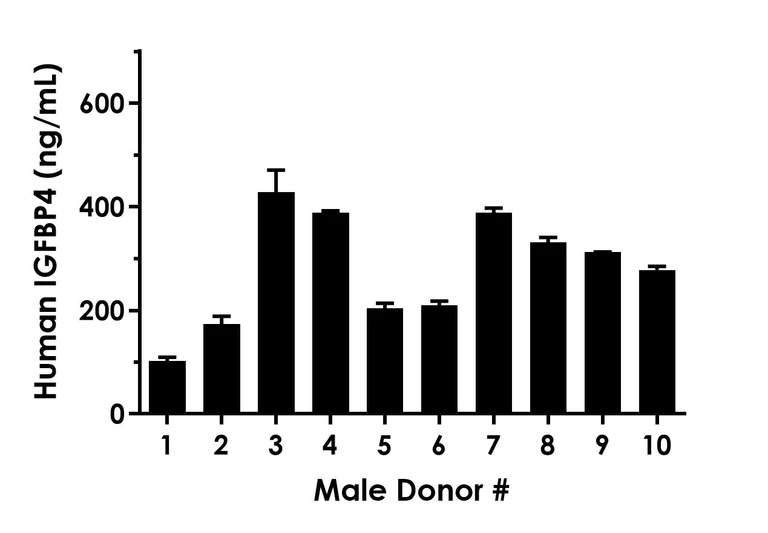

Serum of ten individual healthy human male donors was measured in duplicate. Interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). The mean IGFBP4 concentration was determined to be 281 ng/mL with a range of 102 - 429 ng/mL.

Sandwich ELISA - Human IGFBP4 ELISA Kit (AB230936)
  • sELISA

Supplier Data

Sandwich ELISA - Human IGFBP4 ELISA Kit (AB230936)

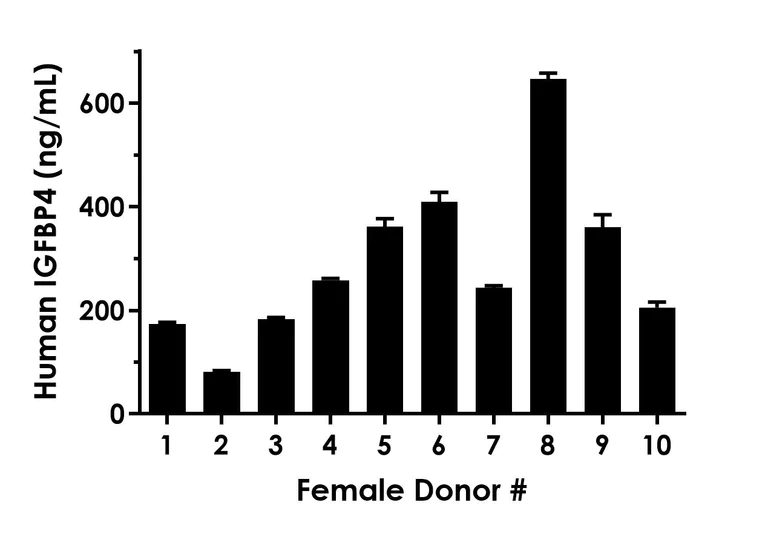

Serum of ten individual healthy human female donors was measured in duplicate. Interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). The mean IGFBP4 concentration was determined to be 292 ng/mL with a range of 81 - 647 ng/mL.

Sandwich ELISA - Human IGFBP4 ELISA Kit (AB230936)
  • sELISA

Supplier Data

Sandwich ELISA - Human IGFBP4 ELISA Kit (AB230936)

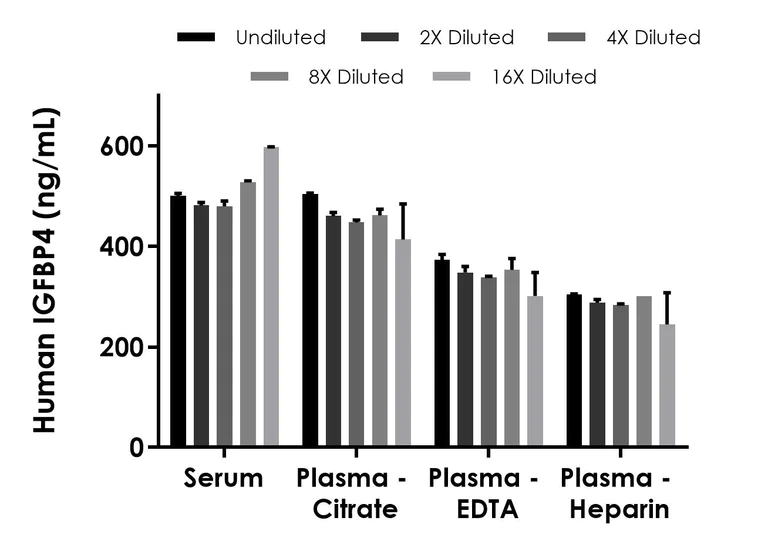

Interpolated concentration of native IGFBP4 was measured in duplicate at different sample concentrations. Undiluted samples are as follows : serum 1 : 200, plasma (citrate) 1 : 100, plasma (EDTA) 1 : 100, plasma (heparin) 1 : 100. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Wash Buffer PT.

Key facts

Detection method

Colorimetric

Sample types

Heparin Plasma, Citrate plasma, Cell culture supernatant, Serum, EDTA Plasma

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 32.6 pg/mL

Range

78 - 5000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column
style
left-column

Product details

Human IGFBP4 ELISA Kit ab230936 is a rapid single-wash 90-min Sandwich ELISA to measure Human IGFBP4 in cell culture supernatant, citrate plasma, EDTA plasma, heparin plasma, serum. This SimpleStep sensitivity is 12 pg/mL.

How the assay works

Human IGFBP4 SimpleStep ELISA®employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Assay Specificity

Our SimpleStep ELISA® kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Human IGFBP4 ELISA Kit ab230936 protocol summary

1. Mix: add samples/standards to the wells together with the capture and detector antibody cocktail. Incubate 1 hr at room temperature
2. Wash
3. Add TMB development solution - incubate for 10 min
4. Add Stop solution
5. Read the results on a plate reader at 450 nm

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-IGFBP4 antibody [EPR19762-76] - BSA and Azide free (Capture) ab244976
- Anti-IGFBP4 antibody [EPR19762-66] - BSA and Azide free (Detector) ab244976
style
left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Plasma", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "11.7" }, { "reproducibilityType": "Intra", "sample": "Plasma", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "5.5" } ]
style
left-column

Recovery

[ { "sample": "Cell culture supernatant", "range": "96 - 113 %", "average": "= 103" }, { "sample": "Serum", "range": "102 - 104 %", "average": "= 103" }, { "sample": "EDTA Plasma", "range": "89 - 97 %", "average": "= 93" }, { "sample": "Heparin Plasma", "range": "104 - 109 %", "average": "= 106" }, { "sample": "Citrate plasma", "range": "110 - 116 %", "average": "= 112" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab230936-1x96Tests", "assetComponentDetails": [ { "size":"2 x 1 Vial", "name":"Human IGFBP4 Lyophilized Recombinant Protein", "number":"AB230936-CMP10", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human IGFBP4 Capture Antibody", "number":"AB230936-CMP08", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB230936-CMP04", "productcode":"" }, { "size":"2 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB230936-CMP07", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB230936-CMP02", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB230936-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB230936-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB230936-CMP03", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB230936-CMP11", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human IGFBP4 Detector Antibody", "number":"AB230936-CMP09", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

IGF-binding proteins prolong the half-life of the IGFs and have been shown to either inhibit or stimulate the growth promoting effects of the IGFs on cell culture. They alter the interaction of IGFs with their cell surface receptors.
See full target information IGFBP4
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Disease markers 2022:9223883 PubMed35356065

2022

Elevated Serum IGFBP-2 and CTGF Levels Are Associated with Disease Activity in Patients with Dermatomyositis.

Applications

Unspecified application

Species

Unspecified reactive species

Min Yang,Yuehong Chen,Geng Yin,Sang Lin,Huan Liu,Yupeng Huang,Yunru Tian,Yueyuan Zhou,Fengming Luo,Qibing Xie
View all publications
style
left-column
style
left-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions
