Human IL-23 ELISA Kit is a Sandwich (quantitative) ELISA kit for the measurement of Human IL-23 in Human in Plasma, Cell culture supernatant, Serum samples.

Be the first to review this product! Submit a review

Images

Sandwich ELISA - Human IL-23 ELISA Kit (AB64708), expandable thumbnail

Publications

Key facts

Detection method
Colorimetric
Sample types
Plasma, Cell culture supernatant, Serum
Assay type
Sandwich (quantitative)
Reactive species
Human
Range
156.25 - 5000 pg/mL
Assay time
2h 45m
Sensitivity
< 20 pg/mL

Reactivity data

Application
sELISA
Reactivity
Reacts
Dilution info
-
Notes

-

Associated Products

Select an associated product type

2 products for Alternative Product

Target data

Function

Associates with IL12B to form the pro-inflammatory cytokine IL-23 that plays different roles in innate and adaptive immunity (PubMed:11114383). Released by antigen-presenting cells such as dendritic cells or macrophages, binds to a heterodimeric receptor complex composed of IL12RB1 and IL23R to activate JAK2 and TYK2 which then phosphorylate the receptor to form a docking site leading to the phosphorylation of STAT3 and STAT4 (PubMed:29287995, PubMed:32474165, PubMed:33606986). This process leads to activation of several pathways including p38 MAPK or NF-kappa-B and promotes the production of pro-inflammatory cytokines such as interleukin-17A/IL17A (PubMed:12023369). In turn, participates in the early and effective intracellular bacterial clearance (PubMed:32474165). Promotes the expansion and survival of T-helper 17 cells, a CD4-positive helper T-cell subset that produces IL-17, as well as other IL-17-producing cells (PubMed:17676044).

Alternative names

What's included?

1 x 96 Tests
Components
10X Standard Diluent Buffer
1 x 15 mL
200X Wash Buffer
1 x 10 mL
Biotinylated Antibody Diluent
1 x 7 mL
Biotinylated anti-IL-23
1 x 400 µL
Chromogen TMB Substrate Solution
1 x 11 mL
HRP Diluent
1 x 12 mL
IL-23 Microplate(12 x 8 well strips)
1 x 1 Unit
IL-23 Standard (Lyophilized)
2 x 1 Vial
Plastic Plate Covers
2 x 1 Unit
Stop Reagent
1 x 11 mL
Streptavidin-HRP
2 x 5 µL

Recommended products

Human IL-23 ELISA Kit is a Sandwich (quantitative) ELISA kit for the measurement of Human IL-23 in Human in Plasma, Cell culture supernatant, Serum samples.

Key facts

Detection method
Colorimetric
Sample types
Plasma, Cell culture supernatant, Serum
Assay type
Sandwich (quantitative)
Reactive species
Human
Range
156.25 - 5000 pg/mL
Assay time
2h 45m
Assay Platform
Microplate
Sensitivity
< 20 pg/mL
General recovery
89%

Precision

Intra assay

Sample
Sample A
n
6
mean
4637 pg/mL
SD
72
C.V.
1.6
Sample
Sample B
n
6
mean
3908 pg/mL
SD
36
C.V.
1
Sample
Sample C
n
6
mean
3016 pg/mL
SD
72
C.V.
2.4

Inter assay

Sample
Sample A
n
9
mean
4439 pg/mL
SD
276
C.V.
6.2
Sample
Sample B
n
9
mean
3807 pg/mL
SD
353
C.V.
9.2
Sample
Sample C
n
9
mean
2570 pg/mL
SD
388
C.V.
15

Recovery

Sample specific recovery

Sample type
Serum
Average %
= 118
Range
103 - 134 %

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Notes

Abcam's IL-23 Human in vitro ELISA (Enzyme-Linked Immunosorbent Assay) kit is designed for the quantitative measurement of IL-23 in cell culture supernatants, buffered solutions, serum, plasma and other body fluids.

A monoclonal antibody specific for IL-23 has been coated onto the wells of the microtiter strips provided. Samples, including standards of known IL-23 concentrations, control specimens or unknowns are pipetted into these wells. During the first incubation, the standards or samples and a biotinylated monoclonal antibody specific for IL-23 are simultaneously incubated. After washing, the enzyme Streptavidin-HRP, that binds the biotinylated antibody is added, incubated and washed. A TMB substrate solution is added which acts on the bound enzyme to induce a colored reaction product. The intensity of this colored product is directly proportional to the concentration of IL-23 present in the samples.

This kit will recognize both endogenous and recombinant Human IL-23.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

1 product image

  • Sandwich ELISA - Human IL-23 ELISA Kit (ab64708), expandable thumbnail

    Sandwich ELISA - Human IL-23 ELISA Kit (ab64708)

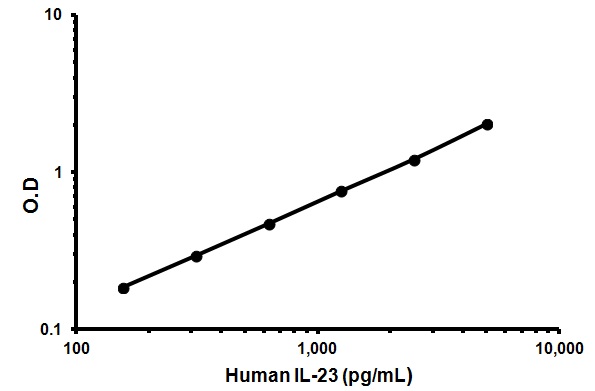

    Representative Standard Curve using ab64708

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
