Human IL-4I1/LAO ELISA Kit- Extracellular is a single-wash 90-min Simplestep used to quantify Human IL-4I1/LAO with a sensitivity of 43.6 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.
- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair
Images
Key facts
- Detection method
- Colorimetric
- Sample types
- Serum, EDTA Plasma, Citrate plasma, Heparin Plasma, Cell culture supernatant
- Assay type
- Sandwich (quantitative)
- Reactive species
- Human
- Range
- 109.375 - 7000 pg/mL
- Assay time
- 1h 30m
- Sensitivity
- = 43.6 pg/mL
Reactivity data
| Application | Reactivity | Dilution info | Notes |
|---|---|---|---|
Application sELISA | Reactivity Reacts | Dilution info - | Notes - |
Target data
Function
Secreted L-amino-acid oxidase that acts as a key immunoregulator (PubMed:17356132, PubMed:32818467, PubMed:32866000). Has preference for L-aromatic amino acids: converts phenylalanine (Phe), tyrosine (Tyr) and tryptophan (Trp) to phenylpyruvic acid (PP), hydroxyphenylpyruvic acid (HPP), and indole-3-pyruvic acid (I3P), respectively (PubMed:17356132, PubMed:32818467, PubMed:32866000). Also has weak L-arginine oxidase activity (PubMed:26673964). Acts as a negative regulator of anti-tumor immunity by mediating Trp degradation via an indole pyruvate pathway that activates the transcription factor AHR (PubMed:32818467, PubMed:32866000). IL4I1-mediated Trp catabolism generates I3P, giving rise to indole metabolites (indole-3-acetic acid (IAA) and indole-3-aldehyde (I3A)) and kynurenic acid, which act as ligands for AHR, a ligand-activated transcription factor that plays important roles in immunity and cancer (PubMed:32818467, PubMed:32866000). AHR activation by indoles following IL4I1-mediated Trp degradation enhances tumor progression by promoting cancer cell motility and suppressing adaptive immunity (PubMed:32818467). Also has an immunoregulatory function in some immune cells, probably by mediating Trp degradation and promoting downstream AHR activation: inhibits T-cell activation and proliferation, promotes the differentiation of naive CD4(+) T-cells into FOXP3(+) regulatory T-cells (Treg) and regulates the development and function of B-cells (PubMed:17356132, PubMed:25446972, PubMed:25778793, PubMed:28891065). Also regulates M2 macrophage polarization by inhibiting T-cell activation (By similarity). Also has antibacterial properties by inhibiting growth of Gram negative and Gram positive bacteria through the production of NH4(+) and H2O2 (PubMed:23355881).
Alternative names
FIG1, UNQ636/PRO1265, IL4I1, L-amino-acid oxidase, LAAO, LAO, Interleukin-4-induced protein 1, Protein Fig-1, IL4-induced protein 1, hIL4I1, hFIG1
What's included?
Recommended products
Human IL-4I1/LAO ELISA Kit- Extracellular is a single-wash 90-min Simplestep used to quantify Human IL-4I1/LAO with a sensitivity of 43.6 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.
- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair
Key facts
- Detection method
- Colorimetric
- Sample types
- Serum, EDTA Plasma, Citrate plasma, Heparin Plasma, Cell culture supernatant
- Assay type
- Sandwich (quantitative)
- Reactive species
- Human
- Range
- 109.375 - 7000 pg/mL
- Assay time
- 1h 30m
- Assay Platform
- Pre-coated microplate (12 x 8 well strips)
- Sensitivity
- = 43.6 pg/mL
- General recovery
- 81%
Precision
Intra assay
| Sample | n | C.V. |
|---|---|---|
Sample Supernatant | n 8 | C.V. 10.2 |
Sample Serum | n 8 | C.V. 6.5 |
Inter assay
| Sample | n | C.V. |
|---|---|---|
Sample Supernatant | n 3 | C.V. 6.8 |
Sample Serum | n 3 | C.V. 4.4 |
Recovery
Sample specific recovery
| Sample type | Average % | Range |
|---|---|---|
Sample type Serum | Average % = 81 | Range 79 - 84 % |
Sample type EDTA Plasma | Average % = 87 | Range 79 - 98 % |
Sample type Citrate plasma | Average % = 82 | Range 76 - 86 % |
Sample type Heparin Plasma | Average % = 82 | Range 81 - 84 % |
Sample type Cell culture supernatant | Average % = 98 | Range 87 - 105 % |
Storage
- Shipped at conditions
- Blue Ice
- Appropriate short-term storage conditions
- +4°C
- Appropriate long-term storage conditions
- +4°C
- Storage information
- +4°C
Notes
Human IL-4I1/LAO SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of IL-4I1/LAO protein in Serum, EDTA Plasma, Cit Plasma, Hep Plasma, Cell culture supernatant. Quantitate Human IL-4I1/LAO with 43.6 pg/ml sensitivity.
SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:
-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips
A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
3 product images
Sandwich ELISA - Human IL-4I1/LAO ELISA Kit- Extracellular (ab316898)

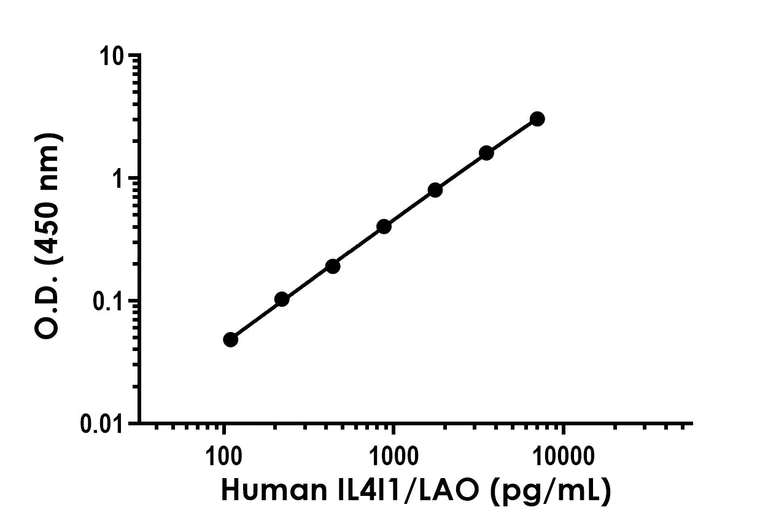

Example of human IL4I1/LAO standard curve. Background-subtracted data values (mean +/- SD) are graphed.
Sandwich ELISA - Human IL-4I1/LAO ELISA Kit- Extracellular (ab316898)

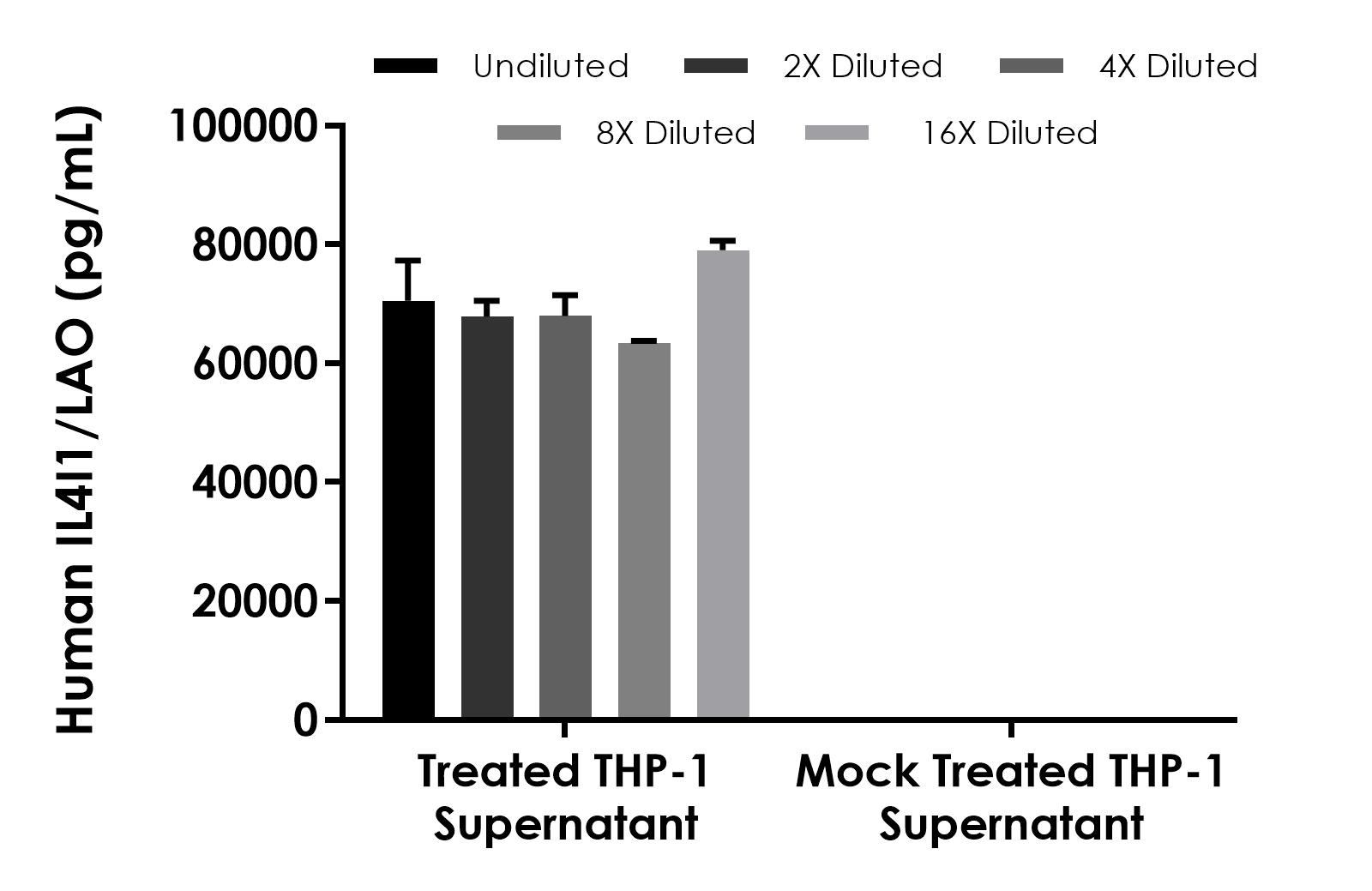

Interpolated concentration of native IL4I1/LAO was measured in duplicate at different sample concentrations. Undiluted samples are 7.5% treated (24 hrs 50 nM PMA, then 24 hrs 5 µg/ml LPS) THP-1 cell culture supernatant and mock treated THP-1 cell culture supernatant. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS. Interpolated concentrations of IL4I1 in mock-treated THP-1 cell culture supernatant were below the detectable range of the assay.
Sandwich ELISA - Human IL-4I1/LAO ELISA Kit- Extracellular (ab316898)

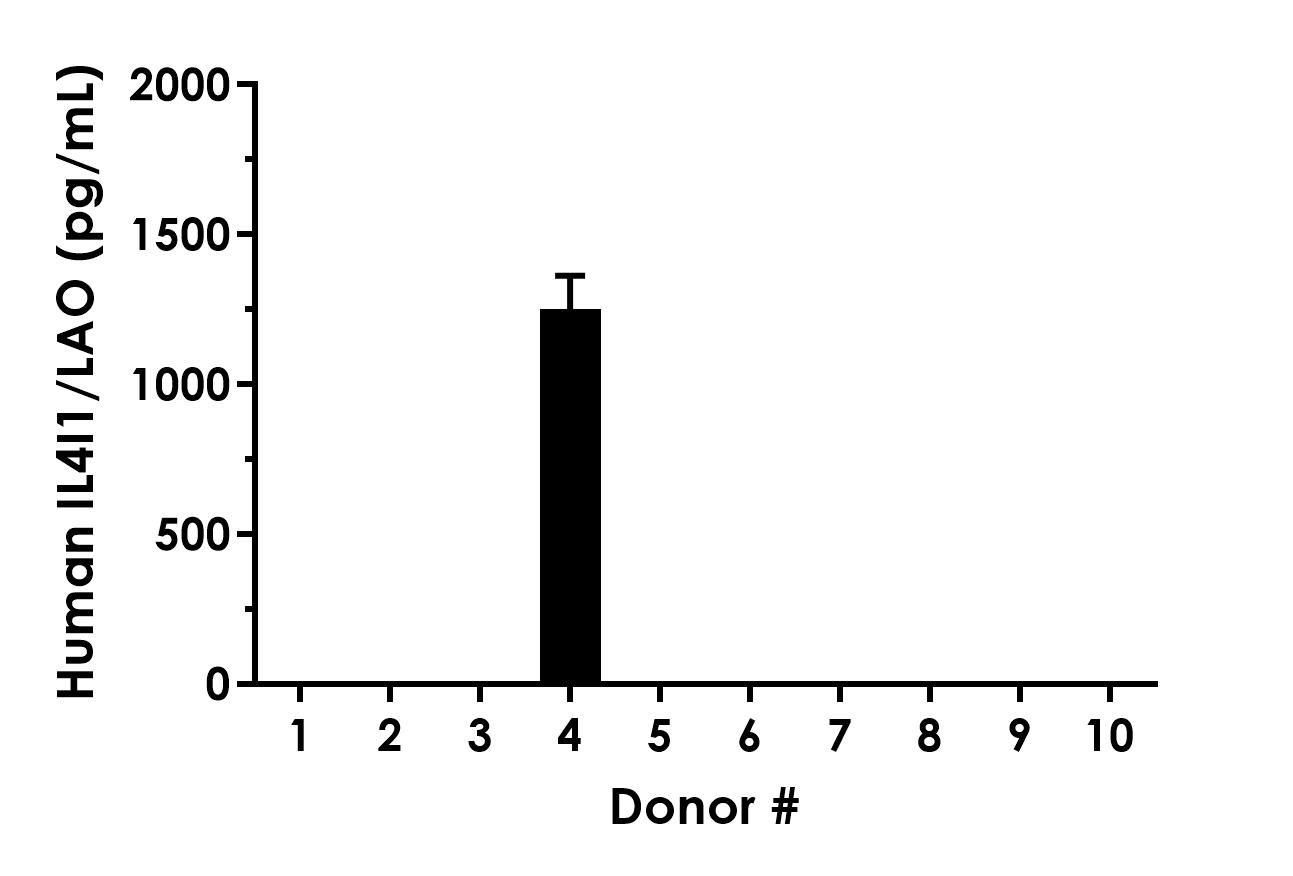

Serum of ten individual healthy human female donors was measured in duplicate. Interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean IL4I1/LAO concentration of detected samples was determined to be 1,251 pg/mL with a range of undetected – 1,251 pg/mL.
Downloads
Product protocols
- Visit the general protocols
- Visit troubleshooting
