AB283551

Human IRF3 ELISA Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Human IRF3 ELISA Kit is a single-wash 90-min Simplestep used to quantify Human IRF3 with a sensitivity of 2.9 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

Interferon regulatory factor 5, IRF-5, IRF5

2 Images
Sandwich ELISA - Human IRF3 ELISA Kit (AB283551)
  • sELISA

Supplier Data

Sandwich ELISA - Human IRF3 ELISA Kit (AB283551)

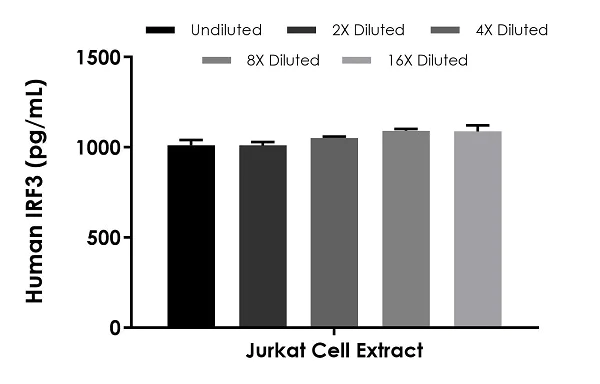

Interpolated concentrations of native IRF3 in human Jurkat cell extracts based on a 20 μg/mL extract load.

The concentrations of IRF3 were measured in duplicate and interpolated from the IRF3 standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean IRF3 concentration was determined to be 1051 pg/mL.

Sandwich ELISA - Human IRF3 ELISA Kit (AB283551)
  • sELISA

Supplier Data

Sandwich ELISA - Human IRF3 ELISA Kit (AB283551)

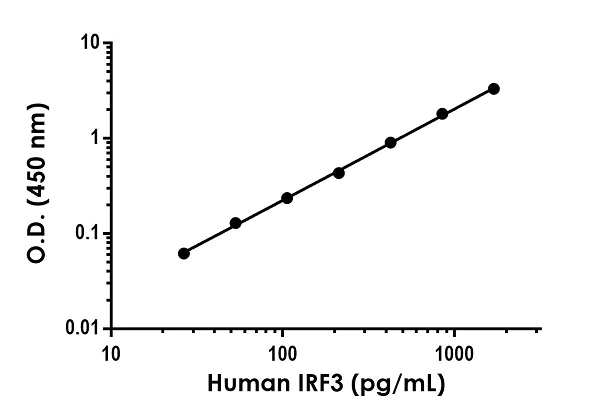

Example of human IRF3 standard curve in 1X Cell Extraction Buffer PTR.

The IRF3 standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Cell Lysate

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 2.9 pg/mL

Range

26.56 - 1700 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human IRF3 ELISA kit (ab283551) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Human IRF3 protein in human cell culture extracts. It uses our proprietary SimpleStep ELISA® technology. Quantitate Human IRF3 with 2.9 pg/mL sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

IRF3, Interferon regulatory factor 3, is a transcription factor which plays a primary role in innate immunity. In the course of viral infection IRF3 will be phosphorylated, dimerize, and translocate to the nucleus where it regulates transcription of type I IFN genes. The immunogen from which the antibodies in this kit were raised represent the full-length protein. This protein shares only 70% and 73% sequence identity with mouse and rat, respectively, and is not expected to be highly cross-reactive.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style
left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "6.44" }, { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "4.8" } ]
style
left-column

Recovery

[ { "sample": "Cell Lysate", "range": "91 - 110 %", "average": "= 99" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab283551-1x96Tests", "assetComponentDetails": [ { "size":"1 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB283551-CMP13", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human IRF3 Lyophilized Recombinant Protein", "number":"AB283551-CMP09", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB283551-CMP11", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB283551-CMP12", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human IRF3 Capture Antibody", "number":"AB283551-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human IRF3 Detector Antibody", "number":"AB283551-CMP04", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB283551-CMP05", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB283551-CMP07", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB283551-CMP08", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB283551-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB283551-CMP10", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

IRF5 or Interferon Regulatory Factor 5 is a member of the IRF family of transcription factors. This protein weighs approximately 56 kDa and is expressed in cells of the immune system including B cells dendritic cells and macrophages. IRF5 plays an important role in regulating the transcription of interferon-stimulated genes following a viral infection. It acts by binding to specific DNA sequences initiating transcription processes that are important for the antiviral response.
Biological function summary

IRF5 influences the immune response through the regulation of cytokine production. It activates genes involved in producing pro-inflammatory cytokines such as TNF-α and IL-6 which are important for clearing viral infections and activating immune cells. IRF5 does not usually form part of a protein complex but it interacts closely with TRAF6 and MyD88 for its activation. Its pivotal role in cytokine production highlights its importance in controlling inflammation.

Pathways

IRF5 is an important component of the Toll-like receptor (TLR) signaling pathway and plays a role in the MyD88-dependent pathway. In this context IRF5 gets activated by TLRs interacting with MyD88 and TAK1 to enhance the transcription of important genes for immune response. It is also closely connected to the IRF3 protein which shares similar activation pathways and can similarly initiate an antiviral state.

Defects or dysregulation in IRF5 function are linked to autoimmune diseases such as systemic lupus erythematosus (SLE) and rheumatoid arthritis. In SLE IRF5 influences autoantibody production contributing to disease development. It works alongside other regulatory proteins involved in autoimmunity including IFN-α and STAT4 which also play significant roles in modulating immune responses. Understanding IRF5's role in these conditions could present new opportunities for therapeutic interventions using IRF5 inhibitors.
style
left-column

Product protocols

style
left-column

Target data

Transcription factor that plays a critical role in innate immunity by activating expression of type I interferon (IFN) IFNA and INFB and inflammatory cytokines downstream of endolysosomal toll-like receptors TLR7, TLR8 and TLR9 (PubMed : 11303025, PubMed : 15695821, PubMed : 22412986, PubMed : 25326418, PubMed : 32433612). Regulates the transcription of type I IFN genes (IFN-alpha and IFN-beta) and IFN-stimulated genes (ISG) by binding to an interferon-stimulated response element (ISRE) in their promoters (By similarity). Can efficiently activate both the IFN-beta (IFNB) and the IFN-alpha (IFNA) genes and mediate their induction downstream of the TLR-activated, MyD88-dependent pathway (By similarity). Key transcription factor regulating the IFN response during SARS-CoV-2 infection (PubMed : 33440148).
