AB235081

Human KIM1 ELISA Kit (TIM-1)

Be the first to review this product! Submit a review

|

(7 Publications)

Human KIM1 ELISA Kit (TIM-1) is a Sandwich (quantitative) ELISA for the measurement of Human KIM1 (TIM-1) in Human in Biofluids samples.

View Alternative Names

CD365, KIM1, TIM1, TIMD1, HAVCR1, Hepatitis A virus cellular receptor 1, HAVcr-1, Kidney injury molecule 1, T-cell immunoglobulin and mucin domain-containing protein 1, T-cell immunoglobulin mucin receptor 1, T-cell membrane protein 1, KIM-1, TIMD-1, TIM, TIM-1

1 Images
Sandwich ELISA - Human KIM1 ELISA Kit (TIM-1) (AB235081)
  • sELISA

Supplier Data

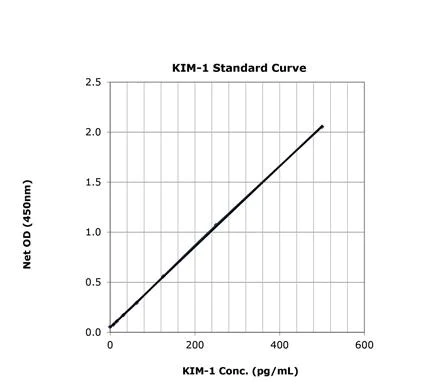

Sandwich ELISA - Human KIM1 ELISA Kit (TIM-1) (AB235081)

KIM-1 (human) Standard curve

Key facts

Detection method

Colorimetric

Sample types

Urine

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 1.279 pg/mL

Range

7.813 - 500 pg/mL

Assay time

2h

Assay Platform

Microplate

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

The human KIM1 ELISA (Enzyme-Linked Immunosorbent Assay) kit is a complete kit for the quantitative measurement of KIM1 protein in urine.

The ELISA kit is ultra sensitive, reliably measuring as little as 1.2 pg/ml of Kim1. This enables the use of reduced input sample and results in reduced matrix interference. It is high throughput with results in <2 hours from up to 38 samples in duplicate. The kit uses a monoclonal antibody to KIM-1 immobilized on a microtiter plate to bind the KIM-1 in the standards or sample. After a short incubation the excess sample or standard is washed out and a biotinylated monoclonal antibody to KIM-1 is added. This antibody binds to the KIM-1 captured on the plate. After a short incubation the excess antibody is washed out and Streptavidin conjugated to Horseradish peroxidase is added, which binds to the biotin on the monoclonal antibody. The plate is then incubated. Once the incubation is complete, excess conjugate is washed out and TMB substrate solution is added. An HRP-catalyzed reaction generates a blue color in the solution. Stop solution is added to stop the substrate reaction. The resulting yellow color is read at 450 nm. The amount of signal is directly proportional to the level of KIM-1 in the sample.

Kim1 is an early biomarker for kidney injury or disease. It is the most highly upregulated protein in the proximal tubule of the injured kidney. It exists in very low levels in normal kidneys but when upregulated during injury, it is detectable in urine in a wide variety of human diseases. KIM-1 is a potential biomarker for renal injury, which would suggest it has great importance in various kidney diseases and disorders such as chronic kidney disease, as well as acute tubular necrosis and acute kidney failure.

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab235081-1x96Tests", "assetComponentDetails": [ { "size":"1 x 10 mL", "name":"KIM-1 Detector Antibody", "number":"AB235081-CMP03", "productcode":"" }, { "size":"1 x 100 mL", "name":"Wash Buffer Concentrate", "number":"AB235081-CMP09", "productcode":"" }, { "size":"1 x 0.5 mL", "name":"KIM-1 Standard (25ng/mL)", "number":"AB235081-CMP05", "productcode":"" }, { "size":"1 x 10 mL", "name":"KIM-1 Conjugate", "number":"AB235081-CMP02", "productcode":"" }, { "size":"1 x 60 mL", "name":"Assay Buffer", "number":"AB235081-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"KIM-1 coated microplate (12x 8 well strips)", "number":"AB235081-CMP04", "productcode":"" }, { "size":"3 x 1 Unit", "name":"Plate Sealer", "number":"AB235081-CMP06", "productcode":"" }, { "size":"1 x 10 mL", "name":"Stop Solution 2", "number":"AB235081-CMP07", "productcode":"" }, { "size":"1 x 10 mL", "name":"TMB Substrate", "number":"AB235081-CMP08", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

TIM 1 also known as T-cell immunoglobulin and mucin domain 1 is a cell surface protein with a molecular mass of approximately 70 to 80 kDa. It is expressed predominantly in activated T cells and some epithelial cells. TIM 1 plays an important role in immune regulation and can be found at the surface of cells in various tissues including the liver and kidney. This protein can interact with other components which can influence immune response in the host.
Biological function summary

The TIM 1 protein functions as a receptor involved in T cell activity modulation and innate immune response regulation. It is known to bind phosphatidylserine on apoptotic cells which fosters communication between dying cells and phagocytes. TIM 1 does not typically exist as part of a larger complex but its interactions with other molecules is important for its role in the immune system. The protein’s activity influences cytokine production and this can affect inflammation processes.

Pathways

TIM 1 is involved in key immune response pathways like the signaling pathways of T cells and the broader adaptive immune response. This protein has been linked with the enhancement of Th2 cytokine production impacting allergic response signaling. It interacts with related proteins like TIM 3 and TIM 4 which together contribute to the fine-tuning of immune responses. Understanding TIM 1 within these pathways helps in grasping its regulatory potential in T-cell mediated immunity.

TIM 1 is implicated in conditions such as asthma and systemic lupus erythematosus (SLE). In asthma improperly regulated Th2 immune responses involve TIM 1 which can exacerbate allergic inflammations. This protein also plays a role in the pathogenesis of SLE a systemic autoimmune disease where TIM 1's regulation of immune tolerance and inflammation is critical. TIM 1’s involvement with other proteins like IL-4 and IL-13 in these disorders further highlights its significance in immune dysregulation processes.

Product protocols

Target data

Phosphatidylserine receptor that plays an important functional role in regulatory B-cells homeostasis including generation, expansion and suppressor functions (By similarity). As P-selectin/SELPLG ligand, plays a specialized role in activated but not naive T-cell trafficking during inflammatory responses (PubMed : 24703780). Controls thereby T-cell accumulation in the inflamed central nervous system (CNS) and the induction of autoimmune disease (PubMed : 24703780). Regulates also expression of various anti-inflammatory cytokines and co-inhibitory ligands including IL10 (By similarity). Acts as a regulator of T-cell proliferation (By similarity). May play a role in kidney injury and repair (PubMed : 17471468).. (Microbial infection) Acts as a receptor for Hepatitis A virus.. (Microbial infection) Acts as a receptor for Ebolavirus and Marburg virus by binding exposed phosphatidyl-serine at the surface of virion membrane (PubMed : 21536871). Serves as a dual receptor for Ebolavirus by also interacting with envelope glycoprotein GP (PubMed : 26487564).. (Microbial infection) Acts as a receptor for Dengue virus by binding exposed phosphatidyl-serine at the surface of virion membrane (PubMed : 23084921). TIM1 and Dengue virus are co-internalized during virus entry (PubMed : 29742433).. (Microbial infection) Acts as a receptor for Zika virus by binding to envelope protein E.. (Microbial infection) Plays a positive role in Chikungunya virus cell entry.
See full target information HAVCR1

Publications (7)

Recent publications for all applications. Explore the full list and refine your search

Antimicrobial agents and chemotherapy 68:e0021924 PubMed39225483

2024

Evaluating nephrotoxicity reduction in a novel polymyxin B formulation: insights from a 3D kidney-on-a-chip model.

Applications

Unspecified application

Species

Unspecified reactive species

Anurag Payasi,Manoj Kumar Yadav,Saransh Chaudhary,Anmol Aggarwal

Scientific reports 14:13464 PubMed38866845

2024

Metal concentrations and KIM-1 levels in school-aged children: a cross-sectional study.

Applications

Unspecified application

Species

Unspecified reactive species

Oliver Mendoza-Cano,Mónica Ríos-Silva,Irma Gonzalez-Curiel,Arlette A Camacho-delaCruz,María Fernanda Romo-García,Herguin Benjamin Cuevas-Arellano,Ana Luz Quintanilla-Montoya,Miguel A Martínez-Preciado,Pedro Rincón-Avalos,Ángel Gabriel Hilerio-López,Efrén Murillo-Zamora

Environment international 177:107997 PubMed37269720

2023

Ambient black carbon reaches the kidneys.

Applications

Unspecified application

Species

Unspecified reactive species

Leen Rasking,Priyanka Koshy,Eva Bongaerts,Hannelore Bové,Marcel Ameloot,Michelle Plusquin,Katrien De Vusser,Tim S Nawrot

American journal of translational research 14:8686-8694 PubMed36628213

2022

Diagnostic role of urinary CA-2 in urinary stones and its prediction of complications.

Applications

Unspecified application

Species

Unspecified reactive species

Yuanjing Leng,Haibin Zhou,Wenjuan Wang,Jiangling Fu

Frontiers in cardiovascular medicine 9:829490 PubMed35757319

2022

Vitamin D Binding Protein and Renal Injury in Acute Decompensated Heart Failure.

Applications

Unspecified application

Species

Unspecified reactive species

Elisa Diaz-Riera,Maisa García-Arguinzonis,Laura López,Xavier Garcia-Moll,Lina Badimon,Teresa Padró

Journal of clinical medicine 11: PubMed35011897

2021

Association between Enzyme-Linked Immunosorbent Assay-Measured Kidney Injury Markers and Urinary Cadmium Levels in Chronic Kidney Disease.

Applications

Unspecified application

Species

Unspecified reactive species

Kai-Fan Tsai,Pai-Chin Hsu,Chien-Te Lee,Chia-Te Kung,Yi-Chin Chang,Lung-Ming Fu,Yu-Che Ou,Kuo-Chung Lan,Tzung-Hai Yen,Wen-Chin Lee

Journal of medical virology 93:6641-6652 PubMed34314040

2021

Critical roles of cytokine storm and secondary bacterial infection in acute kidney injury development in COVID-19: A multi-center retrospective cohort study.

Applications

Unspecified application

Species

Unspecified reactive species

Xia-Qing Li,Han Liu,Yu Meng,Hai-Yan Yin,Wen-Yong Gao,Xiao Yang,Dian-Shuang Xu,Xing-Dong Cai,Yin Guan,Lilach O Lerman,Zhi-Yong Peng,Hou-Rong Zhou
