AB193707

Human LAG3 ELISA Kit

Be the first to review this product! Submit a review

|

(5 Publications)

Human LAG3 ELISA Kit is a Sandwich ELISA for the measurement of Human LAG3 in Human in Biofluids, Cell Culture Media samples.

View Alternative Names

CD223, FDC, LAG3, Lymphocyte activation gene 3 protein, LAG-3

1 Images
Sandwich ELISA - Human LAG3 ELISA Kit (AB193707)
  • sELISA

Supplier Data

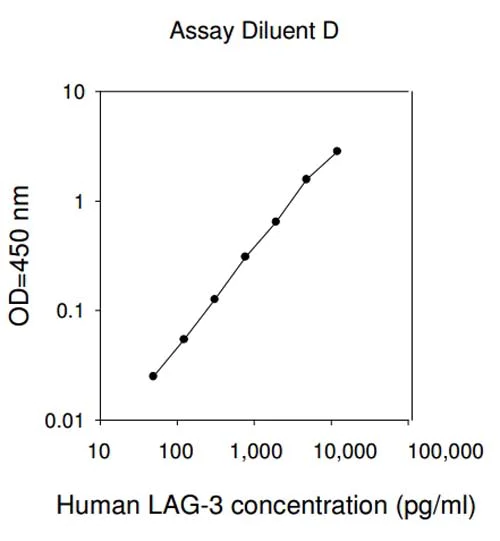

Sandwich ELISA - Human LAG3 ELISA Kit (AB193707)

Data provided for demonstration purposes only. A new standard curve must be generated for each assay performed.

Key facts

Detection method

Colorimetric

Sample types

Plasma, Cell culture supernatant, Serum

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 45 pg/mL

Range

45 - 12000 pg/well

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Abcam's LAG3 (lymphocyte activation gene 3) Human ELISA Kit (ab193707) is an in vitro enzyme-linked immunosorbent assay for the quantitative measurement of Human LAG3 in serum, plasma and cell culture supernatant. (UniprotID: P18627)

This assay employs an antibody specific for human LAG3 coated on a 96-well plate. Standards and samples are pipetted into the wells and the immobilized antibody captures LAG3 present in the samples. The wells are washed and biotinylated anti-human LAG3 is added. After washing away any unbound biotinylated antibody, an HRP-conjugated streptavidin is pipetted to the wells. After incubation, the wells are again washed, followed by the addition of a TMB substrate solution to the wells. Color will develop in proportion to the amount of LAG3 bound in each well. Addition of the Stop Solution will change the color from blue to yellow, and the intensity of the color is measured at 450 nm.

Precision

[ { "reproducibilityType": "Inter", "sample": "Overall", "replicates": 0, "mean": null, "standardDeviation": null, "coefficientOfVariability": "< 12" }, { "reproducibilityType": "Intra", "sample": "Overall", "replicates": 0, "mean": null, "standardDeviation": null, "coefficientOfVariability": "< 10" } ]

Recovery

[ { "sample": "Serum", "range": "70 - 86 %", "average": "= 78.4" }, { "sample": "Plasma", "range": "68 - 95 %", "average": "= 78.2" }, { "sample": "Cell culture media", "range": "69 - 85 %", "average": "= 76.83" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab193707-1x96Tests", "assetComponentDetails": [ { "size":"1 x 25 mL", "name":"20X Wash Buffer", "number":"AB193707-CMP01", "productcode":"" }, { "size":"1 x 8 mL", "name":"Stop Solution", "number":"AB193707-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Pre-coated Human LAG3 Microplate (12 strips x 8 wells)", "number":"AB193707-CMP08", "productcode":"" }, { "size":"1 x 15 mL", "name":"5X Assay Diluent B", "number":"AB193707-CMP04", "productcode":"" }, { "size":"1 x 15 mL", "name":"5X Assay Diluent D", "number":"AB193707-CMP05", "productcode":"" }, { "size":"1 x 200 µL", "name":"200X HRP-Streptavidin Concentrate", "number":"AB193707-CMP02", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB One-Step Substrate Reagent", "number":"AB193707-CMP07", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Biotinylated Human LAG3 detection antibody", "number":"AB193707-CMP03", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human LAG3 Standards (lyophilized)", "number":"AB193707-CMP09", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

LAG-3 also known as CD223 is a transmembrane protein with a mass of approximately 70 kDa. It acts as a checkpoint molecule similar to CTLA-4 and PD-1 in the immune system. LAG-3 is expressed on activated T cells natural killer cells and some dendritic cells. It interacts with its ligand MHC class II leading to inhibition of cellular proliferation and cytokine secretion an important part of immune response regulation.
Biological function summary

LAG-3 is involved in maintaining immune homeostasis and preventing autoimmunity. It is not part of a complex but works in synergy with other immune checkpoint molecules. When interacting with MHC class II LAG-3 transmits inhibitory signals that attenuate immune cell responses. Its role in immune regulation helps to balance immune activation and tolerance which is essential for preventing tissue damage while protecting against pathogens.

Pathways

The inhibitory role of LAG-3 integrates into the T cell receptor (TCR) signaling pathway and is also linked to the PD-1 signaling pathway. In TCR signaling LAG-3 negatively regulates T cell activation. LAG-3 is functionally related to proteins like PD-1 and CTLA-4 sharing similar roles in immune checkpoint pathways that are critical for maintaining immune balance.

LAG-3 has links to cancer and autoimmune diseases. In cancer LAG-3 expression on tumor-infiltrating lymphocytes correlates with immune evasion by tumors. This relationship appears in various cancers including melanoma and renal cell carcinoma. In autoimmune diseases LAG-3's expression on regulatory T cells helps control conditions such as multiple sclerosis. It collaborates with CTLA-4 in modulating immune responses that prevent excessive immune activation and tissue damage associated with autoimmunity.

Product protocols

Target data

Lymphocyte activation gene 3 protein. Inhibitory receptor on antigen activated T-cells (PubMed : 20421648, PubMed : 35761082, PubMed : 7805750, PubMed : 8647185). Delivers inhibitory signals upon binding to ligands, such as MHC class II, its main ligand present at the surface of antigen-presenting cells (APCs), and FGL1, which is secreted by hepatocytes and certain types of tumor cells (PubMed : 30580966, PubMed : 32920841, PubMed : 35761082, PubMed : 39671469, PubMed : 7589152, PubMed : 8647185, PubMed : 9159144). Ligand-binding initiates a signaling that inhibits the T-cell receptor (TCR) in the immunological synapse, preventing T-cell activation (PubMed : 40101708). Mechanistically, ligand-binding promotes (1) ubiquitination of the KIEELE motif, unleashing the RRFSALE motif from the membrane and (2) leading to the formation of condensates with the TCR component CD3E, thereby disrupting the association between CD3E and LCK and preventing TCR activation (PubMed : 40101708, PubMed : 40592325). May inhibit antigen-specific T-cell activation in synergy with PDCD1/PD-1 (By similarity). Negatively regulates the proliferation, activation, effector function and homeostasis of both CD8(+) and CD4(+) T-cells (PubMed : 20421648, PubMed : 7805750, PubMed : 8647185). Also mediates immune tolerance : constitutively expressed on a subset of regulatory T-cells (Tregs) and contributes to their suppressive function (By similarity). Also acts as a negative regulator of plasmacytoid dendritic cell (pDCs) activation (By similarity).. The LAG3-mediated inhibitory pathway is exploited by tumors to attenuate anti-tumor immunity and escape destruction by the immune system, thereby facilitating tumor survival (PubMed : 35981087, PubMed : 40101708). The blockage of the LAG3- and PDCD1-mediated pathways results in the reversal of the exhausted T-cell phenotype and the normalization of the anti-tumor response, providing a rationale for cancer immunotherapy (PubMed : 35981087, PubMed : 40101708).. Secreted lymphocyte activation gene 3 protein. May function as a ligand for MHC class II (MHC-II) on antigen-presenting cells (APC), promoting APC activation/maturation and driving Th1 immune response.
See full target information LAG3

Publications (5)

Recent publications for all applications. Explore the full list and refine your search

Current oncology (Toronto, Ont.) 31:1701-1712 PubMed38668032

2024

Soluble Immune Checkpoint Molecules as Predictors of Efficacy in Immuno-Oncology Combination Therapy in Advanced Renal Cell Carcinoma.

Applications

Unspecified application

Species

Unspecified reactive species

Kosuke Ueda,Keiichiro Uemura,Naoki Ito,Yuya Sakai,Satoshi Ohnishi,Hiroki Suekane,Hirofumi Kurose,Tasuku Hiroshige,Katsuaki Chikui,Kiyoaki Nishihara,Makoto Nakiri,Shigetaka Suekane,Sachiko Ogasawara,Hirohisa Yano,Tsukasa Igawa

Technology in cancer research & treatment 22:15330338231202650 PubMed37968933

2023

Clinical Significance of Soluble LAG-3 (sLAG-3) in Patients With Cervical Cancer Determined via Enzyme-Linked Immunosorbent Assay With Monoclonal Antibodies.

Applications

Unspecified application

Species

Unspecified reactive species

Yang Li,Wenwen Wang,Jingluan Tian,Ying Zhou,Yu Shen,Mingyuan Wang,Longhai Tang,Cuiping Liu,Xueguang Zhang,Fangrong Shen,Youguo Chen,Yanzheng Gu

Cancer medicine 12:17648-17659 PubMed37501393

2023

Serum soluble immune checkpoint levels predict cervical lymph node metastasis of differentiated thyroid carcinoma patients.

Applications

Unspecified application

Species

Unspecified reactive species

Yi Shao,Xinru Gui,Yuxin Wang,Lei Sheng,Dong Sun,Qingdong Zeng,Huayang Wang

Frontiers in medicine 10:1117816 PubMed36756176

2023

Rapid disease progression on immune checkpoint inhibitors in young patients with stage IV melanoma.

Applications

Unspecified application

Species

Unspecified reactive species

Devayani Machiraju,Sarah Schäfer,Philip Beckhove,Jasmin Roth,Carsten Schulz,Jessica C Hassel

Oncoimmunology 10:1926762 PubMed34104542

2021

Soluble immune checkpoints and T-cell subsets in blood as biomarkers for resistance to immunotherapy in melanoma patients.

Applications

IHC-P, ELISA

Species

Human, Human

Devayani Machiraju,Melanie Wiecken,Nina Lang,Ingrid Hülsmeyer,Jasmin Roth,Timo E Schank,Rosa Eurich,Niels Halama,Alexander Enk,Jessica C Hassel
View all publications
