AB302757

Human LAMP2 ELISA Kit

Be the first to review this product! Submit a review

|

(1 Publication)

Human LAMP2 ELISA Kit is a single-wash 90-min Simplestep used to quantify Human LAMP2 with a sensitivity of 18.248 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Validated on a number of sample types including cerebrospinal fluid (CSF)
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

CD107b, Lysosome-associated membrane glycoprotein 2, LAMP-2, Lysosome-associated membrane protein 2, CD107 antigen-like family member B, LGP-96, LAMP2

5 Images
ELISA - Human LAMP2 ELISA Kit (AB302757)
  • ELISA

Supplier Data

ELISA - Human LAMP2 ELISA Kit (AB302757)
Sandwich ELISA - Human LAMP2 ELISA Kit (AB302757)
  • sELISA

Supplier Data

Sandwich ELISA - Human LAMP2 ELISA Kit (AB302757)

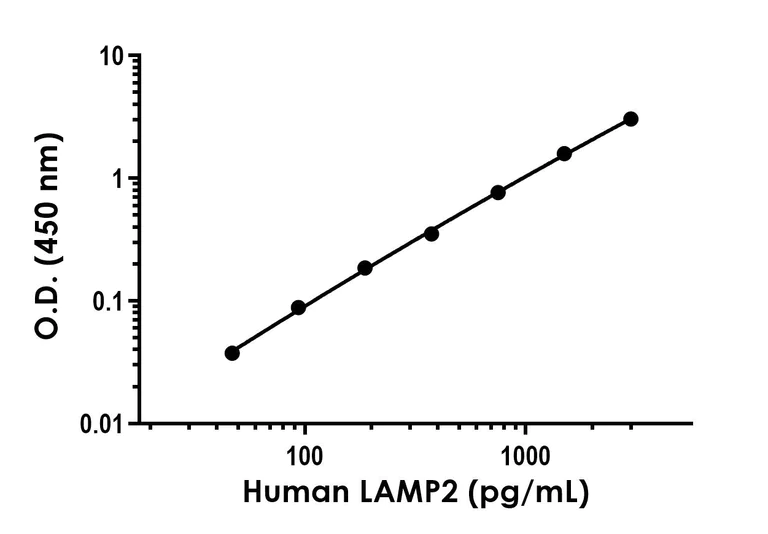

Example of Human LAMP2 standard curve. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human LAMP2 ELISA Kit (AB302757)
  • sELISA

Supplier Data

Sandwich ELISA - Human LAMP2 ELISA Kit (AB302757)

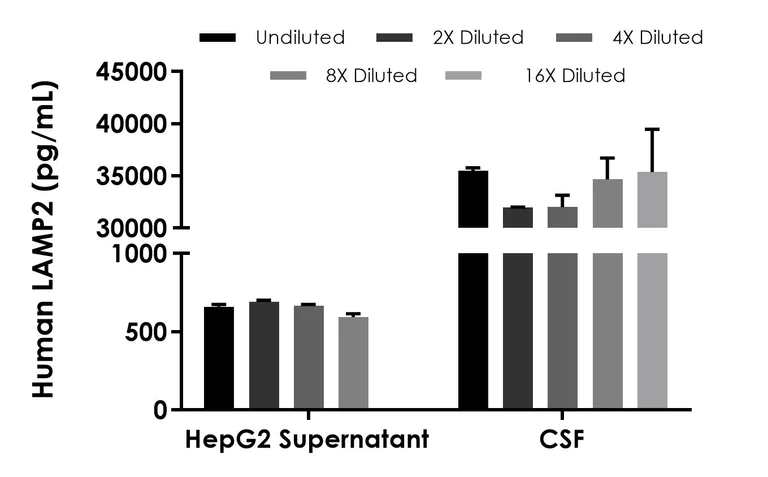

Interpolated concentration of native LAMP2 was measured in duplicate at different sample concentrations. Undiluted samples are as follows : HepG2 cell culture supernatant 25%, and cerebrospinal fluid 6.25%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Sandwich ELISA - Human LAMP2 ELISA Kit (AB302757)
  • sELISA

Supplier Data

Sandwich ELISA - Human LAMP2 ELISA Kit (AB302757)

Example of Human LAMP2 standard curve. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human LAMP2 ELISA Kit (AB302757)
  • sELISA

Supplier Data

Sandwich ELISA - Human LAMP2 ELISA Kit (AB302757)

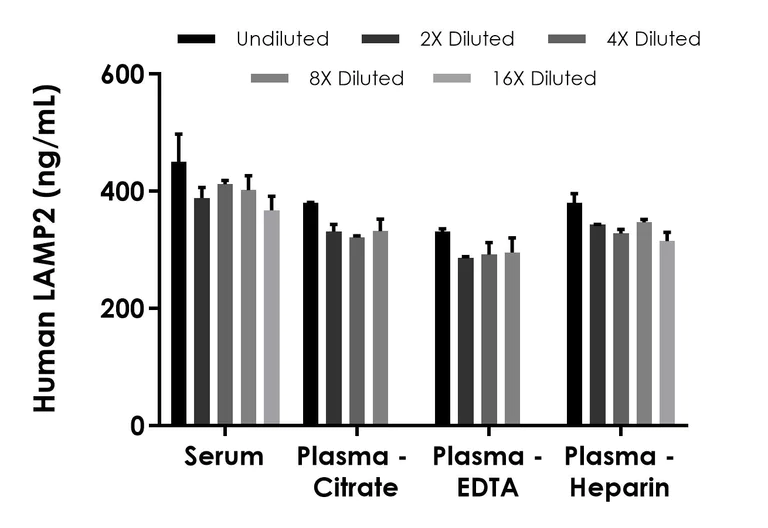

Interpolated concentration of native LAMP2 was measured in duplicate at different sample concentrations. Undiluted samples are 1 : 200 serum, plasma (EDTA), plasma (citrate), and plasma (heparin).  The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Key facts

Detection method

Colorimetric

Sample types

Serum, EDTA Plasma, Citrate plasma, Heparin Plasma, Cerebral Spinal Fluid, Cell culture media

Reacts with

Human, Monkey

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 18.248 pg/mL

Range

46.875 - 3000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Human LAMP2 ELISA Kit ab302757 is a rapid single-wash 90-min Sandwich ELISA to measure Human LAMP2 in cell culture media, CSF, citrate plasma, EDTA plasma, heparin plasma, serum. This SimpleStep sensitivity is 18.248 pg/mL.

How the assay works

Human LAMP2 SimpleStep ELISA®employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Assay Specificity

Our SimpleStep ELISA® kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Human LAMP2 ELISA Kit ab302757 protocol summary

1. Mix: add samples/standards to the wells together with the capture and detector antibody cocktail. Incubate 1 hr at room temperature
2. Wash
3. Add TMB development solution - incubate for 10 min
4. Add Stop solution
5. Read the results on a plate reader at 450 nm

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-LAMP2 antibody [YCA-R24444-31 H2L1] - BSA and Azide free (Capture) ab288624
- Anti-LAMP2 antibody [YCA-R24444-155 H2L1] - BSA and Azide free (Detector) ab288624

Precision

[ { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "7.11" }, { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "5.2" } ]

Recovery

[ { "sample": "Cerebral Spinal Fluid", "range": "101 - 110 %", "average": "= 105" }, { "sample": "Citrate plasma", "range": "100 - 112 %", "average": "= 107" }, { "sample": "EDTA Plasma", "range": "90 - 106 %", "average": "= 100" }, { "sample": "Heparin Plasma", "range": "103 - 110 %", "average": "= 108" }, { "sample": "Serum", "range": "95 - 111 %", "average": "= 104" } ]

What's included?

{ "values": { "96Tests": { "sellingSize": "96 Tests", "publicAssetCode":"ab302757-96Tests", "assetComponentDetails": [ { "size":"1 x 96 Wells", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB302757-CMP09", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB302757-CMP08", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB302757-CMP05", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB302757-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB302757-CMP07", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human LAMP2 Lyophilized Recombinant Protein", "number":"AB302757-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human LAMP2 Capture Antibody", "number":"AB302757-CMP01", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB302757-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human LAMP2 Detector Antibody", "number":"AB302757-CMP02", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB302757-CMP10", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

LAMP2 also known as CD107b is an important protein found in the lysosomal membrane. It plays a significant role in lysosome function facilitating autophagy and the degradation of cellular debris. LAMP2 proteins are expressed in most tissues especially in tissues with high lysosomal activity like the liver kidney and heart. The LAMP2 molecule has a molecular weight of approximately 45 kDa. Researchers frequently use LAMP2 staining and LAMP2 marker to study its cellular localization and expression levels.
Biological function summary

LAMP2 is essential for the normal fusion of lysosomes with autophagosomes. This process ensures the recycling of cellular components and maintenance of cellular homeostasis. LAMP2 acts in conjunction with other members of the lysosome-associated membrane protein family LAMP1 and LAMP3 forming part of a larger complex. This interaction is fundamental in managing the degradation pathways within the cell supporting processes such as lipid metabolism and protein turnover.

Pathways

The activity of LAMP2 is critical in the autophagic and degradation pathways within the cell. It particularly interacts in the autophagy-lysosome pathway where it aids the clearance of damaged organelles and protein aggregates. LAMP2 interaction with proteins such as the autophagy-related protein LC3 helps this degradation process. Additionally LAMP2 plays a role in endocytic pathways linking it to proteins involved in vesicle trafficking and membrane fusion.

Mutations or deficiencies in LAMP2 are associated with Danon disease a type of lysosomal storage disorder. Patients with Danon disease exhibit symptoms such as cardiomyopathy skeletal myopathy and intellectual disabilities. LAMP2 is also implicated in other lysosomal disorders with a connection to the malfunction of autophagy processes. Its dysfunction is often linked with proteins responsible for cellular degradation affecting the normal homeostatic balance and leading to the accumulation of autophagic substrates.

Product protocols

Target data

Lysosomal membrane glycoprotein which plays an important role in lysosome biogenesis, lysosomal pH regulation and autophagy (PubMed : 11082038, PubMed : 18644871, PubMed : 24880125, PubMed : 27628032, PubMed : 36586411, PubMed : 37390818, PubMed : 8662539). Acts as an important regulator of lysosomal lumen pH regulation by acting as a direct inhibitor of the proton channel TMEM175, facilitating lysosomal acidification for optimal hydrolase activity (PubMed : 37390818). Plays an important role in chaperone-mediated autophagy, a process that mediates lysosomal degradation of proteins in response to various stresses and as part of the normal turnover of proteins with a long biological half-live (PubMed : 11082038, PubMed : 18644871, PubMed : 24880125, PubMed : 27628032, PubMed : 36586411, PubMed : 8662539). Functions by binding target proteins, such as GAPDH, GPX4, NLRP3 and MLLT11, and targeting them for lysosomal degradation (PubMed : 11082038, PubMed : 18644871, PubMed : 24880125, PubMed : 36586411, PubMed : 8662539). In the chaperone-mediated autophagy, acts downstream of chaperones, such as HSPA8/HSC70, which recognize and bind substrate proteins and mediate their recruitment to lysosomes, where target proteins bind LAMP2 (PubMed : 36586411). Plays a role in lysosomal protein degradation in response to starvation (By similarity). Required for the fusion of autophagosomes with lysosomes during autophagy (PubMed : 27628032). Cells that lack LAMP2 express normal levels of VAMP8, but fail to accumulate STX17 on autophagosomes, which is the most likely explanation for the lack of fusion between autophagosomes and lysosomes (PubMed : 27628032). Required for normal degradation of the contents of autophagosomes (PubMed : 27628032). Required for efficient MHC class II-mediated presentation of exogenous antigens via its function in lysosomal protein degradation; antigenic peptides generated by proteases in the endosomal/lysosomal compartment are captured by nascent MHC II subunits (PubMed : 15894275, PubMed : 20518820). Is not required for efficient MHC class II-mediated presentation of endogenous antigens (PubMed : 20518820).. Isoform LAMP-2C. Modulates chaperone-mediated autophagy. Decreases presentation of endogenous antigens by MHCII. Does not play a role in the presentation of exogenous and membrane-derived antigens by MHCII.. (Microbial infection) Supports the FURIN-mediated cleavage of mumps virus fusion protein F by interacting with both FURIN and the unprocessed form but not the processed form of the viral protein F.
See full target information LAMP2

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Nature communications 15:8132 PubMed39284802

2024

Ready-to-use iPSC-derived microglia progenitors for the treatment of CNS disease in mouse models of neuropathic mucopolysaccharidoses.

Applications

Unspecified application

Species

Unspecified reactive species

Panagiotis Douvaras,Diego F Buenaventura,Bruce Sun,Ashley Lepack,Elizabeth Baker,Elizabeth Simpson,Mark Ebel,Gregory Lallos,Deven LoSchiavo,Nicholas Stitt,Nathaniel Adams,Conor McAuliffe,Ana Forton-Juarez,Brian Kosmyna,Elizabeth Pereira,Benjamin Burnett,David Dilworth,Stephanie Fisher,Jing Wang,Peter Tonge,Mark Tomishima,Carlos Paladini,Dan Wilkinson,Chew-Li Soh,Maya Srinivas,Christoph Patsch,Stefan Irion
