AB119600

Human Lipocalin-2 ELISA Kit (NGAL)

Be the first to review this product! Submit a review

|

(10 Publications)

Human Lipocalin-2 ELISA Kit (NGAL) is a Sandwich (quantitative) ELISA for the measurement of Human Lipocalin-2 (NGAL) in Human in Biofluids, Cell Culture Media samples.

View Alternative Names

HNL, NGAL, LCN2, Neutrophil gelatinase-associated lipocalin, 25 kDa alpha-2-microglobulin-related subunit of MMP-9, Lipocalin-2, Oncogene 24p3, Siderocalin, p25

1 Images
Sandwich ELISA - Human Lipocalin-2 ELISA Kit (NGAL) (AB119600)
  • sELISA

Supplier Data

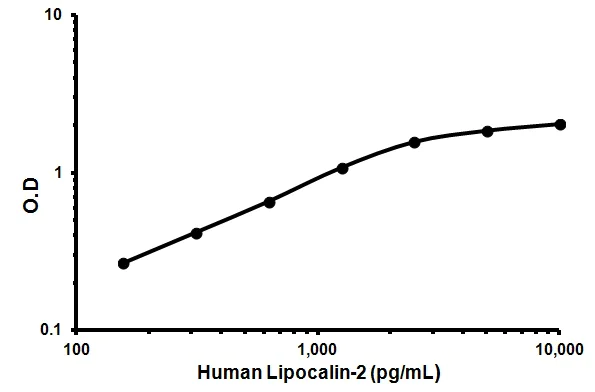

Sandwich ELISA - Human Lipocalin-2 ELISA Kit (NGAL) (AB119600)

Representative Standard Curve using ab119600

Key facts

Detection method

Colorimetric

Sample types

Saliva, Urine, Plasma, Cell culture supernatant, Serum

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

< 10 pg/mL

Range

156 - 10000 pg/mL

Assay Platform

Microplate

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Abcam's Human Lipocalin-2 (NGAL) in vitro ELISA (Enzyme-Linked Immunosorbent Assay) kit is designed for the accurate quantitative measurement of Human Lipocalin-2 in cell culture supernatants, serum, plasma (heparin), saliva and urine.

A Lipocalin-2 specific mouse monoclonal antibody has been precoated onto 96-well plates. Standards and test samples are added to the wells and incubated. A biotinylated detection polyclonal antibody from goat specific for Lipocalin-2 is then added followed by washing with PBS or TBS buffer. Avidin-Biotin-Peroxidase Complex is added and unbound conjugates are washed away with PBS or TBS buffer. TMB is then used to visualize the HRP enzymatic reaction. TMB is catalyzed by HRP to produce a blue color product that changes into yellow after adding acidic stop solution. The density of yellow coloration is directly proportional to the Human Lipocalin-2 amount of sample captured in plate.

Precision

[ { "reproducibilityType": "Intra", "sample": "Sample 1", "replicates": 16, "mean": "256 pg/mL", "standardDeviation": "19.2", "coefficientOfVariability": "= 7.5" }, { "reproducibilityType": "Intra", "sample": "Sample 2", "replicates": 16, "mean": "1510 pg/mL", "standardDeviation": "81.54", "coefficientOfVariability": "= 5.4" }, { "reproducibilityType": "Inter", "sample": "Sample 3", "replicates": 24, "mean": "5138 pg/mL", "standardDeviation": "323.69", "coefficientOfVariability": "= 6.3" }, { "reproducibilityType": "Intra", "sample": "Sample 3", "replicates": 16, "mean": "5422 pg/mL", "standardDeviation": "281.94", "coefficientOfVariability": "= 5.2" }, { "reproducibilityType": "Inter", "sample": "Sample 1", "replicates": 24, "mean": "254 pg/mL", "standardDeviation": "19.05", "coefficientOfVariability": "= 7.5" }, { "reproducibilityType": "Inter", "sample": "Sample 2", "replicates": 24, "mean": "1537 pg/mL", "standardDeviation": "84.53", "coefficientOfVariability": "= 5.5" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab119600-1x96Tests", "assetComponentDetails": [ { "size":"1 x 30 mL", "name":"Sample Diluent Buffer", "number":"AB119600-CMP04", "productcode":"" }, { "size":"1 x 100 µL", "name":"Biotinylated anti-Human Lipocalin-2 antibody", "number":"AB119600-CMP09", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Anti-Human Lipcalin-2 antibody Microplate (12 x 8 wells)", "number":"AB119600-CMP01", "productcode":"" }, { "size":"1 x 10 mL", "name":"TMB Color Developing Agent", "number":"AB119600-CMP06", "productcode":"" }, { "size":"1 x 100 µL", "name":"Avidin-Biotin-Peroxidase Complex (ABC)", "number":"AB119600-CMP10", "productcode":"" }, { "size":"2 x 10 ng", "name":"Lyophilized recombinant Human Lipocalin-2 standard", "number":"AB119600-CMP02", "productcode":"" }, { "size":"1 x 4 Unit", "name":"Plate Seal", "number":"AB119600-CMP03", "productcode":"" }, { "size":"1 x 12 mL", "name":"Antibody Diluent Buffer", "number":"AB119600-CMP08", "productcode":"" }, { "size":"1 x 10 mL", "name":"TMB Stop Solution", "number":"AB119600-CMP07", "productcode":"" }, { "size":"1 x 20 mL", "name":"Wash Buffer (25X)", "number":"AB119600-CMP11", "productcode":"" }, { "size":"1 x 12 mL", "name":"ABC Diluent Buffer", "number":"AB119600-CMP05", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

Iron-trafficking protein involved in multiple processes such as apoptosis, innate immunity and renal development (PubMed : 12453413, PubMed : 20581821, PubMed : 27780864). Binds iron through association with 2,3-dihydroxybenzoic acid (2,3-DHBA), a siderophore that shares structural similarities with bacterial enterobactin, and delivers or removes iron from the cell, depending on the context. Iron-bound form (holo-24p3) is internalized following binding to the SLC22A17 (24p3R) receptor, leading to release of iron and subsequent increase of intracellular iron concentration. In contrast, association of the iron-free form (apo-24p3) with the SLC22A17 (24p3R) receptor is followed by association with an intracellular siderophore, iron chelation and iron transfer to the extracellular medium, thereby reducing intracellular iron concentration. Involved in apoptosis due to interleukin-3 (IL3) deprivation : iron-loaded form increases intracellular iron concentration without promoting apoptosis, while iron-free form decreases intracellular iron levels, inducing expression of the proapoptotic protein BCL2L11/BIM, resulting in apoptosis (By similarity). Involved in innate immunity; limits bacterial proliferation by sequestering iron bound to microbial siderophores, such as enterobactin (PubMed : 27780864). Can also bind siderophores from M.tuberculosis (PubMed : 15642259, PubMed : 21978368).
See full target information LCN2

Publications (10)

Recent publications for all applications. Explore the full list and refine your search

BMC pulmonary medicine 25:192 PubMed40269819

2025

The role and clinical significance of myeloperoxidase (MPO) and TNF-α in prognostic evaluation of T-COPD.

Applications

Unspecified application

Species

Unspecified reactive species

E Jiang,Yingya Fu,Yalin Wang,Li Ying,Wen Li

Molecular oncology 17:2147-2167 PubMed37408474

2023

Osteoblast-derived extracellular vesicles exert osteoblastic and tumor-suppressive functions via SERPINA3 and LCN2 in prostate cancer.

Applications

Unspecified application

Species

Unspecified reactive species

Kagenori Ito,Tomofumi Yamamoto,Yusuke Hayashi,Shun Sato,Jun Nakayama,Fumihiko Urabe,Takeo Shimasaki,Eijiro Nakamura,Yoshiyuki Matui,Hiroyuki Fujimoto,Takahiro Kimura,Shin Egawa,Takahiro Ochiya,Yusuke Yamamoto

Journal of intensive care 11:11 PubMed36941674

2023

Analysis of urinary C-C motif chemokine ligand 14 (CCL14) and first-generation urinary biomarkers for predicting renal recovery from acute kidney injury: a prospective exploratory study.

Applications

Unspecified application

Species

Unspecified reactive species

Ben-Shu Qian,Hui-Miao Jia,Yi-Bing Weng,Xin-Cheng Li,Chao-Dong Chen,Fang-Xing Guo,Yu-Zhen Han,Li-Feng Huang,Yue Zheng,Wen-Xiong Li

Nature communications 12:7333 PubMed34921145

2021

A targetable LIFR-NF-κB-LCN2 axis controls liver tumorigenesis and vulnerability to ferroptosis.

Applications

Unspecified application

Species

Unspecified reactive species

Fan Yao,Yalan Deng,Yang Zhao,Ying Mei,Yilei Zhang,Xiaoguang Liu,Consuelo Martinez,Xiaohua Su,Roberto R Rosato,Hongqi Teng,Qinglei Hang,Shannon Yap,Dahu Chen,Yumeng Wang,Mei-Ju May Chen,Mutian Zhang,Han Liang,Dong Xie,Xin Chen,Hao Zhu,Jenny C Chang,M James You,Yutong Sun,Boyi Gan,Li Ma

Journal of medical virology 93:6641-6652 PubMed34314040

2021

Critical roles of cytokine storm and secondary bacterial infection in acute kidney injury development in COVID-19: A multi-center retrospective cohort study.

Applications

Unspecified application

Species

Unspecified reactive species

Xia-Qing Li,Han Liu,Yu Meng,Hai-Yan Yin,Wen-Yong Gao,Xiao Yang,Dian-Shuang Xu,Xing-Dong Cai,Yin Guan,Lilach O Lerman,Zhi-Yong Peng,Hou-Rong Zhou

The Journal of international medical research 48:300060520940856 PubMed32691651

2020

Prognostic value of dynamic plasma endostatin for the prediction of mortality in acute kidney injury: A prospective cohort study.

Applications

Unspecified application

Species

Unspecified reactive species

Hui-Miao Jia,Yue Zheng,Yue Han,Wen-Liang Ma,Yi-Jia Jiang,Xi Zheng,Shu-Yan Guo,Tian-En Zhang,Wen-Xiong Li

Critical care (London, England) 22:305 PubMed30445971

2018

Derivation and validation of plasma endostatin for predicting renal recovery from acute kidney injury: a prospective validation study.

Applications

Unspecified application

Species

Unspecified reactive species

Hui-Miao Jia,Yue Zheng,Li-Feng Huang,Xin Xin,Wen-Liang Ma,Yi-Jia Jiang,Xi Zheng,Shu-Yan Guo,Wen-Xiong Li

Cellular physiology and biochemistry : internation 42:594-602 PubMed28954270

2017

Urinary RBP and NGAL Levels are Associated with Nephropathy in Patients with Type 2 Diabetes.

Applications

Unspecified application

Species

Unspecified reactive species

Jian Wu,Xiaohong Shao,Kan Lu,Jing Zhou,Miaomiao Ren,Xin Xie,Jibo Liu,Yi Xu,Yaqin Ding,Xiaoyu Shen,Chunling Zhu

PloS one 11:e0147255 PubMed26799323

2016

Klotho and S100A8/A9 as Discriminative Markers between Pre-Renal and Intrinsic Acute Kidney Injury.

Applications

Unspecified application

Species

Unspecified reactive species

Ae Jin Kim,Han Ro,Hyunsook Kim,Jae Hyun Chang,Hyun Hee Lee,Wookyung Chung,Ji Yong Jung

BMC infectious diseases 14:276 PubMed24885531

2014

Lipocalin 2 in cerebrospinal fluid as a marker of acute bacterial meningitis.

Applications

WB

Species

Unspecified reactive species

Tamazoust Guiddir,Ala-Eddine Deghmane,Dario Giorgini,Muhamed-Kheir Taha
