AB324515

Human CD206 ELISA Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Human CD206 ELISA Kit is a Sandwich ELISA for the measurement of Human CD206 in Human in Biofluids, Cell Culture Media samples.

View Alternative Names

CD206, CLEC13D, CLEC13DL, MRC1L1, MRC1, Macrophage mannose receptor 1, MMR, C-type lectin domain family 13 member D, C-type lectin domain family 13 member D-like, Human mannose receptor, Macrophage mannose receptor 1-like protein 1, hMR

5 Images
Sandwich ELISA - Human CD206 ELISA Kit (AB324515)
  • sELISA

Lab

Sandwich ELISA - Human CD206 ELISA Kit (AB324515)

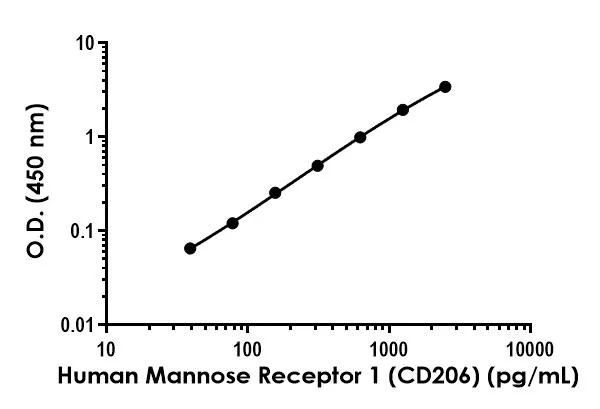

Example of human Mannose Receptor 1 (CD206) standard curve in Sample Diluent NS + 1X Enhancer. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human CD206 ELISA Kit (AB324515)
  • sELISA

Lab

Sandwich ELISA - Human CD206 ELISA Kit (AB324515)

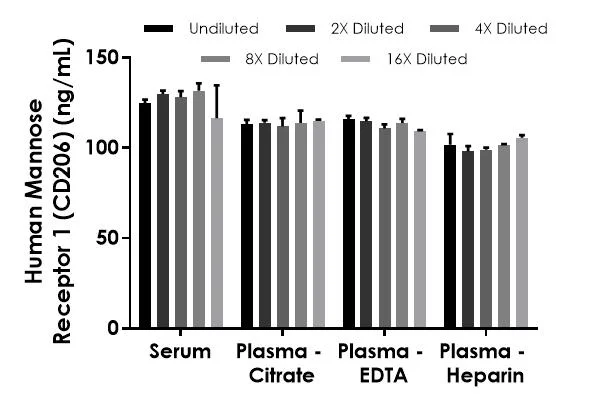

Interpolated concentration of native Mannose Receptor 1 (CD206) was measured in duplicate at different sample concentrations. Undiluted samples are 1 : 50 human serum, plasma (citrate), plasma (EDTA), and plasma (heparin). The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS + 1X Enhancer.

Sandwich ELISA - Human CD206 ELISA Kit (AB324515)
  • sELISA

Lab

Sandwich ELISA - Human CD206 ELISA Kit (AB324515)

Serum of ten individual healthy human male donors was measured in duplicate. Interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). The mean Mannose Receptor 1 (CD206) concentration was determined to be 134.97 ng/mL with a range of 82.62 – 207.33 ng/mL.

Sandwich ELISA - Human CD206 ELISA Kit (AB324515)
  • sELISA

Lab

Sandwich ELISA - Human CD206 ELISA Kit (AB324515)

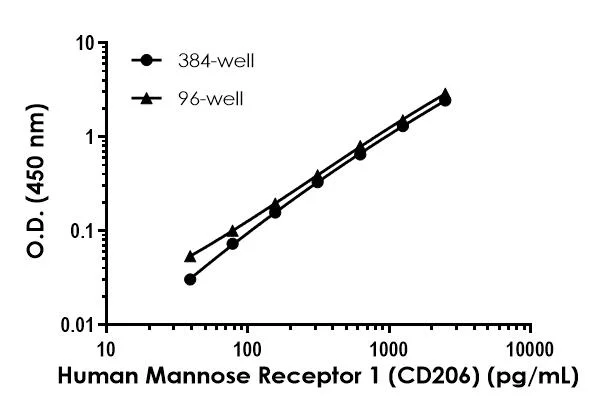

Example of human Mannose Receptor 1 (CD206) standard curve in 96-well vs. 384-well plate in Sample Diluent NS + 1X Enhancer. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human CD206 ELISA Kit (AB324515)
  • sELISA

Lab

Sandwich ELISA - Human CD206 ELISA Kit (AB324515)

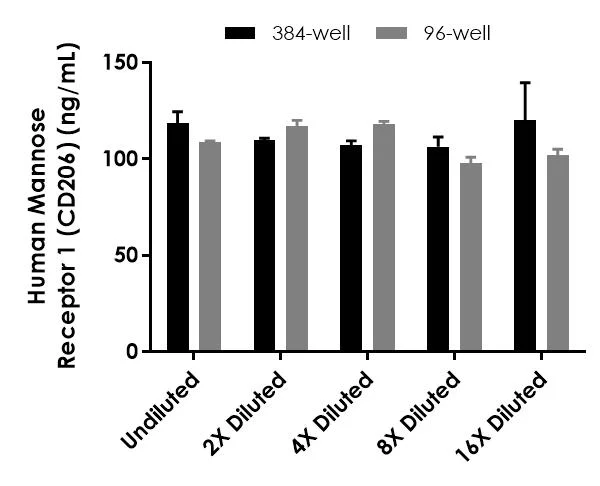

Interpolated concentration of native Mannose Receptor 1 (CD206) was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 1 : 50 human serum. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS + 1X Enhancer.

Key facts

Detection method

Colorimetric

Sample types

Serum, Citrate plasma, EDTA Plasma, Heparin Plasma, Cell culture media

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 5.91 pg/mL

Range

39.063 - 2500 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human CD206 ELISA Kit is a single-wash 90-min Simplestep used to quantify Human CD206 with a sensitivity of 5.91pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

-Colormetric sandwich ELISA - 450 nm readout- works on any standard plate reader.

-Different formats for different needs: 10 x 96 plates for bulk orders and 384-well for higher throughput.

-Design your own immunoassay: we also offer the conjugation-ready antibody pair.

style
left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 1" }, { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 3.8" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "104 - 114 %", "average": "= 109" }, { "sample": "Citrate plasma", "range": "102 - 116 %", "average": "= 109" }, { "sample": "EDTA Plasma", "range": "97 - 110 %", "average": "= 106" }, { "sample": "Heparin Plasma", "range": "100 - 111 %", "average": "= 104" }, { "sample": "Cell culture media", "range": "105 - 118 %", "average": "= 111" } ]
style
left-column

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab324515-10x96Tests", "assetComponentDetails": [ { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB324515-CMP06" }, { "size":"10 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB324515-CMP05" }, { "size":"10 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB324515-CMP10" }, { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB324515-CMP09" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB324515-CMP08" }, { "size":"20 x 1 Vial", "name":"Human Mannose Receptor 1 (CD206) Lyophilized Recombinant Protein", "number":"AB324515-CMP03" }, { "size":"10 x 600 µL", "name":"10X Human Mannose Receptor 1 (CD206) Detector Antibody", "number":"AB324515-CMP02" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB324515-CMP12" }, { "size":"10 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB324515-CMP04" }, { "size":"2 x 250 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB324515-CMP07" }, { "size":"10 x 600 µL", "name":"10X Human Mannose Receptor 1 (CD206) Capture Antibody", "number":"AB324515-CMP01" } ] }, "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab324515-1x384Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB324515-CMP12" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB324515-CMP08" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB324515-CMP06" }, { "size":"2 x 1 Vial", "name":"Human Mannose Receptor 1 (CD206) Lyophilized Recombinant Protein", "number":"AB324515-CMP03" }, { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB324515-CMP09" }, { "size":"1 x 600 µL", "name":"10X Human Mannose Receptor 1 (CD206) Capture Antibody", "number":"AB324515-CMP01" }, { "size":"1 x 1 Unit", "name":"384 well CaptSure™ microplates", "number":"AB324515-CMP11" }, { "size":"2 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB324515-CMP07" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB324515-CMP04" }, { "size":"1 x 5 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB324515-CMP05" }, { "size":"1 x 600 µL", "name":"10X Human Mannose Receptor 1 (CD206) Detector Antibody", "number":"AB324515-CMP02" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab324515-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB324515-CMP10", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB324515-CMP08", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB324515-CMP07", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB324515-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB324515-CMP12", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB324515-CMP04", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human Mannose Receptor 1 (CD206) Lyophilized Recombinant Protein", "number":"AB324515-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Mannose Receptor 1 (CD206) Detector Antibody", "number":"AB324515-CMP02", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB324515-CMP09", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB324515-CMP05", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Mannose Receptor 1 (CD206) Capture Antibody", "number":"AB324515-CMP01", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Mediates the endocytosis of glycoproteins by macrophages. Binds both sulfated and non-sulfated polysaccharide chains.. (Microbial infection) Acts as a phagocytic receptor for bacteria, fungi and other pathogens.. (Microbial infection) Acts as a receptor for Dengue virus envelope protein E.. (Microbial infection) Interacts with Hepatitis B virus envelope protein.
See full target information MRC1
style
left-column
style
left-column
websiteProtocolBooklet
en
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
