AB193761

Human Midkine ELISA Kit

Be the first to review this product! Submit a review

|

(11 Publications)

Human Midkine ELISA Kit is a single-wash 90-min Simplestep used to quantify Human Midkine with a sensitivity of 14.4 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair
- Cited in over 10 citations

View Alternative Names

MK1, NEGF2, MDK, Midkine, MK, Amphiregulin-associated protein, Midgestation and kidney protein, Neurite outgrowth-promoting factor 2, Neurite outgrowth-promoting protein, ARAP

6 Images
ELISA - Human Midkine ELISA Kit (AB193761)
  • ELISA

Supplier Data

ELISA - Human Midkine ELISA Kit (AB193761)
Sandwich ELISA - Human Midkine ELISA Kit (AB193761)
  • sELISA

Supplier Data

Sandwich ELISA - Human Midkine ELISA Kit (AB193761)

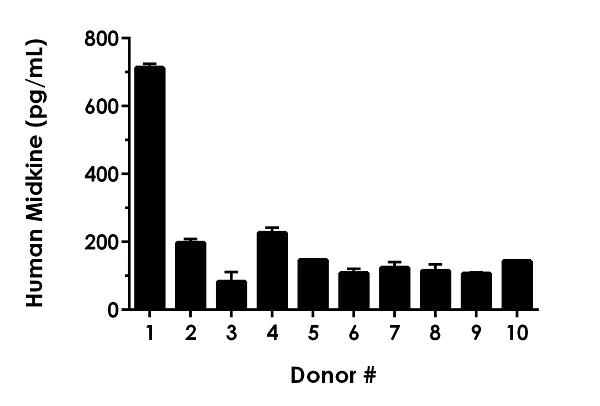

Serum from ten individual healthy human male donors was measured in duplicate.

Interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean Midkine concentration was determined to be 164 pg/mL with a range of 69 – 594 pg/mL.

Sandwich ELISA - Human Midkine ELISA Kit (AB193761)
  • sELISA

Supplier Data

Sandwich ELISA - Human Midkine ELISA Kit (AB193761)

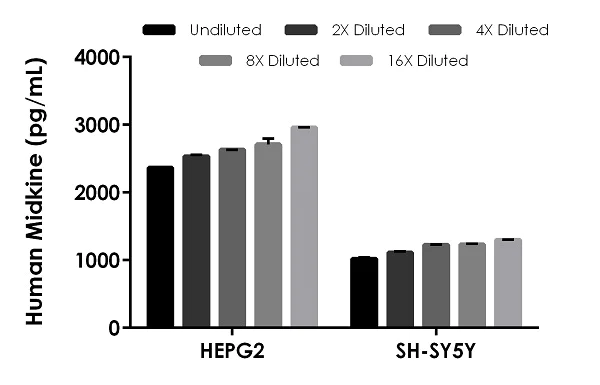

Interpolated concentrations of native Midkine in human HepG2 and SH-SY5Y cell extract samples and samples based on a 50 μg/mL extract load.

The concentrations of Midkine were measured in duplicate and interpolated from the Midkine standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean Midkine concentration was determined to be 2641 pg/mL in HepG2 cell extract and 1179 pg/mL in SH-SY5Y cell extract.

Sandwich ELISA - Human Midkine ELISA Kit (AB193761)
  • sELISA

Supplier Data

Sandwich ELISA - Human Midkine ELISA Kit (AB193761)

Interpolated concentrations of native Midkine in human cell culture supernatant samples.

The concentrations of Midkine were measured in duplicates, interpolated from the Midkine standard curves and corrected for sample dilution. Undiluted samples are as follows : HepG2 cell culture supernatant 2.5%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean Midkine concentration was determined to be 6,242 pg/mL in serum.

Sandwich ELISA - Human Midkine ELISA Kit (AB193761)
  • sELISA

Supplier Data

Sandwich ELISA - Human Midkine ELISA Kit (AB193761)

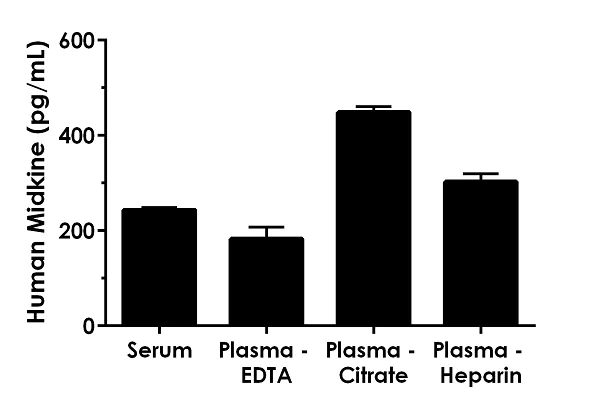

Interpolated concentrations of native Midkine in human serum, plasma samples.

The concentrations of Midkine were measured in duplicates, interpolated from the Midkine standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 50%, plasma (EDTA) 50%, plasma (citrate) 25%, and plasma (heparin) 50%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean Midkine concentration was determined to be 243 pg/mL in serum, 183 pg/mL in plasma (EDTA), 449 pg/mL plasma (citrate) and 303 pg/mL in plasma (heparin).

Sandwich ELISA - Human Midkine ELISA Kit (AB193761)
  • sELISA

Unknown

Sandwich ELISA - Human Midkine ELISA Kit (AB193761)

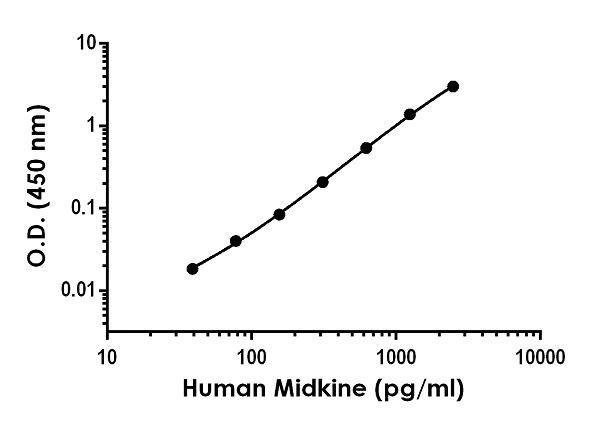

Example of human Midkine standard curve in Sample Diluent NS.

The Midkine standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Cell culture extracts, Heparin Plasma, Citrate plasma, Cell culture supernatant, Serum, EDTA Plasma

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 14.4 pg/mL

Range

39.1 - 2500 pg/mL

Assay time

1h 30m

Assay Platform

Microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Human Midkine ELISA Kit ab193761 is a rapid single-wash 90-min Sandwich ELISA to measure Human Midkine in cell culture extracts, cell culture supernatant, citrate plasma, EDTA plasma, heparin plasma, serum. This SimpleStep sensitivity is 14.4 pg/mL.

How the assay works

Human Midkine SimpleStep ELISA®employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Assay Specificity

Our SimpleStep ELISA® kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Human Midkine ELISA Kit ab193761 protocol summary

1. Mix: add samples/standards to the wells together with the capture and detector antibody cocktail. Incubate 1 hr at room temperature
2. Wash
3. Add TMB development solution - incubate for 10 min
4. Add Stop solution
5. Read the results on a plate reader at 450 nm

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-Midkine antibody [EPR20371-14] - BSA and Azide free (Capture) ab259450
- Anti-Midkine antibody [EPR1143-68R] - BSA and Azide free (Detector) ab259450

Midkine (MK), also known as neurite growth-promoting factor 2 (NEGF2), is a 13kDa heparin-binding growth factor or cytokine composed of two domains: The N-terminally located N-domain and the C-terminally located C-domain, which are connected by a hinge. The C-domain plays a role in neuronal development, whereas the N-domain is important for protein stability and dimerization. MK is involved in development, reproduction, repair, inflammation, innate immunity, control of blood pressure and angiogenesis.

MK is strongly expressed during embryogenesis and due to its distribution in the embryo it has been proposed to play a role in neurogenesis, epithelial-mesenchymal interactions and mesoderm remodeling. Expression in adult tissues is restricted to the kidney, epidermis, bronchial epithelium, lymphocytes and macrophages, but it is strongly expressed in the brain, kidney, blood vessels and heart after tissue injury as well as during inflammation, infection and oncogenesis. During inflammation, substratum-bound MK enhances neutrophil and macrophage migration directly and through induction of chemokine expression. On the other hand, soluble MK is associated with differentiation of regulatory T-cells, induction of epithelial-mesenchymal transition, angiogenesis, fibrinolytic and anti-microbial activity.

MK signaling is mediated by cell surface receptors as well as membrane proteins such as Protein Tyrosine Phosphatase ζ (PTPζ), low density lipoprotein receptor-related proteins (LRP), Notch2, integrins, anaplastic lymphoma kinase (ALK) and neuroglycan C. Binding of MK to PTPζ induces tyrosine phosphorylation in β-catenin and Wnt signaling inhibition. Furthermore it induces phosphorylation of PI3K, MAPK, PKC and Src family kinase. Binding of MK to LRP leads to embryonic neuronal survival and prevention of hypoxic injury via Akt and HIF1α. Binding of MK to integrins activates focal adhesion kinase, paxillin and STAT1α pathway leading to increase invasiveness of cancer cells. Activation of ALK by MK leads to phosphorylation of IRS-1, MAPK, PI3K and activation of NF-κB.

Due to its multifunctionality, MK has become an emerging target of drug development for the treatment of multiple diseases. On the one hand, administration of MK ameliorates ischemic injury, enhances oocyte maturation and promotes neurogenesis therefore limiting the progression of neurodegenerative diseases. However on the other hand, due to its over-expression in malignant tumors and in inflammation, MK inhibitors may be useful in the treatment of cancer, multiple sclerosis, hypertension and osteoporosis.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Precision

[ { "reproducibilityType": "Inter", "sample": "HepG2", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.9" }, { "reproducibilityType": "Intra", "sample": "HepG2", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2" } ]

Recovery

[ { "sample": "Cell culture supernatant", "range": "82 - 115 %", "average": "= 100" }, { "sample": "Serum", "range": "113 - 115 %", "average": "= 114" }, { "sample": "EDTA Plasma", "range": "109 - 114 %", "average": "= 112" }, { "sample": "Cell culture extracts", "range": "152 - 160 %", "average": "= 156" }, { "sample": "Heparin Plasma", "range": "73 - 90 %", "average": "= 83" }, { "sample": "Citrate plasma", "range": "115 - 137 %", "average": "= 128" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab193761-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB193761-CMP04", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB193761-CMP11", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB193761-CMP10", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Midkine Capture Antibody", "number":"AB193761-CMP07", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human Midkine Lyophilized Recombinant Protein", "number":"AB193761-CMP02", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Midkine Detector Antibody", "number":"AB193761-CMP08", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB193761-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB193761-CMP03", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB193761-CMP09", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB193761-CMP05", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Product protocols

Target data

Secreted protein that functions as a cytokine and growth factor and mediates its signal through cell-surface proteoglycan and non-proteoglycan receptors (PubMed : 10212223, PubMed : 10772929, PubMed : 12084985, PubMed : 12122009, PubMed : 12573468, PubMed : 15466886, PubMed : 18469519, PubMed : 24458438). Binds cell-surface proteoglycan receptors via their chondroitin sulfate (CS) groups (PubMed : 10212223, PubMed : 12084985). Thereby regulates many processes like inflammatory response, cell proliferation, cell adhesion, cell growth, cell survival, tissue regeneration, cell differentiation and cell migration (PubMed : 10212223, PubMed : 10683378, PubMed : 10772929, PubMed : 12084985, PubMed : 12122009, PubMed : 12573468, PubMed : 15466886, PubMed : 22323540, PubMed : 24458438). Participates in inflammatory processes by exerting two different activities. Firstly, mediates neutrophils and macrophages recruitment to the sites of inflammation both by direct action by cooperating namely with ITGB2 via LRP1 and by inducing chemokine expression (PubMed : 10683378, PubMed : 24458438). This inflammation can be accompanied by epithelial cell survival and smooth muscle cell migration after renal and vessel damage, respectively (PubMed : 10683378). Secondly, suppresses the development of tolerogenic dendric cells thereby inhibiting the differentiation of regulatory T cells and also promote T cell expansion through NFAT signaling and Th1 cell differentiation (PubMed : 22323540). Promotes tissue regeneration after injury or trauma. After heart damage negatively regulates the recruitment of inflammatory cells and mediates cell survival through activation of anti-apoptotic signaling pathways via MAPKs and AKT pathways through the activation of angiogenesis (By similarity). Also facilitates liver regeneration as well as bone repair by recruiting macrophage at trauma site and by promoting cartilage development by facilitating chondrocyte differentiation (By similarity). Plays a role in brain by promoting neural precursor cells survival and growth through interaction with heparan sulfate proteoglycans (By similarity). Binds PTPRZ1 and promotes neuronal migration and embryonic neurons survival (PubMed : 10212223). Binds SDC3 or GPC2 and mediates neurite outgrowth and cell adhesion (PubMed : 12084985, PubMed : 1768439). Binds chondroitin sulfate E and heparin leading to inhibition of neuronal cell adhesion induced by binding with GPC2 (PubMed : 12084985). Binds CSPG5 and promotes elongation of oligodendroglial precursor-like cells (By similarity). Also binds ITGA6 : ITGB1 complex; this interaction mediates MDK-induced neurite outgrowth (PubMed : 15466886, PubMed : 1768439). Binds LRP1; promotes neuronal survival (PubMed : 10772929). Binds ITGA4 : ITGB1 complex; this interaction mediates MDK-induced osteoblast cells migration through PXN phosphorylation (PubMed : 15466886). Binds anaplastic lymphoma kinase (ALK) which induces ALK activation and subsequent phosphorylation of the insulin receptor substrate (IRS1), followed by the activation of mitogen-activated protein kinase (MAPK) and PI3-kinase, and the induction of cell proliferation (PubMed : 12122009). Promotes epithelial to mesenchymal transition through interaction with NOTCH2 (PubMed : 18469519). During arteriogenesis, plays a role in vascular endothelial cell proliferation by inducing VEGFA expression and release which in turn induces nitric oxide synthase expression. Moreover activates vasodilation through nitric oxide synthase activation (By similarity). Negatively regulates bone formation in response to mechanical load by inhibiting Wnt/beta-catenin signaling in osteoblasts (By similarity). In addition plays a role in hippocampal development, working memory, auditory response, early fetal adrenal gland development and the female reproductive system (By similarity).
See full target information MDK

Publications (11)

Recent publications for all applications. Explore the full list and refine your search

Nature communications 15:8447 PubMed39349474

2024

The estrogen response in fibroblasts promotes ovarian metastases of gastric cancer.

Applications

Unspecified application

Species

Unspecified reactive species

Simeng Hu,Can Hu,Jingli Xu,Pengfei Yu,Li Yuan,Ziyu Li,Haohong Liang,Yanqiang Zhang,Jiahui Chen,Qing Wei,Shengjie Zhang,Litao Yang,Dan Su,Yian Du,Zhiyuan Xu,Fan Bai,Xiangdong Cheng

Nature 625:557-565 PubMed38172636

2024

Na1.7 as a chondrocyte regulator and therapeutic target for osteoarthritis.

Applications

Unspecified application

Species

Unspecified reactive species

Wenyu Fu,Dmytro Vasylyev,Yufei Bi,Mingshuang Zhang,Guodong Sun,Asya Khleborodova,Guiwu Huang,Libo Zhao,Renpeng Zhou,Yonggang Li,Shujun Liu,Xianyi Cai,Wenjun He,Min Cui,Xiangli Zhao,Aubryanna Hettinghouse,Julia Good,Ellen Kim,Eric Strauss,Philipp Leucht,Ran Schwarzkopf,Edward X Guo,Jonathan Samuels,Wenhuo Hu,Mukundan Attur,Stephen G Waxman,Chuan-Ju Liu

Translational neurodegeneration 12:42 PubMed37667404

2023

Large-scale proximity extension assay reveals CSF midkine and DOPA decarboxylase as supportive diagnostic biomarkers for Parkinson's disease.

Applications

Unspecified application

Species

Unspecified reactive species

Wojciech Paslawski,Shervin Khosousi,Ellen Hertz,Ioanna Markaki,Adam Boxer,Per Svenningsson

Nature communications 14:3620 PubMed37365178

2023

Single-cell transcriptomics and epigenomics unravel the role of monocytes in neuroblastoma bone marrow metastasis.

Applications

Unspecified application

Species

Unspecified reactive species

Irfete S Fetahu,Wolfgang Esser-Skala,Rohit Dnyansagar,Samuel Sindelar,Fikret Rifatbegovic,Andrea Bileck,Lukas Skos,Eva Bozsaky,Daria Lazic,Lisa Shaw,Marcus Tötzl,Dora Tarlungeanu,Marie Bernkopf,Magdalena Rados,Wolfgang Weninger,Eleni M Tomazou,Christoph Bock,Christopher Gerner,Ruth Ladenstein,Matthias Farlik,Nikolaus Fortelny,Sabine Taschner-Mandl

Cell death discovery 9:92 PubMed36906597

2023

Midkine inhibition enhances anti-PD-1 immunotherapy in sorafenib-treated hepatocellular carcinoma via preventing immunosuppressive MDSCs infiltration.

Applications

Unspecified application

Species

Unspecified reactive species

Lijuan Ding,Nanya Wang,Qiang Wang,Xia Fan,Yuning Xin,Shudong Wang

Theranostics 11:2722-2741 PubMed33456569

2021

Significance of serglycin and its binding partners in autocrine promotion of metastasis in esophageal cancer.

Applications

Unspecified application

Species

Unspecified reactive species

Yun Zhu,Alfred K Y Lam,Daisy K Y Shum,Di Cui,Jun Zhang,Dong Dong Yan,Bin Li,Wen Wen Xu,Nikki P Y Lee,Kin Tak Chan,Simon Law,Sai Wah Tsao,Annie L M Cheung

Scientific reports 10:14499 PubMed32879333

2020

Serum Midkine, estimated glomerular filtration rate and chronic kidney disease-related events in elderly women: Perth Longitudinal Study of Aging Women.

Applications

Unspecified application

Species

Unspecified reactive species

Jeffrey Wang,Joshua R Lewis,Elizabeth Byrnes,Germaine Wong,Warren D Raymond,Kun Zhu,Graham R Robertson,Wai H Lim,Qi Cao,Richard L Prince,Vincent W Lee

EBioMedicine 41:185-199 PubMed30773478

2019

DNA damage repair alterations modulate M2 polarization of microglia to remodel the tumor microenvironment via the p53-mediated MDK expression in glioma.

Applications

Unspecified application

Species

Unspecified reactive species

Xiangqi Meng,Chunbin Duan,Hengyuan Pang,Qun Chen,Bo Han,Caijun Zha,Magafurov Dinislam,Pengfei Wu,Ziwei Li,Shihong Zhao,Ruijia Wang,Lin Lin,Chuanlu Jiang,Jinquan Cai

Arthritis research & therapy 20:185 PubMed30115106

2018

Serum biomarker for diagnostic evaluation of pulmonary arterial hypertension in systemic sclerosis.

Applications

Unspecified application

Species

Unspecified reactive species

Lisa M Rice,Julio C Mantero,Eric A Stratton,Rod Warburton,Kari Roberts,Nicholas Hill,Robert W Simms,Robyn Domsic,Harrison W Farber,Robert Layfatis

Journal of immunoassay & immunochemistry 39:84-98 PubMed29309212

2018

Development of bead based multiplexed immunoassay for evaluation of midkine, syndecan-1, and ANGPTL4 in patient serum.

Applications

Unspecified application

Species

Unspecified reactive species

Imad Tarhoni,Cristina L Fhied,Mark Pool,Michael J Liptay,Philip Bonomi,Christopher W Seder,Jeffrey A Borgia
