AB100597

Human MIP1 beta ELISA Kit (CCL4)

Be the first to review this product! Submit a review

|

(2 Publications)

Human MIP1 beta ELISA Kit (CCL4) is a Sandwich (quantitative) ELISA for the measurement of Human MIP1 beta (CCL4) in Human in Biofluids, Cell Culture Media samples.

View Alternative Names

LAG1, MIP1B, SCYA4, CCL4, C-C motif chemokine 4, G-26 T-lymphocyte-secreted protein, HC21, Lymphocyte activation gene 1 protein, MIP-1-beta(1-69), Macrophage inflammatory protein 1-beta, PAT 744, Protein H400, SIS-gamma, Small-inducible cytokine A4, T-cell activation protein 2, LAG-1, MIP-1-beta, ACT-2

2 Images
Sandwich ELISA - Human MIP1 beta ELISA Kit (CCL4) (AB100597)
  • sELISA

Supplier Data

Sandwich ELISA - Human MIP1 beta ELISA Kit (CCL4) (AB100597)

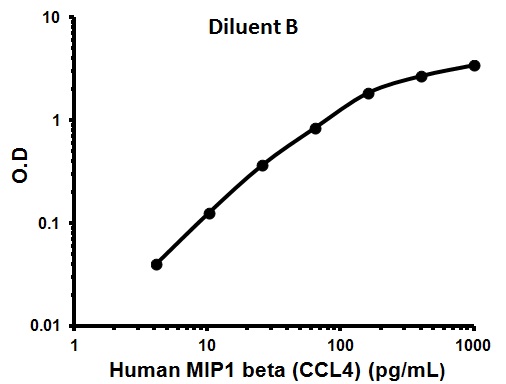

Representative Standard Curve using ab100597.

Sandwich ELISA - Human MIP1 beta ELISA Kit (CCL4) (AB100597)
  • sELISA

Supplier Data

Sandwich ELISA - Human MIP1 beta ELISA Kit (CCL4) (AB100597)

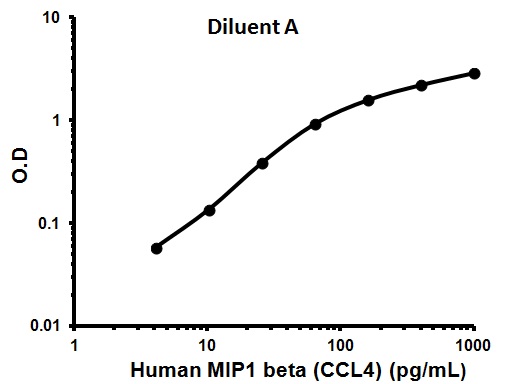

Representative Standard Curve using ab100597.

Key facts

Detection method

Colorimetric

Sample types

Plasma, Cell culture supernatant, Serum

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

< 2.5 pg/mL

Range

4.1 - 1000 pg/mL

Assay Platform

Microplate

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Abcam's MIP1 beta Human ELISA (Enzyme-Linked Immunosorbent Assay) kit is an in vitro enzyme-linked immunosorbent assay for the quantitative measurement of Human MIP1 beta in serum, plasma, and cell culture supernatants.

This assay employs an antibody specific for Human MIP1 beta coated on a 96-well plate. Standards and samples are pipetted into the wells and MIP1 beta present in a sample is bound to the wells by the immobilized antibody. The wells are washed and biotinylated antiHuman MIP-1 antibody is added. After washing away unbound biotinylated antibody, HRP-conjugated streptavidin is pipetted to the wells. The wells are again washed, a TMB substrate solution is added to the wells and color develops in proportion to the amount of MIP1 beta bound. The Stop Solution changes the color from blue to yellow, and the intensity of the color is measured at 450 nm.

Optimization may be required with urine samples.

This product may also recognise CC4L [C-C motif chemokine 4-like], a family member which shares high homology with CCL4.

style
left-column

Recovery

[ { "sample": "Cell culture supernatant", "range": "85 - 104 %", "average": "= 97.42" }, { "sample": "Serum", "range": "82 - 102 %", "average": "= 95.64" }, { "sample": "Plasma", "range": "83 - 103 %", "average": "= 94.32" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab100597-1x96Tests", "assetComponentDetails": [ { "size":"1 x 25 mL", "name":"20X Wash Buffer", "number":"AB100597-CMP02", "productcode":"" }, { "size":"1 x 8 mL", "name":"Stop Solution", "number":"AB100597-CMP08", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Biotinylated anti-Human MIP1 beta", "number":"AB100597-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"MIP1 beta Microplate (12 x 8 wells)", "number":"AB100597-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB One-Step Substrate Reagent", "number":"AB100597-CMP09", "productcode":"" }, { "size":"1 x 30 mL", "name":"Assay Diluent A", "number":"AB100597-CMP04", "productcode":"" }, { "size":"1 x 15 mL", "name":"5X Assay Diluent B", "number":"AB100597-CMP05", "productcode":"" }, { "size":"1 x 200 µL", "name":"600X HRP-Streptavidin Concentrate", "number":"AB100597-CMP03", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Recombinant Human MIP1 beta Standard (lyophilized)", "number":"AB100597-CMP07", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CCL4 also known as MIP-1 beta or MIP-1b has a mechanical role as a chemokine involved in immune response regulation. The protein has a mass of about 7.8 kDa. It expresses in various tissues including leukocytes where it mainly functions as a chemoattractant. MIP-1 beta helps recruit immune cells like natural killer cells and monocytes to sites of inflammation or injury. Researchers frequently measure its levels using assays like MIP-1 beta ELISA or CCL4 ELISA.
Biological function summary

CCL4 is critical in immune system modulation. It coordinates leukocyte activation and trafficking contributing to inflammation and immune surveillance. It does not function in isolation but rather interacts with other chemokines and receptors. CCL4 alongside its sibling chemokines forms a dynamic network that ensures a balanced immune response. It connects to receptors such as CCR5 playing substantial roles in its activities.

Pathways

CCL4 participates in essential signaling cascades that mediate immune responses. It is notably part of the chemokine signaling pathway which is instrumental in directing cell movement. CCL4 also engages with proteins like CCR5 in the inflammatory and immune response pathways. This interaction enhances communication between cells required for effective pathogen defense.

CCL4 plays roles in immune-related conditions. It is strongly linked to inflammatory diseases such as rheumatoid arthritis and HIV infection. In rheumatoid arthritis CCL4 levels are often elevated correlating with inflammation severity. During HIV infection CCL4 interacts with proteins like CCR5 a co-receptor the virus uses to enter host cells. This involvement makes MIP-1 beta a target for studies seeking therapeutic interventions in these diseases.
style
left-column

Product protocols

style
left-column

Target data

Monokine with inflammatory and chemokinetic properties. Binds to CCR5. One of the major HIV-suppressive factors produced by CD8+ T-cells. Recombinant MIP-1-beta induces a dose-dependent inhibition of different strains of HIV-1, HIV-2, and simian immunodeficiency virus (SIV). The processed form MIP-1-beta(3-69) retains the abilities to induce down-modulation of surface expression of the chemokine receptor CCR5 and to inhibit the CCR5-mediated entry of HIV-1 in T-cells. MIP-1-beta(3-69) is also a ligand for CCR1 and CCR2 isoform B.
See full target information CCL4
style
left-column

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

Journal of extracellular vesicles 9:1801153 PubMed32944190

2020

(Sub)populations of extracellular vesicles released by TNF-α -triggered human endothelial cells promote vascular inflammation and monocyte migration.

Applications

Unspecified application

Species

Unspecified reactive species

Baharak Hosseinkhani,Nynke M S van den Akker,Daniel G M Molin,Luc Michiels

Frontiers in immunology 9:1789 PubMed30131806

2018

Extracellular Vesicles Work as a Functional Inflammatory Mediator Between Vascular Endothelial Cells and Immune Cells.

Applications

Unspecified application

Species

Unspecified reactive species

Baharak Hosseinkhani,Sören Kuypers,Nynke M S van den Akker,Daniel G M Molin,Luc Michiels
