Human/Mouse /Rat ERK2 ELISA Kit is a single-wash 90-min Simplestep used to quantify Human/Mouse /Rat ERK2 with a sensitivity of 18.483 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.
- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders and 384-well plate for higher throughput
Images
Key facts
- Detection method
- Colorimetric
- Sample types
- Cell Lysate, Tissue Extracts
- Assay type
- Sandwich (quantitative)
- Reactive species
- Human, Mouse, Rat
- Range
- 78.125 - 5000 pg/mL
- Assay time
- 1h 30m
- Sensitivity
- = 18.483 pg/mL
Reactivity data
| Application | Reactivity | Dilution info | Notes |
|---|---|---|---|
Application sELISA | Reactivity Reacts | Dilution info - | Notes - |
Target data
Function
Serine/threonine kinase which acts as an essential component of the MAP kinase signal transduction pathway. MAPK1/ERK2 and MAPK3/ERK1 are the 2 MAPKs which play an important role in the MAPK/ERK cascade. They participate also in a signaling cascade initiated by activated KIT and KITLG/SCF. Depending on the cellular context, the MAPK/ERK cascade mediates diverse biological functions such as cell growth, adhesion, survival and differentiation through the regulation of transcription, translation, cytoskeletal rearrangements. The MAPK/ERK cascade also plays a role in initiation and regulation of meiosis, mitosis, and postmitotic functions in differentiated cells by phosphorylating a number of transcription factors. About 160 substrates have already been discovered for ERKs. Many of these substrates are localized in the nucleus, and seem to participate in the regulation of transcription upon stimulation. However, other substrates are found in the cytosol as well as in other cellular organelles, and those are responsible for processes such as translation, mitosis and apoptosis. Moreover, the MAPK/ERK cascade is also involved in the regulation of the endosomal dynamics, including lysosome processing and endosome cycling through the perinuclear recycling compartment (PNRC); as well as in the fragmentation of the Golgi apparatus during mitosis. The substrates include transcription factors (such as ATF2, BCL6, ELK1, ERF, FOS, HSF4 or SPZ1), cytoskeletal elements (such as CANX, CTTN, GJA1, MAP2, MAPT, PXN, SORBS3 or STMN1), regulators of apoptosis (such as BAD, BTG2, CASP9, DAPK1, IER3, MCL1 or PPARG), regulators of translation (such as EIF4EBP1 and FXR1) and a variety of other signaling-related molecules (like ARHGEF2, DCC, FRS2 or GRB10). Protein kinases (such as RAF1, RPS6KA1/RSK1, RPS6KA3/RSK2, RPS6KA2/RSK3, RPS6KA6/RSK4, SYK, MKNK1/MNK1, MKNK2/MNK2, RPS6KA5/MSK1, RPS6KA4/MSK2, MAPKAPK3 or MAPKAPK5) and phosphatases (such as DUSP1, DUSP4, DUSP6 or DUSP16) are other substrates which enable the propagation the MAPK/ERK signal to additional cytosolic and nuclear targets, thereby extending the specificity of the cascade. Mediates phosphorylation of TPR in response to EGF stimulation. May play a role in the spindle assembly checkpoint. Phosphorylates PML and promotes its interaction with PIN1, leading to PML degradation. Phosphorylates CDK2AP2 (By similarity). Acts as a transcriptional repressor. Binds to a [GC]AAA[GC] consensus sequence. Repress the expression of interferon gamma-induced genes. Seems to bind to the promoter of CCL5, DMP1, IFIH1, IFITM1, IRF7, IRF9, LAMP3, OAS1, OAS2, OAS3 and STAT1. Transcriptional activity is independent of kinase activity.
Alternative names
Erk2, Mapk, Prkm1, Mapk1, Mitogen-activated protein kinase 1, MAP kinase 1, MAPK 1, ERT1, Extracellular signal-regulated kinase 2, MAP kinase isoform p42, Mitogen-activated protein kinase 2, ERK-2, p42-MAPK, MAP kinase 2, MAPK 2
What's included?
Recommended products
Human/Mouse /Rat ERK2 ELISA Kit is a single-wash 90-min Simplestep used to quantify Human/Mouse /Rat ERK2 with a sensitivity of 18.483 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.
- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders and 384-well plate for higher throughput
Key facts
- Detection method
- Colorimetric
- Sample types
- Cell Lysate, Tissue Extracts
- Assay type
- Sandwich (quantitative)
- Reactive species
- Human, Mouse, Rat
- Range
- 78.125 - 5000 pg/mL
- Assay time
- 1h 30m
- Assay Platform
- Pre-coated microplate (12 x 8 well strips)
- Sensitivity
- = 18.483 pg/mL
- General recovery
- 111%
Precision
Intra assay
| Sample | n | mean | SD | C.V. |
|---|---|---|---|---|
Sample Extract | n 8 | mean - | SD - | C.V. 4 |
Inter assay
| Sample | n | mean | SD | C.V. |
|---|---|---|---|---|
Sample Extract | n 3 | mean - | SD - | C.V. 7 |
Recovery
Sample specific recovery
| Sample type | Average % | Range |
|---|---|---|
Sample type Cell Lysate | Average % = 111 | Range 109 - 113 % |
Sample type Tissue Extracts | Average % = 116 | Range 111 - 121 % |
Storage
- Shipped at conditions
- Blue Ice
- Appropriate short-term storage conditions
- +4°C
- Appropriate long-term storage conditions
- +4°C
- Storage information
- +4°C
Notes
Human/Mouse /Rat ERK2 SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of ERK2 protein in Cell Lysate, Tissue extracts. Quantitate Human/Mouse /Rat ERK2 with 18.483 pg/ml sensitivity.
SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:
-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips, available in 10-pack (10 x 96-well plates)
-Also available in a fully validated 384-well format.
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.
Supplementary info
- This supplementary information is collated from multiple sources and compiled automatically.
- Activity summary
ERK2 also known as Extracellular signal-Regulated Kinase 2 is a serine/threonine protein kinase in the mitogen-activated protein kinase (MAPK) family with a mass of approximately 42 kDa. This kinase is expressed in many cell types and tissues including the brain liver and lungs. ERK2 plays a significant role in cellular processes such as proliferation differentiation and survival. It is often analyzed using specific assays including ERK2 ELISA and examination of cell lysate samples to determine expression levels and activity.
- Biological function summary
ERK2 influences several key cellular functions. It functions as part of a signaling cascade transmitting signals from the exterior to the cell nucleus. In this cascade ERK2 is often part of a multi-protein complex that undergoes sequential phosphorylation. Through these mechanisms ERK2 regulates gene expression and is a pivotal component of the MAPK/ERK pathway ensuring the proper response to growth signals and stress stimuli.
- Pathways
ERK2 is a central component of the MAPK/ERK signaling pathway and the PI3K/AKT pathway. These pathways play critical roles in cell cycle regulation and apoptosis. ERK2 activation leads to its interaction with the MEK1/2 proteins which further allows the transmission of mitogenic signals. The interplay between ERK2 and related proteins like E460 often impacts cellular growth and development as it precisely controls the phosphorylation events within the pathway.
- Associated diseases and disorders
ERK2 is connected to certain types of cancer and neurodegenerative diseases. Aberrations in ERK2 signaling pathways are often linked to tumorigenesis where altered interaction with proteins such as Raf and MEK1/2 disrupts cell cycle regulation and apoptosis. In neurodegenerative disorders dysregulated ERK2 activity has been associated with proteins contributing to Alzheimer’s disease indicating its involvement in neuronal survival and stress response mechanisms.
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
4 product images
Sandwich ELISA - Human/Mouse /Rat ERK2 ELISA Kit (ab317550)

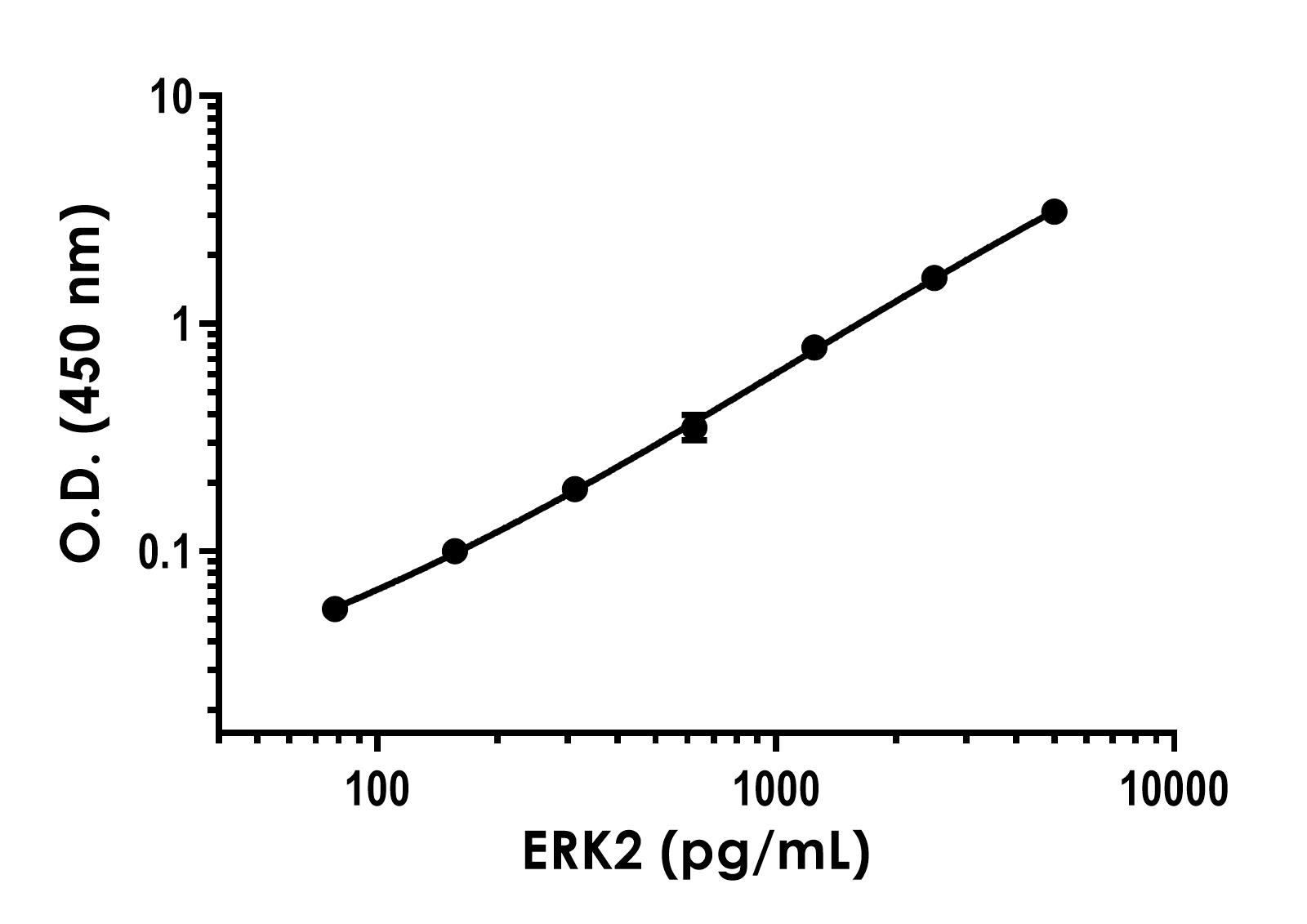

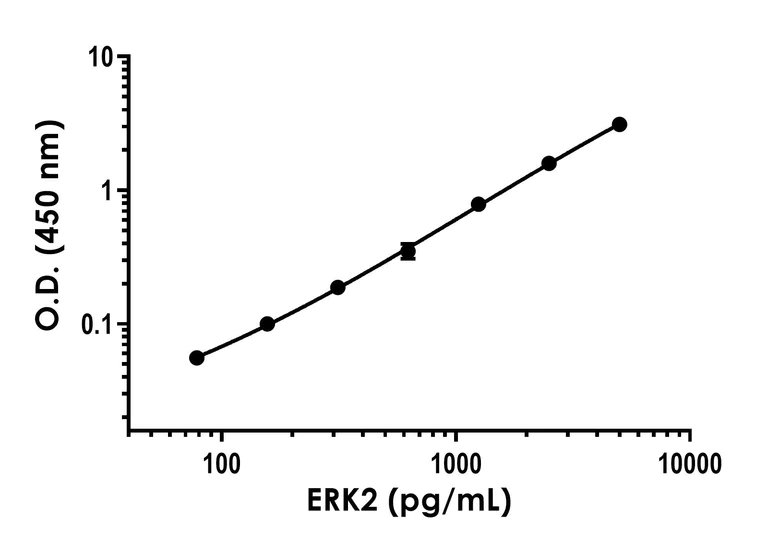

Example of human, mouse, and rat ERK2 standard curve. Background-subtracted data values (mean +/- SD) are graphed.
Sandwich ELISA - Human/Mouse /Rat ERK2 ELISA Kit (ab317550)

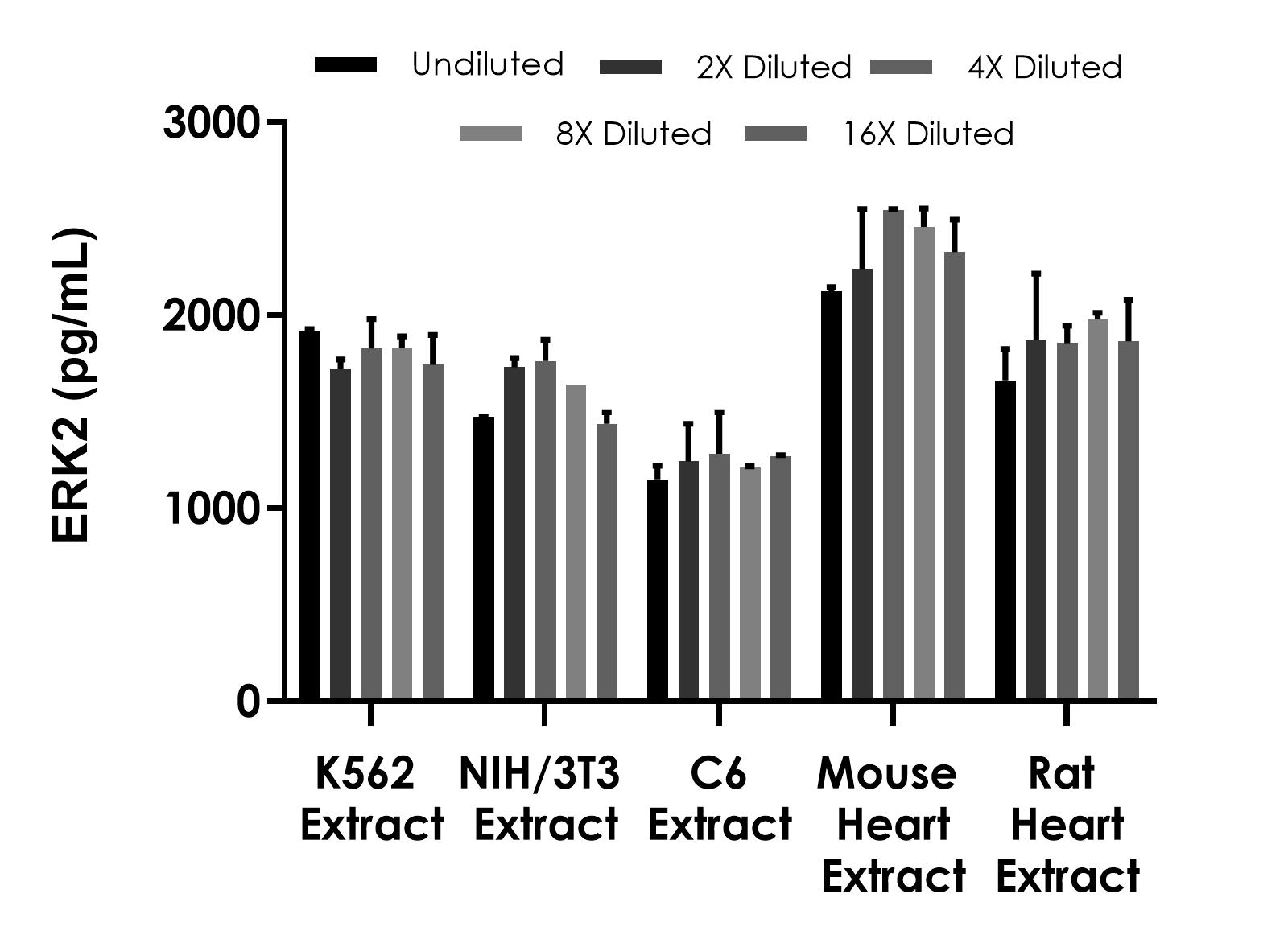

Interpolated concentration of native ERK2 was measured in duplicate at different sample concentrations. Undiluted samples are as follows: 6.5 µg/mL K562 cell extract, 6.5 µg/mL NIH/3T3 cell extract, 12.5 µg/mL C6 cell extract, 100 µg/mL mouse heart tissue extract, and 100 µg/mL rat heart tissue extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.
Sandwich ELISA - Human/Mouse /Rat ERK2 ELISA Kit (ab317550)

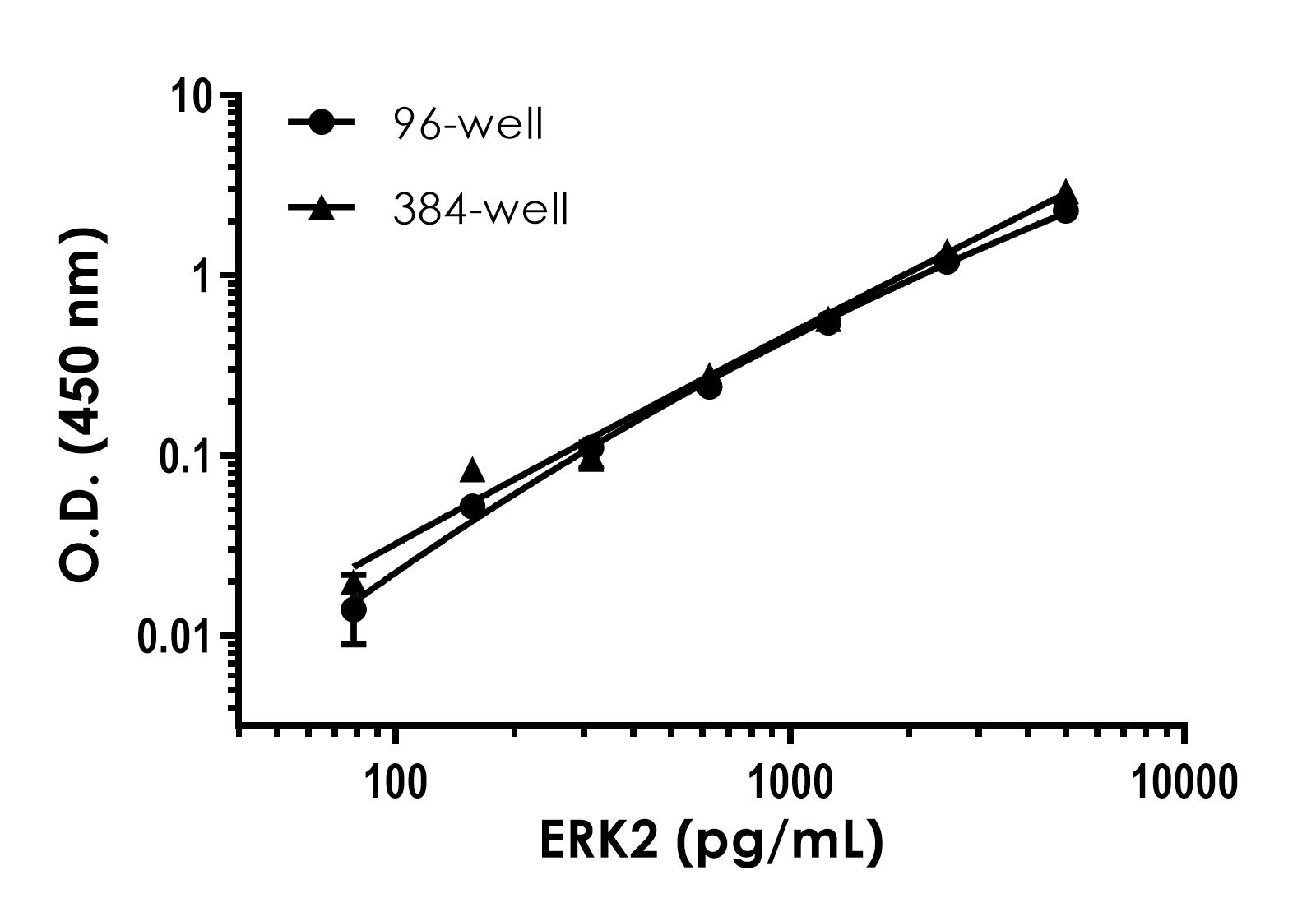

Example of human, mouse, and rat ERK2 standard curve in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.
Sandwich ELISA - Human/Mouse /Rat ERK2 ELISA Kit (ab317550)

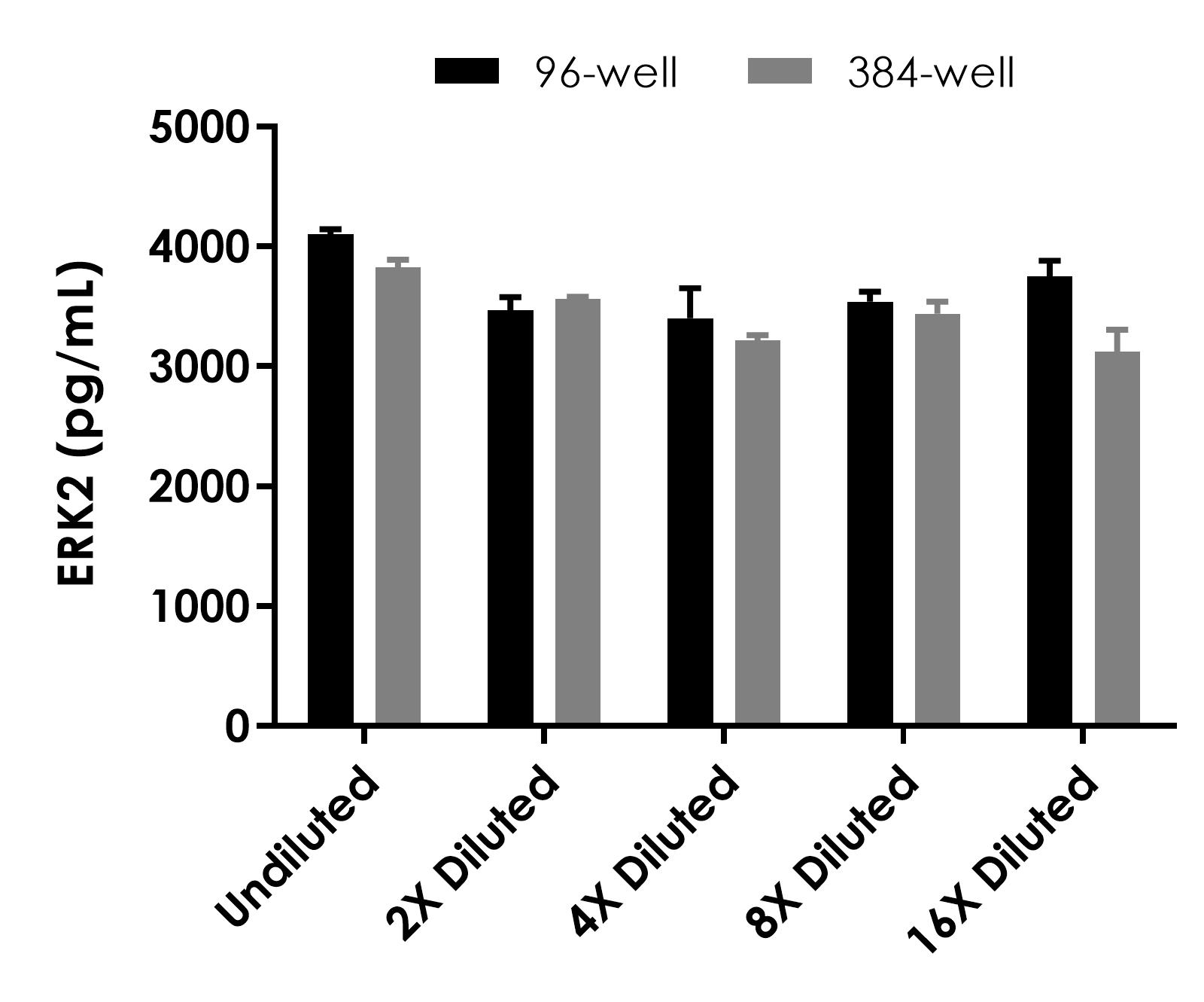

Interpolated concentration of native ERK2 was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 5 µg/mL NIH/3T3. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.
