AB322368

Human mTOR ELISA Kit- Intracellular

Be the first to review this product! Submit a review

|

(0 Publication)

Human mTOR ELISA Kit- Intracellular is a single-wash 90-min Simplestep used to quantify Human mTOR with a sensitivity of 0.031 ng/mL. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders and 384-well plate for higher throughput
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

FRAP, FRAP1, FRAP2, RAFT1, RAPT1, MTOR, Serine/threonine-protein kinase mTOR, FK506-binding protein 12-rapamycin complex-associated protein 1, FKBP12-rapamycin complex-associated protein, Mammalian target of rapamycin, Mechanistic target of rapamycin, Rapamycin and FKBP12 target 1, Rapamycin target protein 1, Tyrosine-protein kinase mTOR, mTOR

4 Images
Sandwich ELISA - Human mTOR ELISA Kit- Intracellular (AB322368)
  • sELISA

Supplier Data

Sandwich ELISA - Human mTOR ELISA Kit- Intracellular (AB322368)

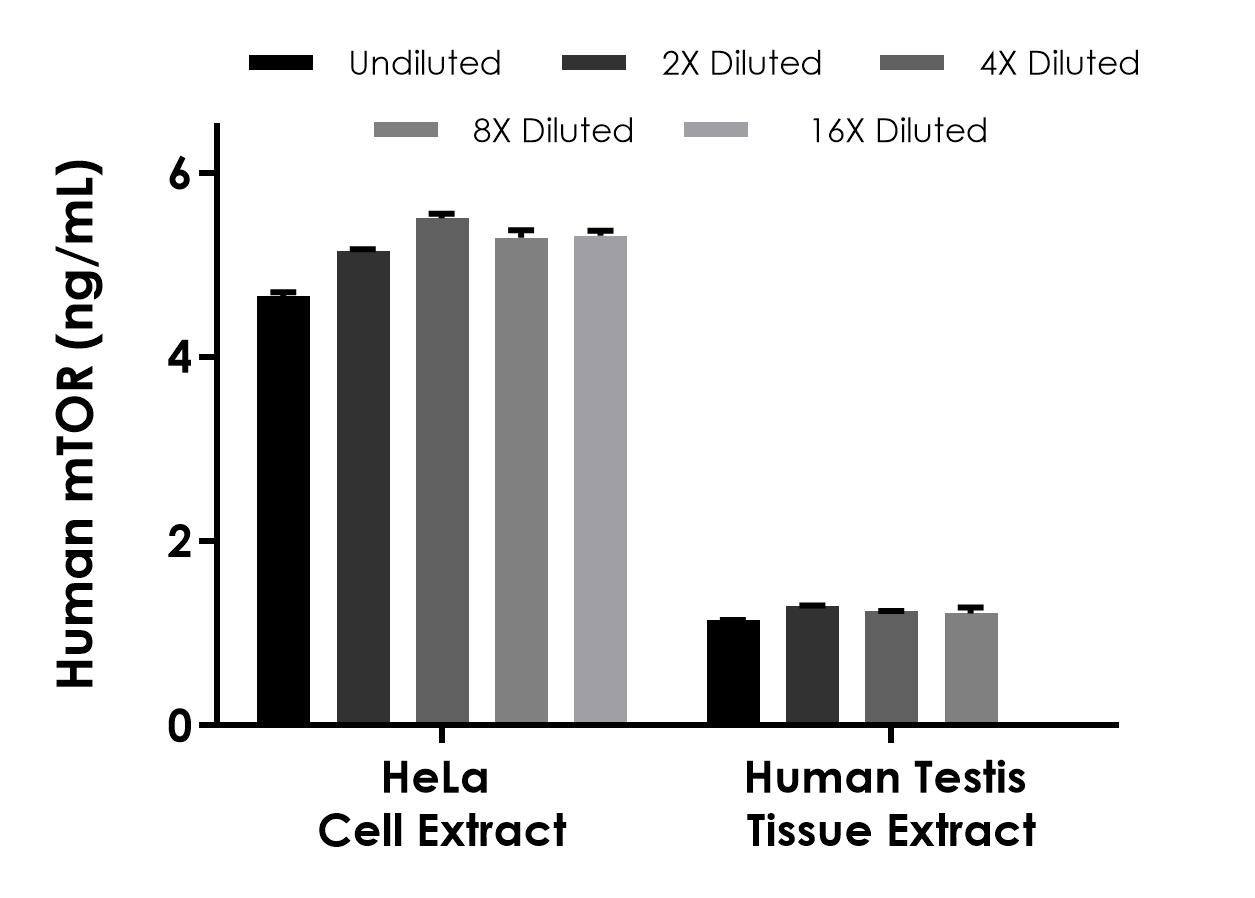

Interpolated concentration of native mTOR was measured in duplicate at different sample concentrations. Undiluted samples are as follows : HeLa cell extract 150 µg/mL and human testis tissue extract 75 µg/mL. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

Sandwich ELISA - Human mTOR ELISA Kit- Intracellular (AB322368)
  • sELISA

Supplier Data

Sandwich ELISA - Human mTOR ELISA Kit- Intracellular (AB322368)

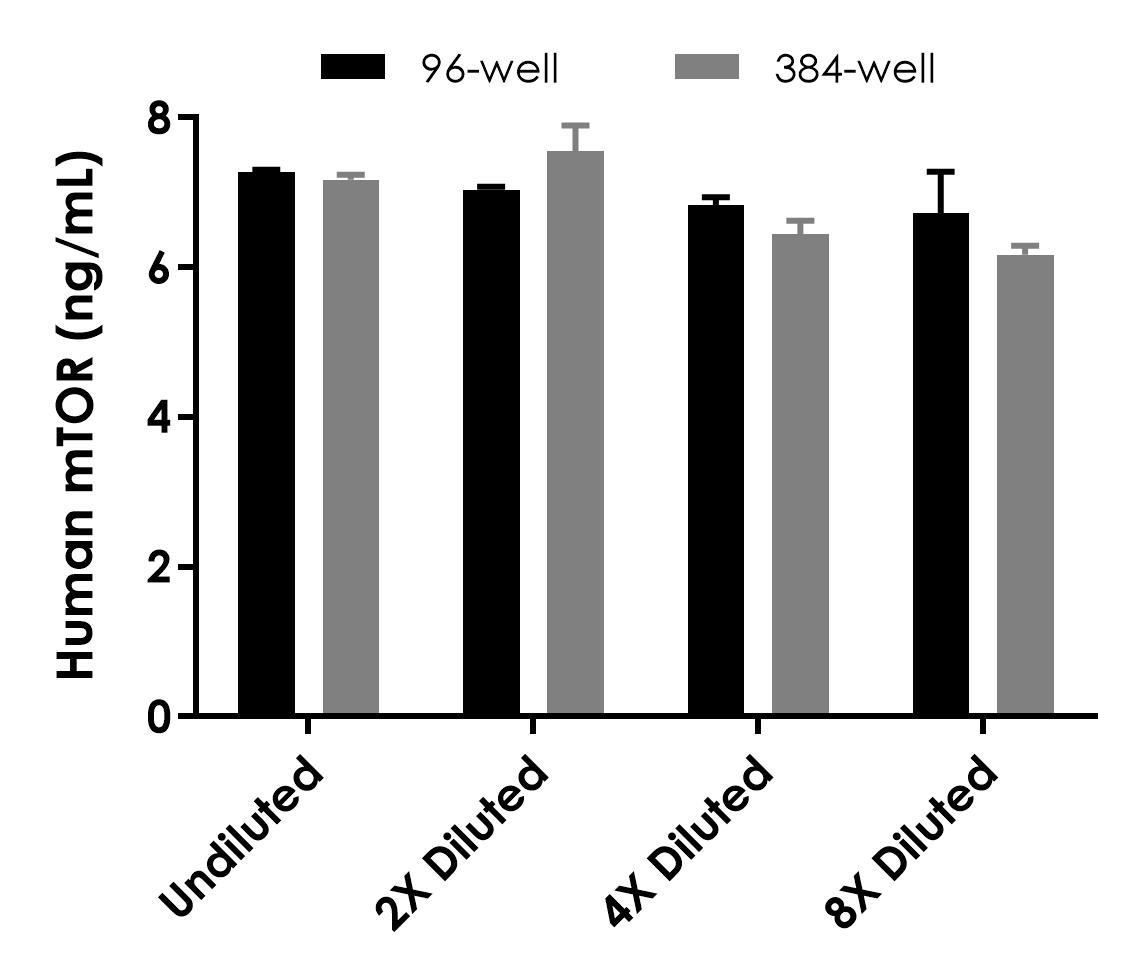

Interpolated concentration of native mTOR was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 150 µg/mL HeLa cell extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

Sandwich ELISA - Human mTOR ELISA Kit- Intracellular (AB322368)
  • sELISA

Supplier Data

Sandwich ELISA - Human mTOR ELISA Kit- Intracellular (AB322368)

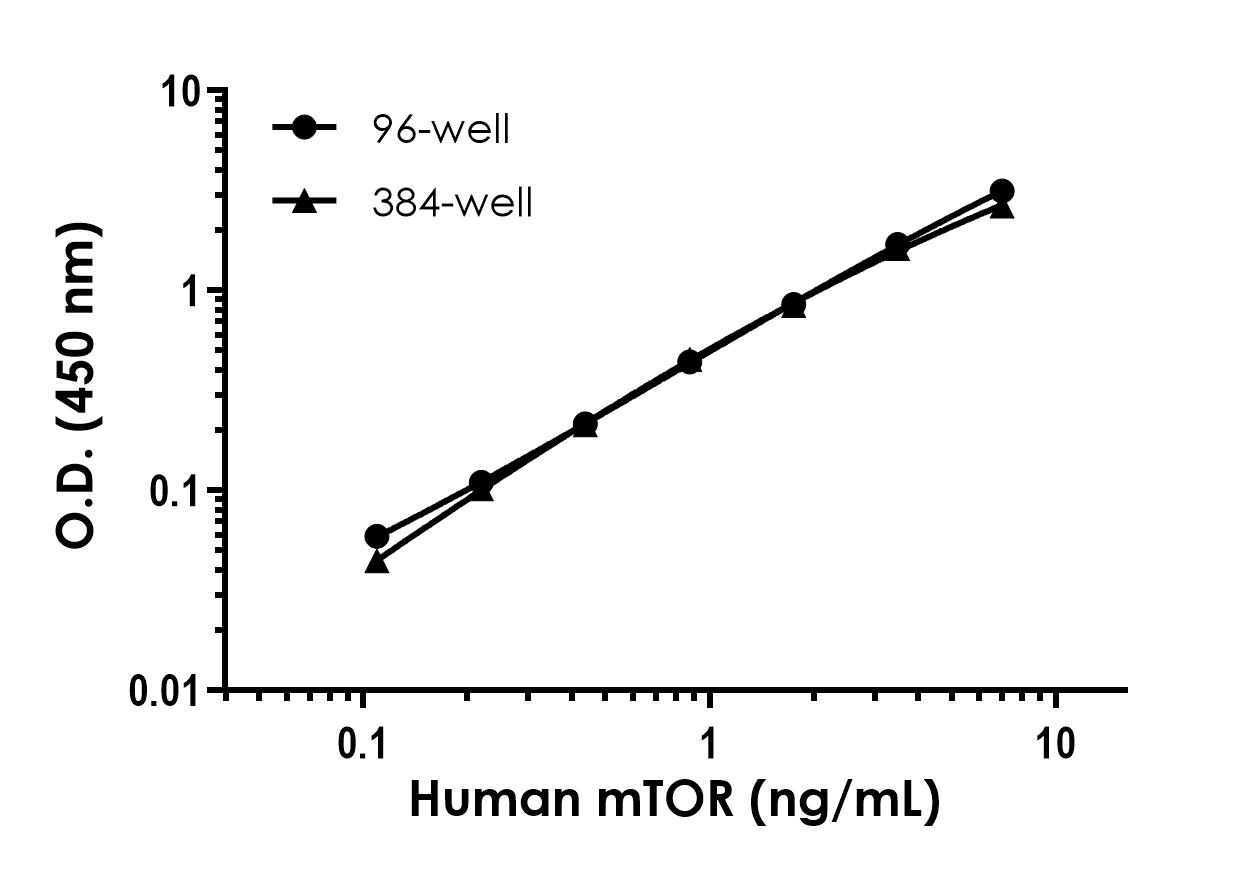

Example of human mTOR standard curve in 1X Cell Extraction Buffer PTR in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human mTOR ELISA Kit- Intracellular (AB322368)
  • sELISA

Supplier Data

Sandwich ELISA - Human mTOR ELISA Kit- Intracellular (AB322368)

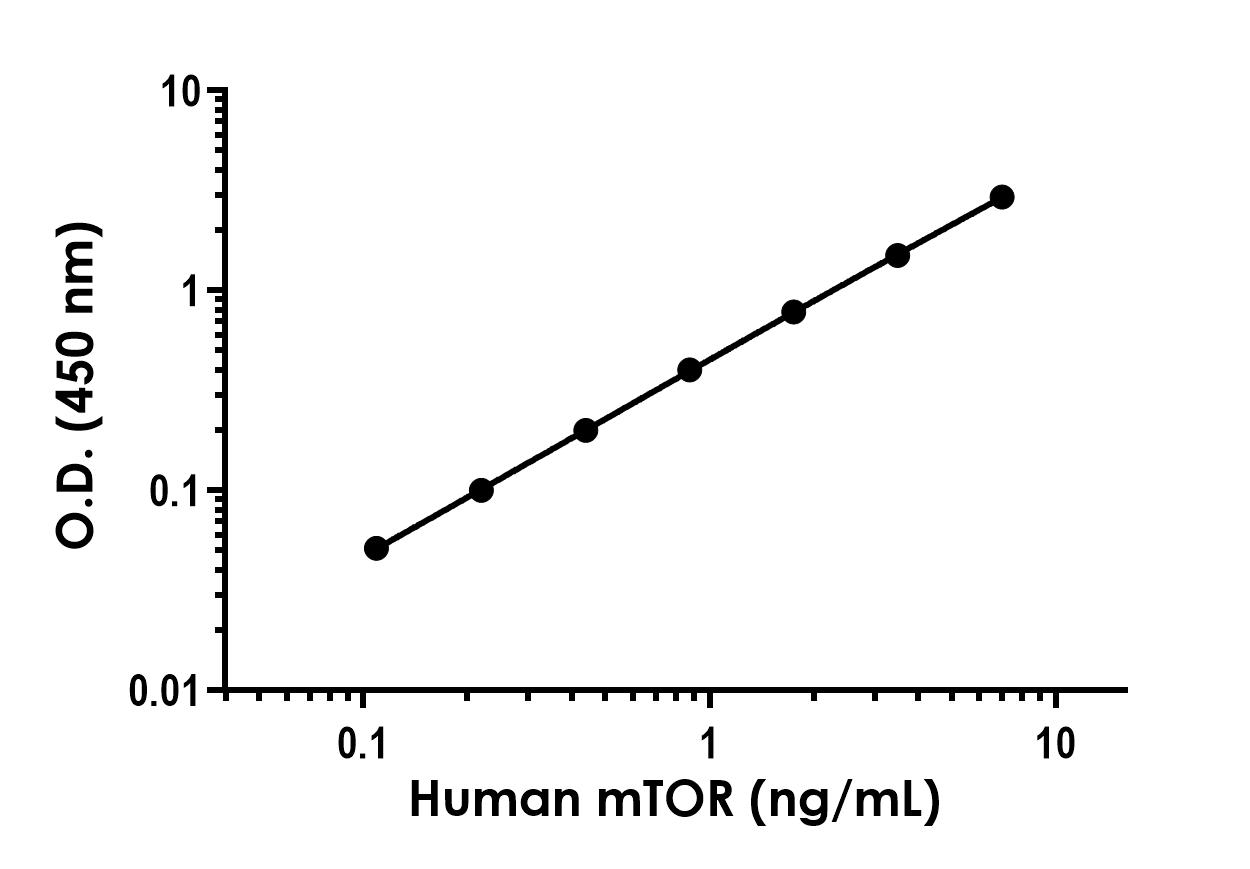

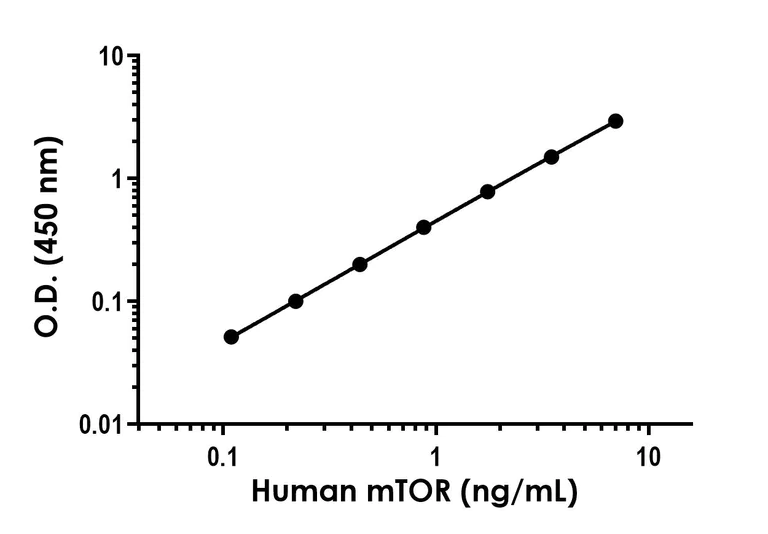

Example of human mTOR standard curve in 1X Cell Extraction Buffer PTR. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Cell Lysate, Tissue Extracts

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 0.031 ng/mL

Range

0.109 - 7 ng/mL

Assay time

1h 30m

Assay Platform

Microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Human mTOR SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of mTOR protein in Cell Lysate, Tissue extracts. Quantitate Human mTOR with 0.031 ng/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less

-High sensitivity, specificity and reproducibility from superior antibodies

-Fully validated in biological samples

-96-wells plate breakable into 12 x 8 wells strips, available in 10-pack (10 x 96-well plates)

-Also available in a fully validated 384-well format.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Precision

[ { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 3.3" }, { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 5.1" } ]

Recovery

[ { "sample": "Cell Lysate", "range": "105 - 122 %", "average": "= 112" }, { "sample": "Tissue Extracts", "range": "86 - 96 %", "average": "= 91" } ]

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab322368-10x96Tests", "assetComponentDetails": [ { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB322368-CMP09" }, { "size":"10 x 600 µL", "name":"10X Human mTOR Detector Antibody", "number":"AB322368-CMP02" }, { "size":"10 x 600 µL", "name":"10X Human mTOR Capture Antibody", "number":"AB322368-CMP01" }, { "size":"20 x 1 Vial", "name":"Human mTOR Lyophilized Recombinant Protein", "number":"AB322368-CMP03" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB322368-CMP08" }, { "size":"2 x 50 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB322368-CMP05" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB322368-CMP11" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB322368-CMP06" }, { "size":"10 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB322368-CMP04" }, { "size":"10 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB322368-CMP10" } ] }, "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab322368-1x384Tests", "assetComponentDetails": [ { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB322368-CMP09" }, { "size":"1 x 600 µL", "name":"10X Human mTOR Detector Antibody", "number":"AB322368-CMP02" }, { "size":"1 x 600 µL", "name":"10X Human mTOR Capture Antibody", "number":"AB322368-CMP01" }, { "size":"2 x 1 Vial", "name":"Human mTOR Lyophilized Recombinant Protein", "number":"AB322368-CMP03" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB322368-CMP08" }, { "size":"1 x 50 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB322368-CMP05" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB322368-CMP06" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB322368-CMP04" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB322368-CMP11" }, { "size":"1 x 1 Unit", "name":"384 well CaptSure™ microplates", "number":"AB322368-CMP12" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab322368-1x96Tests", "assetComponentDetails": [ { "size":"1 x 600 µL", "name":"10X Human mTOR Detector Antibody", "number":"AB322368-CMP02", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human mTOR Capture Antibody", "number":"AB322368-CMP01", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human mTOR Lyophilized Recombinant Protein", "number":"AB322368-CMP03", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB322368-CMP09", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB322368-CMP07", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB322368-CMP08", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB322368-CMP05", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB322368-CMP04", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB322368-CMP10", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB322368-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB322368-CMP11", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Product protocols

Target data

Serine/threonine protein kinase which is a central regulator of cellular metabolism, growth and survival in response to hormones, growth factors, nutrients, energy and stress signals (PubMed : 12087098, PubMed : 12150925, PubMed : 12150926, PubMed : 12231510, PubMed : 12718876, PubMed : 14651849, PubMed : 15268862, PubMed : 15467718, PubMed : 15545625, PubMed : 15718470, PubMed : 18497260, PubMed : 18762023, PubMed : 18925875, PubMed : 20516213, PubMed : 20537536, PubMed : 21659604, PubMed : 23429703, PubMed : 23429704, PubMed : 25799227, PubMed : 26018084, PubMed : 29150432, PubMed : 29236692, PubMed : 31112131, PubMed : 31601708, PubMed : 32561715, PubMed : 34519269, PubMed : 37751742). MTOR directly or indirectly regulates the phosphorylation of at least 800 proteins (PubMed : 15268862, PubMed : 15467718, PubMed : 17517883, PubMed : 18372248, PubMed : 18497260, PubMed : 18925875, PubMed : 20516213, PubMed : 21576368, PubMed : 21659604, PubMed : 23429704, PubMed : 30171069, PubMed : 29236692, PubMed : 37751742). Functions as part of 2 structurally and functionally distinct signaling complexes mTORC1 and mTORC2 (mTOR complex 1 and 2) (PubMed : 15268862, PubMed : 15467718, PubMed : 18497260, PubMed : 18925875, PubMed : 20516213, PubMed : 21576368, PubMed : 21659604, PubMed : 23429704, PubMed : 29424687, PubMed : 29567957, PubMed : 35926713). In response to nutrients, growth factors or amino acids, mTORC1 is recruited to the lysosome membrane and promotes protein, lipid and nucleotide synthesis by phosphorylating key regulators of mRNA translation and ribosome synthesis (PubMed : 12087098, PubMed : 12150925, PubMed : 12150926, PubMed : 12231510, PubMed : 12718876, PubMed : 14651849, PubMed : 15268862, PubMed : 15467718, PubMed : 15545625, PubMed : 15718470, PubMed : 18497260, PubMed : 18762023, PubMed : 18925875, PubMed : 20516213, PubMed : 20537536, PubMed : 21659604, PubMed : 23429703, PubMed : 23429704, PubMed : 25799227, PubMed : 26018084, PubMed : 29150432, PubMed : 29236692, PubMed : 31112131, PubMed : 34519269). This includes phosphorylation of EIF4EBP1 and release of its inhibition toward the elongation initiation factor 4E (eiF4E) (PubMed : 24403073, PubMed : 29236692). Moreover, phosphorylates and activates RPS6KB1 and RPS6KB2 that promote protein synthesis by modulating the activity of their downstream targets including ribosomal protein S6, eukaryotic translation initiation factor EIF4B, and the inhibitor of translation initiation PDCD4 (PubMed : 12087098, PubMed : 12150925, PubMed : 18925875, PubMed : 29150432, PubMed : 29236692). Stimulates the pyrimidine biosynthesis pathway, both by acute regulation through RPS6KB1-mediated phosphorylation of the biosynthetic enzyme CAD, and delayed regulation, through transcriptional enhancement of the pentose phosphate pathway which produces 5-phosphoribosyl-1-pyrophosphate (PRPP), an allosteric activator of CAD at a later step in synthesis, this function is dependent on the mTORC1 complex (PubMed : 23429703, PubMed : 23429704). Regulates ribosome synthesis by activating RNA polymerase III-dependent transcription through phosphorylation and inhibition of MAF1 an RNA polymerase III-repressor (PubMed : 20516213). Activates dormant ribosomes by mediating phosphorylation of SERBP1, leading to SERBP1 inactivation and reactivation of translation (PubMed : 36691768). In parallel to protein synthesis, also regulates lipid synthesis through SREBF1/SREBP1 and LPIN1 (PubMed : 23426360). To maintain energy homeostasis mTORC1 may also regulate mitochondrial biogenesis through regulation of PPARGC1A (By similarity). In the same time, mTORC1 inhibits catabolic pathways : negatively regulates autophagy through phosphorylation of ULK1 (PubMed : 32561715). Under nutrient sufficiency, phosphorylates ULK1 at 'Ser-758', disrupting the interaction with AMPK and preventing activation of ULK1 (PubMed : 32561715). Also prevents autophagy through phosphorylation of the autophagy inhibitor DAP (PubMed : 20537536). Also prevents autophagy by phosphorylating RUBCNL/Pacer under nutrient-rich conditions (PubMed : 30704899). Prevents autophagy by mediating phosphorylation of AMBRA1, thereby inhibiting AMBRA1 ability to mediate ubiquitination of ULK1 and interaction between AMBRA1 and PPP2CA (PubMed : 23524951, PubMed : 25438055). mTORC1 exerts a feedback control on upstream growth factor signaling that includes phosphorylation and activation of GRB10 a INSR-dependent signaling suppressor (PubMed : 21659604). Among other potential targets mTORC1 may phosphorylate CLIP1 and regulate microtubules (PubMed : 12231510). The mTORC1 complex is inhibited in response to starvation and amino acid depletion (PubMed : 12150925, PubMed : 12150926, PubMed : 24403073, PubMed : 31695197). The non-canonical mTORC1 complex, which acts independently of RHEB, specifically mediates phosphorylation of MiT/TFE factors MITF, TFEB and TFE3 in the presence of nutrients, promoting their cytosolic retention and inactivation (PubMed : 22343943, PubMed : 22576015, PubMed : 22692423, PubMed : 24448649, PubMed : 32612235, PubMed : 36608670, PubMed : 36697823). Upon starvation or lysosomal stress, inhibition of mTORC1 induces dephosphorylation and nuclear translocation of TFEB and TFE3, promoting their transcription factor activity (PubMed : 22343943, PubMed : 22576015, PubMed : 22692423, PubMed : 24448649, PubMed : 32612235, PubMed : 36608670). The mTORC1 complex regulates pyroptosis in macrophages by promoting GSDMD oligomerization (PubMed : 34289345). MTOR phosphorylates RPTOR which in turn inhibits mTORC1 (By similarity). As part of the mTORC2 complex, MTOR transduces signals from growth factors to pathways involved in proliferation, cytoskeletal organization, lipogenesis and anabolic output (PubMed : 15268862, PubMed : 15467718, PubMed : 24670654, PubMed : 29424687, PubMed : 29567957, PubMed : 35926713). In response to growth factors, mTORC2 phosphorylates and activates AGC protein kinase family members, including AKT (AKT1, AKT2 and AKT3), PKC (PRKCA, PRKCB and PRKCE) and SGK1 (PubMed : 15268862, PubMed : 15467718, PubMed : 21376236, PubMed : 24670654, PubMed : 29424687, PubMed : 29567957, PubMed : 35926713). In contrast to mTORC1, mTORC2 is nutrient-insensitive (PubMed : 15467718). mTORC2 plays a critical role in AKT1 activation by mediating phosphorylation of different sites depending on the context, such as 'Thr-450', 'Ser-473', 'Ser-477' or 'Thr-479', facilitating the phosphorylation of the activation loop of AKT1 on 'Thr-308' by PDPK1/PDK1 which is a prerequisite for full activation (PubMed : 15718470, PubMed : 21376236, PubMed : 24670654, PubMed : 29424687, PubMed : 29567957). mTORC2 also regulates the phosphorylation of SGK1 at 'Ser-422' (PubMed : 18925875). mTORC2 may regulate the actin cytoskeleton, through phosphorylation of PRKCA, PXN and activation of the Rho-type guanine nucleotide exchange factors RHOA and RAC1A or RAC1B (PubMed : 15268862). The mTORC2 complex also phosphorylates various proteins involved in insulin signaling, such as FBXW8 and IGF2BP1 (By similarity). May also regulate insulin signaling by acting as a tyrosine protein kinase that catalyzes phosphorylation of IGF1R and INSR; additional evidence are however required to confirm this result in vivo (PubMed : 26584640). Regulates osteoclastogenesis by adjusting the expression of CEBPB isoforms (By similarity). Plays an important regulatory role in the circadian clock function; regulates period length and rhythm amplitude of the suprachiasmatic nucleus (SCN) and liver clocks (By similarity).
See full target information MTOR
websiteProtocolBooklet
en

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
