AB171580

Human Myoglobin ELISA Kit

Be the first to review this product! Submit a review

|

(8 Publications)

Human Myoglobin ELISA Kit is a single-wash 90-min Simplestep used to quantify Human Myoglobin with a sensitivity of 270 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair
- Cited in over 5 citations

View Alternative Names

Myoglobin, Nitrite reductase MB, Pseudoperoxidase MB, MB

4 Images
Sandwich ELISA - Human Myoglobin ELISA Kit (AB171580)
  • sELISA

Supplier Data

Sandwich ELISA - Human Myoglobin ELISA Kit (AB171580)

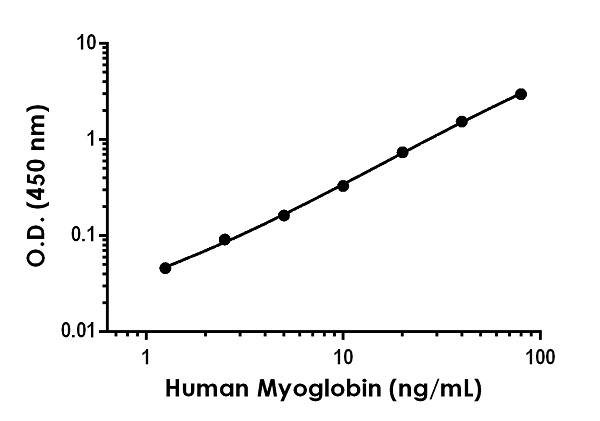

Example of human Myoglobin standard curve in Sample Diluent NS.

The Myoglobin standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human Myoglobin ELISA Kit (AB171580)
  • sELISA

Supplier Data

Sandwich ELISA - Human Myoglobin ELISA Kit (AB171580)

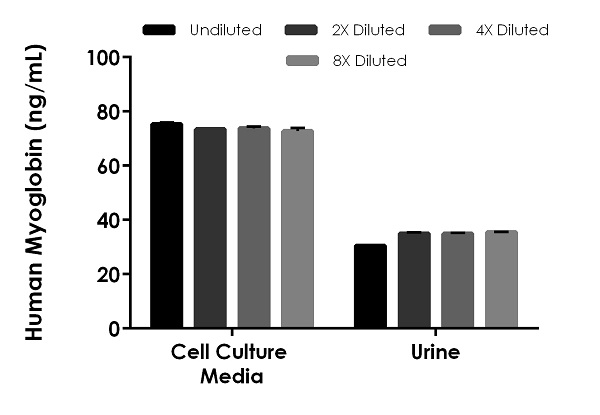

Interpolated concentrations of spike Myoglobin in human cell culture media and urine samples.

The concentrations of Myoglobin were measured in duplicates, interpolated from the Myoglobin standard curves and corrected for sample dilution. Undiluted samples are as follows : cell culture media 25% and urine 25%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2).

Sandwich ELISA - Human Myoglobin ELISA Kit (AB171580)
  • sELISA

Supplier Data

Sandwich ELISA - Human Myoglobin ELISA Kit (AB171580)

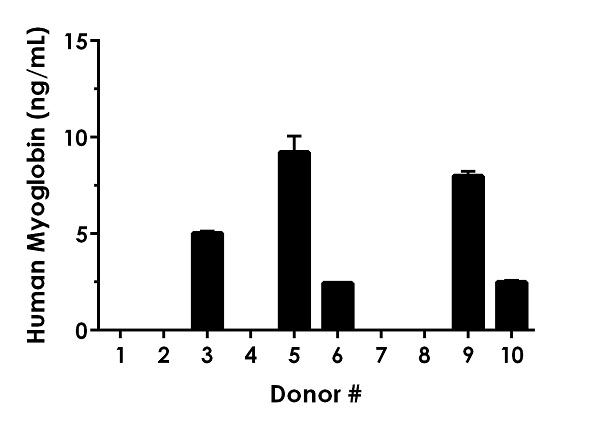

Serum from ten individual healthy human female donors was measured in duplicate.

Interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). 5 of 10 donors were below the detectable dose. The mean Myoglobin concentration was determined to be 5.4 ng/mL with a range of ND – 9.8 ng/mL.

Sandwich ELISA - Human Myoglobin ELISA Kit (AB171580)
  • sELISA

Supplier Data

Sandwich ELISA - Human Myoglobin ELISA Kit (AB171580)

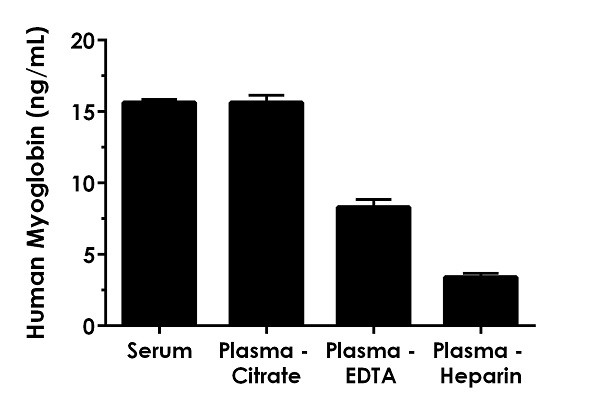

Interpolated concentrations of native Myoglobin in human serum and plasma samples.

The concentrations of Myoglobin were measured in duplicates, interpolated from the Myoglobin standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 25%, plasma (heparin) 25%, plasma (citrate) 25%, plasma (EDTA) 25%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean Myoglobin concentration was determined to be 15.8 ng/mL in serum, 15.6 ng/mL in plasma (citrate), 8.3 ng/mL in plasma (EDTA) and 3.4 ng/mL in plasma (heparin).

Key facts

Detection method

Colorimetric

Sample types

Urine, Plasma, Cell culture extracts, Tissue Extracts, Cell culture supernatant, Serum

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 270 pg/mL

Range

1.25 - 80 ng/mL

Assay time

1h 30m

Assay Platform

Microplate

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Human Myoglobin ELISA kit (ab171580) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Myoglobin protein in human serum, plasma, urine, cell culture supernatant, cell and tissue extracts. It uses our proprietary SimpleStep ELISA® technology. Quantitate human myoglobin with 270 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpeStep ELISA® kits.

Myoglobin, a heme protein is found in both cardiac and skeletal muscle and functions as a reserve supply of oxygen by facilitating the movement of oxygen within muscles. Damage to either type of muscle following conditions such as trauma, ischemia, and diseases that cause myopathy, is associated with the release of myoglobin into serum. Specifically, following cardiac necrosis associated with myocardial infarction (MI), myoglobin is one of the first markers to rise above normal levels. Myoglobin levels increase measurably above baseline within 2-4 hours post-infarct, peaking at 9-12 hours, and returning to baseline within 24-36 hours.

Precision

[ { "reproducibilityType": "Inter", "sample": "Homogenate", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2" }, { "reproducibilityType": "Intra", "sample": "Homogenate", "replicates": 5, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2" } ]

Recovery

[ { "sample": "Serum", "range": "83 - 115 %", "average": "= 103" }, { "sample": "Urine", "range": "67 - 81 %", "average": "= 75" }, { "sample": "Tissue Extracts", "range": "105 - 118 %", "average": "= 111" }, { "sample": "Cell culture media", "range": "81 - 113 %", "average": "= 101" }, { "sample": "Citrate plasma", "range": "82 - 108 %", "average": "= 99" }, { "sample": "EDTA Plasma", "range": "90 - 110 %", "average": "= 98" }, { "sample": "Heparin Plasma", "range": "86 - 92 %", "average": "= 89" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab171580-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB171580-CMP05", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB171580-CMP06", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB171580-CMP10", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB171580-CMP11", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB171580-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB171580-CMP09", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB171580-CMP08", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Myoglobin Capture Antibody", "number":"AB171580-CMP02", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human Myoglobin Lyophilized Recombinant Protein", "number":"AB171580-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Myoglobin Detector Antibody", "number":"AB171580-CMP03", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Myoglobin also known as MB is a small globular protein with a molecular weight of approximately 17 kDa. It functions as an oxygen-binding protein and is expressed mainly in cardiac and skeletal muscle tissue where it facilitates oxygen storage and transport. The myoglobin protein plays an important role in maintaining the oxygen supply needed during muscular contraction and intense physical activity.
Biological function summary

Myoglobin in muscle cells acts to store oxygen which provides a rapid release when required during muscle contraction. Myoglobin serves as a monomer and does not form part of a complex. Its structure allows it to temporarily store and relay oxygen where it is most required enhancing the often abrupt demands of muscles for oxygen. The ability of myoglobin to bind oxygen and release it under hypoxic conditions is central to its biological role in vertebrates.

Pathways

The function of myoglobin in aerobic respiration in muscles involves its participation in the oxygen transport pathway. This protein closely interacts with hemoglobin to mobilize oxygen effectively to mitochondria during muscle contraction. Unlike hemoglobin myoglobin has a hyperbolic oxygen dissociation curve which allows it to provide oxygen at lower partial pressures contributing significantly to the efficient metabolism during hypoxia or intense muscular exertion.

Myoglobin plays a significant role in conditions such as rhabdomyolysis and myocardial infarction. Rhabdomyolysis a syndrome caused by muscle injury results in the release of myoglobin into the bloodstream. Myoglobin detection kits including myoglobin ELISA are essential tools for the diagnosis of these conditions. Moreover its rapid increase in plasma levels after heart muscle damage enables its use as an early marker for myocardial infarction. Myoglobin's interaction with proteins like creatine kinase provides valuable information on muscle damage and cardiac events.

Product protocols

Target data

Monomeric heme protein which primary function is to store oxygen and facilitate its diffusion within muscle tissues. Reversibly binds oxygen through a pentacoordinated heme iron and enables its timely and efficient release as needed during periods of heightened demand (PubMed : 30918256, PubMed : 34679218). Depending on the oxidative conditions of tissues and cells, and in addition to its ability to bind oxygen, it also has a nitrite reductase activity whereby it regulates the production of bioactive nitric oxide (PubMed : 32891753). Under stress conditions, like hypoxia and anoxia, it also protects cells against reactive oxygen species thanks to its pseudoperoxidase activity (PubMed : 34679218).
See full target information MB

Publications (8)

Recent publications for all applications. Explore the full list and refine your search

Science advances 11:eadp8608 PubMed39889004

2025

Temporal dynamics of the interstitial fluid proteome in human skeletal muscle following exhaustive exercise.

Applications

Unspecified application

Species

Unspecified reactive species

Ben Stocks,Julia Prats Quesada,Anthony M Mozzicato,Carolina Jacob,Simone Jensen,Kirstin A MacGregor,Jens Bangsbo,Juleen R Zierath,Morten Hostrup,Atul S Deshmukh

Physiological reports 12:e70147 PubMed39667826

2024

Eccentric exercise-induced muscle damage and inflammation in conjunction with high-altitude decompression in adults.

Applications

Unspecified application

Species

Unspecified reactive species

Frode Gottschalk,Mikael Gennser,Mattias Günther,Ola Eiken,Antonis Elia

Experimental physiology 109:1517-1528 PubMed38923893

2024

Eccentric exercise before a 90 min exposure at 24,000 ft increases decompression strain depending on body region but not total muscle mass recruited.

Applications

Unspecified application

Species

Unspecified reactive species

Frode Gottschalk,Mikael Gennser,Mattias Günther,Ola Eiken,Antonis Elia

Clinical and translational medicine 12:e1108 PubMed36480426

2022

Myoglobin-mediated lipid shuttling increases adrenergic activation of brown and white adipocyte metabolism and is as a marker of thermogenic adipocytes in humans.

Applications

Unspecified application

Species

Unspecified reactive species

Lisa Christen,Helen Broghammer,Inka Rapöhn,Kevin Möhlis,Christian Strehlau,Aleix Ribas-Latre,Claudia Gebhardt,Lisa Roth,Kerstin Krause,Kathrin Landgraf,Antje Körner,Kerstin Rohde-Zimmermann,Anne Hoffmann,Nora Klöting,Adhideb Ghosh,Wenfei Sun,Hua Dong,Christian Wolfrum,Tienush Rassaf,Ulrike B Hendgen-Cotta,Michael Stumvoll,Matthias Blüher,John T Heiker,Juliane Weiner

International journal of exercise science 15:1212-1221 PubMed36620189

2022

Effects of Varying Load Intensity on Skeletal Muscle Damage Between Two Isovolumic Resistance Exercise Bouts.

Applications

Unspecified application

Species

Unspecified reactive species

Lee J Winchester,Cody E Morris,Patton Allen,Teresa L Wiczynski,Scott W Arnett,T Scott Lyons

Blood purification 52:41-53 PubMed35512641

2022

The Role of Uremic Retention Solutes in the MIA Syndrome in Hemodialysis Subjects.

Applications

Unspecified application

Species

Unspecified reactive species

Paola Ciceri,Luisa Artioli,Lorenza Magagnoli,Alessandra Barassi,Jean-Claude Alvarez,Ziad A Massy,Andrea Galassi,Mario Cozzolino

Journal of cellular physiology 237:551-565 PubMed34224151

2021

Lipocalin 2 increases after high-intensity exercise in humans and influences muscle gene expression and differentiation in mice.

Applications

Unspecified application

Species

Unspecified reactive species

Marco Ponzetti,Federica Aielli,Argia Ucci,Alfredo Cappariello,Giovanni Lombardi,Anna Teti,Nadia Rucci

Journal of tissue engineering 11:2041731420921482 PubMed32742631

2020

Tissue-engineered human embryonic stem cell-containing cardiac patches: evaluating recellularization of decellularized matrix.

Applications

Unspecified application

Species

Unspecified reactive species

Camila Hochman-Mendez,Dilza Balteiro Pereira de Campos,Rafael Serafim Pinto,Bernardo Jorge da Silva Mendes,Gustavo Miranda Rocha,Gustavo Monnerat,Gilberto Weissmuller,Luiz C Sampaio,Adriana Bastos Carvalho,Doris A Taylor,Antonio Carlos Campos de Carvalho
View all publications
websiteProtocolBooklet
en

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
