AB178011

Human NADH dehydrogenase ELISA Kit (Complex I)

Be the first to review this product! Submit a review

|

(9 Publications)

Human NADH dehydrogenase ELISA Kit (Complex I) is a single-wash 90-min Simplestep used to quantify Human NADH dehydrogenase (Complex I) with a sensitivity of 430 ng/mL. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Cited in over 5 citations

View Alternative Names

UQOR1, NDUFV1, Complex I-51kD, NADH dehydrogenase flavoprotein 1, NADH-ubiquinone oxidoreductase 51 kDa subunit, CI-51kD

4 Images
Sandwich ELISA - Human NADH dehydrogenase ELISA Kit (Complex I) (AB178011)
  • sELISA

Supplier Data

Sandwich ELISA - Human NADH dehydrogenase ELISA Kit (Complex I) (AB178011)

Example of NADH Dehydrogenase standard curve.

Example of human NADH Dehydrogenase control curve in 1X Cell Extraction Buffer LM. The NADH Dehydrogenase control curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human NADH dehydrogenase ELISA Kit (Complex I) (AB178011)
  • sELISA

Supplier Data

Sandwich ELISA - Human NADH dehydrogenase ELISA Kit (Complex I) (AB178011)

Titration of HepG2 cell lysate within the working range of the assay.

Background-subtracted data values from triplicate measurements (mean +/- SD) are graphed.

Sandwich ELISA - Human NADH dehydrogenase ELISA Kit (Complex I) (AB178011)
  • sELISA

Supplier Data

Sandwich ELISA - Human NADH dehydrogenase ELISA Kit (Complex I) (AB178011)

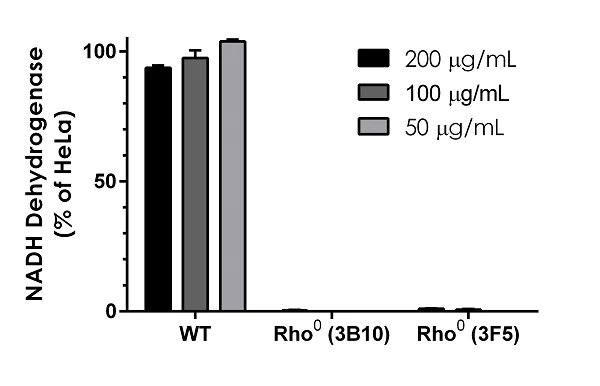

Quantification of NADH Dehydrogenase expression in 143B wildtype (WT) and two clones (3B10 and 3F5) of 143B-derived Rho0 (mitochondrial DNA-depleted) cells.

Quantification of NADH Dehydrogenase expression in 143B wildtype (WT) and two clones (3B10 and 3F5) of 143B-derived Rho0 (mitochondrial DNA-depleted) cells. The concentrations of NADH Dehydrogenase were interpolated from data values shown in Figure 3 using NADH Dehydrogenase control curve of the HeLa Lyophilized Lysate Control, corrected for sample dilution, and graphed in percent relative to NADH Dehydrogenase expression in HeLa cell extract. The concentration of NADH Dehydrogenase in both Rho0 cell lines was less than 1% of the concentration in the WT 143B cells.

Sandwich ELISA - Human NADH dehydrogenase ELISA Kit (Complex I) (AB178011)
  • sELISA

Supplier Data

Sandwich ELISA - Human NADH dehydrogenase ELISA Kit (Complex I) (AB178011)

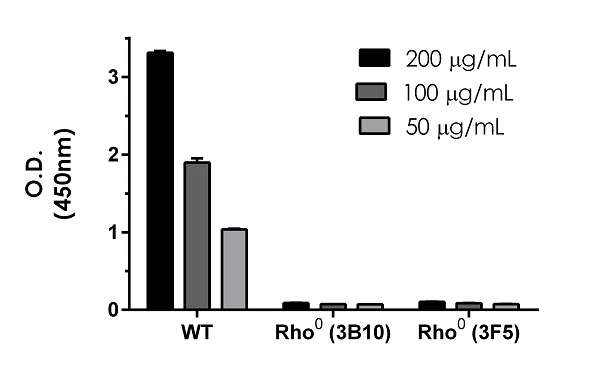

Comparison of NADH Dehydrogenase expression in 143B wildtype (WT) and two clones (3B10 and 3F5) of 143B-derived Rho0 (mitochondrial DNA-depleted) cells.

Background-subtracted data values from triplicate measurements of three lysate concentrations (200, 100 and 50 μg/mL) are graphed as mean +/- SD.

Key facts

Detection method

Colorimetric

Sample types

Cell culture extracts, Tissue Extracts

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 430 ng/mL

Range

3.13 - 200 µg/mL

Assay time

1h 30m

Assay Platform

Microplate

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Human NADH Dehydrogenase (Complex I) ELISA kit (ab178011) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of NADH Dehydrogenase protein in human cell and tissue extracts. It uses our proprietary SimpleStep ELISA® technology. Quantitate human NADH Dehydrogenase with 430 ng/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpeStep ELISA® kits.

NADH dehydrogenase (NADH: ubiquinone reductase (H+-translocating), Complex I) is the first enzyme of the oxidative phosphorylation (OXPHOS) system within the mitochondrial inner membrane. NADH dehydrogenase is a large protein complex of 950,000 MW made up of 45-46 different subunits. Seven of the subunits of the complex are encoded on mitochondrial DNA (mtDNA), the remaining subunits are nuclear encoded, made in the cytosol and translocated into the organelle for assembly at the inner membrane. The enzyme complex catalyses electron entry from NADH via a flavin (FMN) and several non-heme iron centers. Mutations in mtDNA, or nuclear DNA genes encoding NADH dehydrogenase subunits or assembly factors are a common cause of genetic OXPHOS defects. Mutations or loss of mtDNA may cause enzymatic dysfunction by disrupting enzyme assembly or alternatively by specifically affecting enzymatic activity with no effect on enzyme assembly.

NADH dehydrogenase (like Complex III) has been proposed as a site of superoxide 'leak' from the mitochondrial OXPHOS system. Altered functioning and increased superoxide production by this complex has been proposed to contribute to several neurological disorders including Parkinson's disease. Also there is evidence of NADH Dehydrogenase involvement in diabetes.

Precision

[ { "reproducibilityType": "Inter", "sample": "HepG2 Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "5.9" }, { "reproducibilityType": "Intra", "sample": "HepG2 Extract", "replicates": 5, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.7" } ]

Recovery

[ { "sample": "Cell culture media", "range": "64 - 67 %", "average": "= 66" }, { "sample": "Fetal Bovine Serum", "range": "70 - 77 %", "average": "= 74" }, { "sample": "Serum", "range": "108 - 111 %", "average": "= 110" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab178011-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB178011-CMP04", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB178011-CMP12", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB178011-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB178011-CMP09", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human NADH Dehydrogenase Capture Antibody", "number":"AB178011-CMP07", "productcode":"" }, { "size":"2 x 1 Vial", "name":"HeLa Human Lyophilized Protein", "number":"AB178011-CMP11", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5B", "number":"AB178011-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB178011-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human NADH Dehydrogenase Detector Antibody", "number":"AB178011-CMP08", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer LM", "number":"AB178011-CMP10", "productcode":"" }, { "size":"1 x 10 mL", "name":"2X Cell Extraction Buffer LM", "number":"AB178011-CMP06", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Complex I also known as NADH dehydrogenase or NADH:ubiquinone oxidoreductase is a large enzyme complex with a molecular mass of approximately 1000 kDa. It is expressed in the inner mitochondrial membrane of eukaryotic cells. As the first enzyme in the mitochondrial respiratory chain Complex I plays a critical mechanical role in cellular respiration. It transfers electrons from NADH to ubiquinone coupled with the translocation of protons across the inner mitochondrial membrane contributing to the generation of a proton gradient used to produce ATP.
Biological function summary

Complex I acts as an integral component of the mitochondrial respiratory chain which is a series of protein complexes involved in cellular energy production. As part of this complex system Complex I is essential for effective oxidative phosphorylation. Its activity is assessed using protein activity assays including immunocapture or complex activity assays and microplate assays. Complex I activity influences the overall efficiency of ATP production affecting energy-dependent cellular processes.

Pathways

Complex I functions within the electron transport chain one of the major pathways in cellular respiration. This pathway is vital for ATP synthesis providing the energy currency required by cells. Complex I works closely with other electron transport chain complexes such as Complex II (succinate dehydrogenase complex) and Complex III (cytochrome c reductase) to drive oxidation-reduction reactions and maintain cellular metabolism.

Defects in Complex I are linked with mitochondrial diseases and neurodegenerative disorders such as Leigh syndrome and Parkinson's disease. Mutations in Complex I subunits disrupt normal electron transport and ATP production leading to increased oxidative stress and neuronal cell damage. Other mitochondrial proteins such as cytochrome c oxidase are also implicated in these conditions emphasizing the interconnected nature of mitochondrial dysfunction in disease progression.

Product protocols

Target data

Core subunit of the mitochondrial membrane respiratory chain NADH dehydrogenase (Complex I) which catalyzes electron transfer from NADH through the respiratory chain, using ubiquinone as an electron acceptor (PubMed : 28844695). Part of the peripheral arm of the enzyme, where the electrons from NADH are accepted by flavin mononucleotide (FMN) and then passed along a chain of iron-sulfur clusters by electron tunnelling to the final acceptor ubiquinone (PubMed : 28844695). Contains FMN, which is the initial electron acceptor as well as one iron-sulfur cluster (PubMed : 28844695).
See full target information NDUFV1

Publications (9)

Recent publications for all applications. Explore the full list and refine your search

Physiological reports 12:e16022 PubMed38924383

2024

Overexpression of macrophage migration inhibitory factor protects against pressure overload-induced cardiac hypertrophy through regulating the miR-29b-3p/HBP1 axis.

Applications

Unspecified application

Species

Unspecified reactive species

Liang Wen,Wei Chen,Cunjun Zhu,Jie Li,Juan Zhou,Minxia Zhang,Wenqiang Zhang,Qiang Xue

iScience 25:105086 PubMed36157579

2022

Chemical inhibition of oxygen-sensing prolyl hydroxylases impairs angiogenic competence of human vascular endothelium through metabolic reprogramming.

Applications

Unspecified application

Species

Unspecified reactive species

Ratnakar Tiwari,Prashant V Bommi,Peng Gao,Matthew J Schipma,Yalu Zhou,Susan E Quaggin,Navdeep S Chandel,Pinelopi P Kapitsinou

Pharmaceutics 14: PubMed35631624

2022

3D Spheroids of Human Primary Urine-Derived Stem Cells in the Assessment of Drug-Induced Mitochondrial Toxicity.

Applications

Unspecified application

Species

Unspecified reactive species

Huifen Ding,Kalyani Jambunathan,Guochun Jiang,David M Margolis,Iris Leng,Michael Ihnat,Jian-Xing Ma,Jon Mirsalis,Yuanyuan Zhang

Molecular medicine reports 25: PubMed35425997

2022

NADH dehydrogenase subunit 1/4/5 promotes survival of acute myeloid leukemia by mediating specific oxidative phosphorylation.

Applications

Unspecified application

Species

Unspecified reactive species

Ye Kuang,Chuanmei Peng,Yulin Dong,Jia Wang,Fanbin Kong,Xiaoqing Yang,Yang Wang,Hui Gao

Journal of clinical medicine 9: PubMed32527005

2020

Mitochondrial Energetics and Ca2-Activated ATPase in Obstructive Hypertrophic Cardiomyopathy.

Applications

Unspecified application

Species

Unspecified reactive species

Maria Lombardi,Davide Lazzeroni,Annalinda Pisano,Francesca Girolami,Ottavio Alfieri,Giovanni La Canna,Giulia d'Amati,Iacopo Olivotto,Ornella E Rimoldi,Chiara Foglieni,Paolo G Camici

The journal of physiological sciences : JPS 69:1005-1017 PubMed31679117

2019

Cross talk between 26S proteasome and mitochondria in human mesenchymal stem cells' ability to survive under hypoxia stress.

Applications

Unspecified application

Species

Unspecified reactive species

Ramada R Khasawneh,Ejlal Abu-El-Rub,Abdullah Omar Serhan,Bashar Omar Serhan,Hadeel Abu-El-Rub

International journal of molecular sciences 20: PubMed30717385

2019

Degradation of Mitochondria and Oxidative Stress as the Main Mechanism of Toxicity of Pristine Graphene on U87 Glioblastoma Cells and Tumors and HS-5 Cells.

Applications

Unspecified application

Species

Unspecified reactive species

Sławomir Jaworski,Barbara Strojny,Ewa Sawosz,Mateusz Wierzbicki,Marta Grodzik,Marta Kutwin,Karolina Daniluk,André Chwalibog

Scientific reports 8:8548 PubMed29867098

2018

Mitochondrial function is impaired in the skeletal muscle of pre-frail elderly.

Applications

Unspecified application

Species

Unspecified reactive species

Pénélope A Andreux,Marcus P J van Diemen,Maxime R Heezen,Johan Auwerx,Chris Rinsch,Geert Jan Groeneveld,Anurag Singh

Molecular neuropsychiatry 3:157-169 PubMed29594135

2018

Mitochondrial Complex I Deficiency in Schizophrenia and Bipolar Disorder and Medication Influence.

Applications

Unspecified application

Species

Unspecified reactive species

Brandi L Rollins,Ling Morgan,Brooke E Hjelm,Adolfo Sequeira,Alan F Schatzberg,Jack D Barchas,Francis S Lee,Rick M Myers,Stanley J Watson,Huda Akil,Steven G Potkin,William E Bunney,Marquis P Vawter
View all publications
websiteProtocolBooklet
en

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
