AB270214

Human NDRG1 ELISA Kit

Recombinant
SimpleStep
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Human NDRG1 ELISA Kit is a single-wash 90-min Simplestep used to quantify Human NDRG1 with a sensitivity of 75.2 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

CAP43, DRG1, RTP, NDRG1, Protein NDRG1, Differentiation-related gene 1 protein, N-myc downstream-regulated gene 1 protein, Nickel-specific induction protein Cap43, Reducing agents and tunicamycin-responsive protein, Rit42, DRG-1

3 Images

Sandwich ELISA - Human NDRG1 ELISA Kit (AB270214)

sELISA

Supplier Data

Sandwich ELISA - Human NDRG1 ELISA Kit (AB270214)

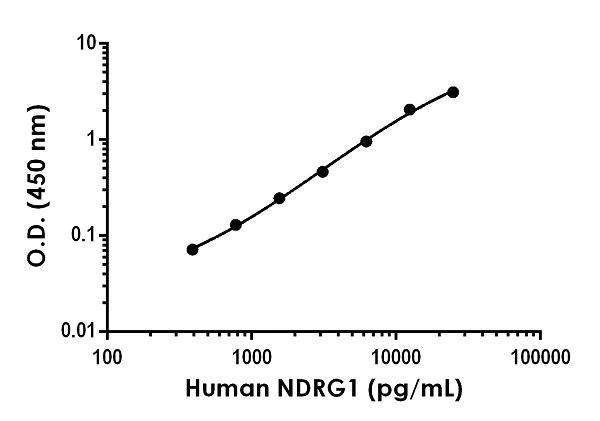

Example of human NDRG1 standard curve in 1X Cell Extraction Buffer PTR.

The NDRG1 standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Supplier Data

Sandwich ELISA - Human NDRG1 ELISA Kit (AB270214)

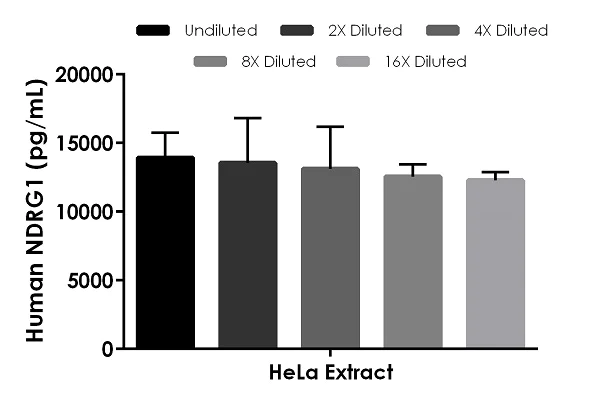

Interpolated concentrations of native NDRG1 in human HeLa cell extract based on a 1,000 μg/mL extract load.

The concentrations of NDRG1 were measured in duplicate and interpolated from the NDRG1 standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean NDRG1 concentration was determined to be 13093.22 pg/mL in HeLa cell extract.

sELISA

Supplier Data

Sandwich ELISA - Human NDRG1 ELISA Kit (AB270214)

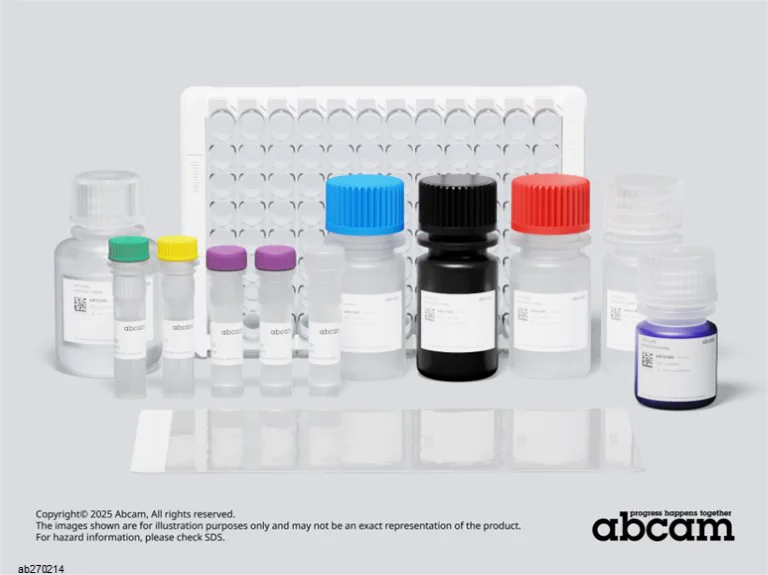

Representative image of Human NDRG1 ELISA Kit (ab270214)

Components shown from left to right :

- 10X Wash Buffer PT (ab206977)

- 10X Human NDRG1 ELISA Kit Capture Antibody

- 10X Human NDRG1 Detector Antibody

- 10X Human NDRG1 ELISA Kit Lyophilised Purified Protein (2 vials)

- Human NDRG1 ELISA Kit 50X Cell Extraction Enhancer Solution (ab193971)

- Sample diluent NS

- TMB solution

- Stop Solution

- 5X Cell Extraction Buffer PTR (ab193970)

- Antibody Diluent 4BI

SimpleStep Pre-Coated 96-Well Microplate (ab206978) - shown behind bottles / vials.

Plate Seals - shown underneath bottles / vials.

Note : The vial labels shown in this image use generic names for illustrative purposes only and may not exactly match the specific component names included in the ELISA kit.

Note : Colors of solutions in image may not precisely match the shade of colors in the actual kit

Key facts

Detection method

Colorimetric

Sample types

Cell Lysate

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 75.2 pg/mL

Range

390.63 - 25000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

style

left-column

Product details

Human NDRG1 ELISA Kit (ab270214) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of NDRG1 protein in cell lysate. It uses our proprietary SimpleStep ELISA® technology. Quantitate Human NDRG1 with 75.2 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

NDRG1 (N-myc downstream-regulated gene 1) also called DRG-1 and Cap43 is a 43 kDa member of the NDRG family of proteins. It is ubiquitously expressed, found in fibroblasts, endothelial cells, respiratory epithelium and prostate epithelium. NDRG1 is highly expressed in non-proliferating, differentiating tissue. Human NDRG1 is 394 amino acids in length and contains an NDGR domain (aa 286 - 316) plus three tandem 10 aa hydrophilic repeats (aa 339 - 368). There are three potential isoform variants; Two involve alternate start sites at Met82 and Met286, while a third shows a four aa substitution for aa 1 - 34. NDRG1 is a metastasis suppressor that works by blocking the angiogenesis signaling pathway and is a nickel- and calcium-inducible gene that plays important roles in the primary growth of malignant tumors, as well as in invasion and metastasis. NDRG1 shares 93.6%, 93.4%, 92.6%, and 99% sequence homology with mouse, rat, bovine, and monkey, respectively.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style

left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "9.4" }, { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "6.9" } ]

style

left-column

Recovery

[ { "sample": "Cell Lysate", "range": "93 - 102 %", "average": "= 94" } ]

style

left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab270214-1x96Tests", "assetComponentDetails": [ { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB270214-CMP12", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB270214-CMP04", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB270214-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB270214-CMP13", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB270214-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB270214-CMP11", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human NDRG1 Capture Antibody", "number":"AB270214-CMP09", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB270214-CMP08", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human NDRG1 Lyophilized Recombinant Protein", "number":"AB270214-CMP02", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human NDRG1 Detector Antibody", "number":"AB270214-CMP10", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB270214-CMP03", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB270214-CMP07", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

NDRG1 or N-Myc downstream-regulated gene 1 also known as Cap43 Drg-1 and RTP is a protein that plays key roles in various cellular processes. It has a molecular mass of approximately 43 kDa. NDRG1 is ubiquitously expressed with higher levels in the brain heart liver and kidney. The protein also exhibits a significant presence in cytoplasm but can translocate to the nucleus depending on the cellular context and stimuli.

Biological function summary

NDRG1 functions in cell growth regulation stress response and apoptosis influencing differentiation and potentially acting as a tumor suppressor. It does not directly form part of a larger protein complex but interacts with other proteins to mediate its effects. Its involvement in cellular homeostasis places it as a significant player in maintaining normal cell physiology.

Pathways

NDRG1 is involved in the hypoxia and stress response pathways regulating cellular responses to low oxygen and oxidative stress. It interacts with HIF-1α a critical regulator of the cellular response to hypoxia and also modulates PTEN and p53 proteins that are important for cell cycle control and apoptosis. These pathways and interactions reflect its function in cellular regulatory networks.

NDRG1 has associations with cancer and Charcot-Marie-Tooth disease type 4D. In cancer abnormal expression of NDRG1 has been linked to tumor progression and metastasis where it interacts with proteins like E-cadherin to influence cell adhesion and migration. In Charcot-Marie-Tooth disease mutations in the NDRG1 gene disrupt normal nerve function pointing to its importance in peripheral nervous system health.

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

style

left-column

Target data

Stress-responsive protein involved in hormone responses, cell growth, and differentiation. Acts as a tumor suppressor in many cell types. Necessary but not sufficient for p53/TP53-mediated caspase activation and apoptosis. Has a role in cell trafficking, notably of the Schwann cell, and is necessary for the maintenance and development of the peripheral nerve myelin sheath. Required for vesicular recycling of CDH1 and TF. May also function in lipid trafficking. Protects cells from spindle disruption damage. Functions in p53/TP53-dependent mitotic spindle checkpoint. Regulates microtubule dynamics and maintains euploidy.
