AB284616

Human PDGF AA ELISA Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Human PDGF AA ELISA Kit is a single-wash 90-min Simplestep used to quantify Human PDGF AA with a sensitivity of 18.6 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

PDGF1, PDGFA, Platelet-derived growth factor subunit A, PDGF subunit A, PDGF-1, Platelet-derived growth factor A chain, Platelet-derived growth factor alpha polypeptide

4 Images
Sandwich ELISA - Human PDGF AA ELISA Kit (AB284616)
  • sELISA

Supplier Data

Sandwich ELISA - Human PDGF AA ELISA Kit (AB284616)

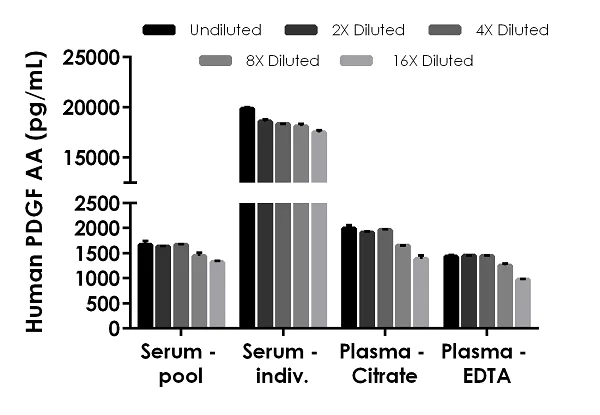

Interpolated concentrations of human PDGF AA in serum, plasma (citrate) and plasma (EDTA).

Interpolated concentration of native PDGF AA was measured in duplicate. Undiluted samples are 100% serum (pooled), 25% serum (individual), plasma (citrate), plasma (EDTA). The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent 50BP.

Sandwich ELISA - Human PDGF AA ELISA Kit (AB284616)
  • sELISA

Supplier Data

Sandwich ELISA - Human PDGF AA ELISA Kit (AB284616)

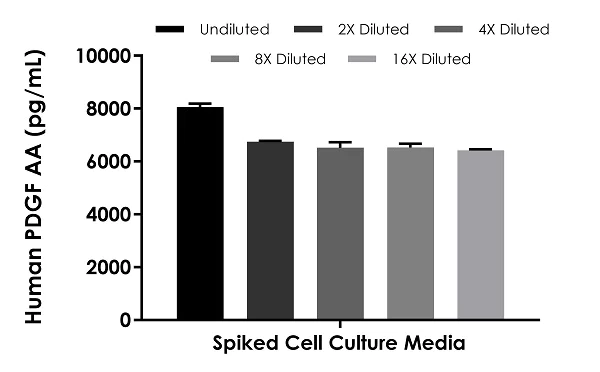

Interpolated concentrations of spiked human PDGF AA in cell culture media.

Recombinant PDGF AA was spiked into the following samples and diluted in a 2-fold dilution series in Sample Diluent 50BP. Undiluted sample is 100% 10F RPMI 1640 cell culture media. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2).

Sandwich ELISA - Human PDGF AA ELISA Kit (AB284616)
  • sELISA

Supplier Data

Sandwich ELISA - Human PDGF AA ELISA Kit (AB284616)

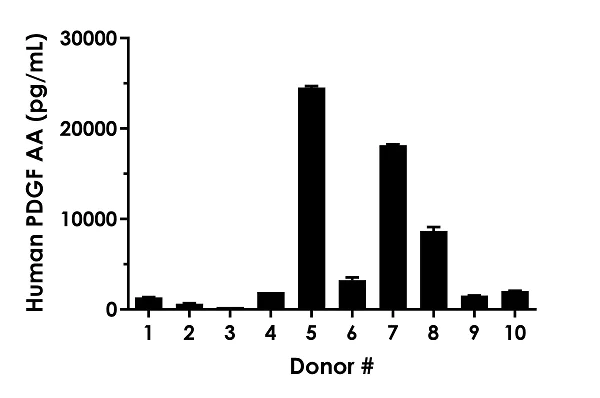

Interpolated concentrations of PDGF AA in normal human serum donors.

Serum of ten individual healthy human female donors was measured in duplicate. Interpolated dilution factor corrected values are plotted (mean +- SD, n=2). The mean PDGF AA concentration was determined to be 6,238 pg/mL with a range of 281 – 24532 pg/mL.

Sandwich ELISA - Human PDGF AA ELISA Kit (AB284616)
  • sELISA

Supplier Data

Sandwich ELISA - Human PDGF AA ELISA Kit (AB284616)

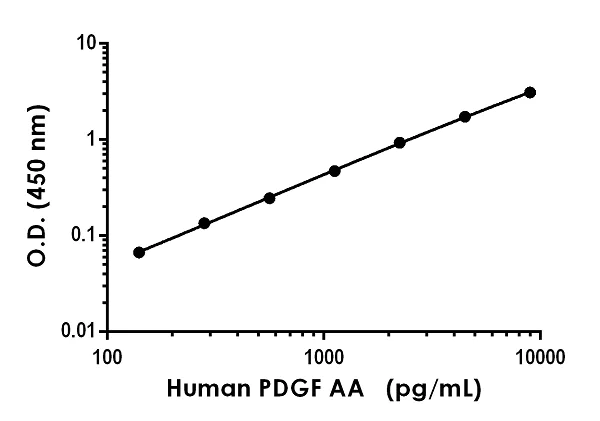

Example of human PDGF AA standard curve in Sample Diluent 50BP.

Example of human PDGF AA standard curve. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Cell culture media, Citrate plasma, Serum, EDTA Plasma

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 18.6 pg/mL

Range

140.625 - 9000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Complementary Products

Assay Kits

AB222510

Human VEGF ELISA Kit

SimpleStep

ELISA - Human VEGF ELISA Kit (AB222510)

  • 5
  • 1
Assay Kits

AB184860

Human PDGF BB ELISA Kit

SimpleStep

ELISA - Human PDGF BB ELISA Kit (AB184860)

  • 5
  • 1
Assay Kits

AB100647

Human TGF beta 1 ELISA Kit

Sandwich ELISA - Human TGF beta 1 ELISA Kit (AB100647)

  • 5
  • 2
Assay Kits

AB246531

Human FGF2 ELISA Kit

Recombinant|SimpleStep

ELISA - Human FGF2 ELISA Kit (AB246531)

  • 4
  • 1
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human PDGF AA ELISA kit (ab284616) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Human PDGF AA protein in human serum, plasma, cell culture media samples. It uses our proprietary SimpleStep ELISA® technology. Quantitate Human PDGF AA with 18.6 pg/mL sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

style
left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Supernatant", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.2" }, { "reproducibilityType": "Intra", "sample": "Supernatant", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.6" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "110 - 126 %", "average": "= 121" }, { "sample": "EDTA Plasma", "range": "78 - 84 %", "average": "= 81" }, { "sample": "Cell culture media", "range": "111 - 117 %", "average": "= 114" }, { "sample": "Citrate plasma", "range": "96 - 110 %", "average": "= 103" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab284616-1x96Tests", "assetComponentDetails": [ { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB284616-CMP13", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB284616-CMP12", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human PDGF AA Capture Antibody", "number":"AB284616-CMP08", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB284616-CMP11", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human PDGF AA Lyophilized Recombinant Protein", "number":"AB284616-CMP04", "productcode":"" }, { "size":"1 x 20 mL", "name":"Sample Diluent 50BP", "number":"AB284616-CMP03", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB284616-CMP05", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB284616-CMP06", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human PDGF AA Detector Antibody", "number":"AB284616-CMP09", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB284616-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB284616-CMP10", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Platelet-derived growth factor AA or PDGF-AA is a member of the PDGF protein family which is involved in various cellular processes. The PDGF-AA protein has a molecular mass of approximately 24 kDa. It is expressed in a wide range of tissues including fibroblasts smooth muscle cells and neurons. The protein is considered a homodimer composed of two A chains and it plays an important role in cell signaling by binding to PDGF receptors on the surface of target cells.
Biological function summary

PDGF-AA influences cell proliferation migration and differentiation. It acts as a mitogen especially for mesenchymal cells such as fibroblasts and smooth muscle cells. PDGF-AA is often part of a signaling complex where it activates PDGF receptor-alpha (PDGFR-α) leading to autophosphorylation and subsequent activation of downstream effectors. This strengthens tissue development and wound healing processes.

Pathways

PDGF-AA integrates into critical signaling pathways like the PI3K/AKT pathway and the MAPK/ERK pathway. These pathways regulate cell growth and survival. PDGF-AA binds specifically to PDGFR-α which shares importance with other PDGF isoforms such as PDGF-BB in orchestrating cellular responses through similar pathways thereby ensuring precise physiological outcomes.

PDGF-AA is implicated in conditions like cancer and fibrosis. Aberrant signaling involving PDGF-AA can lead to unchecked cell proliferation contributing to tumorigenesis. Similarly PDGF-AA is connected to fibrotic diseases where excessive tissue scarring occurs due to overactive fibroblast stimulation. PDGF-BB another member of the PDGF protein family often gets studied alongside PDGF-AA for their combined roles in these pathological states.
style
left-column

Product protocols

style
left-column

Target data

Growth factor that plays an essential role in the regulation of embryonic development, cell proliferation, cell migration, survival and chemotaxis. Potent mitogen for cells of mesenchymal origin. Required for normal lung alveolar septum formation during embryogenesis, normal development of the gastrointestinal tract, normal development of Leydig cells and spermatogenesis. Required for normal oligodendrocyte development and normal myelination in the spinal cord and cerebellum. Plays an important role in wound healing. Signaling is modulated by the formation of heterodimers with PDGFB (By similarity).
