AB184860

Human PDGF BB ELISA Kit

5

(1 Review)

|

(7 Publications)

Human PDGF BB ELISA Kit is a single-wash 90-min Simplestep used to quantify Human PDGF BB with a sensitivity of 2.9 pg/mL. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders

View Alternative Names

PDGF2, SIS, PDGFB, Platelet-derived growth factor subunit B, PDGF subunit B, PDGF-2, Platelet-derived growth factor B chain, Platelet-derived growth factor beta polypeptide, Proto-oncogene c-Sis

7 Images
ELISA - Human PDGF BB ELISA Kit (AB184860)
  • ELISA

Supplier Data

ELISA - Human PDGF BB ELISA Kit (AB184860)
Sandwich ELISA - Human PDGF BB ELISA Kit (AB184860)
  • sELISA

Supplier Data

Sandwich ELISA - Human PDGF BB ELISA Kit (AB184860)

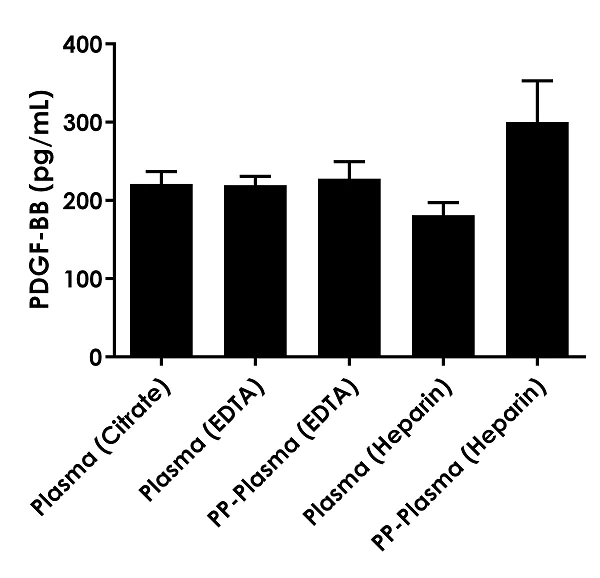

Observed PDGF-BB levels in pooled donor normal human plasma and normal human platelet-poor plasma (PP-Plasma)

Sandwich ELISA - Human PDGF BB ELISA Kit (AB184860)
  • sELISA

Supplier Data

Sandwich ELISA - Human PDGF BB ELISA Kit (AB184860)

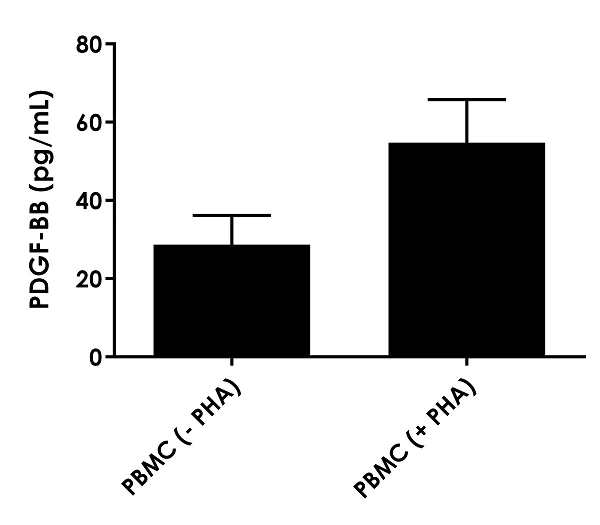

Human peripheral blood cells (1x106 cells/mL) were cultured in RPMI media supplemented with 10% fetal calf serum, 100 U/mL penicillin, and 100 µg/mL streptomycin sulfate.

Cells were cultured unstimulated or stimulated with 10 μg/mL PHA. Conditioned media was harvested after 48 hours aliquoted and assayed for endogenous PDGF-BB levels.

Sandwich ELISA - Human PDGF BB ELISA Kit (AB184860)
  • sELISA

Supplier Data

Sandwich ELISA - Human PDGF BB ELISA Kit (AB184860)

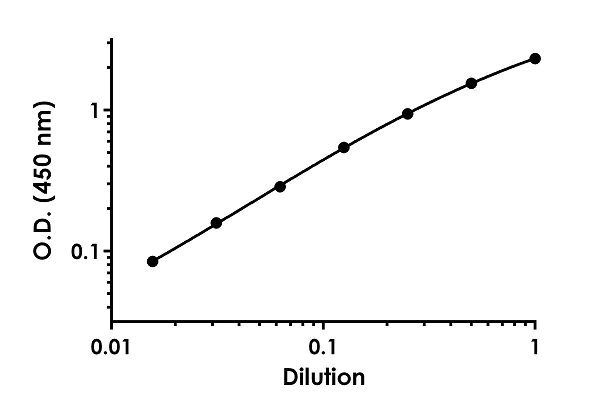

Titration of human serum within the working range of the assay.

Background subtracted data from duplicate measurements are plotted.

Sandwich ELISA - Human PDGF BB ELISA Kit (AB184860)
  • sELISA

Supplier Data

Sandwich ELISA - Human PDGF BB ELISA Kit (AB184860)

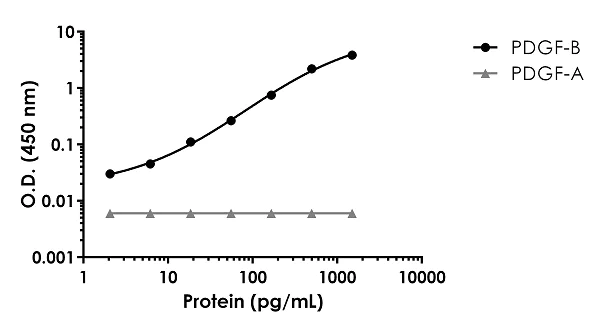

The PDGF-BB SimpleStep ELISA was validated for assay specificity against PDGF-A protein.

Standard curve was prepared as described in Section 10. Background-subtracted data values (mean +/- SD) are graphed. In addition, PDGF-A was prepared at 15 ng/mL and assayed for cross reactivity. No cross reactivity or interference was observed.

Sandwich ELISA - Human PDGF BB ELISA Kit (AB184860)
  • sELISA

Supplier Data

Sandwich ELISA - Human PDGF BB ELISA Kit (AB184860)

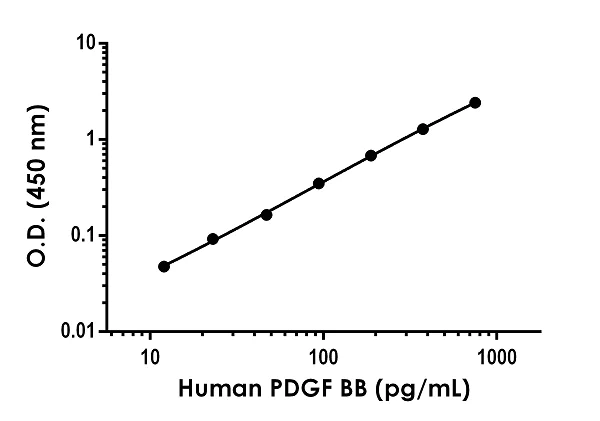

Example of human PDGF BB standard curve in Sample Diluent NS.

The PDGF BB standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human PDGF BB ELISA Kit (AB184860)
  • sELISA

Supplier Data

Sandwich ELISA - Human PDGF BB ELISA Kit (AB184860)

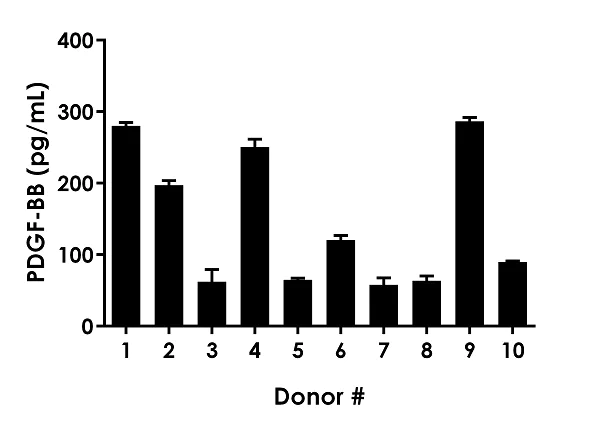

Observed PDGF-BB levels in individual donor normal human serum (n=10).

Mean human PDGF-BB is 145 pg/mL and values fall within expected normal reference ranges (WHO).

Key facts

Detection method

Colorimetric

Sample types

Plasma, Cell culture media, Serum

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 2.9 pg/mL

Range

11.7 - 750 pg/mL

Assay time

1h 30m

Assay Platform

Microplate

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Human PDGF BB ELISA Kit ab184860 is a rapid single-wash 90-min sandwich ELISA kit to measure Human PDGF BB in Plasma (Citrate, EDTA, and Heparin), Cell culture media, and Serum. This Simplestep sensitivity is 2.9 pg/mL.

How the assay works

Human PDGF BB SimpleStep ELISA®employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Assay Specificity

Our SimpleStep ELISA® kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.

This immunoassay is calibrated against a highly purified human PDGF BB. The NIBSC/WHO unclassified purified human PDGF BB preparation 94/728 was evaluated in this kit.
The dose response curve of the unclassified standard PDGF BB parallels the SimpleStep standard curve.
To convert sample values obtained with the SimpleStep Human PDGF BB kit to approximate NIBSC IU/mL units, use the equation below.

NIBSC (94/728) approximate value (IU/mL) = 0.0114 x SimpleStep Human PDGF BB value (pg/mL).

Does not react with human PDGF-A.

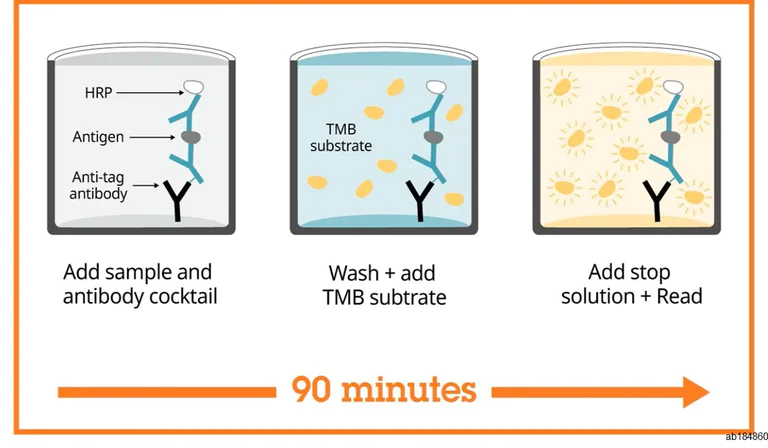

Human PDGF BB ELISA Kit ab184860 protocol summary

1. Mix: add samples/standards to the wells together with the capture and detector antibody cocktail. Incubate 1 hr at room temperature
2. Wash
3. Add TMB development solution - incubate for 10 min
4. Add Stop solution
5. Read the results on a plate reader at 450 nm

How other researchers are using Human PDGF BB ELISA Kit ab184860

Human PDGF BB ELISA Kit ab184860 has been used to study factors influencing efficacy of plasma infusion in reproductive medicine(1), characterization of growth factors expressed in head and neck squamous cell carcinomas(2), and PDGF BB signaling regulation as a therapuetic strategy in ankylosing spondylitis (3).

References:

(1) P. Lin, et. al., 2023, PMID: 37763186
(2) J. Zhou, et. al., 2022, PMID: 36544698
(3) S. Jo, et. al., 2023, PMID: 36422470

Related and Recommended products

Human PDGF BB ELISA Kit ab184860 is commonly used to measure PDGF BB as a growth factor essential in regulation of embryonic development, cell proliferation, cell migration, survival, and chemotaxis.

Other ELISA kits to measure related growth factors include:

- Human PDGF BB ELISA Kit, Fluorescent ab229418
- Human PDGF B ELISA Kit ab300321
- Human PDGF AA ELISA Kit ab284616
- Human PDGF-CC ELISA Kit ab234568
- Human PDGF R alpha ELISA Kit ab242246
- Human PDGFRB ELISA Kit ab252357

Platelet derived growth factor B chain plays an essential role in the regulation of embryonic development, cell proliferation, cell migration, survival and chemotaxis. As a homodimer it is a potent mitogen for cells of mesenchymal origin and is required for normal proliferation and recruitment of pericytes and vascular smooth muscle cells in the central nervous system, skin, lung, heart and placenta. PDGF-BB is essential for normal blood vessel development, for normal development of kidney glomeruli and in wound healing. Signaling is modulated by the formation of heterodimers with PDGF A chain to yield PDGF-AB.

Precision

[ { "reproducibilityType": "Inter", "sample": "Human Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "5.3" }, { "reproducibilityType": "Intra", "sample": "Human Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.3" } ]

Recovery

[ { "sample": "Serum", "range": "85 - 100 %", "average": "= 95" }, { "sample": "Cell culture media", "range": "101 - 106 %", "average": "= 104" }, { "sample": "Citrate plasma", "range": "100 - 114 %", "average": "= 109" }, { "sample": "EDTA Plasma", "range": "91 - 107 %", "average": "= 99" }, { "sample": "Heparin Plasma", "range": "92 - 114 %", "average": "= 104" } ]

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab184860-10x96Tests", "assetComponentDetails": [ { "size":"10 x 600 µL", "name":"10X Human PDGF BB Capture Antibody", "number":"AB184860-CMP08" }, { "size":"20 x 1 Vial", "name":"Human PDGF BB Lyophilized Recombinant Protein", "number":"AB184860-CMP06" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB184860-CMP10" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB184860-CMP07" }, { "size":"2 x 250 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB184860-CMP02" }, { "size":"10 x 1 Unit", "name":"Plate Seals", "number":"AB184860-CMP09" }, { "size":"10 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB184860-CMP03" }, { "size":"10 x 600 µL", "name":"10X Human PDGF BB Detector Antibody", "number":"AB184860-CMP01" }, { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB184860-CMP04" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB184860-CMP05" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab184860-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB184860-CMP04", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB184860-CMP10", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB184860-CMP02", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB184860-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB184860-CMP09", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB184860-CMP07", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human PDGF BB Lyophilized Recombinant Protein", "number":"AB184860-CMP06", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human PDGF BB Capture Antibody", "number":"AB184860-CMP08", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB184860-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human PDGF BB Detector Antibody", "number":"AB184860-CMP01", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

PDGF-B also known as platelet-derived growth factor subunit B or PDGF-BB is a critical protein involved in various cellular processes. Composed of 241 amino acids PDGF-B exhibits a molecular mass of approximately 27 kDa. Scientists recognize this protein for its expression primarily in platelets but it also appears in a range of other tissues including smooth muscle cells and fibroblasts. The PDGF-B protein plays a substantial role in the regulation of growth and division inducing pathways important for cellular proliferation.
Biological function summary

PDGF-B influences cellular signaling processes and facilitates interactions that are a part of the PDGF receptor system. PDGF-B can form a homo-dimerization commonly known as the PDGF-BB dimer which is an active form. When PDGF-B binds to its receptor specifically the PDGF receptor β (PDGFR-β) it triggers pathways that control various cellular activities including growth and survival. The interaction of PDGF-B with the receptor is an important step that modulates several downstream signaling pathways.

Pathways

PDGF-B activates significant pathways such as the MAPK/ERK and PI3K/AKT pathways. These pathways play a major role in the regulation of cell proliferation and differentiation. Through these pathways PDGF-B exhibits interactions with proteins like Ras and Akt which are integral in transmitting signals within the cell. These cascades result in the promotion of processes such as angiogenesis and wound healing highlighting the importance of PDGF-B in cellular function.

Researchers have linked PDGF-B to pathologies such as cancer and atherosclerosis. For instance overexpression of PDGF-B can lead to abnormal vascular growth contributing to tumor development in cancers. It also plays a role in the progression of atherosclerosis by promoting the migration and proliferation of smooth muscle cells leading to plaque formation. In these contexts PDGF-B shows interaction with other proteins such as VEGF in tumor angiogenesis and LDL in atherosclerotic developments reinforcing its involvement in these conditions.

Product protocols

Target data

Growth factor that plays an essential role in the regulation of embryonic development, cell proliferation, cell migration, survival and chemotaxis. Potent mitogen for cells of mesenchymal origin (PubMed : 26599395). Required for normal proliferation and recruitment of pericytes and vascular smooth muscle cells in the central nervous system, skin, lung, heart and placenta. Required for normal blood vessel development, and for normal development of kidney glomeruli. Plays an important role in wound healing. Signaling is modulated by the formation of heterodimers with PDGFA (By similarity).
See full target information PDGFB

Publications (7)

Recent publications for all applications. Explore the full list and refine your search

Journal of personalized medicine 13: PubMed37763186

2023

Factors Affecting the Potential Efficacy of Intrauterine Platelet-Rich Plasma Infusion on Thin Endometrium in Women with Recurrent Implantation Failure.

Applications

Unspecified application

Species

Unspecified reactive species

Pin-Yao Lin,Chun-I Lee,Yi-Chun Chen,En-Hui Cheng,Chun-Chia Huang,Chung-I Chen,Tsung-Hsien Lee,Yu-Jen Lee,Maw-Sheng Lee

Frontiers in oncology 12:984138 PubMed36544698

2022

Isolation and characterization of head and neck cancer-derived peritumoral and cancer-associated fibroblasts.

Applications

Unspecified application

Species

Unspecified reactive species

Jiefu Zhou,Sabina Schwenk-Zieger,Gisela Kranz,Christoph Walz,Frederik Klauschen,Sharduli Dhawan,Martin Canis,Olivier Gires,Frank Haubner,Philipp Baumeister,Vera Kohlbauer

Journal of bone and mineral research : the official journal of the American Society for Bone and Mineral Research 38:300-312 PubMed36422470

2022

Platelet-Derived Growth Factor B Is a Key Element in the Pathological Bone Formation of Ankylosing Spondylitis.

Applications

Unspecified application

Species

Unspecified reactive species

Sungsin Jo,Seung Hoon Lee,Jinsung Park,Bora Nam,Hyunsung Kim,Jeehee Youn,Seunghun Lee,Tae-Jong Kim,Il-Hoon Sung,Sung Hoon Choi,Ye-Soo Park,Robert D Inman,Tae-Hwan Kim

Journal of clinical medicine 10: PubMed34884173

2021

Serum from Patients with Severe Alcoholic Liver Cirrhosis Inhibits Proliferation and Migration of Human Coronary Artery Smooth Muscle Cells.

Applications

Unspecified application

Species

Unspecified reactive species

Mare Mechelinck,Miriam Peschel,Moriz A Habigt,Daniela Kroy,Michael Lehrke,Marius J Helmedag,Rolf Rossaint,Matthias Barton,Marc Hein

Molecular medicine reports 23: PubMed33495828

2021

Effect of long non‑coding RNA AK021443 on promoting hepatic fibrosis .

Applications

Unspecified application

Species

Unspecified reactive species

Yuxin Yang,Zongsu Min

Regenerative medicine research 8:3 PubMed33287956

2020

Quality comparison between two different types of platelet-rich plasma for knee osteoarthritis.

Applications

Unspecified application

Species

Unspecified reactive species

Takanori Wakayama,Yoshitomo Saita,Yohei Kobayashi,Hirofumi Nishio,Sayuri Uchino,Shin Fukusato,Hiroshi Ikeda,Kazuo Kaneko

American journal of physiology. Renal physiology 316:F449-F462 PubMed30539648

2018

Unraveling reno-protective effects of SGLT2 inhibition in human proximal tubular cells.

Applications

Unspecified application

Species

Unspecified reactive species

Markus Pirklbauer,Ramona Schupart,Lisa Fuchs,Petra Staudinger,Ulrike Corazza,Sebastian Sallaberger,Johannes Leierer,Gert Mayer,Herbert Schramek
View all publications
