AB325904

Human PDGF BB ELISA Kit, Chemiluminescent

Be the first to review this product! Submit a review

|

(0 Publication)

Human PDGF BB ELISA Kit, Chemiluminescent is a 55-min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Human PDGF BB with higher sensitivity and broader measuring range.

- Single 30 min incubation and single-wash step for results in less than an hour.
- Chemiluminescent detection allows a broad dynamic range: 2.74 - 2000 pg/ml with a sensitivity of 0.83 pg/mL.
- Patent pending

View Alternative Names

PDGF2, SIS, PDGFB, Platelet-derived growth factor subunit B, PDGF subunit B, PDGF-2, Platelet-derived growth factor B chain, Platelet-derived growth factor beta polypeptide, Proto-oncogene c-Sis

6 Images
Sandwich ELISA - Human PDGF BB ELISA Kit, Chemiluminescent (AB325904)
  • sELISA

Lab

Sandwich ELISA - Human PDGF BB ELISA Kit, Chemiluminescent (AB325904)

Serum of ten individual healthy human donors was measured in duplicate. Interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). The mean PDGF-BB concentration was determined to be 145 pg/mL with a range of 57.9 – 286.5 pg/mL.

Sandwich ELISA - Human PDGF BB ELISA Kit, Chemiluminescent (AB325904)
  • sELISA

Lab

Sandwich ELISA - Human PDGF BB ELISA Kit, Chemiluminescent (AB325904)

Human peripheral blood cells (1x106 cells/mL) were cultured in RPMI media supplemented with 10% fetal calf serum, 100 U/mL penicillin, and 100 µg/mL streptomycin sulfate. Cells were cultured and treated in the absence and presence of 10 µg/mL PHA. Conditioned media was harvested after 48 hours aliquoted and assayed for endogenous PDGF-BB levels.

Sandwich ELISA - Human PDGF BB ELISA Kit, Chemiluminescent (AB325904)
  • sELISA

Lab

Sandwich ELISA - Human PDGF BB ELISA Kit, Chemiluminescent (AB325904)

Elevated levels PDGF-BB were measured in duplicate in the serum of six individual Rheumatoid Arthritis donors. Interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). The mean PDGF-BB concentration was determined to be 8,766.1 pg/mL with a range 6193.9 – 11,336.1 pg/mL.

Sandwich ELISA - Human PDGF BB ELISA Kit, Chemiluminescent (AB325904)
  • sELISA

Lab

Sandwich ELISA - Human PDGF BB ELISA Kit, Chemiluminescent (AB325904)

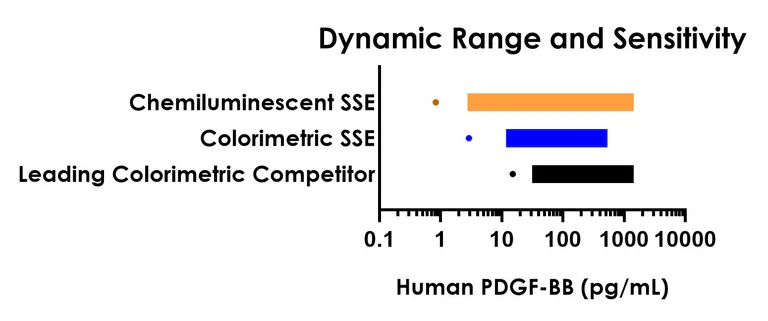

Dynamic range comparison between the Chemiluminescent Human PDGF-BB SimpleStep ELISA, colorimetric Human PDGF-BB SimpleStep ELISA (ab184860), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and dynamic range.

Sandwich ELISA - Human PDGF BB ELISA Kit, Chemiluminescent (AB325904)
  • sELISA

Lab

Sandwich ELISA - Human PDGF BB ELISA Kit, Chemiluminescent (AB325904)

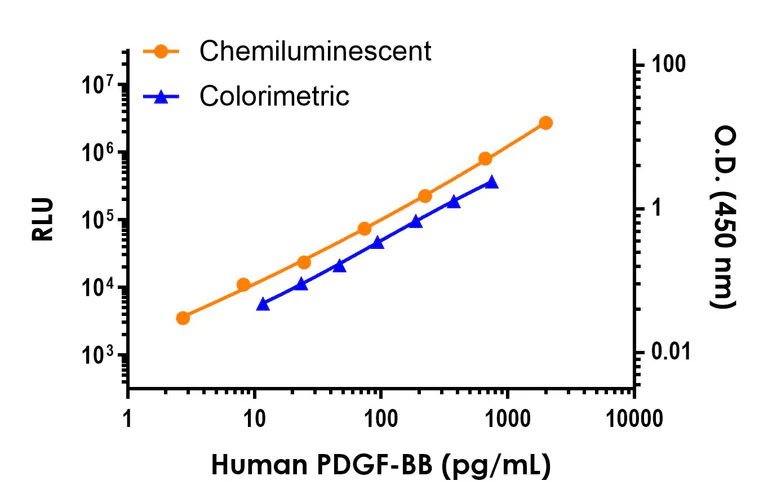

Standard curve comparison between the Chemiluminescent Human PDGF-BB SimpleStep ELISA and colorimetric Human PDGF-BB SimpleStep ELISA (ab184860) in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human PDGF BB ELISA Kit, Chemiluminescent (AB325904)
  • sELISA

Lab

Sandwich ELISA - Human PDGF BB ELISA Kit, Chemiluminescent (AB325904)

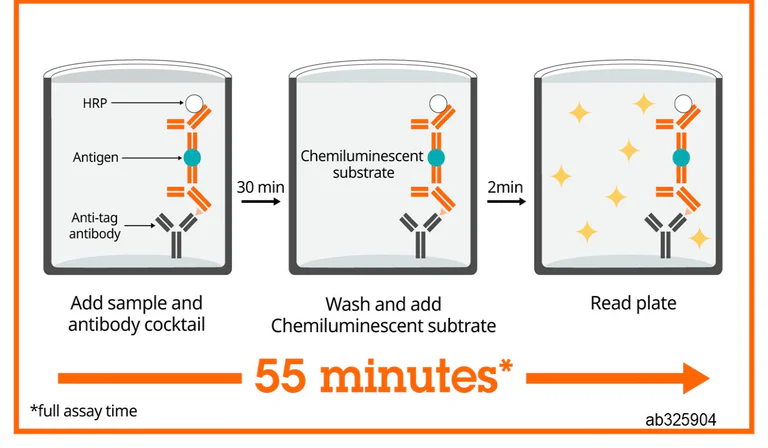

SimpleStep ELISA® Ignite technology allows the formation of the antibody-antigen complex in one single step, reducing assay time to 55 minutes. Add samples or standards and antibody mix to wells all at once, incubate, wash, and add your final substrate. See protocol for a detailed step-by-step guide.

Key facts

Detection method

Luminescent

Sample types

Serum, Citrate plasma, EDTA Plasma, Heparin Plasma, Cell culture supernatant

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 0.83 pg/mL

Range

2.74 - 2000 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human PDGF BB ELISA Kit, Chemiluminescent (ab325904) is a rapid single-wash sandwich 55-min ELISA to measure Human PDGF BB in Serum, Citrate Plasma, EDTA Plasma, Heparin Plasma, Cell Culture Supernatant with a sensitivity of 0.83 pg/mL.

How the assay works

Human PDGF BB ELISA Kit, Chemiluminescent (ab325904) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colorimetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Human PDGF BB (ab325904) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection
style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 3.3" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 5.3" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "85 - 100 %", "average": "= 95" }, { "sample": "Citrate plasma", "range": "100 - 114 %", "average": "= 109" }, { "sample": "EDTA Plasma", "range": "91 - 107 %", "average": "= 99" }, { "sample": "Heparin Plasma", "range": "92 - 114 %", "average": "= 104" }, { "sample": "Cell culture supernatant", "range": "101 - 106 %", "average": "= 104" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab325904-1x96Tests", "assetComponentDetails": [ { "size":"1 x 600 µL", "name":"10X Human PDGF BB Capture Antibody", "number":"AB325904-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB325904-CMP09", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human PDGF BB Detector Antibody", "number":"AB325904-CMP02", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB325904-CMP10", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB325904-CMP08", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB325904-CMP06", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human PDGF BB Lyophilized Recombinant Protein", "number":"AB325904-CMP03", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB325904-CMP07", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB325904-CMP05", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB325904-CMP04", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Growth factor that plays an essential role in the regulation of embryonic development, cell proliferation, cell migration, survival and chemotaxis. Potent mitogen for cells of mesenchymal origin (PubMed : 26599395). Required for normal proliferation and recruitment of pericytes and vascular smooth muscle cells in the central nervous system, skin, lung, heart and placenta. Required for normal blood vessel development, and for normal development of kidney glomeruli. Plays an important role in wound healing. Signaling is modulated by the formation of heterodimers with PDGFA (By similarity).
See full target information PDGFB
style
left-column
style
left-column
websiteProtocolBooklet
en
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
