AB245708

Human Podocin ELISA Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Human Podocin ELISA Kit is a single-wash 90-min Simplestep used to quantify Human Podocin with a sensitivity of 1 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

Podocin, NPHS2

3 Images
Sandwich ELISA - Human Podocin ELISA Kit (AB245708)
  • sELISA

Supplier Data

Sandwich ELISA - Human Podocin ELISA Kit (AB245708)

Interpolated concentrations of native Podocin in human fetal kidney tissue extract based on a 325 μg/mL extract load. The concentrations of Podocin were measured in duplicate and interpolated from the Podocin standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean Podocin concentration was determined to be 1102.2 pg/mL.

Sandwich ELISA - Human Podocin ELISA Kit (AB245708)
  • sELISA

Supplier Data

Sandwich ELISA - Human Podocin ELISA Kit (AB245708)

Representative image of Human Podocin ELISA Kit (ab245708)

Components shown from left to right :

- 10X Wash Buffer PT (ab206977)

- 10X Human Podocin Capture Antibody

- 10X Human Podocin Detector Antibody

- Human Podocin Lyophilised Purified Protein (2 vials)

- 50X Cell Extraction Enhancer Solution (ab193971)

- Sample diluent NS

- TMB solution

- Stop Solution

- 5X Cell Extraction Buffer PTR (ab193970)

- Antibody diluent 5BI

SimpleStep Pre-Coated 96-Well Microplate (ab206978) - shown behind bottles / vials.

Plate Seals - shown underneath bottles / vials.

Note : The vial labels shown in this image use generic names for illustrative purposes only and may not exactly match the specific component names included in the ELISA kit.

Note : Colors of solutions in image may not precisely match the shade of colors in the actual kit

Sandwich ELISA - Human Podocin ELISA Kit (AB245708)
  • sELISA

Supplier Data

Sandwich ELISA - Human Podocin ELISA Kit (AB245708)

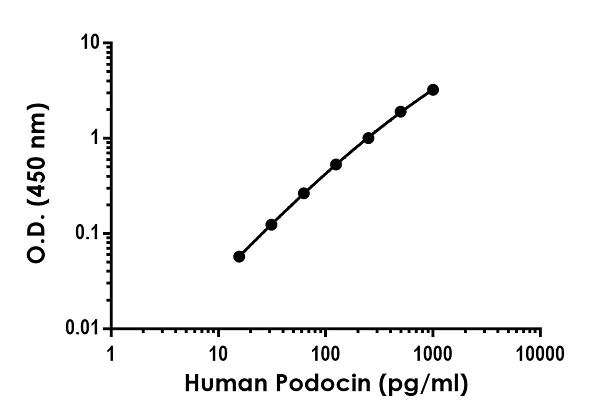

Example of human Podocin standard curve in 1X Cell Extraction Buffer PTR. The Podocin standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Tissue Extracts

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 1 pg/mL

Range

15.63 - 1000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Complementary Products

Assay Kits

AB108665

Cortisol ELISA Kit

Competitive ELISA - Cortisol ELISA Kit (AB108665)

  • 5
  • 4
Primary Antibodies

AB181143

Anti-NPHS2 antibody [EPR13820]

RabMAb|Recombinant|20ul selling size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NPHS2 antibody [EPR13820] (AB181143)

  • 0
  • 0
Primary Antibodies

AB216341

Anti-Nephrin antibody [EPR20993]

RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Nephrin antibody [EPR20993] (AB216341)

  • 4
  • 1
Assay Kits

AB316892

Human Cystatin C ELISA Kit

SimpleStep

Sandwich ELISA - Human Cystatin C ELISA Kit (AB316892)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human Podocin ELISA Kit (ab245708) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Podocin protein in tissue extracts. It uses our proprietary SimpleStep ELISA® technology. Quantitate Human Podocin with 1 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style
left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.7" }, { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 24, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.2" } ]
style
left-column

Recovery

[ { "sample": "Tissue Extracts", "range": "87 - 103 %", "average": "= 98" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab245708-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB245708-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB245708-CMP07", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB245708-CMP12", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB245708-CMP09", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB245708-CMP13", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB245708-CMP08", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB245708-CMP11", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Podocin Capture Antibody", "number":"AB245708-CMP03", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5BI", "number":"AB245708-CMP02", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human Podocin Lyophilized Recombinant Protein", "number":"AB245708-CMP05", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB245708-CMP10", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Podocin Detector Antibody", "number":"AB245708-CMP04", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The NPHS2 gene encodes the protein known as podocin which plays an important role in the renal system. Podocin is a membrane protein with a molecular mass of approximately 42 kDa. It is largely expressed in the kidney specifically in the podocyte foot processes of the glomerulus. The protein is responsible for the proper functioning of the slit diaphragm a critical component in the kidney's filtration barrier. NPHS2 by maintaining the structural integrity of these cells prevents proteins from spilling into the urine.
Biological function summary

The function of the NPHS2 gene product is significant in the maintenance of the glomerular filtration barrier. Podocin is a part of the slit diaphragm complex interacting closely with other proteins like nephrin. This interaction is required for the formation and stabilization of the slit diaphragm which filters blood plasma in the glomerulus. The precision in its location and function ensures the selective permeability of the filtration barrier.

Pathways

NPHS2 is heavily involved in pathways that regulate kidney function and filtration processes. It is an important component of the slit diaphragm complex pathway. Podocin’s interaction with proteins like nephrin and CD2AP integrates it into signaling pathways important for cytoskeletal dynamics and cell adhesion in podocytes. These interactions play an essential role in facilitating the response of podocytes to mechanical stress and in maintaining the structure of the glomerular filtration barrier.

NPHS2 mutations link directly to steroid-resistant nephrotic syndrome (SRNS). This condition leads to proteinuria and progressive kidney failure. Podocin dysfunction disrupts the integrity of the renal filtration barrier causing this disease. The protein nephrin is another component in SRNS pathophysiology as both are fundamental to maintaining the structure and function of the slit diaphragm. Understanding the relationship between NPHS2 and these proteins can aid in developing targeted therapies for SRNS and related nephropathies.
style
left-column

Product protocols

style
left-column

Target data

Plays a role in the regulation of glomerular permeability, acting probably as a linker between the plasma membrane and the cytoskeleton.
