AB100632

Human RAGE ELISA Kit

3

(1 Review)

|

(1 Publication)

Human RAGE ELISA Kit is a Sandwich (quantitative) ELISA for the measurement of Human RAGE in Human in Biofluids, Cell Culture Media samples.

View Alternative Names

RAGE, AGER, Advanced glycosylation end product-specific receptor, Receptor for advanced glycosylation end products

2 Images
Sandwich ELISA - Human RAGE ELISA Kit (AB100632)
  • sELISA

Supplier Data

Sandwich ELISA - Human RAGE ELISA Kit (AB100632)

Representative Standard Curve using ab100632.

Sandwich ELISA - Human RAGE ELISA Kit (AB100632)
  • sELISA

Supplier Data

Sandwich ELISA - Human RAGE ELISA Kit (AB100632)

Representative Standard Curve using ab100632.

Key facts

Detection method

Colorimetric

Sample types

Plasma, Cell culture supernatant, Serum

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

< 3 pg/mL

Range

2.06 - 1500 pg/mL

Assay Platform

Microplate

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Abcam's RAGE Human ELISA (Enzyme-Linked Immunosorbent Assay) kit is an in vitro enzyme-linked immunosorbent assay for the quantitative measurement of Human RAGE in serum, plasma and cell culture supernatants.

This assay employs an antibody specific for Human RAGE coated on a 96-well plate. Standards and samples are pipetted into the wells and RAGE present in a sample is bound to the wells by the immobilized antibody. The wells are washed and biotinylated anti-Human RAGE antibody is added. After washing away unbound biotinylated antibody, HRP-conjugated streptavidin is pipetted to the wells. The wells are again washed, a TMB substrate solution is added to the wells and color develops in proportion to the amount of RAGE bound. The Stop Solution changes the color from blue to yellow, and the intensity of the color is measured at 450 nm.

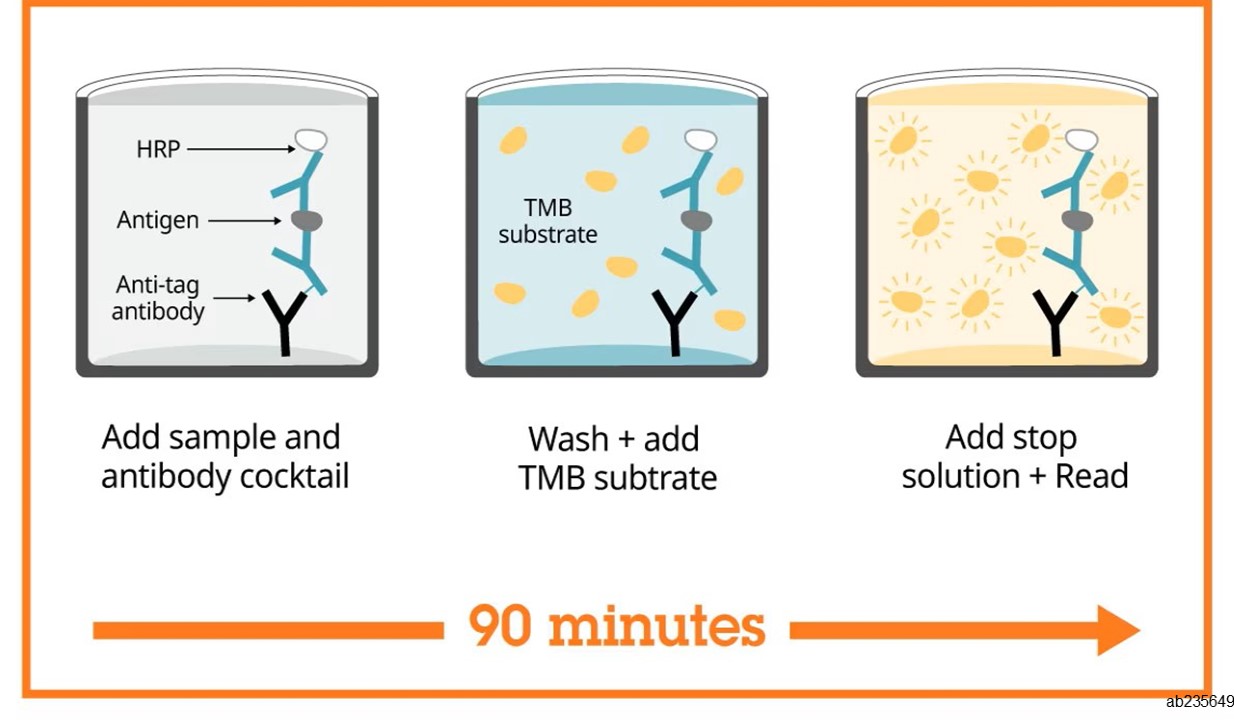

Get higher sensitivity in only 90 minutes with Human RAGE ELISA Kit (ab190807) from our SimpleStep ELISA® range.

Optimization may be required with urine samples.

Recovery

[ { "sample": "Cell culture supernatant", "range": "94 - 112 %", "average": "= 103.4" }, { "sample": "Serum", "range": "79 - 98 %", "average": "= 89.25" }, { "sample": "Plasma", "range": "67 - 93 %", "average": "= 78.58" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab100632-1x96Tests", "assetComponentDetails": [ { "size":"1 x 25 mL", "name":"20X Wash Buffer", "number":"AB100632-CMP03", "productcode":"" }, { "size":"1 x 8 mL", "name":"Stop Solution", "number":"AB100632-CMP08", "productcode":"" }, { "size":"1 x 200 µL", "name":"200X HRP-Streptavidin Concentrate", "number":"AB100632-CMP04", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Recombinant Human RAGE Standard (lyophilized)", "number":"AB100632-CMP05", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB One-Step Substrate Reagent", "number":"AB100632-CMP09", "productcode":"" }, { "size":"1 x 15 mL", "name":"5X Assay Diluent B", "number":"AB100632-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"RAGE Microplate (12 x 8 wells)", "number":"AB100632-CMP01", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Biotinylated anti-Human RAGE", "number":"AB100632-CMP02", "productcode":"" }, { "size":"1 x 30 mL", "name":"Assay Diluent A", "number":"AB100632-CMP06", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

RAGE also known as Receptor for Advanced Glycation End-products is a multi-ligand cell surface receptor with a molecular weight of approximately 45 kDa. It belongs to the immunoglobulin superfamily consisting of three extracellular immunoglobulin-like domains a transmembrane domain and a cytoplasmic tail. RAGE is widely expressed in various tissues throughout the body with high expression levels in the lungs heart and cells of the nervous system. The receptor can interact with several ligands such as advanced glycation end-products (AGEs) amyloid beta and S100/calgranulin proteins facilitating signal transduction into the cells.
Biological function summary

RAGE functions in the immune and inflammatory response where it mediates cell signaling that leads to cellular activation and the release of pro-inflammatory cytokines. It acts as part of complexes with different proteins contributing to cellular processes such as proliferation and migration. RAGE also plays roles in the regulation of oxidative stress and apoptosis impacting cellular health and survival. Researchers employ tools like 'anti-RAGE' antibodies and 'RAGER ELISA' assays to measure and study RAGE expression levels and its interactions in various experimental setups.

Pathways

RAGE is significantly involved in the NF-kB pathway and the MAPK signaling cascade. Its activation can lead to the release of NF-kB a transcription factor that plays an essential role in immune and inflammatory responses. RAGE interacts with proteins such as p38 MAPK leading to a cascade of events that regulate inflammation and stress responses. The signaling pathways involving RAGE are important in maintaining cell homeostasis and responding to cellular stressors and tools like 'anti-RAGE' and 'mouse RAGE' antibodies serve to elucidate these complex pathways further.

RAGE has strong associations with chronic diseases like diabetes and Alzheimer's disease. In diabetes RAGE binds to AGEs contributing to inflammation and vascular complications where it often interacts with proteins like iNOS and VEGF. In Alzheimer's disease RAGE is implicated in the accumulation and toxicity of amyloid-beta peptides interacting with proteins such as APP and tau. Understanding RAGE's role in these diseases can aid in developing therapeutic strategies employing reagents such as 'phen RAGE' and 'anti-RAGE' for targeted treatment approaches.

Product protocols

Target data

Cell surface pattern recognition receptor that senses endogenous stress signals with a broad ligand repertoire including advanced glycation end products, S100 proteins, high-mobility group box 1 protein/HMGB1, amyloid beta/APP oligomers, nucleic acids, phospholipids and glycosaminoglycans (PubMed : 27572515, PubMed : 28515150, PubMed : 34743181). Advanced glycosylation end products are nonenzymatically glycosylated proteins which accumulate in vascular tissue in aging and at an accelerated rate in diabetes (PubMed : 21565706). These ligands accumulate at inflammatory sites during the pathogenesis of various diseases, including diabetes, vascular complications, neurodegenerative disorders, and cancers and RAGE transduces their binding into pro-inflammatory responses. Upon ligand binding, uses TIRAP and MYD88 as adapters to transduce the signal ultimately leading to the induction or inflammatory cytokines IL6, IL8 and TNFalpha through activation of NF-kappa-B (PubMed : 21829704, PubMed : 33436632). Interaction with S100A12 on endothelium, mononuclear phagocytes, and lymphocytes triggers cellular activation, with generation of key pro-inflammatory mediators (PubMed : 19386136). Interaction with S100B after myocardial infarction may play a role in myocyte apoptosis by activating ERK1/2 and p53/TP53 signaling (By similarity). Contributes to the translocation of amyloid-beta peptide (ABPP) across the cell membrane from the extracellular to the intracellular space in cortical neurons (PubMed : 19906677). ABPP-initiated RAGE signaling, especially stimulation of p38 mitogen-activated protein kinase (MAPK), has the capacity to drive a transport system delivering ABPP as a complex with RAGE to the intraneuronal space. Participates in endothelial albumin transcytosis together with HMGB1 through the RAGE/SRC/Caveolin-1 pathway, leading to endothelial hyperpermeability (PubMed : 27572515). Mediates the loading of HMGB1 in extracellular vesicles (EVs) that shuttle HMGB1 to hepatocytes by transferrin-mediated endocytosis and subsequently promote hepatocyte pyroptosis by activating the NLRP3 inflammasome (PubMed : 34743181). Promotes also extracellular hypomethylated DNA (CpG DNA) uptake by cells via the endosomal route to activate inflammatory responses (PubMed : 24081950, PubMed : 28515150).
See full target information AGER

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Acta dermato-venereologica 98:797-798 PubMed29963680

2018

Soluble Receptor for Advanced Glycation End Products: A Novel Biomarker for Psoriasis Severity with Therapeutic Implications?

Applications

Unspecified application

Species

Unspecified reactive species

Aleksandra Batycka-Baran,Wojciech Baran,Danuta Nowicka-Suszko,Jacek C Szepietowski
View all publications
websiteProtocolBooklet
en

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
