AB253226

Human SOX9 ELISA Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Human SOX9 ELISA Kit is a single-wash 90-min Simplestep used to quantify Human SOX9 with a sensitivity of 22.8 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

Transcription factor SOX-9, SOX9

3 Images
Sandwich ELISA - Human SOX9 ELISA Kit (AB253226)
  • sELISA

Unknown

Sandwich ELISA - Human SOX9 ELISA Kit (AB253226)

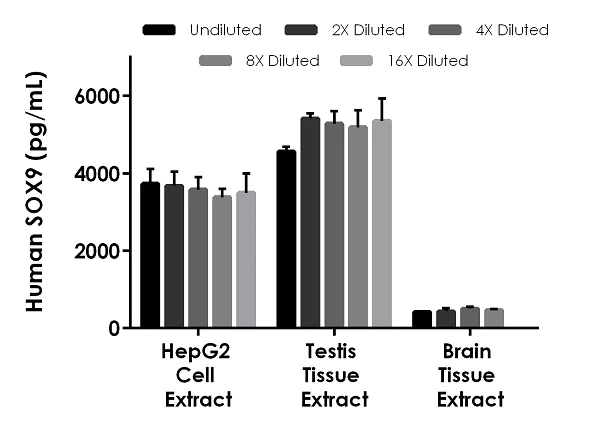

Interpolated concentrations of native SOX9 in human HepG2 cell extract load, testis tissue extract load and brain tissue extract load (100 μg/mL, 1,000 μg/mL, 1,000 μg/mL respectively).

The concentrations of SOX9 were measured in duplicate and interpolated from the SOX9 standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean SOX9 concentration was determined to be 3,573 pg/mL in HepG2 cell extract, 5,161 pg/mL in testis tissue extract, and 458.7 pg/mL in brain tissue extract.

Sandwich ELISA - Human SOX9 ELISA Kit (AB253226)
  • sELISA

Unknown

Sandwich ELISA - Human SOX9 ELISA Kit (AB253226)

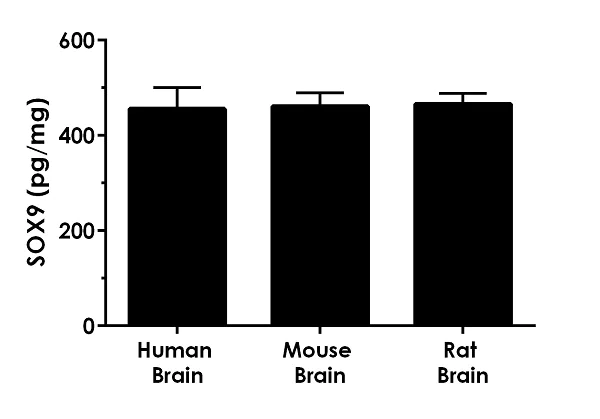

Other species reactivity was determined by measuring brain tissue extract samples of various species, interpolating the protein concentrations from the human standard curve.

Protein concentrations are expressed in pg of SOX9 protein per mg of extract. The mean SOX9 concentration was determined to be 458.7 pg/mg in human brain tissue extract, 461.0 pg/mg in mouse brain tissue extract, and 466.2 pg/mg in rat brain tissue extract.

Sandwich ELISA - Human SOX9 ELISA Kit (AB253226)
  • sELISA

Unknown

Sandwich ELISA - Human SOX9 ELISA Kit (AB253226)

Example of human SOX9 standard curve in 1X Cell Extraction Buffer PTR.

The SOX9 standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Tissue Extracts, Cell Lysate

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 22.8 pg/mL

Range

62.5 - 4000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Human SOX9 ELISA Kit (ab253226) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of SOX9 protein in cell lysate and tissue extracts. It uses our proprietary SimpleStep ELISA® technology. Quantitate Human SOX9 with 22.8 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

SOX9 is a transcriptional regulator that plays a role in the differentiation of chondrocytes and skeletal development. Human, mouse and rat have high SOX9 protein sequence homology.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Precision

[ { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.3" }, { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "6" } ]

Recovery

[ { "sample": "Tissue Extracts", "range": "102 - 112 %", "average": "= 105" }, { "sample": "Cell Lysate", "range": "94 - 100 %", "average": "= 96" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab253226-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB253226-CMP07", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human SOX9 Capture Antibody", "number":"AB253226-CMP02", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human SOX9 Lyophilized Recombinant Protein", "number":"AB253226-CMP04", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB253226-CMP11", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB253226-CMP13", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB253226-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB253226-CMP08", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB253226-CMP12", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human SOX9 Detector Antibody", "number":"AB253226-CMP03", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB253226-CMP09", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB253226-CMP10", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB253226-CMP14", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Product protocols

Target data

Transcription factor that plays a key role in chondrocytes differentiation and skeletal development (PubMed : 24038782). Specifically binds the 5'-ACAAAG-3' DNA motif present in enhancers and super-enhancers and promotes expression of genes important for chondrogenesis, including cartilage matrix protein-coding genes COL2A1, COL4A2, COL9A1, COL11A2 and ACAN, SOX5 and SOX6 (PubMed : 8640233). Also binds to some promoter regions (By similarity). Plays a central role in successive steps of chondrocyte differentiation (By similarity). Absolutely required for precartilaginous condensation, the first step in chondrogenesis during which skeletal progenitors differentiate into prechondrocytes (By similarity). Together with SOX5 and SOX6, required for overt chondrogenesis when condensed prechondrocytes differentiate into early stage chondrocytes, the second step in chondrogenesis (By similarity). Later, required to direct hypertrophic maturation and block osteoblast differentiation of growth plate chondrocytes : maintains chondrocyte columnar proliferation, delays prehypertrophy and then prevents osteoblastic differentiation of chondrocytes by lowering beta-catenin (CTNNB1) signaling and RUNX2 expression (By similarity). Also required for chondrocyte hypertrophy, both indirectly, by keeping the lineage fate of chondrocytes, and directly, by remaining present in upper hypertrophic cells and transactivating COL10A1 along with MEF2C (By similarity). Low lipid levels are the main nutritional determinant for chondrogenic commitment of skeletal progenitor cells : when lipids levels are low, FOXO (FOXO1 and FOXO3) transcription factors promote expression of SOX9, which induces chondrogenic commitment and suppresses fatty acid oxidation (By similarity). Mechanistically, helps, but is not required, to remove epigenetic signatures of transcriptional repression and deposit active promoter and enhancer marks at chondrocyte-specific genes (By similarity). Acts in cooperation with the Hedgehog pathway-dependent GLI (GLI1 and GLI3) transcription factors (By similarity). In addition to cartilage development, also acts as a regulator of proliferation and differentiation in epithelial stem/progenitor cells : involved in the lung epithelium during branching morphogenesis, by balancing proliferation and differentiation and regulating the extracellular matrix (By similarity). Controls epithelial branching during kidney development (By similarity).
See full target information Transcription factor SOX-9
