Human TGF beta R2 ELISA Kit is a Sandwich (quantitative) ELISA kit for the measurement of Human TGF beta R2 in Human in Plasma, Cell culture supernatant, Serum samples.

Be the first to review this product! Submit a review

Images

Sandwich ELISA - Human TGF beta R2 ELISA Kit (AB193715), expandable thumbnail
  • Sandwich ELISA - Human TGF beta R2 ELISA Kit (AB193715), expandable thumbnail

Publications

Key facts

Detection method
Colorimetric
Sample types
Plasma, Cell culture supernatant, Serum
Assay type
Sandwich (quantitative)
Reactive species
Human
Range
1.5 - 500 pg/mL
Sensitivity
= 1.5 pg/mL

Reactivity data

Application
sELISA
Reactivity
Reacts
Dilution info
-
Notes

-

Target data

Function

Transmembrane serine/threonine kinase forming with the TGF-beta type I serine/threonine kinase receptor, TGFBR1, the non-promiscuous receptor for the TGF-beta cytokines TGFB1, TGFB2 and TGFB3. Transduces the TGFB1, TGFB2 and TGFB3 signal from the cell surface to the cytoplasm and thus regulates a plethora of physiological and pathological processes including cell cycle arrest in epithelial and hematopoietic cells, control of mesenchymal cell proliferation and differentiation, wound healing, extracellular matrix production, immunosuppression and carcinogenesis. The formation of the receptor complex composed of 2 TGFBR1 and 2 TGFBR2 molecules symmetrically bound to the cytokine dimer results in the phosphorylation and activation of TGFBR1 by the constitutively active TGFBR2. Activated TGFBR1 phosphorylates SMAD2 which dissociates from the receptor and interacts with SMAD4. The SMAD2-SMAD4 complex is subsequently translocated to the nucleus where it modulates the transcription of the TGF-beta-regulated genes. This constitutes the canonical SMAD-dependent TGF-beta signaling cascade. Also involved in non-canonical, SMAD-independent TGF-beta signaling pathways. Isoform 1. Has transforming growth factor beta-activated receptor activity. Isoform 2. Has transforming growth factor beta-activated receptor activity. Isoform 3. Binds TGFB1, TGFB2 and TGFB3 in the picomolar affinity range without the participation of additional receptors. Blocks activation of SMAD2 and SMAD3 by TGFB1.

Alternative names

What's included?

1 x 96 Tests
Components
200X HRP-Streptavidin Concentrate
1 x 200 µL
20X Wash Buffer
1 x 25 mL
5X Assay Diluent B
1 x 15 mL
Assay Diluent A
1 x 30 mL
Biotinylated Human TGF-beta R2 detection antibody
2 x 1 Vial
Human TGF-beta R2 standards (lyophilized)
2 x 1 Vial
Pre-coated Human TGF-beta R2 Microplate (12 strips x 8 wells)
1 x 1 Unit
Stop Solution
1 x 8 mL
TMB One-Step Substrate Reagent
1 x 12 mL

Recommended products

Human TGF beta R2 ELISA Kit is a Sandwich (quantitative) ELISA kit for the measurement of Human TGF beta R2 in Human in Plasma, Cell culture supernatant, Serum samples.

Key facts

Detection method
Colorimetric
Sample types
Plasma, Cell culture supernatant, Serum
Assay type
Sandwich (quantitative)
Reactive species
Human
Range
1.5 - 500 pg/mL
Assay Platform
Pre-coated microplate (12 x 8 well strips)
Sensitivity
= 1.5 pg/mL

Precision

Intra assay

Sample
Overall
n
0
mean
-
SD
-
C.V.
< 10

Inter assay

Sample
Overall
n
0
mean
-
SD
-
C.V.
< 12

Recovery

Sample specific recovery

Sample type
Serum
Average %
= 97.91
Range
90 - 106 %
Sample type
Plasma
Average %
= 94.61
Range
87 - 103 %
Sample type
Cell culture media
Average %
= 121.2
Range
99 - 133 %

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Notes

Abcam's TGF beta R2 Human ELISA Kit (ab193715) is an in vitro enzyme-linked immunosorbent assay for the quantitative measurement of Human TGF beta R2 in serum, plasma and cell culture supernatant.

This assay employs an antibody specific for Human TGF beta R2 coated on a 96-well plate. Standards and samples are pipetted into the wells and the immobilized antibody captures TGF beta R2 present in the samples. The wells are washed and biotinylated anti-Human TGF beta R2 antibody is added. After washing away any unbound biotinylated antibody, an HRP-conjugated streptavidin is pipetted to the wells. After incubation, the wells are again washed, followed by the addition of a TMB substrate solution to the wells. Color will develop in proportion to the amount of TGF beta R2 bound in each well. Addition of the Stop Solution will change the color from blue to yellow, and the intensity of the color is measured at 450 nm.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Sandwich ELISA - Human TGF beta R2 ELISA Kit (ab193715), expandable thumbnail

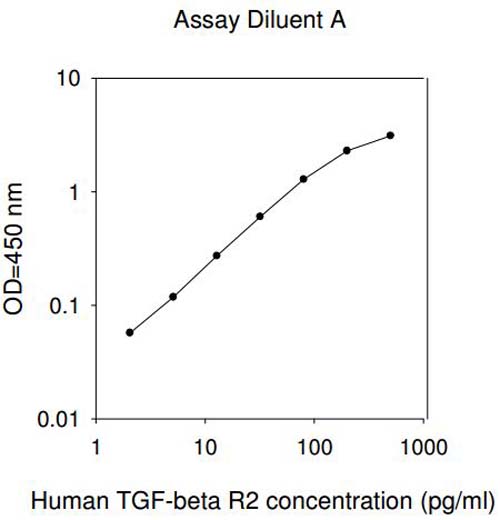

    Sandwich ELISA - Human TGF beta R2 ELISA Kit (ab193715)

    Typical Standard Curve in Assay Diluent A using ab193715 TGF beta R2 Human ELISA Kit.

  • Sandwich ELISA - Human TGF beta R2 ELISA Kit (ab193715), expandable thumbnail

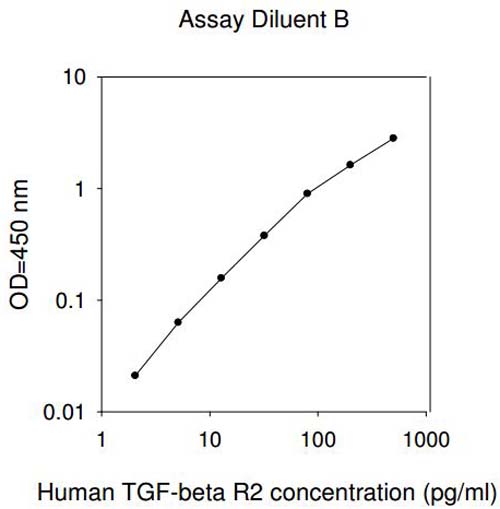

    Sandwich ELISA - Human TGF beta R2 ELISA Kit (ab193715)

    Typical Standard Curve in Assay Diluent B using ab193715 TGF beta R2 Human ELISA Kit.
