AB324131

Human Thymidine phosphorylase (PD-ECGF) ELISA Kit- Extracellular

Recombinant
SimpleStep
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Human Thymidine phosphorylase (PD-ECGF) ELISA Kit- Extracellular is a Sandwich ELISA for the measurement of Human Thymidine phosphorylase (PD-ECGF) - Extracellular in Human in Biofluids, Cell Culture Media samples.

View Alternative Names

ECGF1, TYMP, Thymidine phosphorylase, TP, Gliostatin, Platelet-derived endothelial cell growth factor, TdRPase, PD-ECGF

3 Images

Sandwich ELISA - Human Thymidine phosphorylase (PD-ECGF) ELISA Kit- Extracellular (AB324131)

sELISA

Supplier Data

Sandwich ELISA - Human Thymidine phosphorylase (PD-ECGF) ELISA Kit- Extracellular (AB324131)

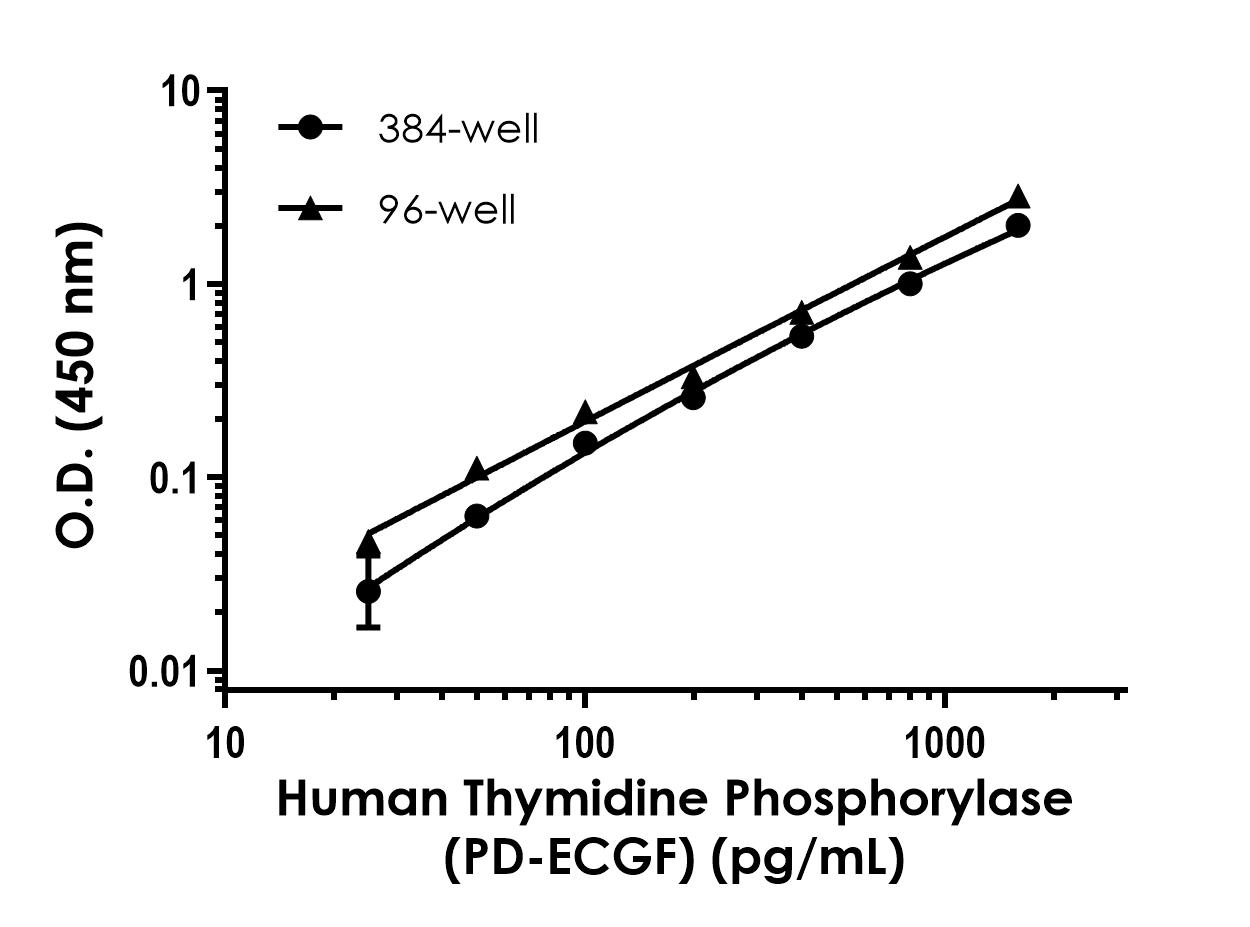

Example of human Thymidine Phosphorylase standard curve in Sample Diluent NS in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Supplier Data

Sandwich ELISA - Human Thymidine phosphorylase (PD-ECGF) ELISA Kit- Extracellular (AB324131)

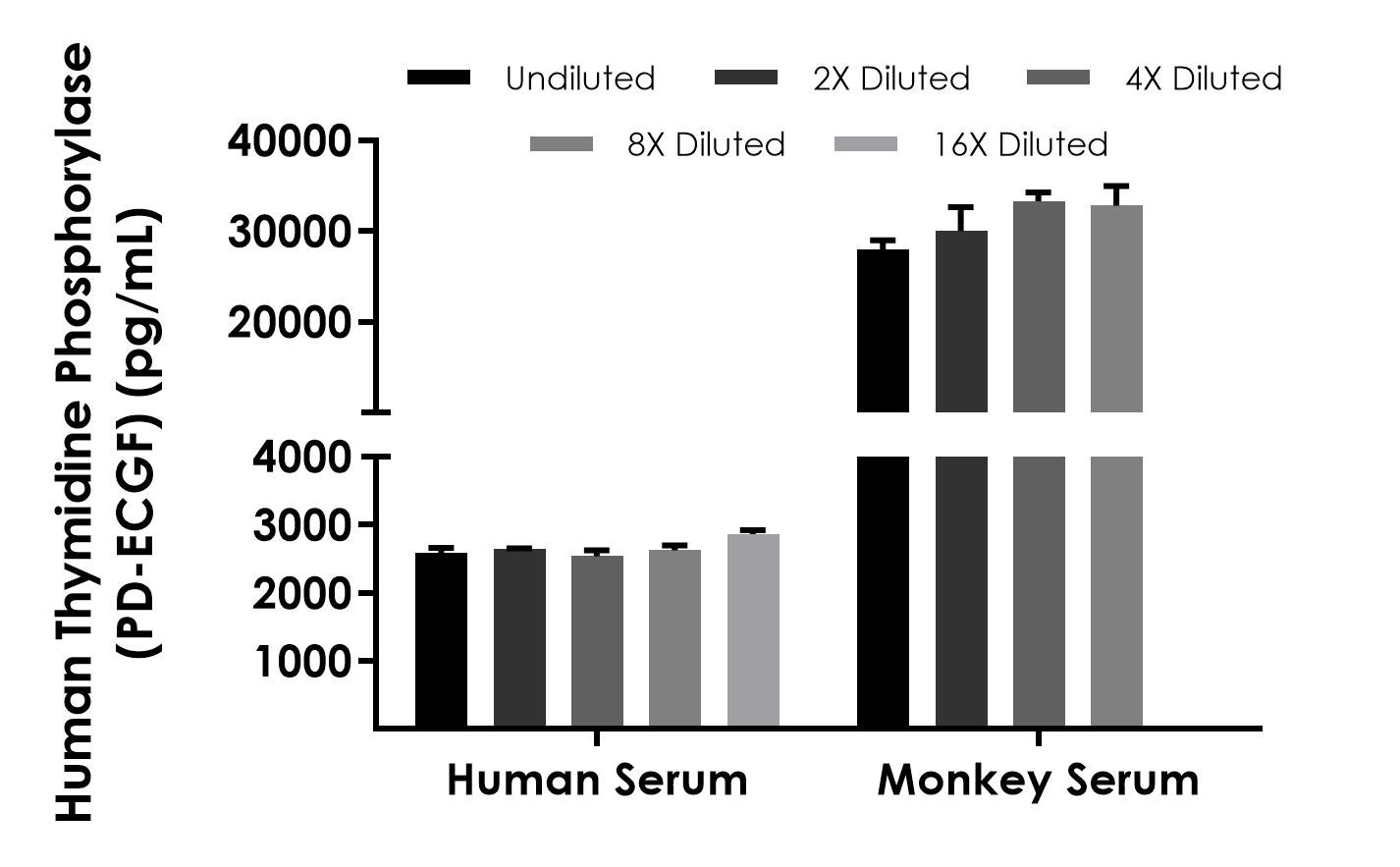

Interpolated concentration of native Thymidine Phosphorylase was measured in duplicate at different sample concentrations. Undiluted samples are 25% human serum and 3.125% rhesus macaque serum. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

sELISA

Supplier Data

Sandwich ELISA - Human Thymidine phosphorylase (PD-ECGF) ELISA Kit- Extracellular (AB324131)

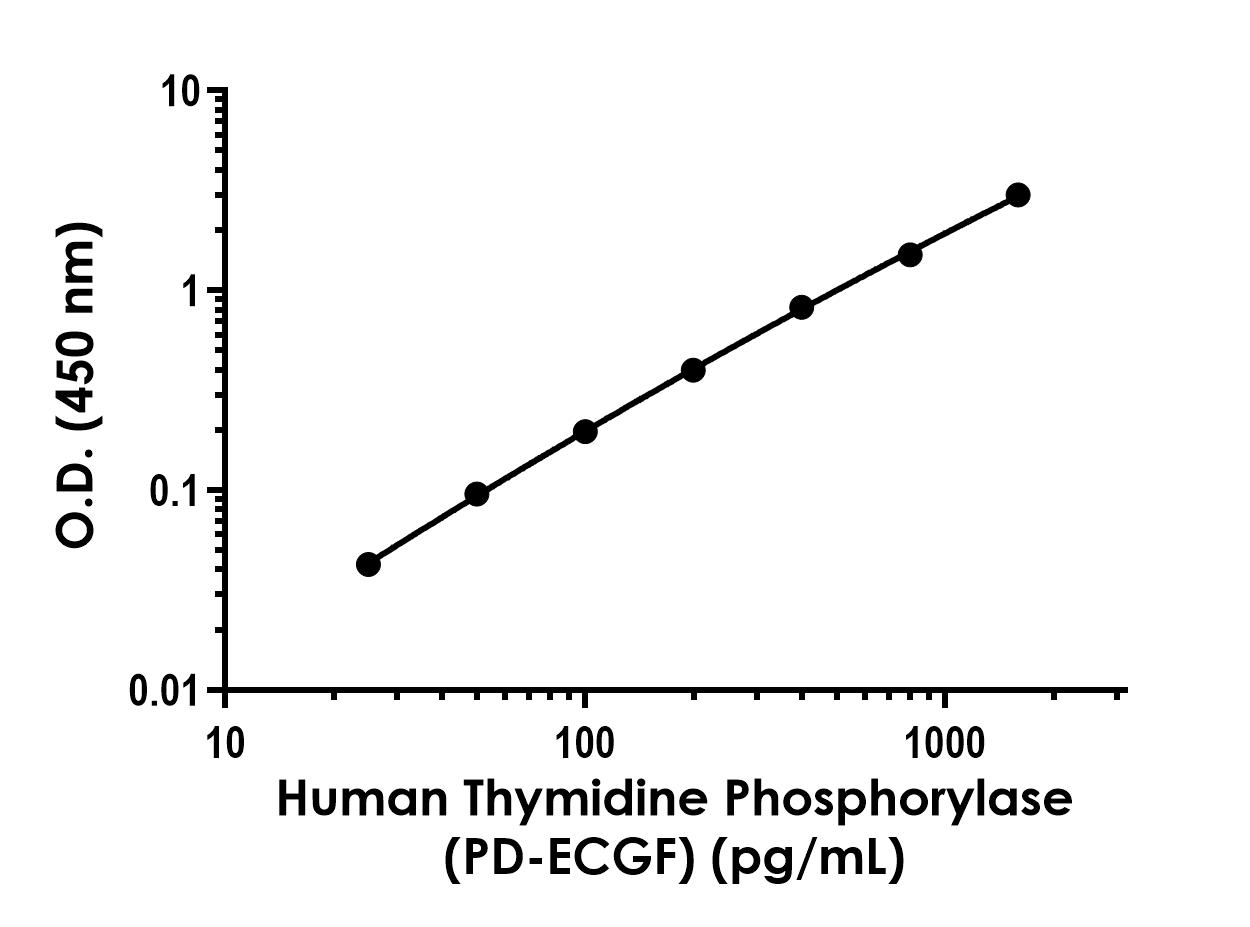

Example of human Thymidine Phosphorylase standard curve in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Serum, Citrate plasma, EDTA Plasma, Heparin Plasma, Cell culture media

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 9 pg/mL

Range

25 - 1600 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

Human Thymidine phosphorylase (PD-ECGF) SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Thymidine phosphorylase (PD-ECGF) protein in Serum, Cit Plasma, EDTA Plasma, Hep Plasma, Cell culture media. Quantitate Human Thymidine phosphorylase (PD-ECGF) with 9 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibodyanalyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

Singlewash protocol reduces assay time to 90 minutes or less.
High sensitivity, specificity and reproducibility from superior antibodies.
Fully validated in biological samples.
96wells plate breakable into 12 x 8 wells strips, available in 10pack (10 x 96well plates).
Also available in a fully validated 384well format.

style

left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 3.7" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 12.8" } ]

style

left-column

Recovery

[ { "sample": "Serum", "range": "83 - 99 %", "average": "= 92" }, { "sample": "Citrate plasma", "range": "93 - 111 %", "average": "= 102" }, { "sample": "EDTA Plasma", "range": "87 - 95 %", "average": "= 91" }, { "sample": "Heparin Plasma", "range": "100 - 105 %", "average": "= 103" }, { "sample": "Cell culture media", "range": "95 - 102 %", "average": "= 98" } ]

style

left-column

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab324131-10x96Tests", "assetComponentDetails": [ { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB324131-CMP07" }, { "size":"3 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB324131-CMP06" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB324131-CMP05" }, { "size":"10 x 600 µL", "name":"10X Human Thymidine phosphorylase (PD-ECGF) Detector Antibody", "number":"AB324131-CMP02" }, { "size":"10 x 600 µL", "name":"10X Human Thymidine phosphorylase (PD-ECGF) Capture Antibody", "number":"AB324131-CMP01" }, { "size":"10 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB324131-CMP04" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB324131-CMP10" }, { "size":"10 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB324131-CMP09" }, { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB324131-CMP08" }, { "size":"20 x 1 Vial", "name":"Human Thymidine phosphorylase (PD-ECGF) Lyophilized Recombinant Protein", "number":"AB324131-CMP03" } ] }, "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab324131-1x384Tests", "assetComponentDetails": [ { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB324131-CMP08" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB324131-CMP07" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB324131-CMP06" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB324131-CMP10" }, { "size":"1 x 600 µL", "name":"10X Human Thymidine phosphorylase (PD-ECGF) Capture Antibody", "number":"AB324131-CMP01" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB324131-CMP04" }, { "size":"1 x 600 µL", "name":"10X Human Thymidine phosphorylase (PD-ECGF) Detector Antibody", "number":"AB324131-CMP02" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB324131-CMP05" }, { "size":"1 x 1 Unit", "name":"384 well CaptSure™ microplates", "number":"AB324131-CMP11" }, { "size":"2 x 1 Vial", "name":"Human Thymidine phosphorylase (PD-ECGF) Lyophilized Recombinant Protein", "number":"AB324131-CMP03" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab324131-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB324131-CMP08", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB324131-CMP07", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB324131-CMP06", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB324131-CMP04", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB324131-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB324131-CMP09", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Thymidine phosphorylase (PD-ECGF) Detector Antibody", "number":"AB324131-CMP02", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human Thymidine phosphorylase (PD-ECGF) Lyophilized Recombinant Protein", "number":"AB324131-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Thymidine phosphorylase (PD-ECGF) Capture Antibody", "number":"AB324131-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB324131-CMP10", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

May have a role in maintaining the integrity of the blood vessels. Has growth promoting activity on endothelial cells, angiogenic activity in vivo and chemotactic activity on endothelial cells in vitro.. Catalyzes the reversible phosphorolysis of thymidine. The produced molecules are then utilized as carbon and energy sources or in the rescue of pyrimidine bases for nucleotide synthesis.

See full target information TYMP
