AB314598

Human TIGIT ELISA Kit - Intracellular

Be the first to review this product! Submit a review

|

(0 Publication)

Human TIGIT ELISA Kit - Intracellular is a single-wash 90-min Simplestep used to quantify Human TIGIT with a sensitivity of 4 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader

View Alternative Names

VSIG9, VSTM3, TIGIT, T-cell immunoreceptor with Ig and ITIM domains, V-set and immunoglobulin domain-containing protein 9, V-set and transmembrane domain-containing protein 3

2 Images
Sandwich ELISA - Human TIGIT ELISA Kit - Intracellular (AB314598)
  • sELISA

Supplier Data

Sandwich ELISA - Human TIGIT ELISA Kit - Intracellular (AB314598)

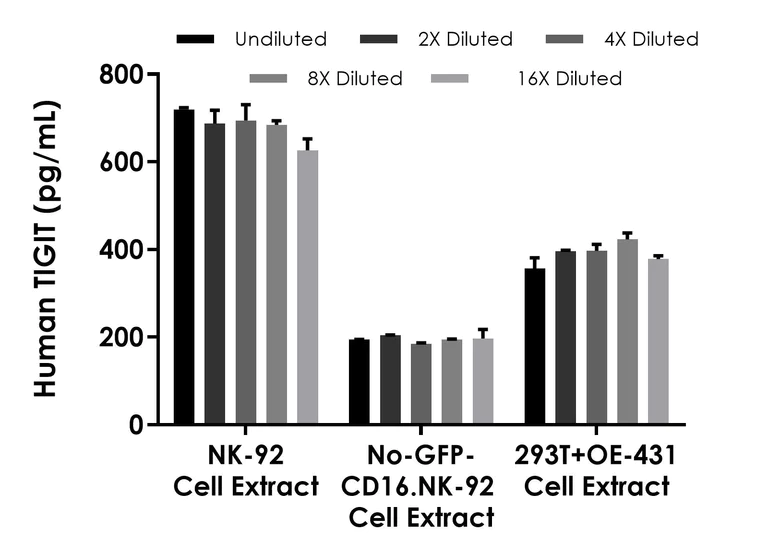

Interpolated concentrations of Human TIGIT in NK-92, No-GFP-CD16.NK-92, and HEK293T+OE-431 cell extracts

Interpolated concentration of native TIGIT was measured in duplicate at different sample concentrations. Undiluted samples are as follows : NK-92 cell extract 500 μg/mL, No-GFP-CD16.NK-92 cell extract 250 μg/mL, and HEK293T+OE-431 cell extract 30 μg/mL.  The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

Sandwich ELISA - Human TIGIT ELISA Kit - Intracellular (AB314598)
  • sELISA

Supplier Data

Sandwich ELISA - Human TIGIT ELISA Kit - Intracellular (AB314598)

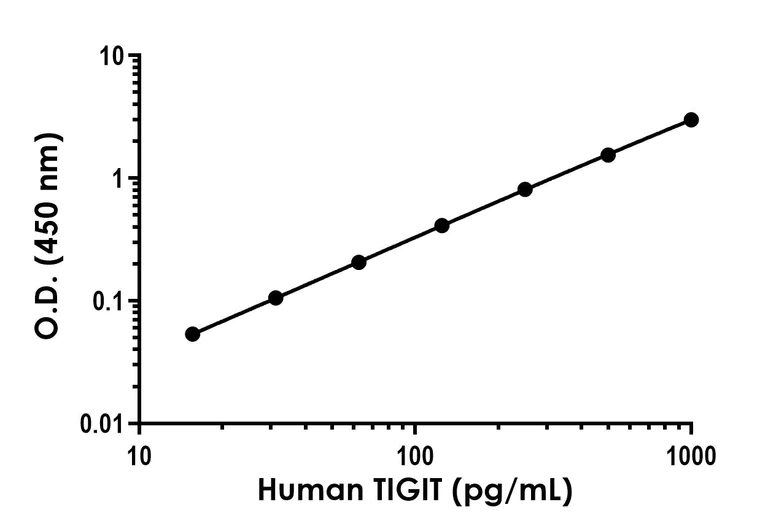

Example of Human TIGIT standard curve in 1X Cell Extraction Buffer PTR. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Cell culture extracts

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 4 pg/mL

Range

15.625 - 1000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Complementary Products

Primary Antibodies

AB290683

Anti-TIGIT antibody [EPR25804-72] - BSA and Azide free (Detector)

RabMAb|Recombinant

Sandwich ELISA - Anti-TIGIT antibody [EPR25804-72] - BSA and Azide free (Detector) (AB290683)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human TIGIT SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of TIGIT protein in Cell culture extracts. Quantitate Human TIGIT with 4 pg/ml sensitivity. SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
        -High sensitivity, specificity and reproducibility from superior antibodies
        -Fully validated in biological samples
        -96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.4" }, { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.4" } ]
style
left-column

Recovery

[ { "sample": "Cell culture extracts", "range": "103 - 107 %", "average": "= 105" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab314598-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB314598-CMP08", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB314598-CMP05", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB314598-CMP07", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB314598-CMP04", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB314598-CMP06", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human TIGIT Lyophilized Recombinant Protein", "number":"AB314598-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human TIGIT Capture Antibody", "number":"AB314598-CMP01", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human TIGIT Detector Antibody", "number":"AB314598-CMP02", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB314598-CMP09", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB314598-CMP10", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB314598-CMP11", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

TIGIT also known as T cell immunoreceptor with Ig and ITIM domains is an immunoglobulin superfamily receptor. It weighs approximately 26 kDa. TIGIT commonly expresses on T cells especially on regulatory T cells (Tregs) and effector memory T cells. It also presents on natural killer (NK) cells. Among its alternate forms some notable ones also include the anti-TIGIT and biotinylated TIGIT antibodies used in experimental research to monitor immune responses.
Biological function summary

TIGIT acts as an inhibitory receptor modulating immune responses. It belongs to the CD28 family and binds to poliovirus receptor (PVR) and nectin-2 on antigen-presenting cells. This interaction inhibits T cell activation and proliferation and increases Treg cell activity maintaining immune homeostasis. TIGIT forms a complex with other inhibitory receptors like PD-1 2B4 and CD96 to further regulate immune functions.

Pathways

The interaction of TIGIT with its ligands significantly affects the immune checkpoint pathway. This involvement regulates T cell and NK cell activity. TIGIT is related to CD226 (DNAM-1) which competes for binding to its ligands influencing cellular signaling pathways. Through these pathways TIGIT signals through the downstream SHP-1 and SHP-2 proteins affecting immune cell signaling and response.

TIGIT has implications in cancer and autoimmune diseases. Its inhibitory function can allow tumor progression by dampening effective anti-tumor immunity. In cancer TIGIT’s activity often pairs with PD-1 both contributing to immune checkpoint blockade resistance necessary for tumor evasion. In autoimmune diseases increased TIGIT expression could result in reduced immune cell attack against self tissues showing its potential to modulate treatment strategies.
style
left-column

Product protocols

style
left-column

Target data

Inhibitory receptor that plays a role in the modulation of immune responses. Suppresses T-cell activation by promoting the generation of mature immunoregulatory dendritic cells (PubMed : 19011627). Upon binding to its ligands PVR/CD155 or NECTIN2/CD112, which are expressed on antigen-presenting cells, sends inhibitory signals to the T-cell or NK cell. Mechanistically, interaction with ligand leads to phosphorylation of the cytoplasmic tail by Src family tyrosine kinases such as FYN or LCK, allowing subsequent binding to adapter GRB2 and SHIP1/INPP5D. In turn, inhibits PI3K and MAPK signaling cascades (PubMed : 23154388). In addition, associates with beta-arrestin-2/ARRB2 to recruit SHIP1/INPP5D that suppresses autoubiquitination of TRAF6 and subsequently inhibits NF-kappa-B signaling pathway (PubMed : 24817116). Acts also as a receptor for NECTIN4 to inhibit NK cell cytotoxicity (PubMed : 32503945).
See full target information TIGIT
