AB231932

Human TIM-3 ELISA Kit

Be the first to review this product! Submit a review

|

(5 Publications)

Human TIM-3 ELISA Kit is a single-wash 90-min Simplestep used to quantify Human TIM-3 with a sensitivity of 14.6 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

CD366, TIM3, TIMD3, HAVCR2, Hepatitis A virus cellular receptor 2, HAVcr-2, T-cell immunoglobulin and mucin domain-containing protein 3, T-cell immunoglobulin mucin receptor 3, T-cell membrane protein 3, TIMD-3, TIM-3

6 Images
Sandwich ELISA - Human TIM-3 ELISA Kit (AB231932)
  • sELISA

Supplier Data

Sandwich ELISA - Human TIM-3 ELISA Kit (AB231932)

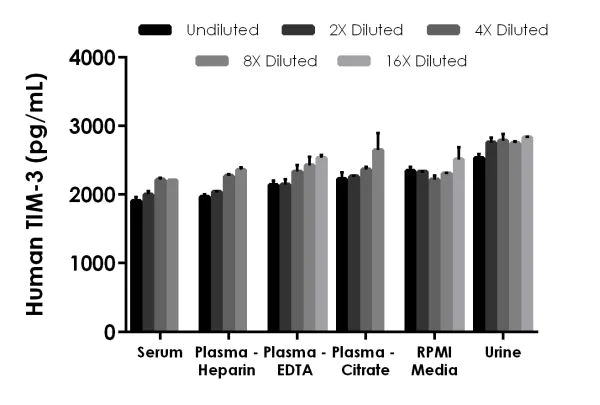

Interpolated concentrations of spiked TIM-3 in human serum, plasma, urine, and RPMI media with 10% FBS.

The concentrations of TIM-3 were measured in duplicates, interpolated from the TIM-3 standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 50%, plasma (heparin) 12.5%, plasma (citrate) 12.5%, plasma (EDTA) 50%, RPMI media 25%, and urine 25%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2).

Sandwich ELISA - Human TIM-3 ELISA Kit (AB231932)
  • sELISA

Supplier Data

Sandwich ELISA - Human TIM-3 ELISA Kit (AB231932)

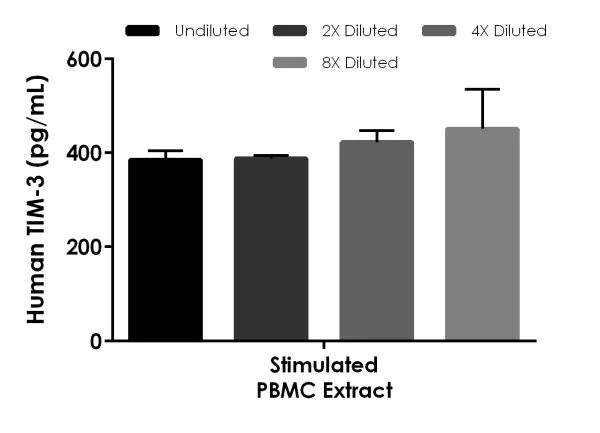

Interpolated concentrations of native TIM-3 in human PBMC cell extract stimulated with 1.5% PHA-M.

The concentrations of TIM-3 were measured in duplicate and interpolated from the TIM-3 standard curve and corrected for sample dilution. Undiluted samples are 100 μg/mL. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2).

Sandwich ELISA - Human TIM-3 ELISA Kit (AB231932)
  • sELISA

Supplier Data

Sandwich ELISA - Human TIM-3 ELISA Kit (AB231932)

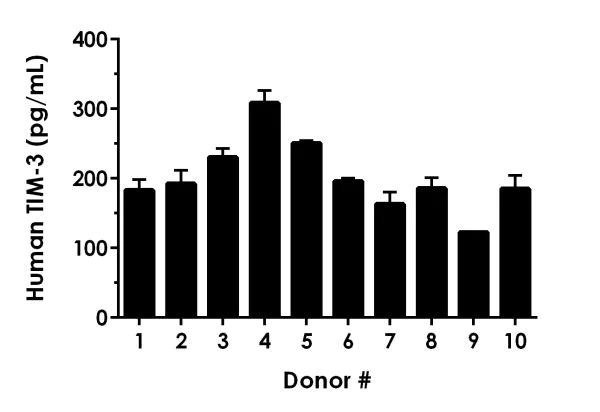

Serum from ten individual healthy human male donors was measured in duplicate.

Interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean TIM-3 concentration was determined to be 202 pg/mL with a range of 122 – 321 pg/mL.

Sandwich ELISA - Human TIM-3 ELISA Kit (AB231932)
  • sELISA

Supplier Data

Sandwich ELISA - Human TIM-3 ELISA Kit (AB231932)

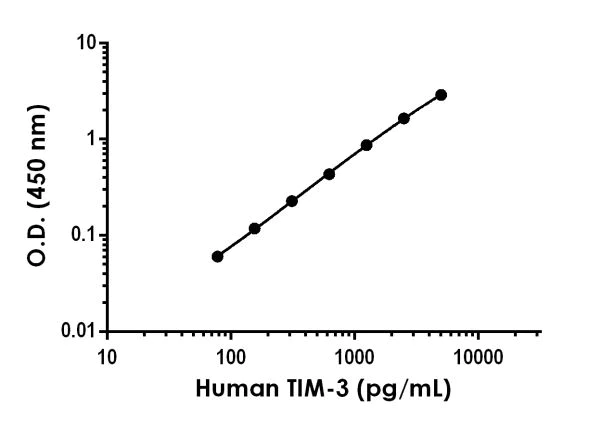

Example of human TIM-3 standard curve in 1X Cell Extraction Buffer PTR.

Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human TIM-3 ELISA Kit (AB231932)
  • sELISA

Supplier Data

Sandwich ELISA - Human TIM-3 ELISA Kit (AB231932)

Average interpolated concentrations of native TIM-3 in human stimulated and unstimulated human PBMC extracts.

Human PBMCs were cultured and either stimulated with 1.5% PHA-M or mock stimulated for 2 days. The concentrations of TIM-3 were measured in duplicate and interpolated from the TIM-3 standard curve and corrected for sample dilution. Undiluted samples are 100 μg/mL. The average interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean TIM-3 concentration was determined to be 412 pg/mL in stimulated PBMCs and 92 pg/mL in unstimulated PBMCs.

Sandwich ELISA - Human TIM-3 ELISA Kit (AB231932)
  • sELISA

Supplier Data

Sandwich ELISA - Human TIM-3 ELISA Kit (AB231932)

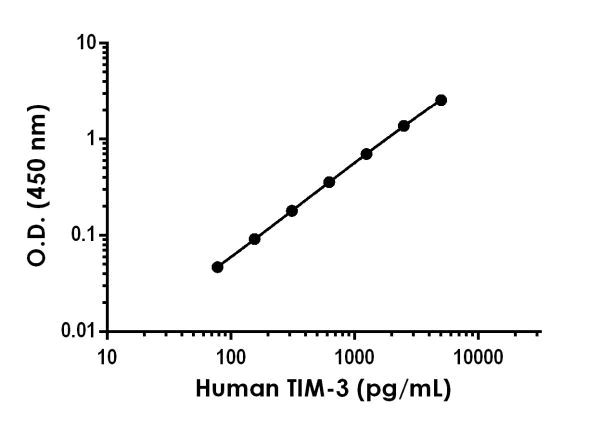

Example of human TIM-3 standard curve in Sample Diluent NS.

Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Urine, Cell culture extracts, Heparin Plasma, Citrate plasma, Cell culture supernatant, Serum, EDTA Plasma

Reacts with

Human

Assay type

Sandwich (quantitative)

Sensitivity

= 14.6 pg/mL

Range

78.13 - 5000 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Human TIM-3 ELISA Kit (ab231932) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of TIM-3 protein in cell culture extracts, cell culture supernatant, cit plasma, edta plasma, hep plasma, serum, and urine. It uses our proprietary SimpleStep ELISA® technology. Quantitate Human TIM-3 with 14.6 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Precision

[ { "reproducibilityType": "Inter", "sample": "Human Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "4.6" }, { "reproducibilityType": "Intra", "sample": "Human Serum", "replicates": 9, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.3" } ]

Recovery

[ { "sample": "Serum", "range": "92 - 97 %", "average": "= 95" }, { "sample": "EDTA Plasma", "range": "96 - 99 %", "average": "= 97" }, { "sample": "Urine", "range": "95 - 98 %", "average": "= 96" }, { "sample": "Cell culture extracts", "range": "103 - 105 %", "average": "= 104" }, { "sample": "Heparin Plasma", "range": "87 - 89 %", "average": "= 88" }, { "sample": "Citrate plasma", "range": "93 - 94 %", "average": "= 93" }, { "sample": "Cell culture media", "range": "98 - 100 %", "average": "= 99" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab231932-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB231932-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human TIM-3 Detector Antibody", "number":"AB231932-CMP08", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5BR", "number":"AB231932-CMP02", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB231932-CMP06", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB231932-CMP11", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB231932-CMP03", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB231932-CMP10", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB231932-CMP05", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB231932-CMP12", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human TIM-3 Lyophilized Recombinant Protein", "number":"AB231932-CMP09", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human TIM-3 Capture Antibody", "number":"AB231932-CMP07", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

TIM-3 also known as T cell immunoglobulin and mucin-domain containing-3 or HAVCR2 is a protein involved in immune regulation. It possesses an approximate mass of 35 kDa. TIM-3 is expressed on various immune cells including T cells NK cells and dendritic cells especially after activation. The expression level often changes in response to inflammatory conditions suggesting its role in modulating immune responses.
Biological function summary

TIM-3 functions as a checkpoint inhibitor impacting immune cell activity. It is not part of a larger physical complex but it modulates immune responses by interacting with its ligands such as Galectin-9 phosphatidylserine and CEACAM1. TIM-3 involvement in downregulating Th1 cell responses shows its necessary role in maintaining immune homeostasis. The protein also acts in regulating tolerance mechanisms and preventing autoimmunity.

Pathways

TIM-3 participation is seen in the immune checkpoint and T cell exhaustion pathways. TIM-3 signaling results in T cell inhibition affecting the PD-1 pathway as well. It shares a relationship with proteins like LAG-3 and PD-1 which are key to immune inhibitory signaling. These interactions depict TIM-3's role in immune tolerance during chronic infections and malignancies.

TIM-3 association with cancer and chronic infections provides insight into therapeutic implications. In cancer TIM-3 contributes to immune evasion often co-expressed with PD-1 leading to T cell exhaustion. In autoimmune diseases TIM-3 modulation may affect disease progression by influencing immune tolerance. Understanding TIM-3's role in these contexts aids in developing targeted therapies such as anti-TIM-3 antibodies to enhance immune responses in cancer while promoting tolerance in autoimmunity.

Product protocols

Target data

Cell surface receptor implicated in modulating innate and adaptive immune responses. Generally accepted to have an inhibiting function. Reports on stimulating functions suggest that the activity may be influenced by the cellular context and/or the respective ligand (PubMed : 24825777). Regulates macrophage activation (PubMed : 11823861). Inhibits T-helper type 1 lymphocyte (Th1)-mediated auto- and alloimmune responses and promotes immunological tolerance (PubMed : 14556005). In CD8+ cells attenuates TCR-induced signaling, specifically by blocking NF-kappaB and NFAT promoter activities resulting in the loss of IL-2 secretion. The function may implicate its association with LCK proposed to impair phosphorylation of TCR subunits, and/or LGALS9-dependent recruitment of PTPRC to the immunological synapse (PubMed : 24337741, PubMed : 26492563). In contrast, shown to activate TCR-induced signaling in T-cells probably implicating ZAP70, LCP2, LCK and FYN (By similarity). Expressed on Treg cells can inhibit Th17 cell responses (PubMed : 24838857). Receptor for LGALS9 (PubMed : 16286920, PubMed : 24337741). Binding to LGALS9 is believed to result in suppression of T-cell responses; the resulting apoptosis of antigen-specific cells may implicate HAVCR2 phosphorylation and disruption of its association with BAG6. Binding to LGALS9 is proposed to be involved in innate immune response to intracellular pathogens. Expressed on Th1 cells interacts with LGALS9 expressed on Mycobacterium tuberculosis-infected macrophages to stimulate antibactericidal activity including IL-1 beta secretion and to restrict intracellular bacterial growth (By similarity). However, the function as receptor for LGALS9 has been challenged (PubMed : 23555261). Also reported to enhance CD8+ T-cell responses to an acute infection such as by Listeria monocytogenes (By similarity). Receptor for phosphatidylserine (PtSer); PtSer-binding is calcium-dependent. May recognize PtSer on apoptotic cells leading to their phagocytosis. Mediates the engulfment of apoptotic cells by dendritic cells. Expressed on T-cells, promotes conjugation but not engulfment of apoptotic cells. Expressed on dendritic cells (DCs) positively regulates innate immune response and in synergy with Toll-like receptors promotes secretion of TNF-alpha. In tumor-imfiltrating DCs suppresses nucleic acid-mediated innate immune repsonse by interaction with HMGB1 and interfering with nucleic acid-sensing and trafficking of nucleid acids to endosomes (By similarity). Expressed on natural killer (NK) cells acts as a coreceptor to enhance IFN-gamma production in response to LGALS9 (PubMed : 22323453). In contrast, shown to suppress NK cell-mediated cytotoxicity (PubMed : 22383801). Negatively regulates NK cell function in LPS-induced endotoxic shock (By similarity).
See full target information HAVCR2

Publications (5)

Recent publications for all applications. Explore the full list and refine your search

Journal of cardiovascular development and disease 11: PubMed39330316

2024

A Multi-Biomarker Approach to Increase the Accuracy of Diagnosis and Management of Coronary Artery Disease.

Applications

Unspecified application

Species

Unspecified reactive species

Lenka Hostačná,Jana Mašlanková,Dominik Pella,Beáta Hubková,Mária Mareková,Daniel Pella

Cancer medicine 12:17648-17659 PubMed37501393

2023

Serum soluble immune checkpoint levels predict cervical lymph node metastasis of differentiated thyroid carcinoma patients.

Applications

Unspecified application

Species

Unspecified reactive species

Yi Shao,Xinru Gui,Yuxin Wang,Lei Sheng,Dong Sun,Qingdong Zeng,Huayang Wang

Frontiers in medicine 10:1117816 PubMed36756176

2023

Rapid disease progression on immune checkpoint inhibitors in young patients with stage IV melanoma.

Applications

Unspecified application

Species

Unspecified reactive species

Devayani Machiraju,Sarah Schäfer,Philip Beckhove,Jasmin Roth,Carsten Schulz,Jessica C Hassel

Medical science monitor : international medical journal of experimental and clinical research 28:e935326 PubMed35859350

2022

Serum T Cell Immunoglobulin Mucin 3 Predicts Worse Prognosis in Hepatocellular Carcinoma Patients Undergoing Transcatheter Arterial Chemoembolization.

Applications

Unspecified application

Species

Unspecified reactive species

Jun Li,Jing Wang

Oncoimmunology 10:1926762 PubMed34104542

2021

Soluble immune checkpoints and T-cell subsets in blood as biomarkers for resistance to immunotherapy in melanoma patients.

Applications

IHC-P, ELISA

Species

Human, Human

Devayani Machiraju,Melanie Wiecken,Nina Lang,Ingrid Hülsmeyer,Jasmin Roth,Timo E Schank,Rosa Eurich,Niels Halama,Alexander Enk,Jessica C Hassel
View all publications
