AB325730

Human TIMP-1 ELISA Kit, Chemiluminescent

Be the first to review this product! Submit a review

|

(0 Publication)

Human TIMP-1 ELISA Kit, Chemiluminescent is a 55 min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Human TIMP-1 with higher sensitivity and broader measuring range.

- Single 30 min incubation and single -wash step for results in less than an hour
- Chemiluminescent detection allows a broad dynamic range : 36.5 - 26600 pg/ml with a sensitivity of 28.36 pg/mL
- Design your own immunoassay: we also offer the conjugation-ready antibody pair
- Patent pending

View Alternative Names

CLGI, TIMP, TIMP1, Metalloproteinase inhibitor 1, Erythroid-potentiating activity, Fibroblast collagenase inhibitor, Tissue inhibitor of metalloproteinases 1, EPA, Collagenase inhibitor, TIMP-1

6 Images
Sandwich ELISA - Human TIMP-1 ELISA Kit, Chemiluminescent (AB325730)
  • sELISA

Lab

Sandwich ELISA - Human TIMP-1 ELISA Kit, Chemiluminescent (AB325730)

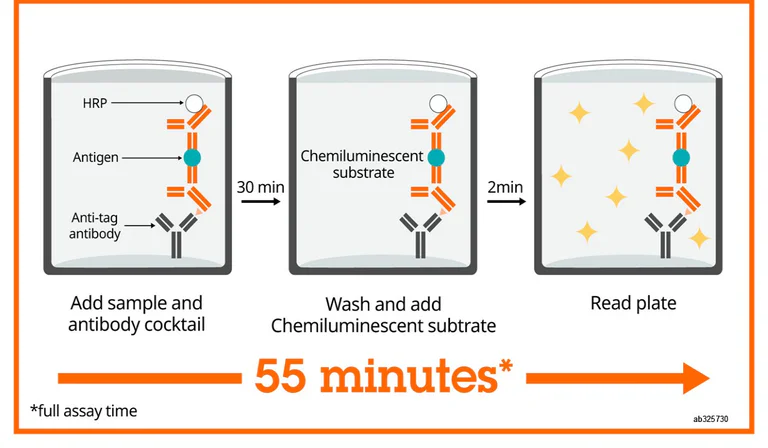

SimpleStep ELISA® Ignite technology allows the formation of the antibody-antigen complex in one single step, reducing assay time to 55 minutes. Add samples or standards and antibody mix to wells all at once, incubate, wash, and add your final substrate. See protocol for a detailed step-by-step guide.

Sandwich ELISA - Human TIMP-1 ELISA Kit, Chemiluminescent (AB325730)
  • sELISA

Lab

Sandwich ELISA - Human TIMP-1 ELISA Kit, Chemiluminescent (AB325730)

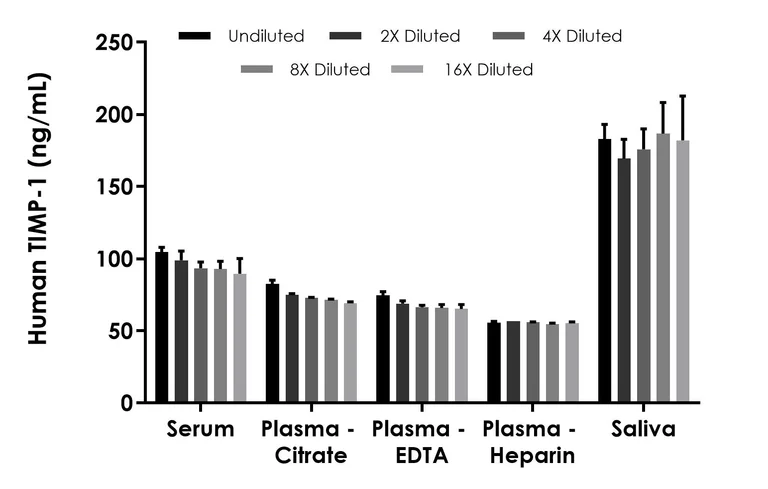

Interpolated concentrations of native TIMP-1 in human serum, plasma, and saliva samples. The concentrations of TIMP-1 were measured in duplicates, interpolated from the TIMP-1 standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 5%, plasma (citrate) 5%, plasma (EDTA) 5%, plasma (heparin) 10%, and saliva 2%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean TIMP-1 concentration was determined to be 95.9 ng/mL in serum, 74 ng/mL in plasma (citrate), 68 ng/mL in plasma (EDTA), 56 ng/mL in plasma (heparin), and 179.4 ng/mL in saliva.

Sandwich ELISA - Human TIMP-1 ELISA Kit, Chemiluminescent (AB325730)
  • sELISA

Lab

Sandwich ELISA - Human TIMP-1 ELISA Kit, Chemiluminescent (AB325730)

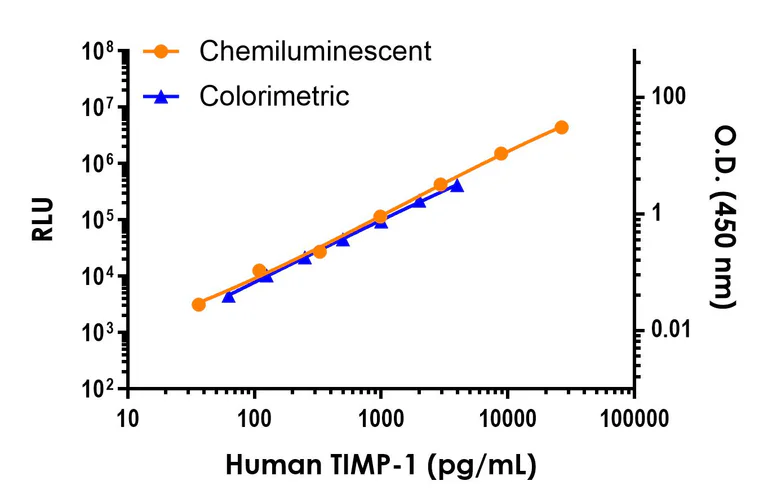

Standard curve comparison between the Chemiluminescent Human TIMP-1 SimpleStep ELISA and colorimetric Human TIMP-1 SimpleStep ELISA (ab187394) in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human TIMP-1 ELISA Kit, Chemiluminescent (AB325730)
  • sELISA

Lab

Sandwich ELISA - Human TIMP-1 ELISA Kit, Chemiluminescent (AB325730)

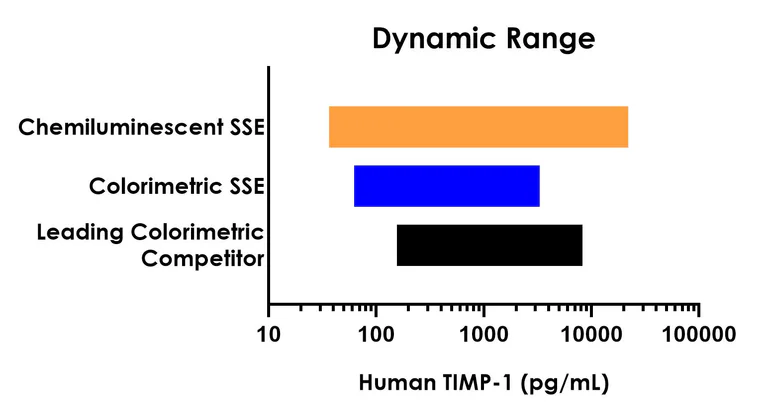

Dynamic range comparison between the Chemiluminescent Human TIMP-1 SimpleStep ELISA, colorimetric Human TIMP-1 SimpleStep ELISA (ab187394), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased dynamic range.

Sandwich ELISA - Human TIMP-1 ELISA Kit, Chemiluminescent (AB325730)
  • sELISA

Lab

Sandwich ELISA - Human TIMP-1 ELISA Kit, Chemiluminescent (AB325730)

Serum of ten individual healthy human donors was measured in duplicate. Interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). The mean TIMP-1 concentration was determined to be 92.6 ng/mL with a range of 66.5 – 128.7 ng/mL.

Sandwich ELISA - Human TIMP-1 ELISA Kit, Chemiluminescent (AB325730)
  • sELISA

Lab

Sandwich ELISA - Human TIMP-1 ELISA Kit, Chemiluminescent (AB325730)

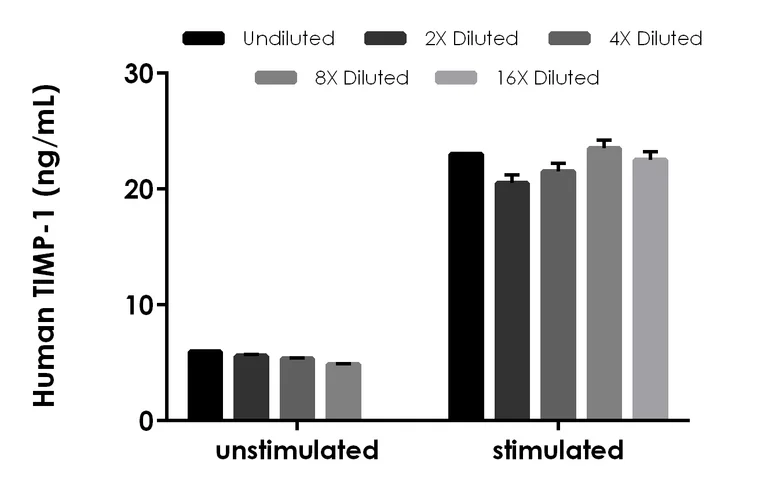

Interpolated concentrations of native TIMP-1 in human cell culture supernatant samples. The concentrations of TIMP-1 were measured in duplicates, interpolated from the TIMP-1 standard curves and corrected for sample dilution. Undiluted samples are as follows : unstimulated PBMC cell culture supernatant 20% and PHA-M stimulated PBMC cell culture supernatant 20%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean TIMP-1 concentration was determined to be 5 ng/mL in unstimulated PBMC cell culture supernatant, 22 ng/mL in stimulated PBMC cell culture supernatant, and undetectable in media.

Key facts

Detection method

Luminescent

Sample types

Serum, Citrate plasma, EDTA Plasma, Heparin Plasma, Cell culture supernatant, Saliva

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 28.36 pg/mL

Range

36.5 - 26600 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Human TIMP-1 ELISA Kit, Chemiluminescent (ab325730) is a rapid single-wash sandwich 55 min ELISA to measure Human TIMP-1 in Serum, Citrate Plasma, EDTA Plasma, Heparin Plasma, Cell Culture Supernatant, Saliva with a sensitivity of 28.36 pg/mL.

How the assay works

Human TIMP-1 ELISA Kit, Chemiluminescent (ab325730) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colormetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Human TIMP-1 (ab325730) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-TIMP1 antibody [EPR21887-129] - BSA and Azide free (Capture) ab244629
- Anti-TIMP1 antibody [EPR21887-34] - BSA and Azide free (Detector) ab244890
style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 4.4" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 0.6" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "89 - 90 %", "average": "= 89" }, { "sample": "Citrate plasma", "range": "95 - 99 %", "average": "= 97" }, { "sample": "EDTA Plasma", "range": "86 - 91 %", "average": "= 89" }, { "sample": "Heparin Plasma", "range": "94 - 98 %", "average": "= 95" }, { "sample": "Cell culture supernatant", "range": "86 - 92 %", "average": "= 89" }, { "sample": "Saliva", "range": "84 - 87 %", "average": "= 84" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab325730-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB325730-CMP09", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB325730-CMP07", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB325730-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB325730-CMP10", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB325730-CMP08", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB325730-CMP05", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB325730-CMP04", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human TIMP-1 Lyophilized Recombinant Protein", "number":"AB325730-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human TIMP-1 Detector Antibody", "number":"AB325730-CMP02", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human TIMP-1 Capture Antibody", "number":"AB325730-CMP01", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Metalloproteinase inhibitor that functions by forming one to one complexes with target metalloproteinases, such as collagenases, and irreversibly inactivates them by binding to their catalytic zinc cofactor. Acts on MMP1, MMP2, MMP3, MMP7, MMP8, MMP9, MMP10, MMP11, MMP12, MMP13 and MMP16. Does not act on MMP14. Also functions as a growth factor that regulates cell differentiation, migration and cell death and activates cellular signaling cascades via CD63 and ITGB1. Plays a role in integrin signaling. Mediates erythropoiesis in vitro; but, unlike IL3, it is species-specific, stimulating the growth and differentiation of only human and murine erythroid progenitors.
See full target information TIMP1
style
left-column
style
left-column
websiteProtocolBooklet
en
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
