AB288924

Human TLR3 ELISA Kit

Recombinant
SimpleStep
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Human TLR3 ELISA Kit is a single-wash 90-min Simplestep used to quantify Human TLR3 with a sensitivity of 8.547 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

CD283, Toll-like receptor 3, TLR3

3 Images

Sandwich ELISA - Human TLR3 ELISA Kit (AB288924)

sELISA

Supplier Data

Sandwich ELISA - Human TLR3 ELISA Kit (AB288924)

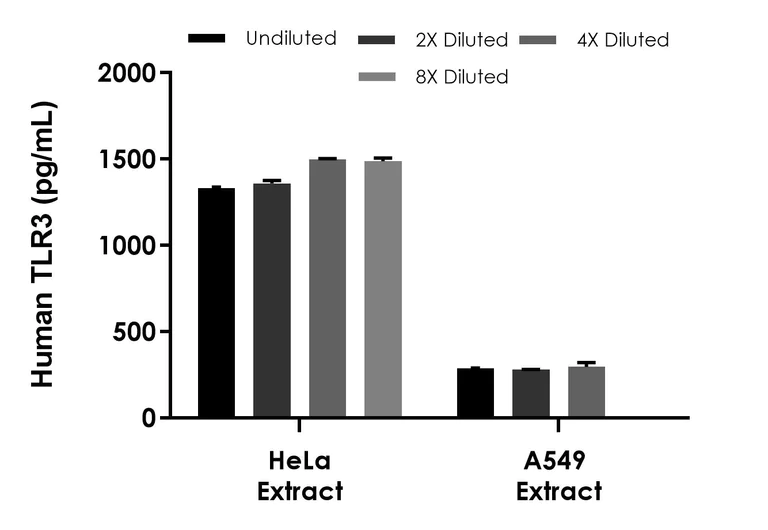

Interpolated concentrations of human TLR3 in HeLa and A549 cell extracts.

Interpolated concentration of native TLR3 was measured in duplicate at different sample concentrations. Undiluted samples are 1000 μg/mL HeLa cell extract and A549 cell extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

sELISA

Supplier Data

Sandwich ELISA - Human TLR3 ELISA Kit (AB288924)

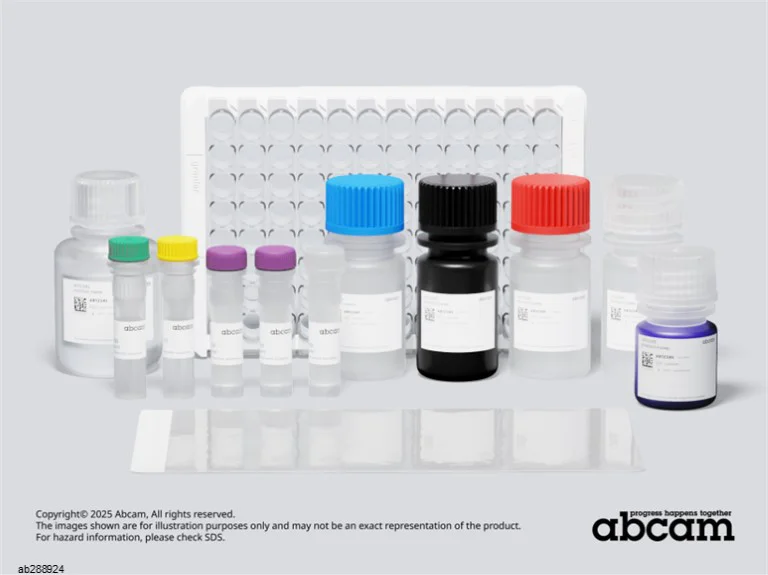

Representative image of Human TLR3 ELISA Kit (ab288924)

Components shown from left to right :

- 10X Wash Buffer PT (ab206977)

- 10X Human TLR3 ELISA Kit Capture Antibody

- 10X Human TLR3 Detector Antibody

- 10X Human TLR3 ELISA Kit Lyophilised Purified Protein (2 vials)

- Human TLR3 ELISA Kit 50X Cell Extraction Enhancer Solution (ab193971)

- Sample diluent NS

- TMB solution

- Stop Solution

- 5X Cell Extraction Buffer PTR (ab193970)

- Antibody Diluent 4BI

SimpleStep Pre-Coated 96-Well Microplate (ab206978) - shown behind bottles / vials.

Plate Seals - shown underneath bottles / vials.

Note : The vial labels shown in this image use generic names for illustrative purposes only and may not exactly match the specific component names included in the ELISA kit.

Note : Colors of solutions in image may not precisely match the shade of colors in the actual kit

sELISA

Supplier Data

Sandwich ELISA - Human TLR3 ELISA Kit (AB288924)

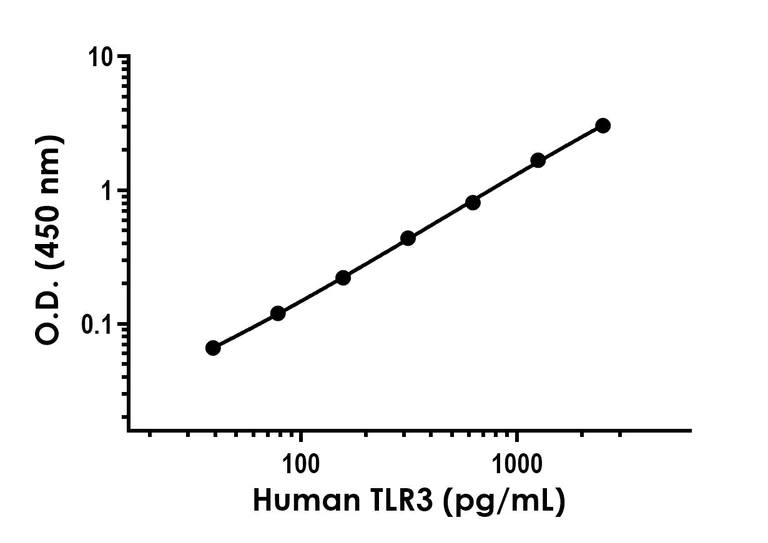

Example of human TLR3 standard curve in 1X Cell Extraction Buffer PTR.

Example of human TLR3 standard curve. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Cell culture extracts, Cell Lysate

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 8.547 pg/mL

Range

39.063 - 2500 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

Human TLR3 ELISA Kit (ab288924) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Human TLR3 in cell extract samples. It uses our proprietary SimpleStep ELISA® technology. Quantitate Human TLR3 with 8.547 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style

left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "11.3" }, { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "9" } ]

style

left-column

Recovery

[ { "sample": "Cell Lysate", "range": "80 - 100 %", "average": "= 88" } ]

style

left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab288924-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB288924-CMP04", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB288924-CMP05", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB288924-CMP12", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB288924-CMP13", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB288924-CMP14", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB288924-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB288924-CMP11", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB288924-CMP09", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human TLR3 Capture Antibody", "number":"AB288924-CMP02", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human TLR3 Lyophilized Recombinant Protein", "number":"AB288924-CMP10", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB288924-CMP08", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human TLR3 Detector Antibody", "number":"AB288924-CMP03", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

TLR3 also known as Toll-like receptor 3 is a protein that plays an important role in immune response mechanisms. With a molecular mass of around 104 kDa TLR3 is part of the Toll-like receptor family and expresses mostly in immune cells including dendritic cells and macrophages. It locates mainly on the endosomal membrane where it recognizes double-stranded RNA (dsRNA) which is often a sign of viral infection. TLR3 initiates signaling cascades that lead to the activation of important immune transcription factors.

Biological function summary

TLR3 acts as a sensor for viral and endogenous dsRNA. This receptor forms part of the innate immune system serving as a first line of defense against microbial infections. Upon encountering its ligand TLR3 undergoes conformational changes which allow interaction with the adaptor protein TRIF (TIR-domain-containing adapter-inducing interferon-β). This interaction triggers a downstream signaling cascade that leads to the production of type I interferons and pro-inflammatory cytokines which are essential for mounting an effective antiviral response.

Pathways

TLR3 engages in important signaling cascades like the NF-kB and IRF3 pathways. These pathways are activated by the TRIF-dependent pathway which is unique among the Toll-like receptors. TLR3 influences the expression of genes involved in the inflammatory response and apoptosis. The interactions of TLR3 with other proteins such as MyD88 and IRAK1 are indirect as TLR3 does not depend on the usual MyD88-dependent pathway. This specificity makes TLR3 a critical component in pathogen recognition and response strategies within the immune system.

TLR3 has connections with several conditions primarily viral infections and autoimmune disorders like systemic lupus erythematosus (SLE). Mutations or dysregulation of TLR3 may lead to altered immune responses contributing to the pathogenesis of these diseases. TLR3's association with proteins like TRIF and IRF3 is significant in understanding its role in these conditions. Ongoing research investigates TLR3's potential as a therapeutic target to modulate immune responses in disease states.

style

left-column

Product protocols

style

left-column

Target data

Key component of innate and adaptive immunity. TLRs (Toll-like receptors) control host immune response against pathogens through recognition of molecular patterns specific to microorganisms. TLR3 is a nucleotide-sensing TLR which is activated by double-stranded RNA, a sign of viral infection. Acts via the adapter TRIF/TICAM1, leading to NF-kappa-B activation, IRF3 nuclear translocation, cytokine secretion and the inflammatory response.

See full target information TLR3

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
