AB326746

Human TMS1/ASC ELISA Kit, Chemiluminescent

Be the first to review this product! Submit a review

|

(0 Publication)

Human TMS1/ASC ELISA Kit, Chemiluminescent is a 55-min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Human TMS1/ASC with higher sensitivity and broader measuring range.

- Single 30 min incubation and single-wash step for results in less than an hour.
- Chemiluminescent detection allows a broad dynamic range: 1.92 - 4200 pg/ml with a sensitivity of 0.34 pg/mL.
- Design your own immunoassay: we also offer the conjugation-ready antibody pair.
- Patent pending

View Alternative Names

ASC, CARD5, TMS1, PYCARD, Apoptosis-associated speck-like protein containing a CARD, hASC, Caspase recruitment domain-containing protein 5, PYD and CARD domain-containing protein, Target of methylation-induced silencing 1

3 Images
Sandwich ELISA - Human TMS1/ASC ELISA Kit, Chemiluminescent (AB326746)
  • sELISA

Lab

Sandwich ELISA - Human TMS1/ASC ELISA Kit, Chemiluminescent (AB326746)

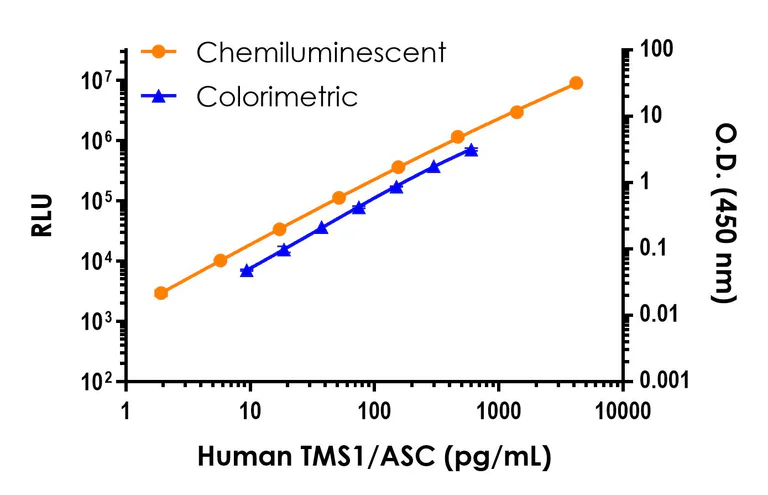

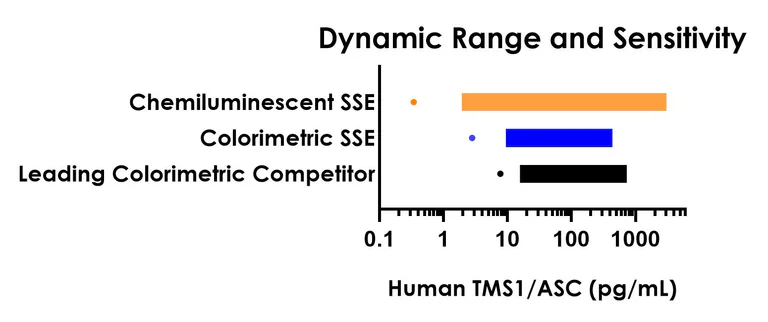

Dynamic range comparison between the Chemiluminescent Human TMS1/ASC SimpleStep ELISA, colorimetric Human TMS1/ASC SimpleStep ELISA (ab304937), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and increased dynamic range.

Sandwich ELISA - Human TMS1/ASC ELISA Kit, Chemiluminescent (AB326746)
  • sELISA

Lab

Sandwich ELISA - Human TMS1/ASC ELISA Kit, Chemiluminescent (AB326746)

Dynamic range comparison between the Chemiluminescent Human TMS1/ASC SimpleStep ELISA, colorimetric Human TMS1/ASC SimpleStep ELISA (ab304937), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and increased dynamic range.

Sandwich ELISA - Human TMS1/ASC ELISA Kit, Chemiluminescent (AB326746)
  • sELISA

Supplier Data

Sandwich ELISA - Human TMS1/ASC ELISA Kit, Chemiluminescent (AB326746)

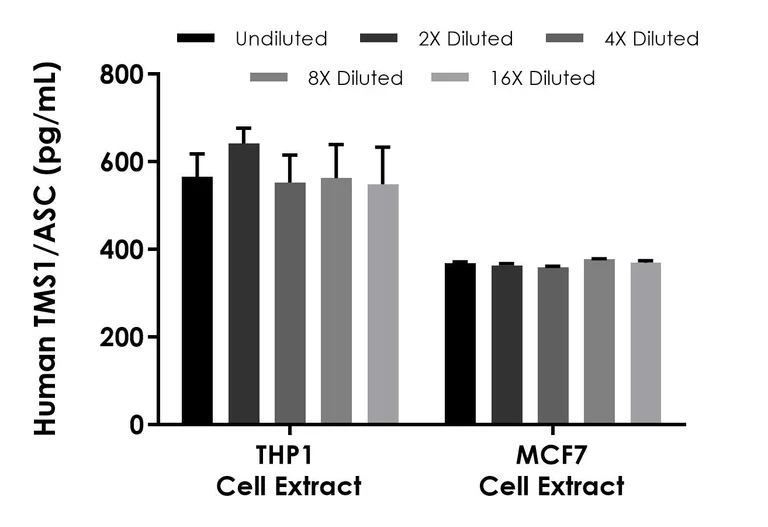

Interpolated concentrations of human TMS1/ASC in THP-1 cell extract and MCF7 cell extract.

Interpolated concentration of native TMS1/ASC was measured in duplicate at different sample concentrations. Undiluted samples are as follows : THP-1 cell extract 10 µg/mL, and MCF7 cell extract 5 µg/mL. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

Key facts

Detection method

Luminescent

Sample types

Cell Lysate

Reacts with

Human

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 0.34 pg/mL

Range

1.92 - 4200 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Human TMS1/ASC ELISA Kit, Chemiluminescent (ab326746) is a rapid single-wash sandwich 55-min ELISA to measure Human TMS1/ASC in Cell Lysate with a sensitivity of 0.34 pg/mL.

How the assay works

Human TMS1/ASC ELISA Kit, Chemiluminescent (ab326746) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colorimetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Human TMS1/ASC (ab326746) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-TMS1/ASC antibody [EPR23978-147] - BSA and Aside free (Capture) ab309207
- Anti-TMS1/ASC antibody [EPR23978-135] - BSA and Aside free (Detector) ab309208

Precision

[ { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 9.3" }, { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 2.84" } ]

Recovery

[ { "sample": "Cell Lysate", "range": "98 - 108 %", "average": "= 108" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab326746-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB326746-CMP10", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB326746-CMP09", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB326746-CMP08", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human TMS1/ASC Lyophilized Recombinant Protein", "number":"AB326746-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human TMS1/ASC Detector Antibody", "number":"AB326746-CMP02", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB326746-CMP07", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB326746-CMP06", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB326746-CMP05", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5BR", "number":"AB326746-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human TMS1/ASC Capture Antibody", "number":"AB326746-CMP01", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Product protocols

Target data

Functions as a key mediator in apoptosis and inflammation (PubMed : 11103777, PubMed : 12646168, PubMed : 15030775, PubMed : 17349957, PubMed : 17599095, PubMed : 19158675, PubMed : 19158676, PubMed : 19234215, PubMed : 19494289, PubMed : 21487011, PubMed : 24630722, PubMed : 25847972, PubMed : 30674671, PubMed : 34678144, PubMed : 36050480). Promotes caspase-mediated apoptosis involving predominantly caspase-8 and also caspase-9 in a probable cell type-specific manner (PubMed : 11103777, PubMed : 12646168). Involved in activation of the mitochondrial apoptotic pathway, promotes caspase-8-dependent proteolytic maturation of BID independently of FADD in certain cell types and also mediates mitochondrial translocation of BAX and activates BAX-dependent apoptosis coupled to activation of caspase-9, -2 and -3 (PubMed : 14730312, PubMed : 16964285). Involved in innate immune response by acting as an integral adapter in the assembly of various inflammasomes (NLRP1, NLRP2, NLRP3, NLRP6, AIM2 and probably IFI16) which recruit and activate caspase-1 leading to processing and secretion of pro-inflammatory cytokines (PubMed : 15030775, PubMed : 16982856, PubMed : 17349957, PubMed : 17599095, PubMed : 19158675, PubMed : 19158676, PubMed : 19234215, PubMed : 21487011, PubMed : 23530044, PubMed : 24630722, PubMed : 25847972, PubMed : 29440442, PubMed : 30674671, PubMed : 33980849, PubMed : 34678144, PubMed : 34706239). Caspase-1-dependent inflammation leads to macrophage pyroptosis, a form of cell death (PubMed : 24630722). The function as activating adapter in different types of inflammasomes is mediated by the pyrin and CARD domains and their homotypic interactions (PubMed : 14499617, PubMed : 19234215, PubMed : 24630722). Clustered PYCARD nucleates the formation of caspase-1 filaments through the interaction of their respective CARD domains, acting as a platform for of caspase-1 polymerization (PubMed : 24630722). In the NLRP1 and NLRC4 inflammasomes seems not be required but facilitates the processing of procaspase-1 (PubMed : 17349957). In cooperation with NOD2 involved in an inflammasome activated by bacterial muramyl dipeptide leading to caspase-1 activation (PubMed : 16964285). May be involved in RIGI-triggered pro-inflammatory responses and inflammasome activation (PubMed : 19915568). In collaboration with AIM2 which detects cytosolic double-stranded DNA may also be involved in a caspase-1-independent cell death that involves caspase-8 (PubMed : 19158675, PubMed : 19158676). In adaptive immunity may be involved in maturation of dendritic cells to stimulate T-cell immunity and in cytoskeletal rearrangements coupled to chemotaxis and antigen uptake may be involved in post-transcriptional regulation of the guanine nucleotide exchange factor DOCK2; the latter function is proposed to involve the nuclear form (PubMed : 22732093). Also involved in transcriptional activation of cytokines and chemokines independent of the inflammasome; this function may involve AP-1, NF-kappa-B, MAPK and caspase-8 signaling pathways (PubMed : 12486103, PubMed : 16585594). For regulation of NF-kappa-B activating and inhibiting functions have been reported (PubMed : 12486103). Modulates NF-kappa-B induction at the level of the IKK complex by inhibiting kinase activity of CHUK and IKBK (PubMed : 12486103, PubMed : 16585594). Proposed to compete with RIPK2 for association with CASP1 thereby down-regulating CASP1-mediated RIPK2-dependent NF-kappa-B activation and activating interleukin-1 beta processing (PubMed : 16585594). Modulates host resistance to DNA virus infection, probably by inducing the cleavage of and inactivating CGAS in presence of cytoplasmic double-stranded DNA (PubMed : 28314590).. Isoform 2. May have a regulating effect on the function as inflammasome adapter.. Isoform 3. Seems to inhibit inflammasome-mediated maturation of interleukin-1 beta.
See full target information PYCARD
