AB176646

JNK 1/2 ELISA Kit

Be the first to review this product! Submit a review

|

(1 Publication)

JNK 1/2 ELISA Kit is a single-wash 90-min Simplestep used to quantify JNK 1/2 with a sensitivity of 0.1 ng/mL. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader

View Alternative Names

JNK2, PRKM9, SAPK1A, MAPK9, Mitogen-activated protein kinase 9, MAP kinase 9, MAPK 9, JNK-55, Stress-activated protein kinase 1a, Stress-activated protein kinase JNK2, c-Jun N-terminal kinase 2, SAPK1a

5 Images
Sandwich ELISA - JNK 1/2 ELISA Kit (AB176646)
  • sELISA

Supplier Data

Sandwich ELISA - JNK 1/2 ELISA Kit (AB176646)

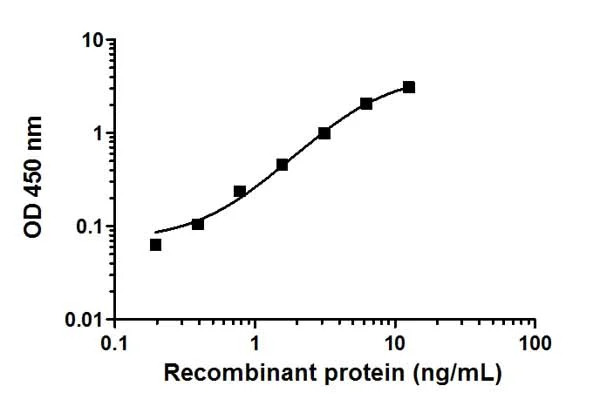

Typical recombinant protein standard curve.

Example of a typical JNK1/2 recombinant protein standard curve. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - JNK 1/2 ELISA Kit (AB176646)
  • sELISA

Supplier Data

Sandwich ELISA - JNK 1/2 ELISA Kit (AB176646)

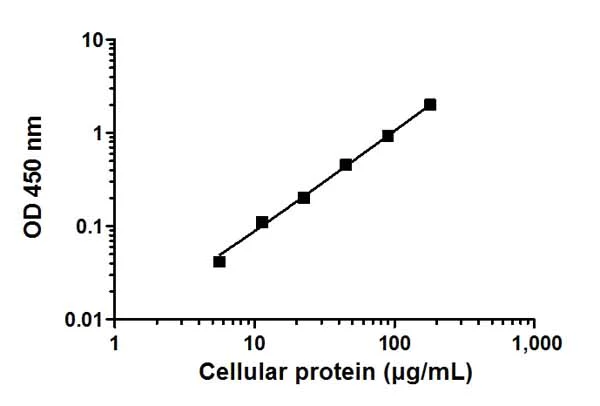

Typical cell lysate dilution series.

Example of a typical JNK1/2 cell lysate dilution series. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - JNK 1/2 ELISA Kit (AB176646)
  • sELISA

Supplier Data

Sandwich ELISA - JNK 1/2 ELISA Kit (AB176646)

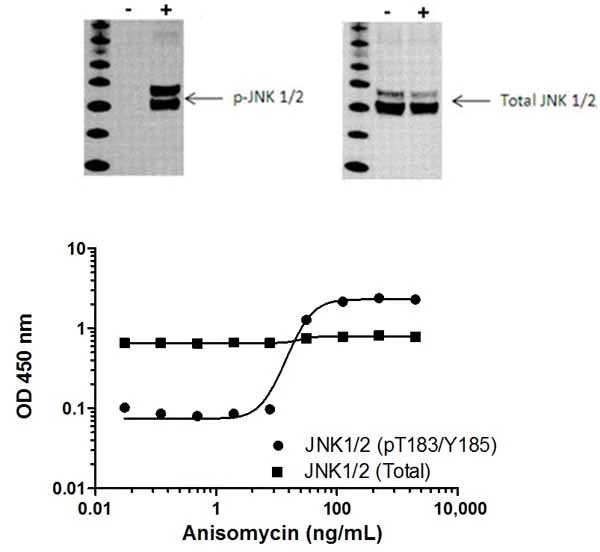

JNK 1/2 phosphorylation in response to anisomycin treatment.

Induction of JNK1/2 (pT183/Y185) phosphorylation in HeLa cells in response to anisomycin treatment. HeLa cells were cultured in 96-well tissue culture plates and treated (30 min) with a dose-range of anisomycin before cell lysis. Data from quadruplicate measurements of JNK1/2 (pT183/Y185) are plotted and compared against Total JNK1/2 protein levels. Comparative JNK1/2 (pT183/Y185) and JNK1/2 (Total) data also shown by Western Blot.

Sandwich ELISA - JNK 1/2 ELISA Kit (AB176646)
  • sELISA

Supplier Data

Sandwich ELISA - JNK 1/2 ELISA Kit (AB176646)

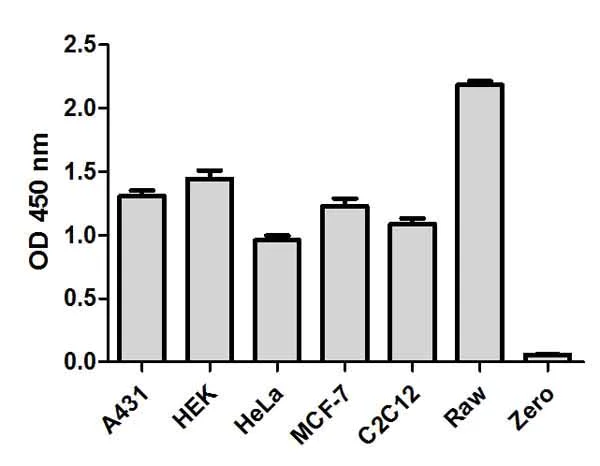

Comparison of JNK 1/2 expression in different cell lines.

Cell line analysis for Total JNK1/2 from 200 μg/mL preparations of cell extracts. Data from triplicate measurements (mean +/- SD) are plotted and compared to 1X Cell Extraction Buffer PTR (zero).

Sandwich ELISA - JNK 1/2 ELISA Kit (AB176646)
  • sELISA

Supplier Data

Sandwich ELISA - JNK 1/2 ELISA Kit (AB176646)

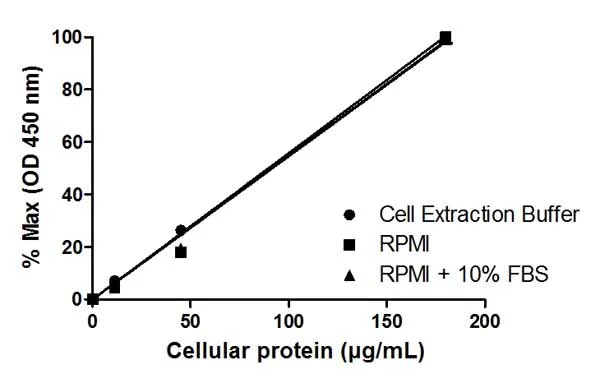

Linearity of dilution in representative sample matrices. Cellular lysates were prepared at 3 concentrations in common media containing 1X Cell Extraction Buffer PTR. Data from duplicate measurements of JNK1/2 are normalized and plotted.

Key facts

Detection method

Colorimetric

Sample types

Tissue Homogenate, Cell Lysate

Reacts with

Mouse, Human

Results type

Semi-Quantitative

Sensitivity

= 0.1 ng/mL

Range

0.2 - 20 ng/mL

Assay time

1h 30m

Assay Platform

Microplate

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "ELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Abcam's JNK1/2 in vitro SimpleStep ELISA™ (Enzyme-Linked Immunosorbent Assay) kit is designed for the quantitative measurement of JNK1/2 protein in Human and mouse cells.

The SimpleStep ELISA™ employs an affinity tag labeled capture antibody and a reporter conjugated detector antibody which immunocapture the sample analyte in solution. This entire complex (capture antibody/analyte/detector antibody) is in turn immobilized via immunoaffinity of an anti-tag antibody coating the well. To perform the assay, samples or standards are added to the wells, followed by the antibody mix. After incubation, the wells are washed to remove unbound material. TMB substrate is added and during incubation is catalyzed by HRP, generating blue coloration. This reaction is then stopped by addition of Stop Solution completing any color change from blue to yellow. Signal is generated proportionally to the amount of bound analyte and the intensity is measured at 450 nm. Optionally, instead of the endpoint reading, development of TMB can be recorded kinetically at 600 nm.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Precision

[ { "reproducibilityType": "Inter", "sample": "HEK-293 Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.3" }, { "reproducibilityType": "Intra", "sample": "HEK-293 Extract", "replicates": 6, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.8" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab176646-1x96Tests", "assetComponentDetails": [ { "size":"1 x 15 mL", "name":"10X Wash Buffer PT", "number":"AB176646-CMP02", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution", "number":"AB176646-CMP03", "productcode":"" }, { "size":"1 x 3 mL", "name":"JNK1/2 (Total) Capture Antibody", "number":"AB176646-CMP04", "productcode":"" }, { "size":"1 x 12 mL", "name":"5X Cell Extraction Buffer PTR", "number":"AB176646-CMP10", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB176646-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB176646-CMP01", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Substrate", "number":"AB176646-CMP09", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB176646-CMP08", "productcode":"" }, { "size":"1 x 3 mL", "name":"JNK1/2 (Total) Detector Antibody", "number":"AB176646-CMP05", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Lyophilized JNK1/2 Control Lysate", "number":"AB176646-CMP06", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

JNK 1/2 also known as c-Jun N-terminal kinases represents a group of kinases with a molecular mass around 46-55 kDa. These kinases are ubiquitously expressed across various tissue types and play an essential role in cellular signaling. JNK 1/2 phosphorylates transcription factors such as c-Jun which modulates gene expression. The target is essential for transducing extracellular signals to the nucleus influencing various physiological processes.
Biological function summary

JNK 1/2 takes part in important cellular activities including apoptosis differentiation and inflammation. The kinases form part of the MAPK (mitogen-activated protein kinase) signaling pathway and do not function alone but rather as components of larger signaling complexes. JNK 1/2 interacts with scaffold proteins like JNK-interacting protein 1 (JIP1) which helps in specifying their signaling outcomes. This interaction impacts numerous biological functions showcasing the versatility of JNK 1/2 in cellular dynamics.

Pathways

JNK 1/2 integrates into the MAPK and stress-activated protein kinase pathways. These pathways mediate responses to stress stimuli such as cytokines ultraviolet irradiation and heat shock. JNK 1/2 relates to other proteins including the upstream kinases MKK4 and MKK7 which phosphorylate and activate JNK 1/2. This signaling module ultimately affects downstream targets like transcription factor c-Jun contributing to cellular responses.

JNK 1/2 features prominently in conditions such as cancer and diabetes. In cancer dysregulation of JNK pathways can lead to unchecked cell proliferation and survival. The interplay between JNK 1/2 and proteins like tumor suppressor p53 highlights its role in controlling cell death. In diabetes JNK 1/2 influences insulin resistance linking its activity to metabolic pathways and proteins like insulin receptor substrates. Dysregulated JNK activity becomes a critical factor in the pathophysiology of these diseases.

Product protocols

Target data

Serine/threonine-protein kinase involved in various processes such as cell proliferation, differentiation, migration, transformation and programmed cell death (PubMed : 10376527, PubMed : 15805466, PubMed : 17525747, PubMed : 19675674, PubMed : 20595622, PubMed : 21364637, PubMed : 22441692, PubMed : 34048572). Extracellular stimuli such as pro-inflammatory cytokines or physical stress stimulate the stress-activated protein kinase/c-Jun N-terminal kinase (SAP/JNK) signaling pathway. In this cascade, two dual specificity kinases MAP2K4/MKK4 and MAP2K7/MKK7 phosphorylate and activate MAPK9/JNK2 (PubMed : 10376527, PubMed : 15805466, PubMed : 17525747, PubMed : 19675674, PubMed : 20595622, PubMed : 21364637, PubMed : 22441692, PubMed : 34048572). In turn, MAPK9/JNK2 phosphorylates a number of transcription factors, primarily components of AP-1 such as JUN and ATF2 and thus regulates AP-1 transcriptional activity (PubMed : 10376527). In response to oxidative or ribotoxic stresses, inhibits rRNA synthesis by phosphorylating and inactivating the RNA polymerase 1-specific transcription initiation factor RRN3 (PubMed : 15805466). Promotes stressed cell apoptosis by phosphorylating key regulatory factors including TP53 and YAP1 (PubMed : 17525747, PubMed : 21364637). In T-cells, MAPK8 and MAPK9 are required for polarized differentiation of T-helper cells into Th1 cells (PubMed : 19290929). Upon T-cell receptor (TCR) stimulation, is activated by CARMA1, BCL10, MAP2K7 and MAP3K7/TAK1 to regulate JUN protein levels (PubMed : 19290929). Plays an important role in the osmotic stress-induced epithelial tight-junctions disruption (PubMed : 20595622). When activated, promotes beta-catenin/CTNNB1 degradation and inhibits the canonical Wnt signaling pathway (PubMed : 19675674). Also participates in neurite growth in spiral ganglion neurons (By similarity). Phosphorylates the CLOCK-BMAL1 heterodimer and plays a role in the regulation of the circadian clock (PubMed : 22441692). Phosphorylates POU5F1, which results in the inhibition of POU5F1's transcriptional activity and enhances its proteasomal degradation (By similarity). Phosphorylates ALKBH5 in response to reactive oxygen species (ROS), promoting ALKBH5 sumoylation and inactivation (PubMed : 34048572).. MAPK9 isoforms display different binding patterns : alpha-1 and alpha-2 preferentially bind to JUN, whereas beta-1 and beta-2 bind to ATF2. However, there is no correlation between binding and phosphorylation, which is achieved at about the same efficiency by all isoforms. JUNB is not a substrate for JNK2 alpha-2, and JUND binds only weakly to it.
See full target information MAPK9

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

The Journal of nutritional biochemistry 57:26-34 PubMed29655028

2018

Modulation of human osteoclastogenesis and osteoblastogenesis by lycopene.

Applications

Unspecified application

Species

Unspecified reactive species

João Costa-Rodrigues,Maria Helena Fernandes,Olívia Pinho,Pedro Ribeiro Rocha Monteiro
