AB279408

Monkey PD-L1 [28-8] ELISA Kit

Be the first to review this product! Submit a review

|

(0 Publication)

Monkey PD-L1 [28-8] ELISA Kit is a single-wash 90-min Simplestep used to quantify Monkey PD-L1 [28-8] with a sensitivity of 15.85 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

CD274, B7h1, Pdcd1l1, Pdcd1lg1, Pdl1, Cd274, Programmed cell death 1 ligand 1, PD-L1, PDCD1 ligand 1, Programmed death ligand 1, B7 homolog 1, B7-H1

3 Images
Sandwich ELISA - Monkey PD-L1 [28-8] ELISA Kit (AB279408)
  • sELISA

Supplier Data

Sandwich ELISA - Monkey PD-L1 [28-8] ELISA Kit (AB279408)

The PD-L1 standard curve was prepared as described in Section 10. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Monkey PD-L1 [28-8] ELISA Kit (AB279408)
  • sELISA

Supplier Data

Sandwich ELISA - Monkey PD-L1 [28-8] ELISA Kit (AB279408)

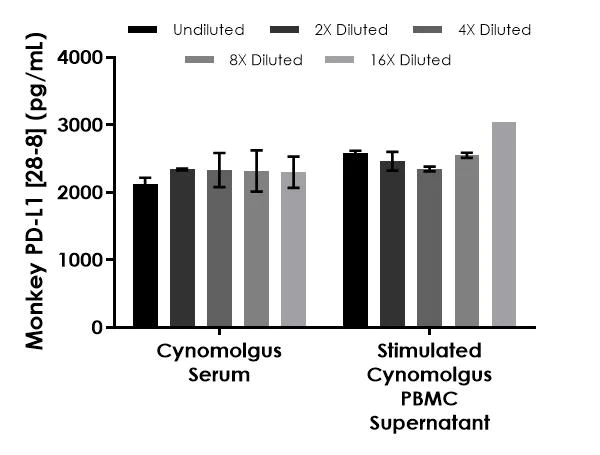

Interpolated concentrations of native PD-L1 in cynomolgus serum and stimulated cynomolgus PBMC cell culture supernatant samples.

PBMC cell culture supernatant samples were stimulated with 50 ng/ml PMA and 1 μg/ml ionomycin for 24 hours. The concentrations of PD-L1 were measured in duplicates, interpolated from the PD-L1 standard curves and corrected for sample dilution. Undiluted samples are as follows : cynomolgus serum 50% and stimulated cynomolgus PBMC cell culture supernatant 50%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean PD-L1 concentration was determined to be 2,281.25 pg/ml in cynomolgus serum and 2,546.31 pg/ml in stimulated cynomolgus PBMC cell culture supernatant.

Sandwich ELISA - Monkey PD-L1 [28-8] ELISA Kit (AB279408)
  • sELISA

Supplier Data

Sandwich ELISA - Monkey PD-L1 [28-8] ELISA Kit (AB279408)

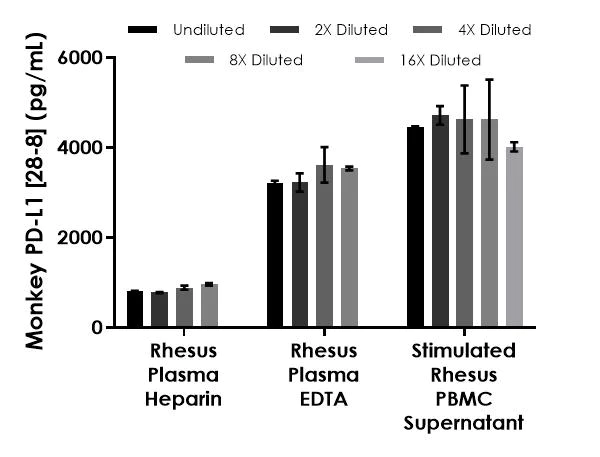

Interpolated concentrations of native PD-L1 in rhesus plasma (heparin), rhesus plasma (EDTA), and stimulated rhesus PBMC cell culture supernatant samples.

PBMC cell culture supernatant samples were stimulated with 50 ng/ml PMA and 1 μg/ml ionomycin for 24 hours. The concentrations of PD-L1 were measured in duplicates, interpolated from the PD-L1 standard curves and corrected for sample dilution. Undiluted samples are as follows : rhesus plasma (heparin) 50%, rhesus plasma (EDTA) 25%, and stimulated rhesus PBMC cell culture supernatant 25%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean PD-L1 concentration was determined to be 860.85 pg/ml in rhesus plasma (heparin), 3,398.46 pg/ml in rhesus plasma (EDTA), and 4,486.45 pg/ml in stimulated rhesus PBMC cell culture supernatant.

Key facts

Detection method

Colorimetric

Sample types

Heparin Plasma, Cell culture supernatant, Serum, EDTA Plasma

Reacts with

Monkey

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 15.85 pg/mL

Range

32.81 - 2100 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Complementary Products

Assay Kits

AB252360

Human PD-1 ELISA Kit

Recombinant|SimpleStep

ELISA - Human PD-1 ELISA Kit (AB252360)

  • 0
  • 0
Primary Antibodies

AB205921

Anti-PD-L1 antibody [28-8]

BOND RX™ Validated|20ul selling size|Recombinant|KO Validated|Advanced Validation|RabMAb

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PD-L1 antibody [28-8] (AB205921)

  • 4
  • 15
Assay Kits

AB231928

Human PD-L2 ELISA Kit

Recombinant|SimpleStep

Sandwich ELISA - Human PD-L2 ELISA Kit (AB231928)

  • 0
  • 0
Assay Kits

AB264616

Human CTLA-4 ELISA Kit

Recombinant|SimpleStep

Sandwich ELISA - Human CTLA-4 ELISA Kit (AB264616)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Monkey PD-L1 [28-8] ELISA kit (ab279408) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Monkey PD-L1 [28-8] protein in monkey serum, plasma and cell culture supernatant samples. It uses our proprietary SimpleStep ELISA® technology. Quantitate Monkey PD-L1 [28-8] with 15.85 pg/mL sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

PD-L1 (also known as CD274 or B7-H1) is a membrane bound glycoprotein involved in regulation of the immune system. PD-L1 is expressed on a variety of inflammatory-activated cells as well as some carcinomas and in melanoma. PD-L1 binds to PD-1 and CD80, where it can suppress T cell activation and proliferation as well as induce apoptosis. Levels of PD-L1 are increased in the plasma of cancer patients as well as in cerebrospinal fluid of gliomas. PD-L1 can bind PD-1 in order to regulate T cell apoptosis.

style
left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "9.1" }, { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "6.2" } ]
style
left-column

Recovery

[ { "sample": "Cell culture supernatant", "range": "104 - 115 %", "average": "= 111" }, { "sample": "Serum", "range": "88 - 116 %", "average": "= 103" }, { "sample": "EDTA Plasma", "range": "97 - 118 %", "average": "= 109" }, { "sample": "Heparin Plasma", "range": "84 - 94 %", "average": "= 89" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab279408-1x96Tests", "assetComponentDetails": [ { "size":"1 x 600 µL", "name":"10X Monkey PD-L1 [28-8] ELISA Kit Capture Antibody", "number":"AB279408-CMP07", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB279408-CMP10", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPI2", "number":"AB279408-CMP12", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB279408-CMP11", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Monkey PD-L1 [28-8] ELISA Kit Lyophilized Recombinant Protein", "number":"AB279408-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB279408-CMP09", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Monkey PD-L1 [28-8] ELISA Kit Detector Antibody", "number":"AB279408-CMP08", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB279408-CMP03", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB279408-CMP04", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB279408-CMP05", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

PD-L1 also known as Programmed Death-Ligand 1 or CD274 is a protein involved in immune modulation. Mechanically PD-L1 interacts with its receptors particularly PD-1 to regulate cellular immune responses. This transmembrane protein has a calculated molecular weight of approximately 33 kDa. PD-L1 is expressed on various cell types including tumor cells and immune cells such as dendritic cells macrophages and B cells. Its expression is often upregulated in response to inflammatory cytokines.
Biological function summary

PD-L1 plays a central role in immune evasion mechanisms utilized by tumors. It is not part of a larger protein complex but directly interacts with PD-1 and CD80. When PD-L1 binds to PD-1 it sends inhibitory signals leading to decreased T cell activation and proliferation allowing cancer cells to avoid immune destruction. PD-L1 expression provides a mechanism for tumors to suppress immune surveillance facilitating tumor progression.

Pathways

PD-L1 is integral to the immune checkpoint pathway which is an important regulator of immune response. The interaction between PD-L1 and PD-1 provides a mechanism for immune tolerance which is part of the broader adaptive immune system pathway. PD-L1 is related to other immune checkpoint proteins such as CTLA-4 in its function to limit autoreactivity and promote immune homeostasis.

PD-L1 is most associated with cancer particularly in tumors such as melanoma and non-small cell lung cancer. PD-L1 expression on tumor cells often correlates with poor prognosis. PD-L1 directly interacts with PD-1 in these cancers a target for immunotherapies such as checkpoint inhibitors which aim to block this interaction and restore immune activity against tumors. PD-L1 involvement extends to autoimmune disorders where altered expression can impact tolerance and lead to immune-related tissue damage.
style
left-column

Product protocols

style
left-column

Target data

Plays a critical role in induction and maintenance of immune tolerance to self (PubMed : 11238124). As a ligand for the inhibitory receptor PDCD1/PD-1, modulates the activation threshold of T-cells and limits T-cell effector response (PubMed : 11238124). Through a yet unknown activating receptor, may costimulate T-cell subsets that predominantly produce interleukin-10 (IL10) (PubMed : 11015443, PubMed : 12719480).. The PDCD1-mediated inhibitory pathway is exploited by tumors to attenuate anti-tumor immunity and escape destruction by the immune system, thereby facilitating tumor survival (PubMed : 12218188, PubMed : 27281199). The interaction with PDCD1/PD-1 inhibits cytotoxic T lymphocytes (CTLs) effector function (PubMed : 12218188). The blockage of the PDCD1-mediated pathway results in the reversal of the exhausted T-cell phenotype and the normalization of the anti-tumor response, providing a rationale for cancer immunotherapy (PubMed : 12218188).
See full target information Cd274
style
left-column
style
left-column
websiteProtocolBooklet
en
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
