AB320047

Mouse ALCAM (CD166) ELISA Kit- Extracellular

Be the first to review this product! Submit a review

|

(0 Publication)

Mouse ALCAM (CD166) ELISA Kit- Extracellular is a single-wash 90-min Simplestep used to quantify Mouse ALCAM (CD166) with a sensitivity of 9.2 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders and 384-well plate for higher throughput

View Alternative Names

CD166, CD166 antigen, Activated leukocyte cell adhesion molecule, BEN, Protein DM-GRASP, Alcam

4 Images
Sandwich ELISA - Mouse ALCAM (CD166) ELISA Kit- Extracellular (AB320047)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse ALCAM (CD166) ELISA Kit- Extracellular (AB320047)

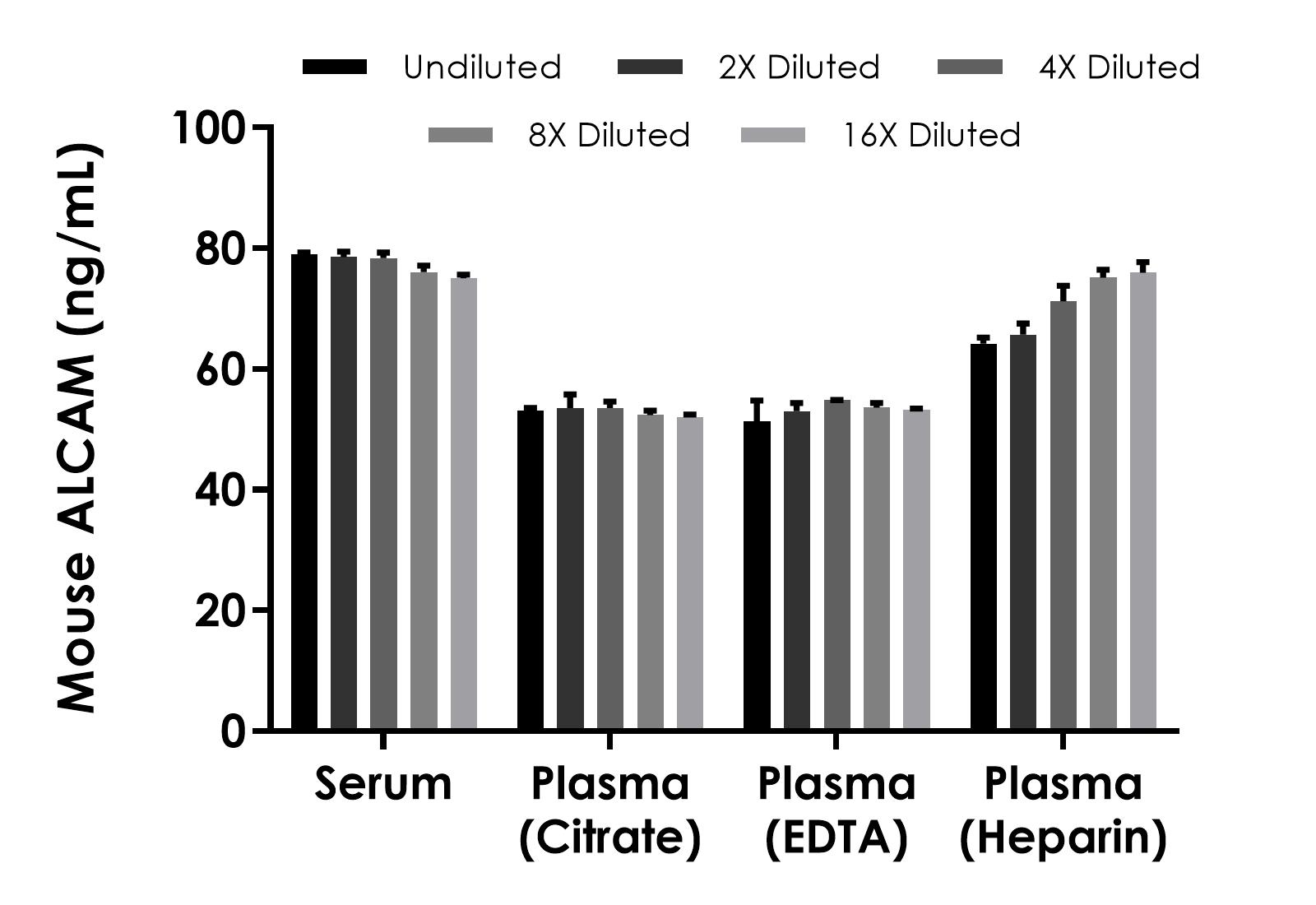

Interpolated concentration of native ALCAM was measured in duplicate at different sample concentrations. Undiluted samples are 1.5% mouse serum, plasma (citrate), plasma (EDTA), and plasma (heparin). The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Sandwich ELISA - Mouse ALCAM (CD166) ELISA Kit- Extracellular (AB320047)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse ALCAM (CD166) ELISA Kit- Extracellular (AB320047)

Interpolated concentration of native ALCAM was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 1% mouse serum.  The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Sandwich ELISA - Mouse ALCAM (CD166) ELISA Kit- Extracellular (AB320047)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse ALCAM (CD166) ELISA Kit- Extracellular (AB320047)

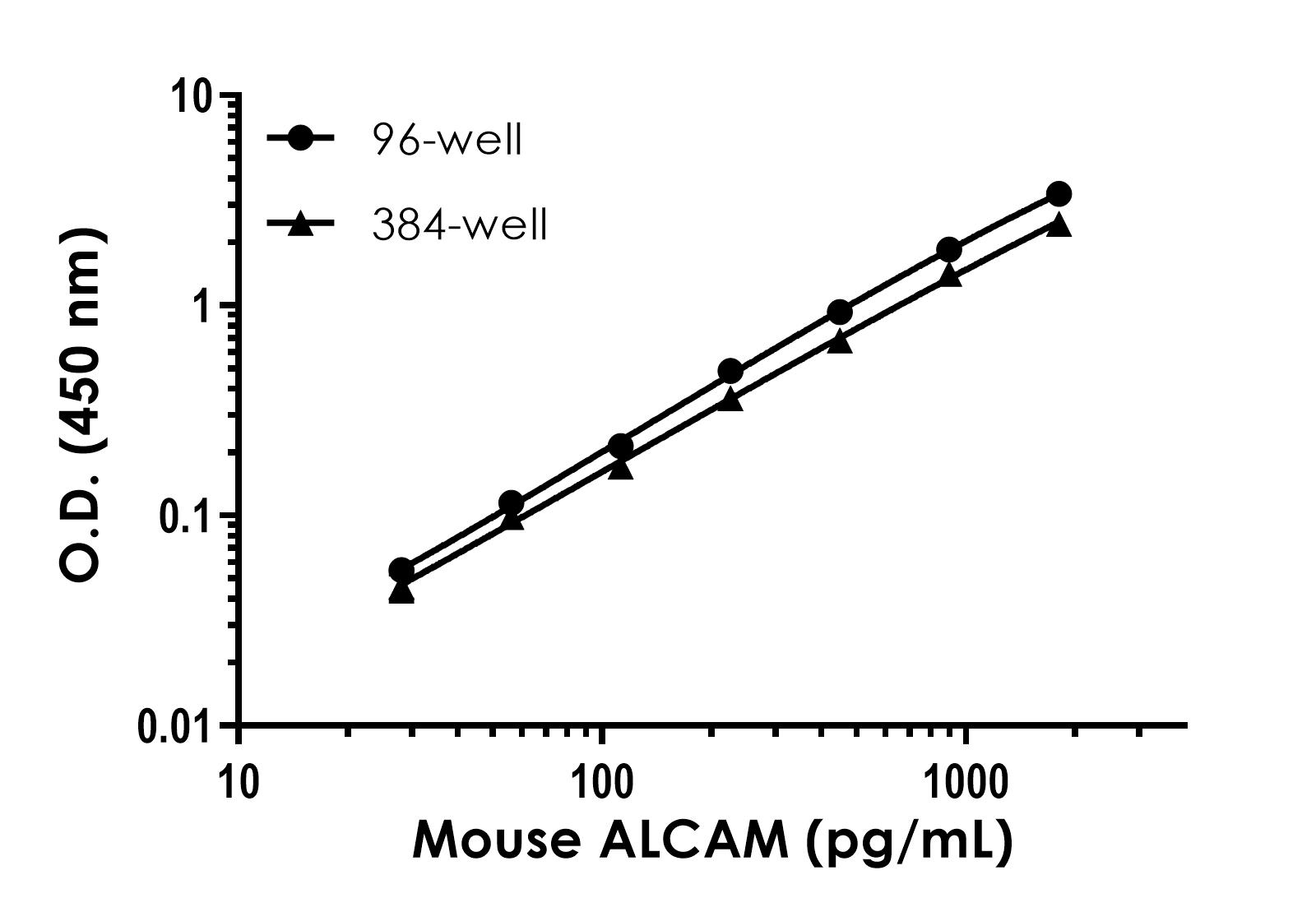

Example of mouse ALCAM standard curve in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse ALCAM (CD166) ELISA Kit- Extracellular (AB320047)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse ALCAM (CD166) ELISA Kit- Extracellular (AB320047)

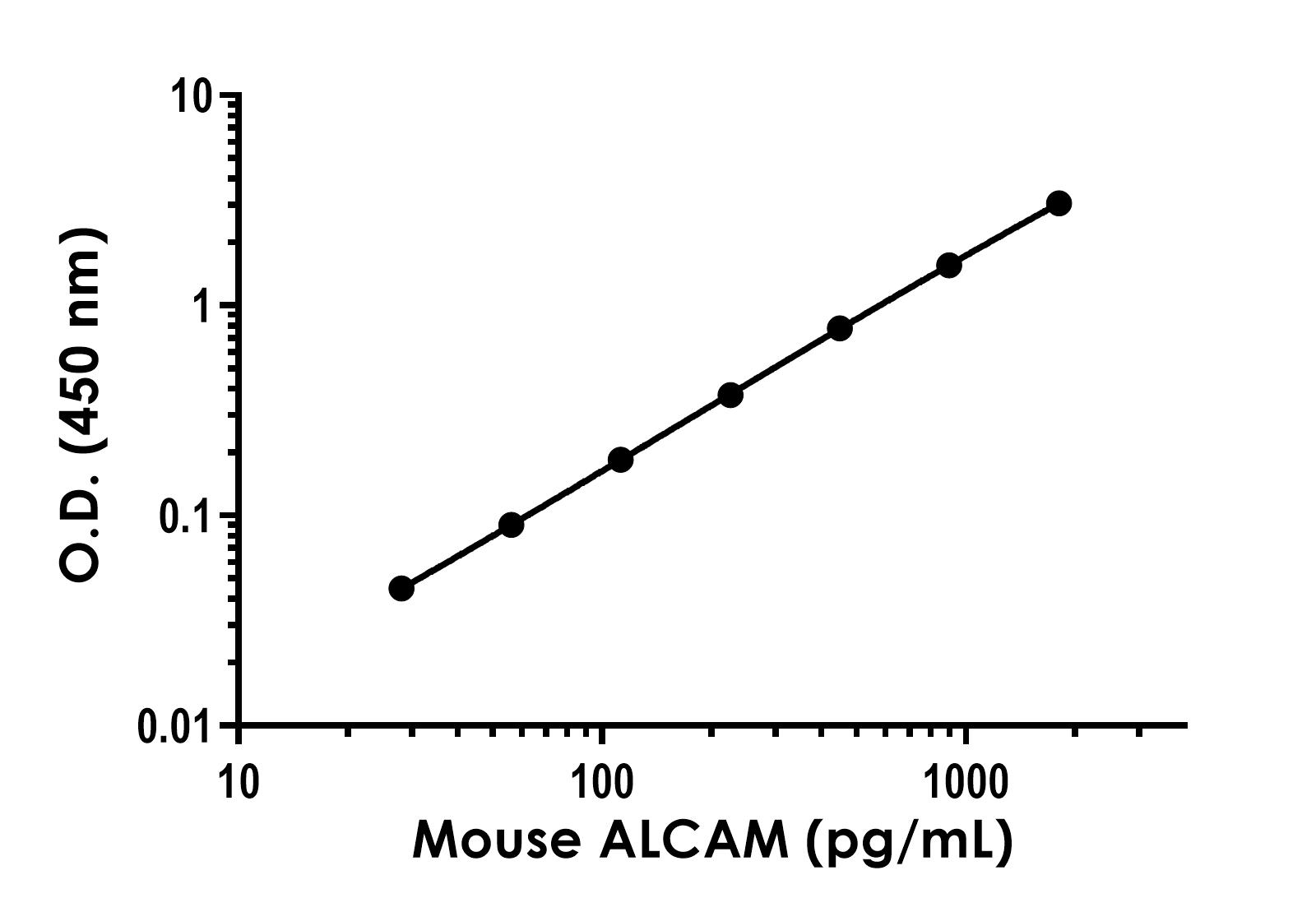

Example of mouse ALCAM standard curve. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Serum, Citrate plasma, EDTA Plasma, Heparin Plasma, Cell culture media

Reacts with

Mouse

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 9.2 pg/mL

Range

28.125 - 1800 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Complementary Products

Primary Antibodies

AB109215

Anti-CD166 antibody [EPR2759(2)]

RabMAb|Recombinant|KO Validated

Flow Cytometry - Anti-CD166 antibody [EPR2759(2)] (AB109215)

  • 4
  • 3
Assay Kits

AB254514

Rat Osteopontin ELISA Kit (OPN)

Recombinant|SimpleStep

Sandwich ELISA - Rat Osteopontin ELISA Kit (OPN) (AB254514)

  • 0
  • 0
Proteins & Peptides

AB316544

Recombinant Human ALCAM Protein Standard (His tag)

Sandwich ELISA - Recombinant Human ALCAM Protein Standard (His tag) (AB316544)

  • 0
  • 0
Assay Kits

AB277719

Mouse TGF beta Receptor II ELISA Kit

Recombinant|SimpleStep

Sandwich ELISA - Mouse TGF beta Receptor II ELISA Kit (AB277719)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Mouse ALCAM (CD166) SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of ALCAM (CD166) protein in Serum, Cit plasma, EDTA Plasma, Hep Plasma, and Cell culture media. Quantitate Mouse ALCAM (CD166) with 9.2 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips, available in 10-pack (10 x 96-well plates)
-Also available in a fully validated 384-well format.

style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.3" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "5.6" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "99 - 103 %", "average": "= 103" }, { "sample": "Citrate plasma", "range": "109 - 117 %", "average": "= 117" }, { "sample": "EDTA Plasma", "range": "96 - 105 %", "average": "= 101" }, { "sample": "Heparin Plasma", "range": "96 - 119 %", "average": "= 108" }, { "sample": "Cell culture media", "range": "95 - 103 %", "average": "= 100" } ]
style
left-column

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab320047-10x96Tests", "assetComponentDetails": [ { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB320047-CMP08" }, { "size":"2 x 250 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB320047-CMP06" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB320047-CMP07" }, { "size":"10 x 1 Vial", "name":"Lyophilized Mouse ALCAM (CD166) Capture Antibody", "number":"AB320047-CMP01" }, { "size":"10 x 96 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB320047-CMP09" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB320047-CMP10" }, { "size":"20 x 1 Vial", "name":"Mouse ALCAM (CD166) Lyophilized Recombinant Protein", "number":"AB320047-CMP03" }, { "size":"10 x 600 µL", "name":"10X Mouse ALCAM (CD166) Detector Antibody", "number":"AB320047-CMP02" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB320047-CMP05" }, { "size":"10 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB320047-CMP04" } ] }, "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab320047-1x384Tests", "assetComponentDetails": [ { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB320047-CMP08" }, { "size":"2 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB320047-CMP06" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB320047-CMP07" }, { "size":"1 x 1 Vial", "name":"Lyophilized Mouse ALCAM (CD166) Capture Antibody", "number":"AB320047-CMP01" }, { "size":"1 x 384 Unit", "name":"384 well CaptSure™ microplates", "number":"AB320047-CMP11" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB320047-CMP05" }, { "size":"2 x 1 Vial", "name":"Mouse ALCAM (CD166) Lyophilized Recombinant Protein", "number":"AB320047-CMP03" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB320047-CMP10" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB320047-CMP04" }, { "size":"1 x 600 µL", "name":"10X Mouse ALCAM (CD166) Detector Antibody", "number":"AB320047-CMP02" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab320047-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB320047-CMP08", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB320047-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB320047-CMP07", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Lyophilized Mouse ALCAM (CD166) Capture Antibody", "number":"AB320047-CMP01", "productcode":"" }, { "size":"1 x 96 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB320047-CMP09", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB320047-CMP10", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB320047-CMP04", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse ALCAM (CD166) Lyophilized Recombinant Protein", "number":"AB320047-CMP03", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB320047-CMP05", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse ALCAM (CD166) Detector Antibody", "number":"AB320047-CMP02", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CD166 also known as ALCAM (activated leukocyte cell adhesion molecule) is a cell surface glycoprotein with a mass of approximately 105 kDa. This protein is widely expressed on various cell types including activated T-cells keratinocytes neurons and endothelial cells. In the immune system CD166 has roles in T-cell activation and migration. It contains five extracellular immunoglobulin-like domains which facilitate cell-cell interactions. Researchers often regard ALCAM-Z as an alternative form sharing structural elements with CD166 protein.
Biological function summary

CD166 mediates cell-cell adhesion and plays roles in neuronal development. It participates in the formation of synaptic junctions and affects neuronal differentiation. CD166 is also a component of cell signaling complexes influencing cell proliferation and migration. In addition it controls interactions between T-cells and dendritic cells impacting immune response. Its interactions with other adhesion molecules contribute to cellular communication and tissue integrity.

Pathways

CD166 functions within signaling pathways related to cell adhesion and migration. It is involved in the Wnt signaling pathway and its interactions regulate cell polarity and morphogenesis. CD166 interacts closely with proteins such as CD6 and Catenins impacting cellular signaling and the organization of the cytoskeleton. These pathways affect processes like embryonic development and immune cell function.

CD166 has implications in cancer and autoimmune diseases. Its dysregulation links to cancer metastasis where altered expression facilitates tumor invasion and spread. CD166 also relates to autoimmune diseases through its role in T-cell activation potentially contributing to conditions like multiple sclerosis. The interaction between CD166 and CD6 influences immune cell activation and may offer therapeutic targets for modulating immune responses in these disorders.
style
left-column

Product protocols

style
left-column

Target data

Cell adhesion molecule that mediates both heterotypic cell-cell contacts via its interaction with CD6, as well as homotypic cell-cell contacts. Promotes T-cell activation and proliferation via its interactions with CD6 (By similarity). Contributes to the formation and maturation of the immunological synapse via its interactions with CD6 (By similarity). Mediates homotypic interactions with cells that express ALCAM (PubMed : 24740813). Mediates attachment of dendritic cells onto endothelial cells via homotypic interaction. Inhibits endothelial cell migration and promotes endothelial tube formation via homotypic interactions (PubMed : 23169771). Required for normal organization of the lymph vessel network (PubMed : 23169771). Required for normal hematopoietic stem cell engraftment in the bone marrow (PubMed : 24740813). Plays a role in hematopoiesis; required for normal numbers of hematopoietic stem cells in bone marrow (PubMed : 25730656). Promotes in vitro osteoblast proliferation and differentiation (PubMed : 25730656). Promotes neurite extension, axon growth and axon guidance; axons grow preferentially on surfaces that contain ALCAM (By similarity). Mediates outgrowth and pathfinding for retinal ganglion cell axons (PubMed : 15345243).
See full target information Alcam
