Mouse ALCAM (CD166) ELISA Kit- Intracellular is a single-wash 90-min Simplestep used to quantify Mouse ALCAM (CD166) with a sensitivity of 4.7 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.
- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders and 384-well plate for higher throughput
Images
Key facts
- Detection method
- Colorimetric
- Sample types
- Tissue Extracts
- Assay type
- Sandwich (quantitative)
- Reactive species
- Mouse, Rat
- Range
- 31.25 - 2000 pg/mL
- Assay time
- 1h 30m
- Sensitivity
- = 4.7 pg/mL
Reactivity data
| Application | Reactivity | Dilution info | Notes |
|---|---|---|---|
Application sELISA | Reactivity Reacts | Dilution info - | Notes - |
Target data
Function
Cell adhesion molecule that mediates both heterotypic cell-cell contacts via its interaction with CD6, as well as homotypic cell-cell contacts. Promotes T-cell activation and proliferation via its interactions with CD6 (By similarity). Contributes to the formation and maturation of the immunological synapse via its interactions with CD6 (By similarity). Mediates homotypic interactions with cells that express ALCAM (PubMed:24740813). Mediates attachment of dendritic cells onto endothelial cells via homotypic interaction. Inhibits endothelial cell migration and promotes endothelial tube formation via homotypic interactions (PubMed:23169771). Required for normal organization of the lymph vessel network (PubMed:23169771). Required for normal hematopoietic stem cell engraftment in the bone marrow (PubMed:24740813). Plays a role in hematopoiesis; required for normal numbers of hematopoietic stem cells in bone marrow (PubMed:25730656). Promotes in vitro osteoblast proliferation and differentiation (PubMed:25730656). Promotes neurite extension, axon growth and axon guidance; axons grow preferentially on surfaces that contain ALCAM (By similarity). Mediates outgrowth and pathfinding for retinal ganglion cell axons (PubMed:15345243).
Alternative names
CD166, CD166 antigen, Activated leukocyte cell adhesion molecule, BEN, Protein DM-GRASP, Alcam
What's included?
Recommended products
Mouse ALCAM (CD166) ELISA Kit- Intracellular is a single-wash 90-min Simplestep used to quantify Mouse ALCAM (CD166) with a sensitivity of 4.7 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.
- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Different formats for different needs: 10x96 plates for bulk orders and 384-well plate for higher throughput
Key facts
- Detection method
- Colorimetric
- Sample types
- Tissue Extracts
- Assay type
- Sandwich (quantitative)
- Reactive species
- Mouse, Rat
- Range
- 31.25 - 2000 pg/mL
- Assay time
- 1h 30m
- Assay Platform
- Pre-coated microplate (12 x 8 well strips)
- Sensitivity
- = 4.7 pg/mL
- General recovery
- 101%
Precision
Intra assay
| Sample | n | C.V. |
|---|---|---|
Sample Extract | n 8 | C.V. 2.1 |
Inter assay
| Sample | n | C.V. |
|---|---|---|
Sample Extract | n 3 | C.V. 1.1 |
Recovery
Sample specific recovery
| Sample type | Average % | Range |
|---|---|---|
Sample type Tissue Extracts | Average % = 101 | Range 100 - 103 % |
Storage
- Shipped at conditions
- Blue Ice
- Appropriate short-term storage conditions
- +4°C
- Appropriate long-term storage conditions
- +4°C
- Storage information
- +4°C
Notes
Mouse ALCAM (CD166) SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of ALCAM (CD166) protein in Tissue extracts. Quantitate Mouse ALCAM (CD166) with 4.7 pg/ml sensitivity.
SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:
-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips, available in 10-pack (10 x 96-well plates)
-Also available in a fully validated 384-well format.
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.
Supplementary info
- This supplementary information is collated from multiple sources and compiled automatically.
- Activity summary
CD166 also known as ALCAM (activated leukocyte cell adhesion molecule) is a cell surface glycoprotein with a mass of approximately 105 kDa. This protein is widely expressed on various cell types including activated T-cells keratinocytes neurons and endothelial cells. In the immune system CD166 has roles in T-cell activation and migration. It contains five extracellular immunoglobulin-like domains which facilitate cell-cell interactions. Researchers often regard ALCAM-Z as an alternative form sharing structural elements with CD166 protein.
- Biological function summary
CD166 mediates cell-cell adhesion and plays roles in neuronal development. It participates in the formation of synaptic junctions and affects neuronal differentiation. CD166 is also a component of cell signaling complexes influencing cell proliferation and migration. In addition it controls interactions between T-cells and dendritic cells impacting immune response. Its interactions with other adhesion molecules contribute to cellular communication and tissue integrity.
- Pathways
CD166 functions within signaling pathways related to cell adhesion and migration. It is involved in the Wnt signaling pathway and its interactions regulate cell polarity and morphogenesis. CD166 interacts closely with proteins such as CD6 and Catenins impacting cellular signaling and the organization of the cytoskeleton. These pathways affect processes like embryonic development and immune cell function.
- Associated diseases and disorders
CD166 has implications in cancer and autoimmune diseases. Its dysregulation links to cancer metastasis where altered expression facilitates tumor invasion and spread. CD166 also relates to autoimmune diseases through its role in T-cell activation potentially contributing to conditions like multiple sclerosis. The interaction between CD166 and CD6 influences immune cell activation and may offer therapeutic targets for modulating immune responses in these disorders.
Product promise
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
4 product images
Sandwich ELISA - Mouse ALCAM (CD166) ELISA Kit- Intracellular (ab320056)

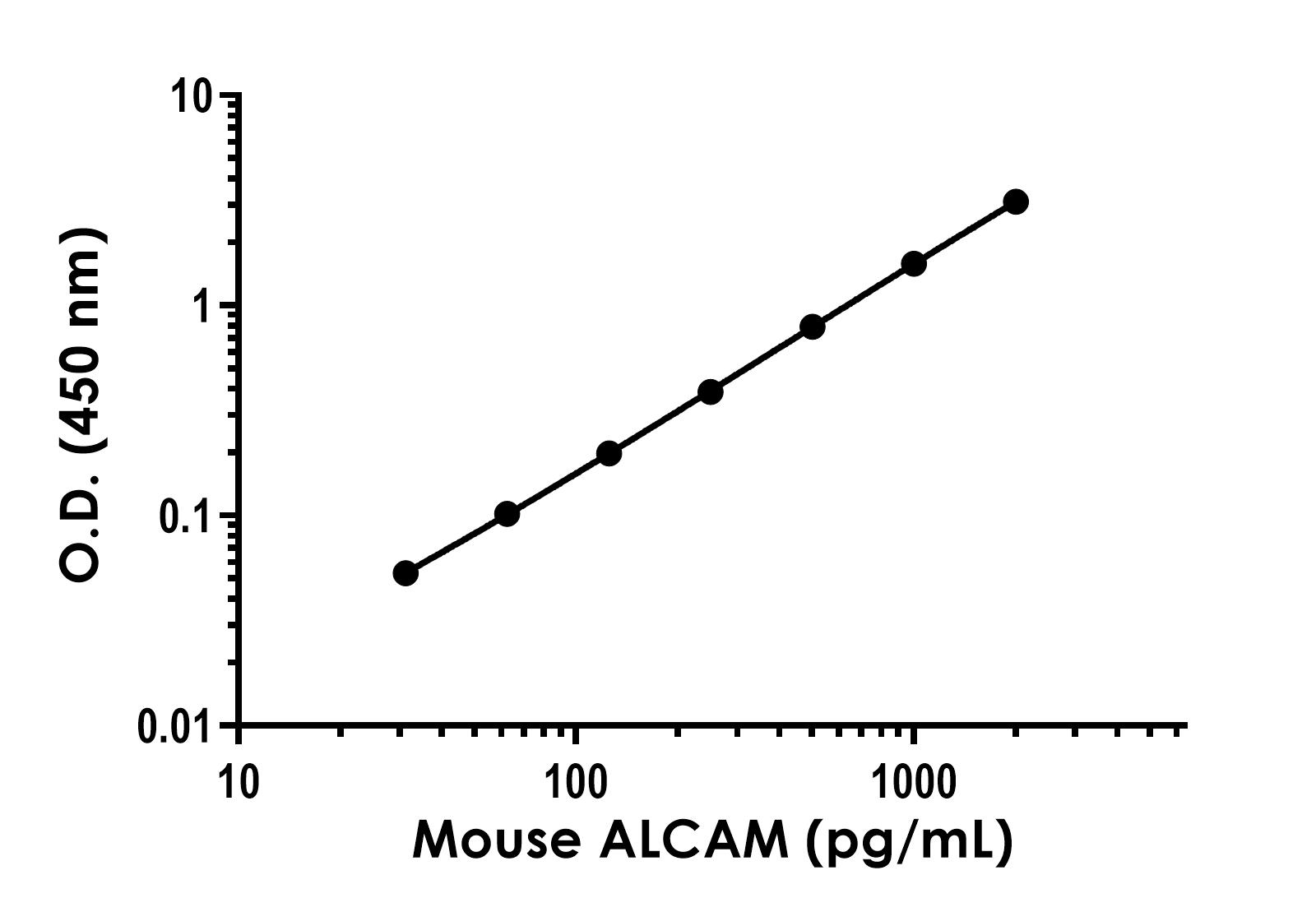

Example of mouse ALCAM standard curve. Background-subtracted data values (mean +/- SD) are graphed.
Sandwich ELISA - Mouse ALCAM (CD166) ELISA Kit- Intracellular (ab320056)

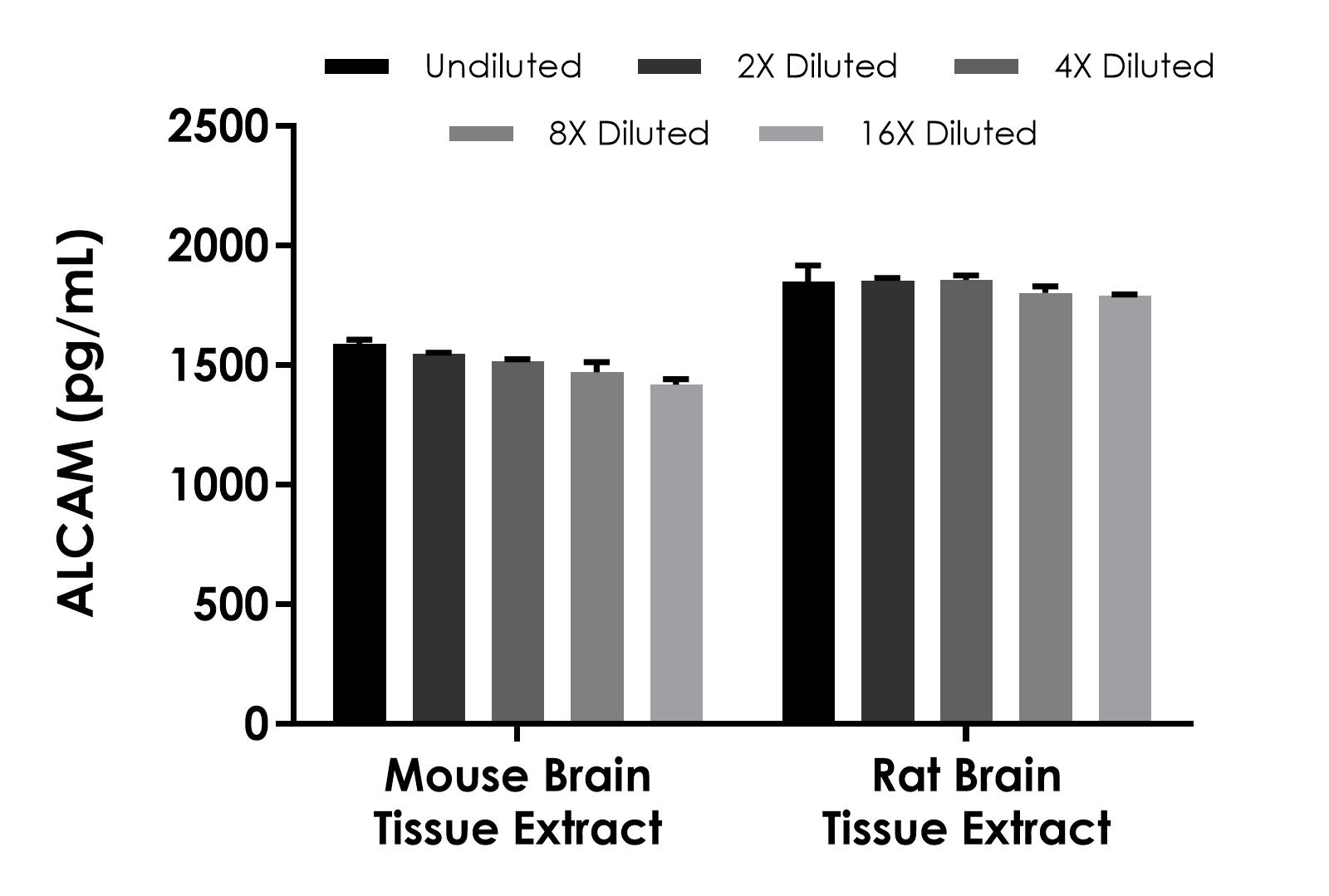

Interpolated concentration of native ALCAM was measured in duplicate at different sample concentrations. Undiluted samples are 10 µg/mL mouse and rat tissue brain extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction PTR.
Sandwich ELISA - Mouse ALCAM (CD166) ELISA Kit- Intracellular (ab320056)

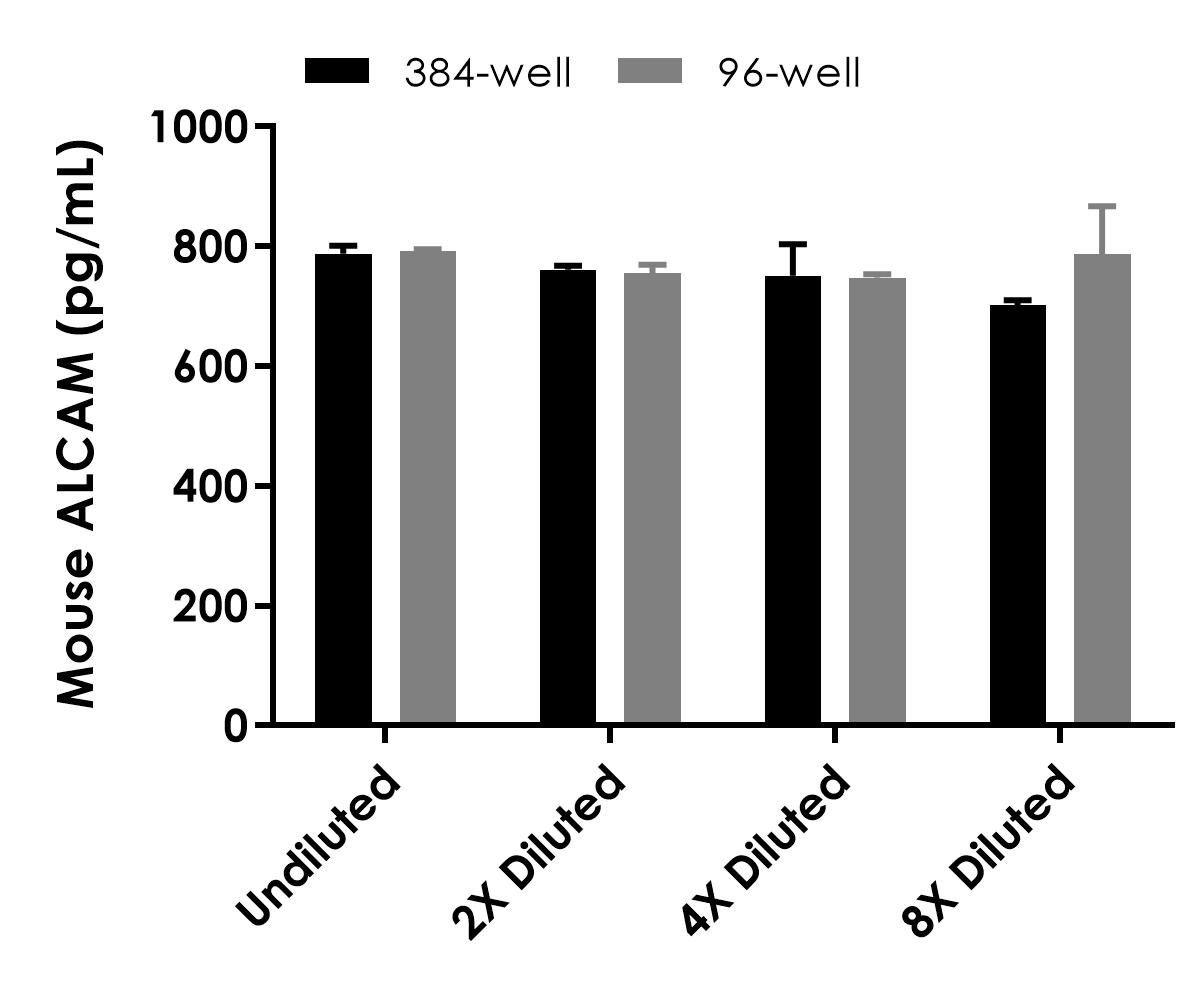

Interpolated concentration of native ALCAM was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 5 µg/mL mouse brain tissue extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction PTR.
Sandwich ELISA - Mouse ALCAM (CD166) ELISA Kit- Intracellular (ab320056)

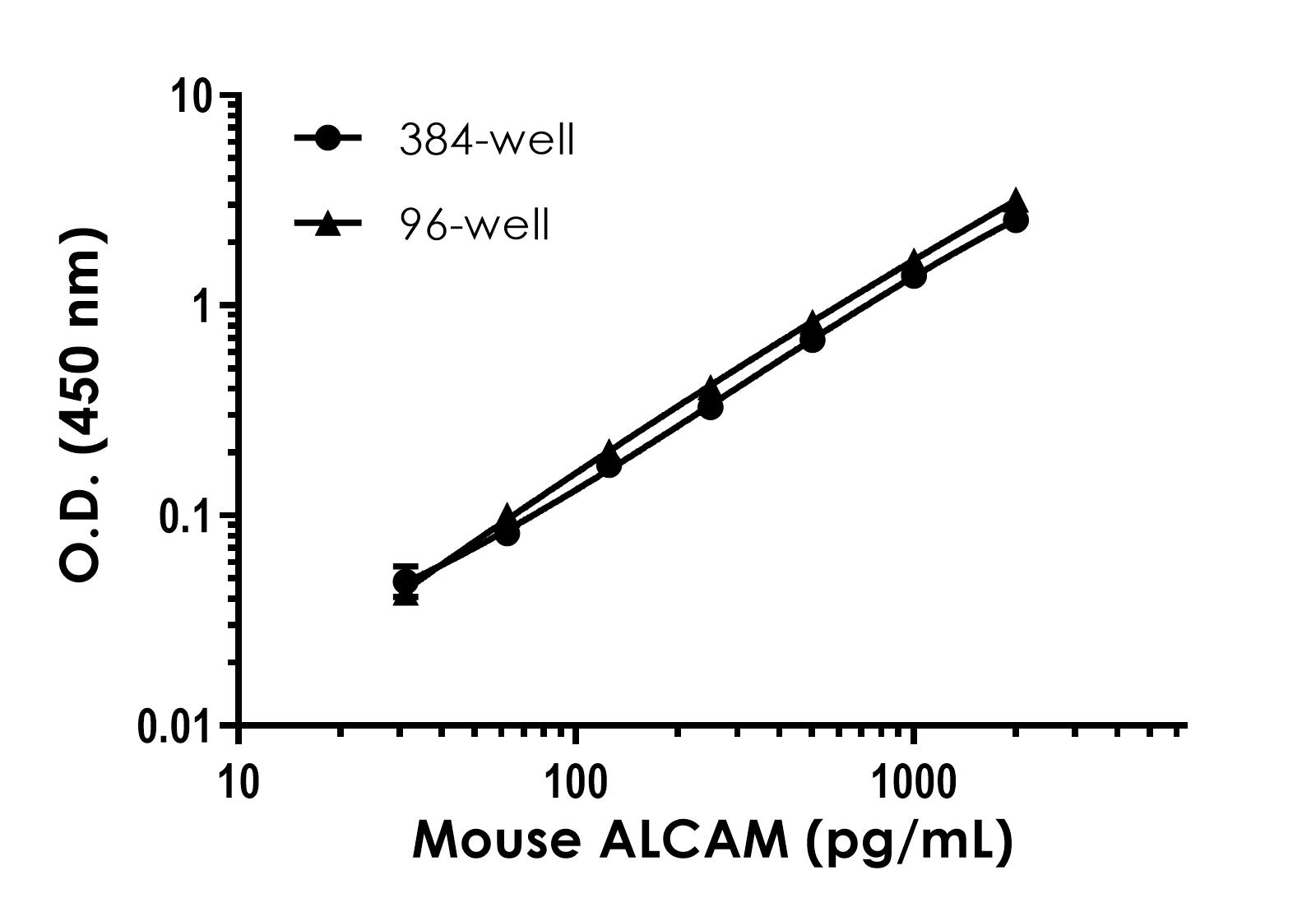

Example of mouse ALCAM standard curve in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.
