AB207619

Mouse Axl ELISA Kit

Recombinant
SimpleStep
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Mouse Axl ELISA Kit is a single-wash 90-min Simplestep used to quantify Mouse Axl with a sensitivity of 10.8 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

Ark, Ufo, Axl, Tyrosine-protein kinase receptor UFO, Adhesion-related kinase

3 Images

Sandwich ELISA - Mouse Axl ELISA Kit (AB207619)

sELISA

Supplier Data

Sandwich ELISA - Mouse Axl ELISA Kit (AB207619)

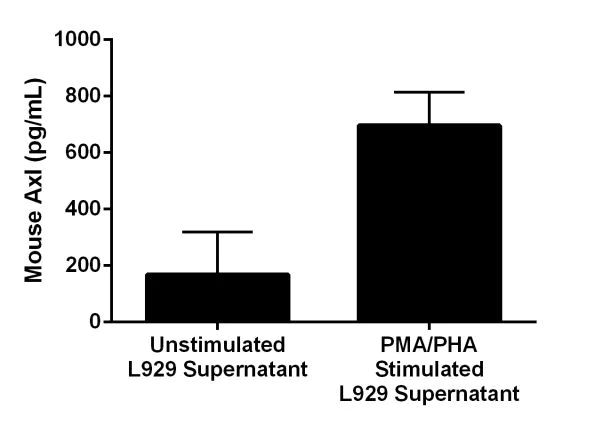

Comparison of secreted Axl in unstimulated and PMA/PHA-stimulated L929 Cells.

L929 cells were grown in the absence (unstimulated) or presence of Phorbol Myristate Acetate (PMA) and phytohemagglutinin (PHA) (stimulated) for 3 days. Axl was measured in 2-fold diluted cell culture supernatants of unstimulated and PMA/PHA stimulated L929 and cell culture media. Measured values were interpolated from the Axl Standard Curve diluted in Sample Diluent NS and corrected for dilution factor. Mean of duplicate values +/-SD are graphed : 169 pg/mL unstimulated, 696 pg/mL stimulated, and undetectable in media.

sELISA

Unknown

Sandwich ELISA - Mouse Axl ELISA Kit (AB207619)

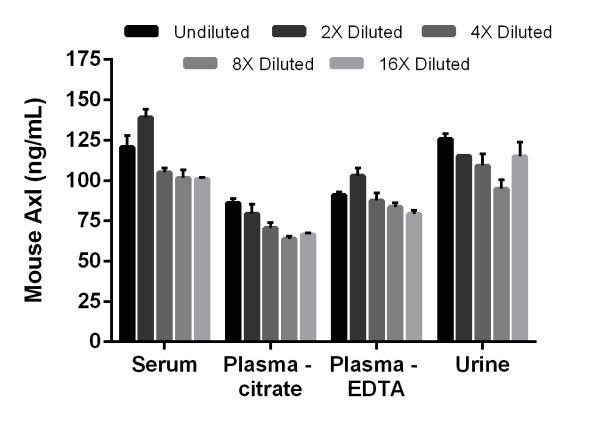

Interpolated concentrations of native Axl in mouse serum, plasma, and urine samples.

The concentrations of Axl were measured in duplicates, interpolated from the Axl standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 4%, plasma (citrate) 4%, plasma (EDTA) 4%, and urine 1%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean Axl concentration was determined to be 113 ng/mL in serum, 73.3 ng/mL in plasma (citrate), 88.9 ng/mL in plasma (heparin), and 112 ng/mL in urine.

sELISA

Supplier Data

Sandwich ELISA - Mouse Axl ELISA Kit (AB207619)

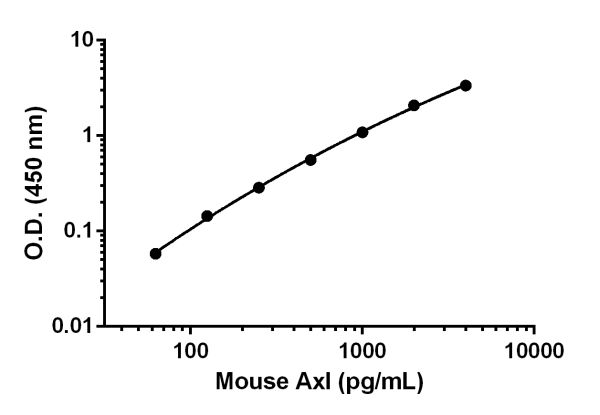

Example of mouse Axl standard curve.

Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Urine, Heparin Plasma, Citrate plasma, Cell culture supernatant, Serum, EDTA Plasma

Reacts with

Mouse

Assay type

Sandwich (quantitative)

Sensitivity

= 10.8 pg/mL

Range

62.5 - 4000 pg/mL

Assay time

1h 30m

Assay Platform

Microplate (12 x 8 well strips)

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

Mouse Axl ELISA Kit (ab207619) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of Axl protein in cell culture supernatant, serum, urine, cit plasma, edta plasma, and hep plasma. It uses our proprietary SimpleStep ELISA® technology. Quantitate Mouse Axl with 10.8 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

Axl is a transmembrane receptor tyrosine kinase on the plasma membrane. The growth factor GAS6 is a ligand for Axl and regulates many physiological processes including cell survival, cell proliferation, migration and differentiation. The antibodies used in this kit were raised against a portion of the extracellular domain of Axl.

style

left-column

Precision

[ { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.4" }, { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 5, "mean": null, "standardDeviation": null, "coefficientOfVariability": "2.4" } ]

style

left-column

Recovery

[ { "sample": "Cell culture supernatant", "range": "101 - 114 %", "average": "= 106" }, { "sample": "Serum", "range": "91 - 116 %", "average": "= 104" }, { "sample": "EDTA Plasma", "range": "86 - 111 %", "average": "= 100" }, { "sample": "Urine", "range": "104 - 114 %", "average": "= 109" }, { "sample": "Heparin Plasma", "range": "74 - 91 %", "average": "= 83" }, { "sample": "Citrate plasma", "range": "90 - 111 %", "average": "= 102" } ]

style

left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab207619-1x96Tests", "assetComponentDetails": [ { "size":"1 x 6 mL", "name":"Antibody Diluent 5BR", "number":"AB207619-CMP01", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse Axl Detector Antibody", "number":"AB207619-CMP08", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB207619-CMP09", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB207619-CMP03", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB207619-CMP05", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB207619-CMP06", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB207619-CMP10", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB207619-CMP04", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse Axl Lyophilized Recombinant Protein", "number":"AB207619-CMP02", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse Axl Capture Antibody", "number":"AB207619-CMP07", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The Axl protein also known as AXL receptor tyrosine kinase plays a significant role in cell signaling. It has a molecular weight of approximately 98 kDa. Axl is a transmembrane receptor that is expressed in a variety of tissues including the immune system reproductive organs and the central nervous system. It is mainly recognized for transmitting signals from the extracellular matrix into the cytoplasm by binding with its ligand Gas6.

Biological function summary

Axl is important in mediating cell survival proliferation and migration. It functions as part of the TAM family of receptors which also includes Tyro3 and Mer. Axl often forms complexes with these receptors to facilitate efficient signaling. This interaction triggers phosphorylation events that activate downstream signaling proteins reinforcing its influence in cellular functions.

Pathways

Axl is deeply involved in the PI3K-Akt and MAPK signaling pathways which are central to cellular growth and survival. In these pathways Axl interacts closely with proteins like PI3K and Akt to regulate processes such as apoptosis and metabolism. Its interaction with these pathways places Axl as an important modulator of intracellular signaling cascades.

Axl has been implicated in cancer progression and immune response dysregulation. In many cancer types Axl overexpression links to tumor invasion metastasis and resistance to therapy. Moreover Axl’s role in autoimmune diseases becomes evident through its association with the Gas6 protein. Exploring these connections furthers understanding of how Axl's aberrant activity influences health and disease.

style

left-column

Product protocols

style

left-column

Target data

Receptor tyrosine kinase that transduces signals from the extracellular matrix into the cytoplasm by binding growth factor GAS6 and which is thus regulating many physiological processes including cell survival, cell proliferation, migration and differentiation. Ligand binding at the cell surface induces dimerization and autophosphorylation of AXL. Following activation by ligand, AXL binds and induces tyrosine phosphorylation of PI3-kinase subunits PIK3R1, PIK3R2 and PIK3R3; but also GRB2, PLCG1, LCK and PTPN11. Other downstream substrate candidates for AXL are CBL, NCK2, SOCS1 and TNS2. Recruitment of GRB2 and phosphatidylinositol 3 kinase regulatory subunits by AXL leads to the downstream activation of the AKT kinase. GAS6/AXL signaling plays a role in various processes such as endothelial cell survival during acidification by preventing apoptosis, optimal cytokine signaling during human natural killer cell development, hepatic regeneration, gonadotropin-releasing hormone neuron survival and migration, platelet activation, or regulation of thrombotic responses. Also plays an important role in inhibition of Toll-like receptors (TLRs)-mediated innate immune response.

See full target information Axl

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
