AB327320

Mouse Calprotectin (S100A8/S100A9) ELISA Kit, Chemiluminescent

Be the first to review this product! Submit a review

|

(0 Publication)

Mouse Calprotectin (S100A8/S100A9) ELISA Kit, Chemiluminescent is a 55-min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Mouse Calprotectin (S100A8/S100A9) with higher sensitivity and broader measuring range.

- Single 30 min incubation and single-wash step for results in less than an hour.
- Chemiluminescent detection allows a broad dynamic range: 68.59 - 150000 pg/ml with a sensitivity of 24.12 pg/mL.
- Different formats for different needs: 10x 96-well plates for bulk orders
- Design your own immunoassay: we also offer the conjugation-ready antibody pair.
- Patent pending
3 Images
Sandwich ELISA - Mouse Calprotectin (S100A8/S100A9) ELISA Kit, Chemiluminescent (AB327320)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse Calprotectin (S100A8/S100A9) ELISA Kit, Chemiluminescent (AB327320)

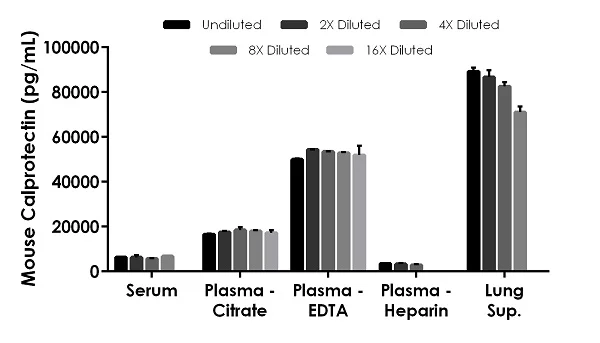

Interpolated concentrations of native Calprotectin in mouse serum plasma and tissue culture supernatant samples.

The concentrations of Calprotectin were measured in duplicates interpolated from the Calprotectin standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 50% plasma (citrate) 50% plasma (EDTA) 50% plasma (heparin) 50% and lung supernatant 1 : 20. The interpolated dilution factor corrected values are plotted (mean +/- SD n=2). The mean Calprotectin concentration was determined to be 6236 pg/mL in serum 17549 pg/mL in plasma (citrate) 52502 pg/mL in plasma (EDTA) 3225 pg/mL in plasma (Heparin) and 81971 pg/mL in lung supernatant.

Sandwich ELISA - Mouse Calprotectin (S100A8/S100A9) ELISA Kit, Chemiluminescent (AB327320)
  • sELISA

Lab

Sandwich ELISA - Mouse Calprotectin (S100A8/S100A9) ELISA Kit, Chemiluminescent (AB327320)

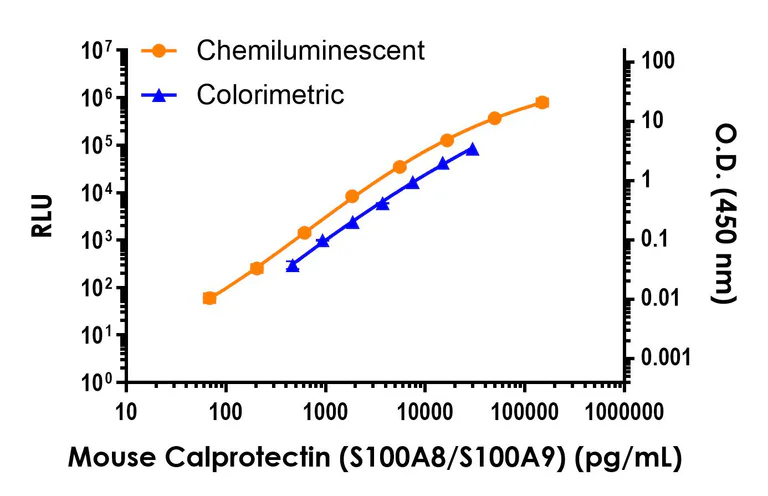

Standard curve comparison between the Chemiluminescent Mouse Calprotectin SimpleStep ELISA and colorimetric Mouse Calprotectin SimpleStep ELISA (ab263885) in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse Calprotectin (S100A8/S100A9) ELISA Kit, Chemiluminescent (AB327320)
  • sELISA

Lab

Sandwich ELISA - Mouse Calprotectin (S100A8/S100A9) ELISA Kit, Chemiluminescent (AB327320)

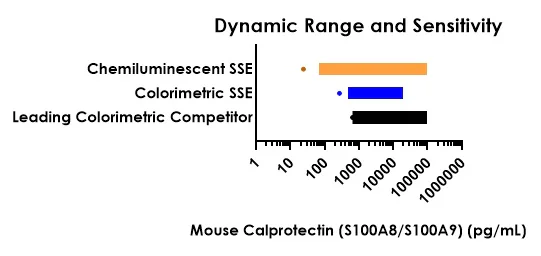

Dynamic range comparison between the Chemiluminescent Mouse Calprotectin SimpleStep ELISA, colorimetric Mouse Calprotectin SimpleStep ELISA (ab263885), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and increased dynamic range.

Key facts

Detection method

Luminescent

Sample types

Cell culture supernatant, Serum, EDTA Plasma, Heparin Plasma, Citrate plasma

Reacts with

Mouse

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 24.12 pg/mL

Range

68.59 - 150000 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Mouse Calprotectin (S100A8/S100A9) ELISA Kit, Chemiluminescent (ab327320) is a rapid single-wash sandwich 55-min ELISA to measure Mouse Calprotectin (S100A8/S100A9) in Cell culture supernatant, Serum, EDTA Plasma, Heparin Plasma, Citrate plasma with a sensitivity of 24.12 pg/mL.

How the assay works

Mouse Calprotectin (S100A8/S100A9) ELISA Kit, Chemiluminescent (ab327320) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colorimetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Mouse Calprotectin (S100A8/S100A9) (ab327320) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-S100A8 antibody [EPR22333-41] - BSA and Aside free (Capture) ab242350
- Anti-S100A8 antibody [EPR22332-92] - BSA and Aside free (Detector) ab242351

Precision

[ { "reproducibilityType": "Intra", "sample": "Plasma", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.2" }, { "reproducibilityType": "Inter", "sample": "Plasma", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "0.6" } ]

Recovery

[ { "sample": "Cell culture supernatant", "range": "102 - 109 %", "average": "= 106" }, { "sample": "Serum", "range": "80 - 84 %", "average": "= 82" }, { "sample": "EDTA Plasma", "range": "80 - 101 %", "average": "= 92" }, { "sample": "Heparin Plasma", "range": "81 - 91 %", "average": "= 87" }, { "sample": "Citrate plasma", "range": "82 - 95 %", "average": "= 88" } ]

What's included?

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab327320-10x96Tests", "assetComponentDetails": [ { "size":"1 x 50 mL", "name":"ChemiHRP Reagent A", "number":"AB327320-CMP07" }, { "size":"2 x 250 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB327320-CMP05" }, { "size":"10 x 1 Unit", "name":"Plate Seal", "number":"AB327320-CMP10" }, { "size":"10 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB327320-CMP09" }, { "size":"10 x 1 Vial", "name":"Mouse Calprotectin (S100A8/S100A9) Lyophilized Recombinant Protein", "number":"AB327320-CMP03" }, { "size":"10 x 600 µL", "name":"10X Mouse Calprotectin (S100A8/S100A9) Detector Antibody", "number":"AB327320-CMP02" }, { "size":"10 x 600 µL", "name":"10X Mouse Calprotectin (S100A8/S100A9) Capture Antibody", "number":"AB327320-CMP01" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB327320-CMP06" }, { "size":"10 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB327320-CMP04" }, { "size":"1 x 50 mL", "name":"ChemiHRP Reagent B", "number":"AB327320-CMP08" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab327320-1x96Tests", "assetComponentDetails": [ { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB327320-CMP06", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB327320-CMP05", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse Calprotectin (S100A8/S100A9) Lyophilized Recombinant Protein", "number":"AB327320-CMP03", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB327320-CMP10", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse Calprotectin (S100A8/S100A9) Capture Antibody", "number":"AB327320-CMP01", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB327320-CMP04", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB327320-CMP08", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB327320-CMP09", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB327320-CMP07", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse Calprotectin (S100A8/S100A9) Detector Antibody", "number":"AB327320-CMP02", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Product protocols

Target data

S100A9 is a calcium- and zinc-binding protein which plays a prominent role in the regulation of inflammatory processes and immune response (PubMed : 15331440, PubMed : 17767165, PubMed : 18403730, PubMed : 19402754, PubMed : 22804476, PubMed : 34562450). It can induce neutrophil chemotaxis, adhesion, can increase the bactericidal activity of neutrophils by promoting phagocytosis via activation of SYK, PI3K/AKT, and ERK1/2 and can induce degranulation of neutrophils by a MAPK-dependent mechanism (By similarity). Predominantly found as calprotectin (S100A8/A9) which has a wide plethora of intra- and extracellular functions (By similarity). The intracellular functions include : facilitating leukocyte arachidonic acid trafficking and metabolism, modulation of the tubulin-dependent cytoskeleton during migration of phagocytes and activation of the neutrophilic NADPH-oxidase (PubMed : 15331440). Participates also in regulatory T-cell differentiation together with CD69 (By similarity). Activates NADPH-oxidase by facilitating the enzyme complex assembly at the cell membrane, transferring arachidonic acid, an essential cofactor, to the enzyme complex and S100A8 contributes to the enzyme assembly by directly binding to NCF2/P67PHOX (By similarity). The extracellular functions involve pro-inflammatory, antimicrobial, oxidant-scavenging and apoptosis-inducing activities (PubMed : 21382888). Its pro-inflammatory activity includes recruitment of leukocytes, promotion of cytokine and chemokine production, and regulation of leukocyte adhesion and migration (By similarity). Acts as an alarmin or a danger associated molecular pattern (DAMP) molecule and stimulates innate immune cells via binding to pattern recognition receptors such as Toll-like receptor 4 (TLR4) and receptor for advanced glycation endproducts (AGER) (PubMed : 17767165, PubMed : 18403730, PubMed : 19402754). Binding to TLR4 and AGER activates the MAP-kinase and NF-kappa-B signaling pathways resulting in the amplification of the pro-inflammatory cascade (PubMed : 17767165, PubMed : 18403730, PubMed : 19402754, PubMed : 22804476). Has antimicrobial activity towards bacteria and fungi and exerts its antimicrobial activity probably via chelation of Zn(2+) which is essential for microbial growth (By similarity). Can induce cell death via autophagy and apoptosis and this occurs through the cross-talk of mitochondria and lysosomes via reactive oxygen species (ROS) and the process involves BNIP3 (By similarity). Can regulate neutrophil number and apoptosis by an anti-apoptotic effect; regulates cell survival via ITGAM/ITGB and TLR4 and a signaling mechanism involving MEK-ERK (By similarity). Its role as an oxidant scavenger has a protective role in preventing exaggerated tissue damage by scavenging oxidants (By similarity). The iNOS-S100A8/A9 transnitrosylase complex is proposed to direct selective inflammatory stimulus-dependent S-nitrosylation of multiple targets such as GAPDH, NXA5, EZR, MSN and VIM by recognizing a [IL]-x-C-x-x-[DE] motif (By similarity).
See full target information S100a9

Alternative Names

Cagb, Mrp14, S100a9, Protein S100-A9, Calgranulin-B, Leukocyte L1 complex heavy chain, Migration inhibitory factor-related protein 14, S100 calcium-binding protein A9, MRP-14, p14
