AB315052

Mouse CD86 ELISA Kit

SimpleStep
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Mouse CD86 ELISA Kit is a single-wash 90-min Simplestep used to quantify Mouse CD86 with a sensitivity of 2.137 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

CD86, T-lymphocyte activation antigen CD86, Activation B7-2 antigen, Early T-cell costimulatory molecule 1, ETC-1, Cd86

2 Images

Sandwich ELISA - Mouse CD86 ELISA Kit (AB315052)

sELISA

Supplier Data

Sandwich ELISA - Mouse CD86 ELISA Kit (AB315052)

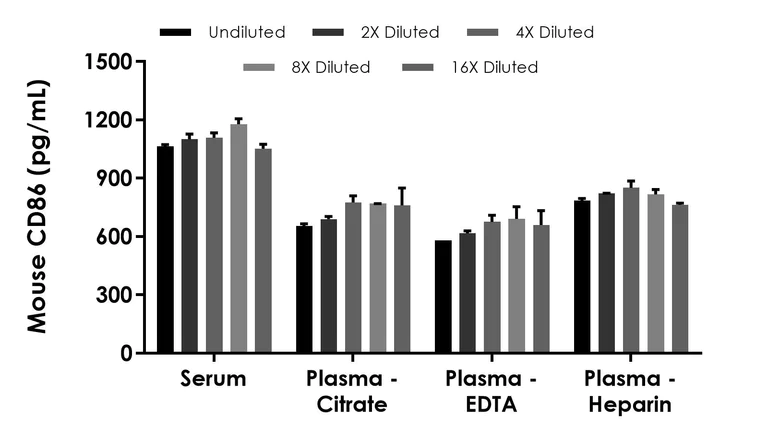

Interpolated concentrations of Mouse CD86 in mouse serum, mouse plasma – Citrate, mouse plasma – EDTA, and mouse plasma – Heparin

Interpolated concentration of native CD86 was measured in duplicate at different sample concentrations. Undiluted samples are as follows : mouse serum 50%, mouse plasma – Citrate 50%, mouse plasma – EDTA 100%, and mouse plasma – Heparin 50%. The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

sELISA

Supplier Data

Sandwich ELISA - Mouse CD86 ELISA Kit (AB315052)

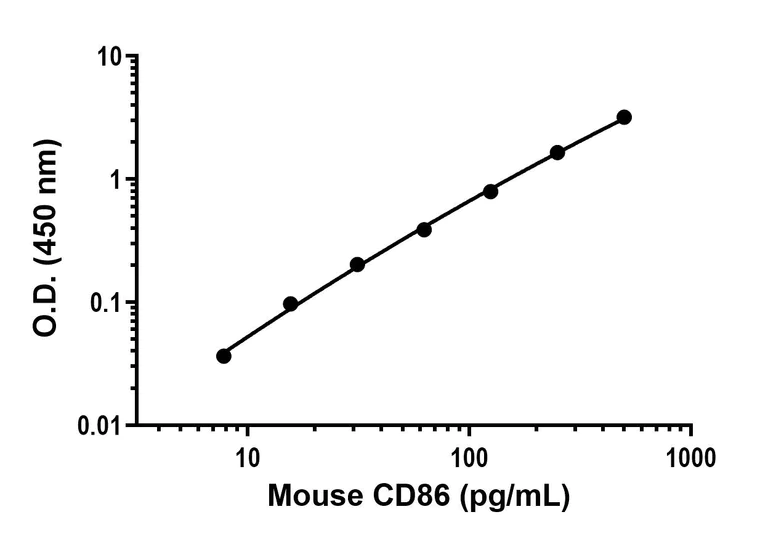

Example of Mouse CD86 standard curve in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Colorimetric

Sample types

Serum, Heparin Plasma, EDTA Plasma, Citrate plasma

Reacts with

Mouse

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 2.137 pg/mL

Range

7.813 - 500 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

Mouse CD86 SimpleStep ELISA® kit is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of CD86 protein in Serum, Hep Plasma, Cit Plasma, EDTA Plasma. Quantitate Mouse CD86 with 2.137 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

-Single-wash protocol reduces assay time to 90 minutes or less
-High sensitivity, specificity and reproducibility from superior antibodies
-Fully validated in biological samples
-96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

style

left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "8.9" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "4.74" } ]

style

left-column

Recovery

[ { "sample": "Serum", "range": "104 - 120 %", "average": "= 113" }, { "sample": "Heparin Plasma", "range": "99 - 112 %", "average": "= 105" }, { "sample": "EDTA Plasma", "range": "96 - 112 %", "average": "= 103" }, { "sample": "Citrate plasma", "range": "100 - 112 %", "average": "= 103" } ]

style

left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab315052-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB315052-CMP09", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB315052-CMP08", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB315052-CMP05", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB315052-CMP07", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB315052-CMP06", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse CD86 Lyophilized Recombinant Protein", "number":"AB315052-CMP03", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB315052-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse CD86 Capture Antibody", "number":"AB315052-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB315052-CMP10", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse CD86 Detector Antibody", "number":"AB315052-CMP02", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

+4°C

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CD86 also known as B7-2 is a protein involved in the regulation of the immune response. It has an approximate mass of 70 kDa and is expressed on antigen-presenting cells like dendritic cells monocytes and macrophages. Notably CD86 is present on macrophages including those in tissues such as skin and lymphoid organs. Expressed on these cells CD86 serves as a vital mediator in the co-stimulatory signals necessary for T cell activation and survival.

Biological function summary

CD86 plays a significant role in the immune system by providing secondary signals for T cell activation and differentiation. It is a part of the B7 protein family and forms a complex with CD28 and CTLA-4 on T cells. When CD86 binds to CD28 it sends positive co-stimulatory signals which promote T cell proliferation and cytokine production. On the other hand interaction with CTLA-4 transmits an inhibitory signal which reduces immune response. This dual interaction helps to balance immune activation and tolerance.

Pathways

CD86 takes part in important immune-related signaling pathways particularly the T cell receptor signaling pathway and the PI3K-Akt signaling pathway. Both pathways are fundamental for initiating immune responses. CD86's interaction with CD28 activates downstream signaling cascades including PI3K-Akt which is important for cell survival and growth. Additionally CD86 collaborates with other proteins such as CD80 another co-stimulatory molecule to amplify T cell activation within these pathways.

CD86 is associated with autoimmune diseases and transplant rejection. In autoimmune diseases like rheumatoid arthritis the overexpression or dysregulation of CD86 can lead to excessive T cell activation causing immune system attacks on the body's own tissues. Similarly in transplant rejection CD86 may contribute by enhancing immune response against transplanted organs. The engagement between CD86 and CD28 is a critical factor in these conditions and therapies targeting this interaction are under exploration to mitigate the immune response.

style

left-column

Product protocols

style

left-column

Target data

Costimulatory molecule that belongs to the immunoglobulin superfamily that plays an important role in T-lymphocyte activation (By similarity). Acts as the primary auxiliary signal augmenting the MHC/TCR signal in naive T-cells by acting as a ligand for the CD28 receptor which is constitutively expressed on the cell surface of T-cells (By similarity). May play a critical role in the early events of T-cell activation and costimulation of naive T-cells, such as deciding between immunity and anergy that is made by T-cells within 24 hours after activation (By similarity). Also involved in the regulation of B cells function, plays a role in regulating the level of IgG(1) produced (PubMed : 23241883). Upon CD40 engagement, activates NF-kappa-B signaling pathway via phospholipase C and protein kinase C activation (PubMed : 23241883). Also acts as an inhibitor of T-cell activation by acting as a ligand for CTLA4, a decoy receptor, thereby blocking CD28-mediated T-cell priming (PubMed : 7504059, PubMed : 7513726).

See full target information Cd86

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
