Mouse CTLA 4 ELISA Kit is a Sandwich (quantitative) ELISA kit for the measurement of Mouse CTLA 4 in Mouse in Plasma, Cell culture supernatant, Serum samples.

Be the first to review this product! Submit a review

Images

Sandwich ELISA - Mouse CTLA 4 ELISA Kit (AB113346), expandable thumbnail
  • Sandwich ELISA - Mouse CTLA 4 ELISA Kit (AB113346), expandable thumbnail

Key facts

Detection method
Colorimetric
Sample types
Plasma, Cell culture supernatant, Serum
Assay type
Sandwich (quantitative)
Reactive species
Mouse
Range
4.92 - 1200 pg/mL
Sensitivity
< 5 pg/mL

Reactivity data

Application
sELISA
Reactivity
Reacts
Dilution info
-
Notes

-

Target data

Function

Inhibitory receptor acting as a major negative regulator of T-cell responses. The affinity of CTLA4 for its natural B7 family ligands, CD80 and CD86, is considerably stronger than the affinity of their cognate stimulatory coreceptor CD28.

Alternative names

What's included?

1 x 96 Tests
Components
200X HRP-Streptavidin Concentrate
1 x 200 µL
20X Wash Buffer
1 x 25 mL
5X Assay Diluent B
1 x 15 mL
Assay Diluent A
1 x 30 mL
Biotinylated anti-Mouse CTLA4
2 x 1 Vial
CTLA4 Microplate (12 strips x 8 wells)
1 x 1 Unit
Recombinant Mouse CTLA4 Standard (lyophilized)
2 x 1 Vial
Stop Solution
1 x 8 mL
TMB One-Step Substrate Reagent
1 x 12 mL

Recommended products

Mouse CTLA 4 ELISA Kit is a Sandwich (quantitative) ELISA kit for the measurement of Mouse CTLA 4 in Mouse in Plasma, Cell culture supernatant, Serum samples.

Key facts

Detection method
Colorimetric
Sample types
Plasma, Cell culture supernatant, Serum
Assay type
Sandwich (quantitative)
Reactive species
Mouse
Range
4.92 - 1200 pg/mL
Assay Platform
Microplate
Sensitivity
< 5 pg/mL
General recovery
96%

Recovery

Sample specific recovery

Sample type
Cell culture supernatant
Average %
= 76.34
Range
67 - 89 %
Sample type
Serum
Average %
= 107.3
Range
101 - 114 %
Sample type
Plasma
Average %
= 104.2
Range
100 - 110 %

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Notes

Abcam's CTLA4 Mouse ELISA (Enzyme-Linked Immunosorbent Assay) kit is an in vitro enzyme-linked immunosorbent assay for the quantitative measurement of mouse CTLA4 in serum, plasma and cell culture supernatants.

This assay employs an antibody specific for Mouse CTLA4 coated on a 96- well plate. Standards and samples are pipetted into the wells and CTLA4 present in a sample is bound to the wells by the immobilized antibody. The wells are washed and biotinylated anti-Mouse CTLA4 antibody is added. After washing away unbound biotinylated antibody, HRP-conjugated streptavidin is pipetted to the wells. The wells are again washed, a TMB substrate solution is added to the wells and color develops in proportion to the amount of CTLA4 bound. The Stop Solution changes the color from blue to yellow, and the intensity of the color is measured at 450 nm.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

CTLA-4 also known as Cytotoxic T-Lymphocyte Antigen 4 or CD152 is a protein receptor with an approximate molecular weight of 25–37 kDa. Expressed primarily on the surface of T cells CTLA-4 acts as an immune checkpoint molecule. It competes with the costimulatory receptor CD28 for binding to CD80/CD86 ligands on antigen-presenting cells. This competitive binding results in an inhibitory signal that reduces T cell activation and proliferation.

Biological function summary

CTLA-4 modulates immune responses by serving as a critical negative regulator in T cell activation. Unlike CD28 which promotes T cell responses CTLA-4 inhibits these responses helping to maintain immune homeostasis. CTLA-4 exists in a monomeric form on the cell surface but can form a dimeric complex when interacting with ligands. By dampening the immune response CTLA-4 prevents excessive tissue damage during immune reactions.

Pathways

CTLA-4 is integral in immune signaling pathways specifically the pathway that involves T cell regulation. It functions within the context of the immune synapse influencing the balance between activation and inhibition of T cells. CTLA-4 engages with proteins like CD28 and PD-1 in these pathways each playing distinct roles in modulating immune responses.

Associated diseases and disorders

CTLA-4 has critical connections to autoimmune diseases and cancer. In autoimmune diseases CTLA-4 dysfunction may lead to improper immune regulation potentially resulting in conditions such as rheumatoid arthritis. In cancer CTLA-4-related proteins like PD-1 can be manipulated by tumors to escape immune detection making CTLA-4 a target for immunotherapy interventions. Understanding CTLA-4 interactions with CD28 and PD-1 has led to the development of therapies aiming to modulate immune responses in these diseases.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Sandwich ELISA - Mouse CTLA 4 ELISA Kit (ab113346), expandable thumbnail

    Sandwich ELISA - Mouse CTLA 4 ELISA Kit (ab113346)

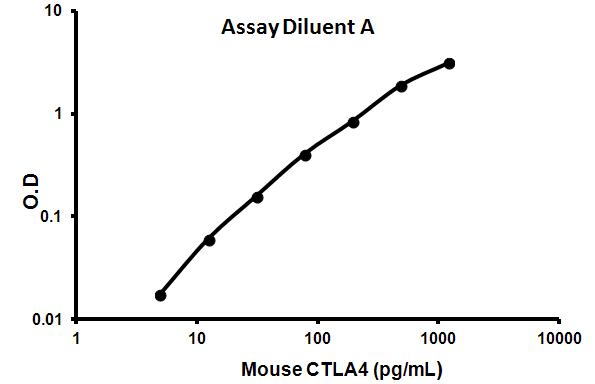

    Representative Standard Curve using ab113346

  • Sandwich ELISA - Mouse CTLA 4 ELISA Kit (ab113346), expandable thumbnail

    Sandwich ELISA - Mouse CTLA 4 ELISA Kit (ab113346)

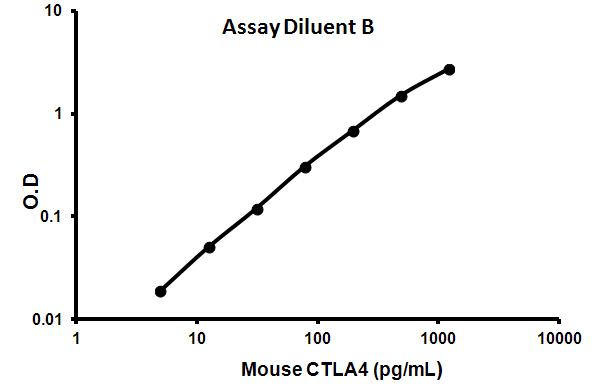

    Representative Standard Curve using ab113346

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
