AB326907

Mouse FAP ELISA Kit, Chemiluminescent

Be the first to review this product! Submit a review

|

(0 Publication)

Mouse FAP ELISA Kit, Chemiluminescent is a 55-min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Mouse FAP with higher sensitivity and broader measuring range.

- Single 30 min incubation and single-wash step for results in less than an hour.
- Chemiluminescent detection allows a broad dynamic range: 2.74 - 6000 pg/ml with a sensitivity of 1.93 pg/mL.
- Design your own immunoassay: we also offer the conjugation-ready antibody pair.
- Patent pending

View Alternative Names

Prolyl endopeptidase FAP, Dipeptidyl peptidase FAP, Fibroblast activation protein alpha, Gelatine degradation protease FAP, Integral membrane serine protease, Post-proline cleaving enzyme, Serine integral membrane protease, Surface-expressed protease, FAPalpha, SIMP, Seprase, Fap

4 Images
Sandwich ELISA - Mouse FAP ELISA Kit, Chemiluminescent (AB326907)
  • sELISA

Unknown

Sandwich ELISA - Mouse FAP ELISA Kit, Chemiluminescent (AB326907)

Interpolated concentrations of mouse FAP in liver tissue culture supernatant.

Interpolated concentration of native FAP was measured in duplicate at different sample concentrations. Undiluted samples are 12.5% liver tissue culture supernatant. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Sandwich ELISA - Mouse FAP ELISA Kit, Chemiluminescent (AB326907)
  • sELISA

Unknown

Sandwich ELISA - Mouse FAP ELISA Kit, Chemiluminescent (AB326907)

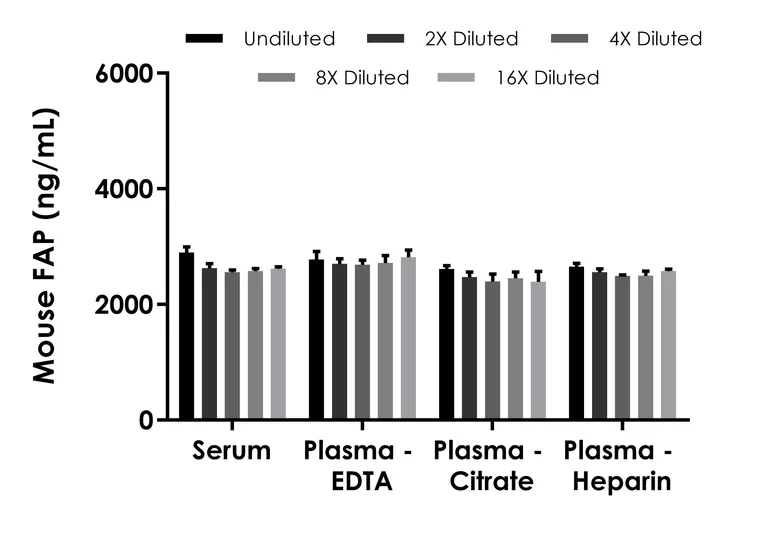

Interpolated concentrations of mouse FAP in serum, plasma (EDTA), plasma (citrate), and plasma (heparin).

Interpolated concentration of native FAP was measured in duplicate at different sample concentrations. Undiluted samples are 1 : 2,000 serum, plasma (EDTA), plasma (citrate), and plasma (heparin). The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Sandwich ELISA - Mouse FAP ELISA Kit, Chemiluminescent (AB326907)
  • sELISA

Lab

Sandwich ELISA - Mouse FAP ELISA Kit, Chemiluminescent (AB326907)

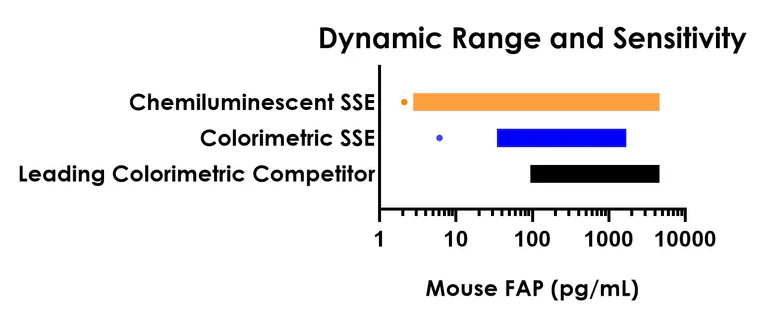

Dynamic range comparison between the Chemiluminescent Mouse FAP SimpleStep ELISA, colorimetric Mouse FAP SimpleStep ELISA (ab289903), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and increased dynamic range.

Sandwich ELISA - Mouse FAP ELISA Kit, Chemiluminescent (AB326907)
  • sELISA

Lab

Sandwich ELISA - Mouse FAP ELISA Kit, Chemiluminescent (AB326907)

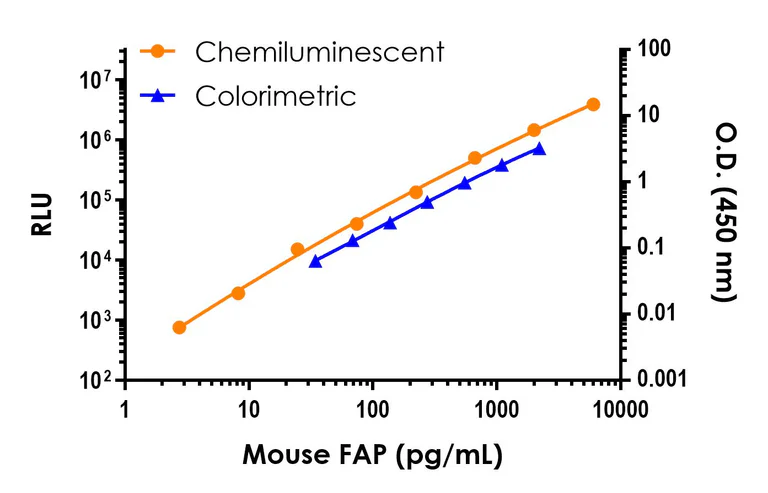

Standard curve comparison between the Chemiluminescent Mouse FAP SimpleStep ELISA and colorimetric Mouse FAP SimpleStep ELISA (ab289903) in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

Detection method

Luminescent

Sample types

Cell culture supernatant, Serum, EDTA Plasma, Heparin Plasma, Citrate plasma

Reacts with

Mouse, Rat

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 1.93 pg/mL

Range

2.74 - 6000 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Mouse FAP ELISA Kit, Chemiluminescent (ab326907) is a rapid single-wash sandwich 55-min ELISA to measure Mouse FAP in Cell culture supernatant, Serum, EDTA Plasma, Heparin Plasma, Citrate plasma with a sensitivity of 1.93 pg/mL.

How the assay works

Mouse FAP ELISA Kit, Chemiluminescent (ab326907) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colorimetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Mouse FAP (ab326907) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-FAP/Fibroblast activation protein antibody [EPR24291-17] - BSA and Aside free (Capture) ab284959
- Anti-FAP/Fibroblast activation protein antibody [EPR24291-6] - BSA and Aside free (Detector) ab285065

Precision

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 2.6" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 5.9" } ]

Recovery

[ { "sample": "Cell culture supernatant", "range": "74 - 90 %", "average": "= 90" }, { "sample": "Serum", "range": "100 - 110 %", "average": "= 110" }, { "sample": "EDTA Plasma", "range": "101 - 106 %", "average": "= 106" }, { "sample": "Heparin Plasma", "range": "100 - 105 %", "average": "= 105" }, { "sample": "Citrate plasma", "range": "101 - 118 %", "average": "= 118" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab326907-1x96Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB326907-CMP10", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent CPR2", "number":"AB326907-CMP04", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB326907-CMP06", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse FAP Capture Antibody", "number":"AB326907-CMP01", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB326907-CMP08", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB326907-CMP07", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse FAP Lyophilized Recombinant Protein", "number":"AB326907-CMP03", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB326907-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB326907-CMP09", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse FAP Detector Antibody", "number":"AB326907-CMP02", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Product protocols

Target data

Cell surface glycoprotein serine protease that participates in extracellular matrix degradation and involved in many cellular processes including tissue remodeling, fibrosis, wound healing, inflammation and tumor growth. Both plasma membrane and soluble forms exhibit post-proline cleaving endopeptidase activity, with a marked preference for Ala/Ser-Gly-Pro-Ser/Asn/Ala consensus sequences, on substrate such as alpha-2-antiplasmin SERPINF2 and SPRY2. Degrade also gelatin, heat-denatured type I collagen, but not native collagen type I and IV, vibronectin, tenascin, laminin, fibronectin, fibrin or casein. Also has dipeptidyl peptidase activity, exhibiting the ability to hydrolyze the prolyl bond two residues from the N-terminus of synthetic dipeptide substrates provided that the penultimate residue is proline, with a preference for Ala-Pro, Ile-Pro, Gly-Pro, Arg-Pro and Pro-Pro. Natural neuropeptide hormones for dipeptidyl peptidase are the neuropeptide Y (NPY), peptide YY (PYY), substance P (TAC1) and brain natriuretic peptide 32 (NPPB). The plasma membrane form, in association with either DPP4, PLAUR or integrins, is involved in the pericellular proteolysis of the extracellular matrix (ECM), and hence promotes cell adhesion, migration and invasion through the ECM. Plays a role in tissue remodeling during development and wound healing. Participates in the cell invasiveness towards the ECM in malignant melanoma cancers. Enhances tumor growth progression by increasing angiogenesis, collagen fiber degradation and apoptosis and by reducing antitumor response of the immune system. Promotes glioma cell invasion through the brain parenchyma by degrading the proteoglycan brevican. Acts as a tumor suppressor in melanocytic cells through regulation of cell proliferation and survival in a serine protease activity-independent manner.
See full target information Fap
websiteProtocolBooklet
en

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
