AB325723

Mouse GPNMB ELISA Kit, Chemiluminescent

Be the first to review this product! Submit a review

|

(0 Publication)

Mouse GPNMB ELISA Kit, Chemiluminescent is a 55-min single-wash SimpleStep Ignite™ ELISA for the rapid quantification of Mouse GPNMB with higher sensitivity and broader measuring range.

- Single 30 min incubation and single-wash step for results in less than an hour.
- Chemiluminescent detection allows a broad dynamic range: 164.61 - 360000 pg/ml with a sensitivity of 46.27 pg/mL.
- Design your own immunoassay: we also offer the conjugation-ready antibody pair.
- Patent pending

View Alternative Names

Dchil, Hgfin, Nmb, Gpnmb, Transmembrane glycoprotein NMB, DC-HIL, Dendritic cell-associated transmembrane protein, Osteoactivin

4 Images
Sandwich ELISA - Mouse GPNMB ELISA Kit, Chemiluminescent (AB325723)
  • sELISA

Lab

Sandwich ELISA - Mouse GPNMB ELISA Kit, Chemiluminescent (AB325723)

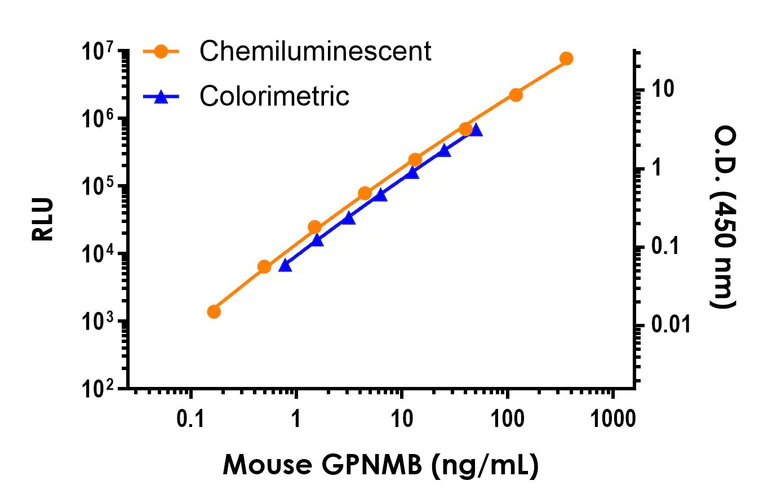

Standard curve comparison between the Chemiluminescent Mouse GPNMB SimpleStep ELISA and colorimetric Mouse GPNMB SimpleStep ELISA (ab270892) in Sample Diluent 25BP. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse GPNMB ELISA Kit, Chemiluminescent (AB325723)
  • sELISA

Lab

Sandwich ELISA - Mouse GPNMB ELISA Kit, Chemiluminescent (AB325723)

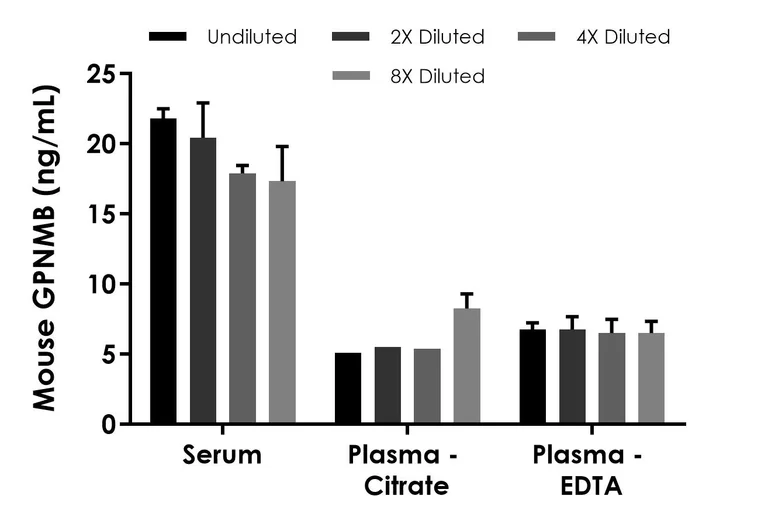

Interpolated concentrations of native GPNMB in mouse serum and plasma samples. The concentrations of GPNMB were measured in duplicates, interpolated from the GPNMB standard curves and corrected for sample dilution. Undiluted samples are as follows : serum 50%, plasma (citrate) 100%, and plasma (EDTA) 100%. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean GPNMB concentration was determined to be 19.4 ng/mL in neat serum, 6.5 ng/mL in plasma (citrate) and 6.6 ng/mL in plasma (EDTA).

Sandwich ELISA - Mouse GPNMB ELISA Kit, Chemiluminescent (AB325723)
  • sELISA

Lab

Sandwich ELISA - Mouse GPNMB ELISA Kit, Chemiluminescent (AB325723)

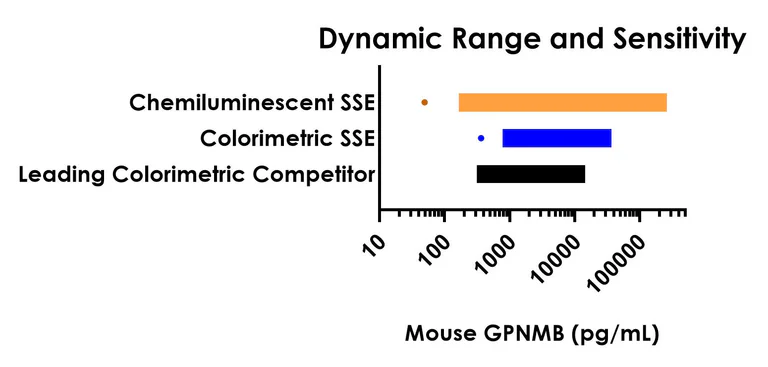

Dynamic range comparison between the Chemiluminescent Mouse GPNMB SimpleStep ELISA, colorimetric Mouse GPNMB SimpleStep ELISA (ab270892) and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and increased dynamic range.

Sandwich ELISA - Mouse GPNMB ELISA Kit, Chemiluminescent (AB325723)
  • sELISA

Lab

Sandwich ELISA - Mouse GPNMB ELISA Kit, Chemiluminescent (AB325723)

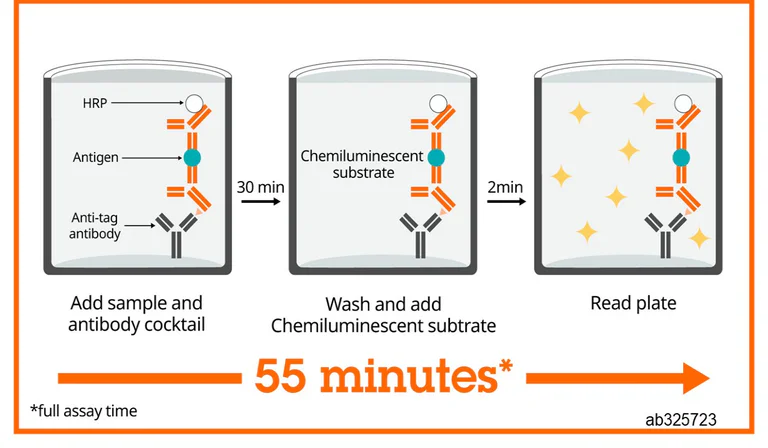

SimpleStep ELISA® Ignite technology allows the formation of the antibody-antigen complex in one single step, reducing assay time to 55 minutes. Add samples or standards and antibody mix to wells all at once, incubate, wash, and add your final substrate. See protocol for a detailed step-by-step guide.

Key facts

Detection method

Luminescent

Sample types

Serum, Citrate plasma, EDTA Plasma, Cell culture media

Reacts with

Mouse

Assay type

Sandwich

Results type

Quantitative

Sensitivity

= 46.27 pg/mL

Range

164.61 - 360000 pg/mL

Assay time

55m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Mouse GPNMB ELISA Kit, Chemiluminescent (ab325723) is a rapid single-wash sandwich 55-min ELISA to measure Mouse GPNMB in Serum, Citrate Plasma, EDTA Plasma, Cell Culture Media with a sensitivity of 46.27 pg/mL.

How the assay works

Mouse GPNMB ELISA Kit, Chemiluminescent (ab325723) SimpleStep Ignite™ ELISA employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colorimetric ELISAs.

Assay Specificity

Our SimpleStep Ignite™ ELISA kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Mouse GPNMB (ab325723) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature
2. Wash
3. Add ChemiHRP development solution - incubate for 2 min
4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-Osteoactivin (Gpnmb) antibody [EPR22150-16] - BSA and Aside free (Capture) ab272356
- Anti-Osteoactivin (Gpnmb) antibody [EPR22150-10] - BSA and Aside free (Detector) ab272357
style
left-column

Precision

[ { "reproducibilityType": "Intra", "sample": "Plasma", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 6.7" }, { "reproducibilityType": "Inter", "sample": "Plasma", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 3.9" } ]
style
left-column

Recovery

[ { "sample": "Serum", "range": "101 - 116 %", "average": "= 108" }, { "sample": "Citrate plasma", "range": "97 - 111 %", "average": "= 103" }, { "sample": "EDTA Plasma", "range": "104 - 120 %", "average": "= 110" }, { "sample": "Cell culture media", "range": "81 - 82 %", "average": "= 81" } ]
style
left-column

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab325723-1x96Tests", "assetComponentDetails": [ { "size":"1 x 600 µL", "name":"10X Mouse GPNMB Detector Antibody", "number":"AB325723-CMP02", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB325723-CMP08", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB325723-CMP09", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB325723-CMP10", "productcode":"" }, { "size":"1 x 20 mL", "name":"Sample Diluent 25BP", "number":"AB325723-CMP05", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB325723-CMP07", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB325723-CMP06", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse GPNMB Capture Antibody", "number":"AB325723-CMP01", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse GPNMB Lyophilized Recombinant Protein", "number":"AB325723-CMP03", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 5BR", "number":"AB325723-CMP04", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Could be a melanogenic enzyme.
See full target information Gpnmb
