AB233627

Mouse GSDMD ELISA Kit

Be the first to review this product! Submit a review

|

(2 Publications)

Mouse GSDMD ELISA Kit is a single-wash 90-min Simplestep used to quantify Mouse GSDMD with a sensitivity of 2 pg/ml. The assay uses a simple mix-wash-read protocol with just one incubation and one wash step.

- Colorimetric Sandwich ELISA - 450 nm readout : works on any standard plate reader
- Design your own immunoassay: we also offer the conjugation-ready antibody pair

View Alternative Names

Gsdmdc1, Gsdmd, Gasdermin-D, Gasdermin domain-containing protein 1

3 Images
Sandwich ELISA - Mouse GSDMD ELISA Kit (AB233627)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse GSDMD ELISA Kit (AB233627)

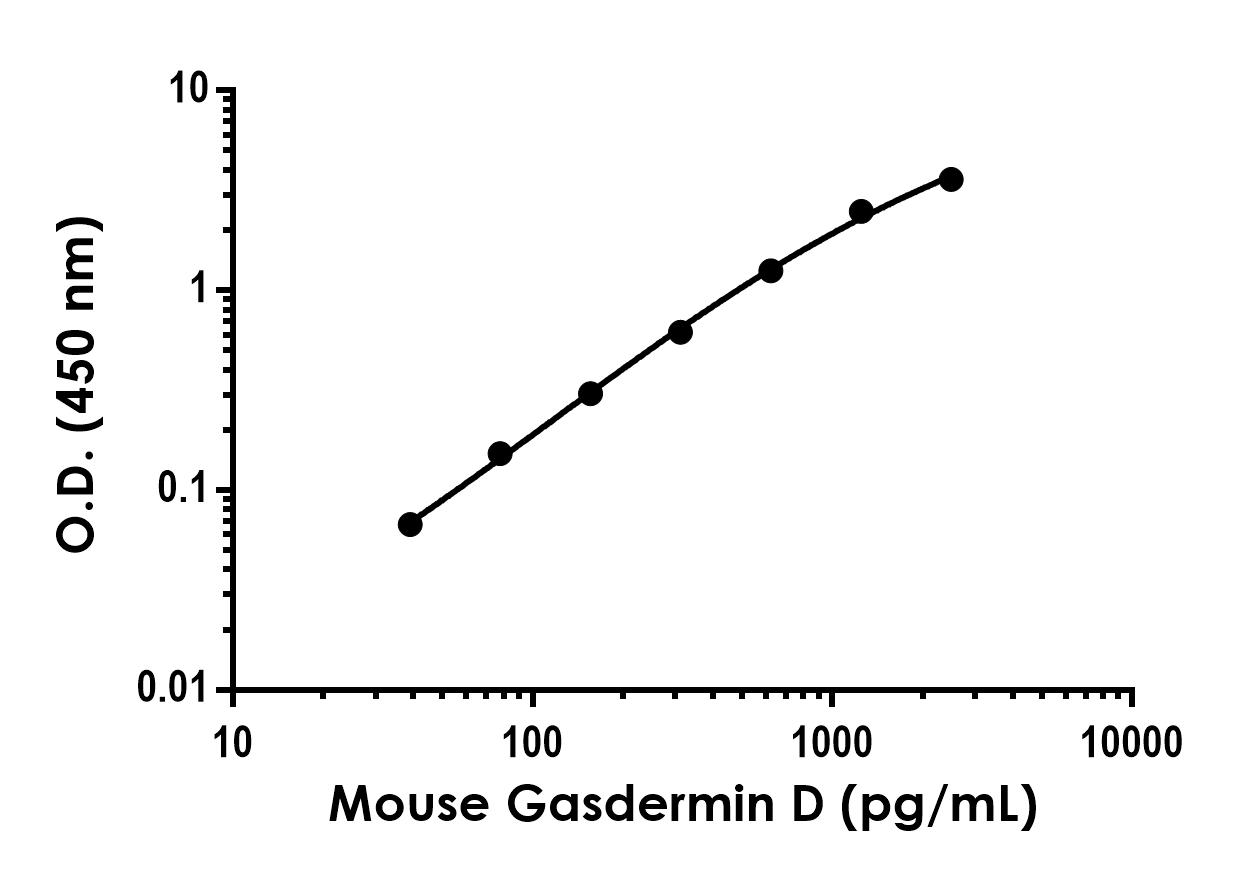

Example of mouse Gasdermin D standard curve in 1X Cell Extraction Buffer PTR.

Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse GSDMD ELISA Kit (AB233627)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse GSDMD ELISA Kit (AB233627)

Representative image of Mouse GSDMD ELISA Kit (ab233627)

Components shown from left to right :

- 10X Wash Buffer PT (ab206977)

- 10X Mouse GSDMD ELISA Kit Capture Antibody

- 10X Mouse GSDMD Detector Antibody

- 10X Mouse GSDMD ELISA Kit Lyophilised Purified Protein (2 vials)

- Mouse GSDMD ELISA Kit 50X Cell Extraction Enhancer Solution (ab193971)

- Sample diluent NS

- TMB solution

- Stop Solution

- 5X Cell Extraction Buffer PTR (ab193970)

- Antibody Diluent 4BR

SimpleStep Pre-Coated 96-Well Microplate (ab206978) - shown behind bottles / vials.

Plate Seals - shown underneath bottles / vials.

Note : The vial labels shown in this image use generic names for illustrative purposes only and may not exactly match the specific component names included in the ELISA kit.

Note : Colors of solutions in image may not precisely match the shade of colors in the actual kit

Sandwich ELISA - Mouse GSDMD ELISA Kit (AB233627)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse GSDMD ELISA Kit (AB233627)

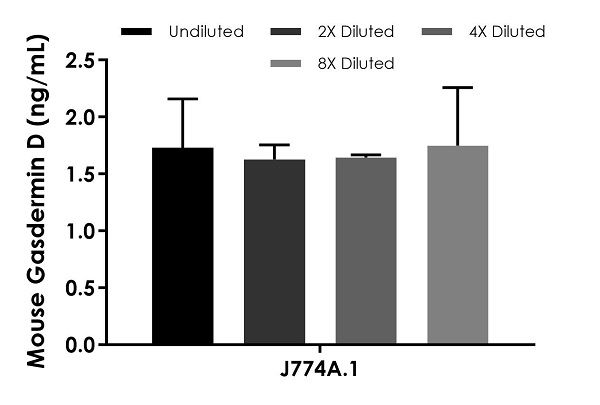

Interpolated concentrations of native Gasdermin D in mouse a macrophage cell line based on 150 µg/mL loading.

The concentration of Gasdermin D was measured in duplicate, interpolated from the Gasdermin D standard curve, and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean Gasdermin D concentration was determined to be 1684 pg/mL in J774A1.1 cell extracts.

Key facts

Detection method

Colorimetric

Sample types

Cell culture extracts

Reacts with

Mouse

Assay type

Sandwich (quantitative)

Sensitivity

= 2 pg/mL

Range

39.06 - 2500 pg/mL

Assay time

1h 30m

Assay Platform

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

Mouse GSDMD ELISA Kit (ab233627) is a single-wash 90 min sandwich ELISA designed for the quantitative measurement of GSDMD protein in cell culture extracts. It uses our proprietary SimpleStep ELISA® technology. Quantitate Mouse GSDMD with 2 pg/ml sensitivity.

SimpleStep ELISA® technology employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details. Our SimpleStep ELISA® technology provides several benefits:

- Single-wash protocol reduces assay time to 90 minutes or less
- High sensitivity, specificity and reproducibility from superior antibodies
- Fully validated in biological samples
- 96-wells plate breakable into 12 x 8 wells strips

A 384-well SimpleStep ELISA® microplate (ab203359) is available to use as an alternative to the 96-well microplate provided with SimpleStep ELISA® kits.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Precision

[ { "reproducibilityType": "Intra", "sample": "Gasdermin D", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "3.6" } ]

Recovery

[ { "sample": "Cell culture extracts", "range": null, "average": "= 101.2" } ]

What's included?

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab233627-1x96Tests", "assetComponentDetails": [ { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB233627-CMP04", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB233627-CMP12", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB233627-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB233627-CMP13", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB233627-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB233627-CMP11", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse GSDMD Capture Antibody", "number":"AB233627-CMP08", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BR", "number":"AB233627-CMP01", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse GSDMD Lyophilized Recombinant Protein", "number":"AB233627-CMP10", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB233627-CMP03", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB233627-CMP07", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Mouse GSDMD Detector Antibody", "number":"AB233627-CMP09", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

GSDMD also known as gasdermin D is a protein known for its role in pyroptosis a form of programmed cell death. Its molecular weight is approximately 53 kDa. Mechanically GSDMD operates by forming pores in cell membranes. These pores disrupt cellular homeostasis and eventually lead to cell lysis. GSDMD is mainly expressed in immune cells including macrophages and neutrophils. Researchers frequently use GSDMD Western blot and GSDMD ELISA for its detection and quantification in various studies.
Biological function summary

Gasdermin D functions in the execution of immune responses against infections. It acts as an effector molecule that participates directly in pyroptosis by disrupting mitochondrial membranes. GSDMD operates as part of a larger inflammasome complex initiated by inflammatory signals. The inflammasome activates inflammatory caspases that cleave GSDMD enabling its active form to execute pyroptosis. This process releases cytokines like IL-1β enhancing the inflammatory response.

Pathways

GSDMD is important in the pyroptosis pathway initiated by the inflammasome. This process involves Caspase-1 a protease responsible for cleaving pro-inflammatory cytokines and initiating pyroptosis. Another significant pathway includes NLRP3 inflammasome which acts upstream to activate Caspase-1 and subsequently GSDMD establishing the overall inflammatory response in the innate immune system. Through these pathways GSDMD interacts closely with proteins like IL-18 an essential inflammatory mediator.

Gasdermin D has links to inflammatory diseases such as rheumatoid arthritis and sepsis. In rheumatoid arthritis the excessive activation of GSDMD leads to chronic joint inflammation mediated by activated immune cells. In sepsis over-activation of the pyroptosis pathway may cause severe systemic inflammation driven by GSDMD activity exacerbating cytokine release. Connections exist between GSDMD and other proteins such as Caspase-11 which can also initiate GSDMD cleavage independently and has roles in non-canonical inflammasome pathways influencing these conditions.

Product protocols

Target data

Gasdermin-D. Precursor of a pore-forming protein that plays a key role in host defense against pathogen infection and danger signals (PubMed : 26375003, PubMed : 26375259, PubMed : 26611636, PubMed : 27383986, PubMed : 27385778, PubMed : 27418190). This form constitutes the precursor of the pore-forming protein : upon cleavage, the released N-terminal moiety (Gasdermin-D, N-terminal) binds to membranes and forms pores, triggering pyroptosis (PubMed : 26375003, PubMed : 26375259, PubMed : 26611636, PubMed : 27383986, PubMed : 27385778, PubMed : 27418190).. Gasdermin-D, N-terminal. Promotes pyroptosis in response to microbial infection and danger signals (PubMed : 26375003, PubMed : 26375259, PubMed : 26611636, PubMed : 27383986, PubMed : 27385778, PubMed : 27418190, PubMed : 32820063, PubMed : 34289345, PubMed : 35705808, PubMed : 37988464, PubMed : 38530158, PubMed : 38538834, PubMed : 38632402). Produced by the cleavage of gasdermin-D by inflammatory caspases CASP1 or CASP4/CASP11 in response to canonical, as well as non-canonical (such as cytosolic LPS) inflammasome activators (PubMed : 26375003, PubMed : 26375259, PubMed : 26611636, PubMed : 27383986, PubMed : 27385778, PubMed : 27418190, PubMed : 35705808, PubMed : 38632402). After cleavage, moves to the plasma membrane where it strongly binds to inner leaflet lipids, including monophosphorylated phosphatidylinositols, such as phosphatidylinositol 4-phosphate, bisphosphorylated phosphatidylinositols, such as phosphatidylinositol (4,5)-bisphosphate, as well as phosphatidylinositol (3,4,5)-bisphosphate, and more weakly to phosphatidic acid and phosphatidylserine (PubMed : 27339137, PubMed : 27383986). Homooligomerizes within the membrane and forms pores of 10-15 nanometers (nm) of inner diameter, allowing the release of mature interleukin-1 (IL1B and IL18) and triggering pyroptosis (PubMed : 27383986, PubMed : 29195811, PubMed : 29274245, PubMed : 33883744, PubMed : 38530158, PubMed : 38538834). Gasdermin pores also allow the release of mature caspase-7 (CASP7) (PubMed : 35705808). In some, but not all, cells types, pyroptosis is followed by pyroptotic cell death, which is caused by downstream activation of ninjurin-1 (NINJ1), which mediates membrane rupture (cytolysis) (PubMed : 38632402). Also forms pores in the mitochondrial membrane, resulting in release of mitochondrial DNA (mtDNA) into the cytosol (PubMed : 37001519). Gasdermin-D, N-terminal released from pyroptotic cells into the extracellular milieu rapidly binds to and kills both Gram-negative and Gram-positive bacteria, without harming neighboring mammalian cells, as it does not disrupt the plasma membrane from the outside due to lipid-binding specificity (PubMed : 27383986). Under cell culture conditions, also active against intracellular bacteria, such as Listeria monocytogenes (PubMed : 27383986). Also active in response to MAP3K7/TAK1 inactivation by Yersinia toxin YopJ, which triggers cleavage by CASP8 and subsequent activation (PubMed : 30361383, PubMed : 30381458). Required for mucosal tissue defense against enteric pathogens (PubMed : 37988464). Activation of the non-canonical inflammasome in brain endothelial cells can lead to excessive pyroptosis, leading to blood-brain barrier breakdown (PubMed : 38632402). Strongly binds to bacterial and mitochondrial lipids, including cardiolipin. Does not bind to unphosphorylated phosphatidylinositol, phosphatidylethanolamine nor phosphatidylcholine (PubMed : 27383986).. Gasdermin-D, p13. Transcription coactivator produced by the cleavage by CASP3 or CASP7 in the upper small intestine in response to dietary antigens (PubMed : 37327784). Required to maintain food tolerance in small intestine : translocates to the nucleus and acts as a coactivator for STAT1 to induce the transcription of CIITA and MHC class II molecules, which in turn induce type 1 regulatory T (Tr1) cells in upper small intestine (PubMed : 37327784).. Gasdermin-D, p40. Produced by the cleavage by papain allergen (PubMed : 35794369). After cleavage, moves to the plasma membrane and homooligomerizes within the membrane and forms pores of 10-15 nanometers (nm) of inner diameter, allowing the specific release of mature interleukin-33 (IL33), promoting type 2 inflammatory immune response (PubMed : 35749514, PubMed : 35794369).
See full target information Gsdmd

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

eLife 14: PubMed40553503

2025

Hypothermia protects against ventilator-induced lung injury by limiting IL-1β release and NETs formation.

Applications

Unspecified application

Species

Unspecified reactive species

Nobuyuki Nosaka,Vanessa Borges,Daisy Martinon,Timothy R Crother,Moshe Arditi,Kenichi Shimada

International journal of molecular sciences 25: PubMed38891803

2024

Rabies Virus Infection Causes Pyroptosis of Neuronal Cells.

Applications

Unspecified application

Species

Unspecified reactive species

Dongling Yu,Rong Jin,Jundan Liu,Chuanliang Zhang,Chenxing Duan,Xi Luo,Wenhao Yang,Cheng Liu,Jingjing Liang,Xiaoning Li,Tingrong Luo
