AB197742

Mouse IL-1 beta ELISA Kit

5

(2 Reviews)

|

(204 Publications)

Mouse IL-1 beta ELISA kit is a single-wash, 90-minute SimpleStep ELISA® used to quantify mouse interleukin-1 beta (IL-1β) with a sensitivity of 1 pg/mL. The assay employs a simple Mix-Wash-Read protocol with just one incubation and wash step.

- Colorimetric sanwich ELISA – 450 nm readout, compatible with any standard plate reader
- Available in different formats – 384-well format available for high-throughput applications
- Broad sample compatibility – works with serum, citrate plasma, urine, cell culture extracts, tissue extracts, and cell culture supernatant
- Cited in over 200 publications

View Alternative Names

Interleukin-1 beta, IL-1 beta, Il1b

16 Images
ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • ELISA

Supplier Data

ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)

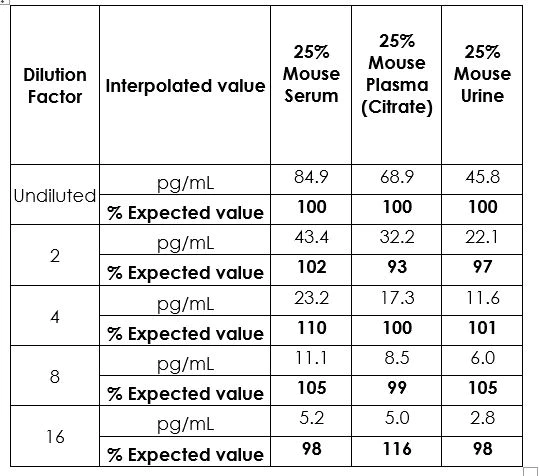

Linearity of dilution in Sample Diluent NS (spiked samples).

Linearity of dilution is determined based on interpolated values from the standard curve. Linearity of dilution defines a sample concentration interval in which interpolated target concentrations are directly proportional to sample dilution.

Recombinant IL-1 beta was spiked into the following biological samples and diluted in a 2-fold dilution series in Sample Diluent NS.

25% pooled serum, plasma (Citrate), and urine samples from healthy donors was measured in duplicate. All values were below the detectable range of the assay.

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)

Linearity of dilution in Sample Diluent NS.

Linearity of dilution is determined based on interpolated values from the standard curve. Linearity of dilution defines a sample concentration interval in which interpolated target concentrations are directly proportional to sample dilution.

Native IL-1 beta was measured in the following biological samples in a 2-fold dilution series. Sample dilutions are made in Sample Diluent NS.

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)

Example of mouse IL-1 beta standard curve in 1X Cell Extraction Buffer PTR.

The IL-1 beta standard curve was prepared as described. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)

Example of IL-1 beta standard curve in 1X Cell Extraction Buffer PTR.

Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)

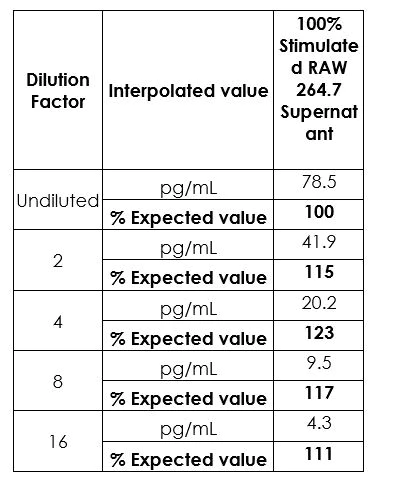

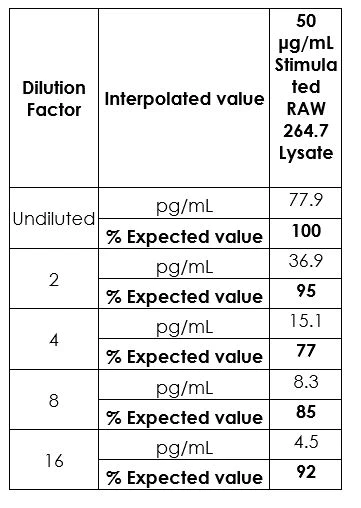

Linearity of dilution in 1X Cell Extraction Buffer PTR.

Linearity of dilution is determined based on interpolated values from the standard curve. Linearity of dilution defines a sample concentration interval in which interpolated target concentrations are directly proportional to sample dilution.

Native IL-1 beta was measured in the following biological samples in a 2-fold dilution series. Sample dilutions are made in 1X Cell Extraction Buffer PTR.

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)

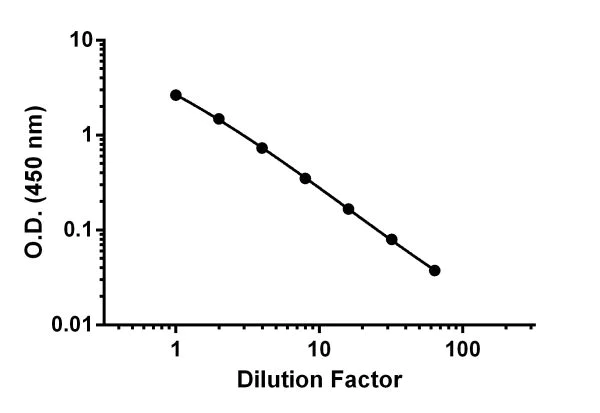

Demonstration of the linearity of dilution by the titration of RAW264.7 stimulated for 48 hours with LPS undiluted to 32-fold dilution in Sample Diluent NS.

Background-subtracted data values (mean +/- SD, n = 2) are graphed.

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)

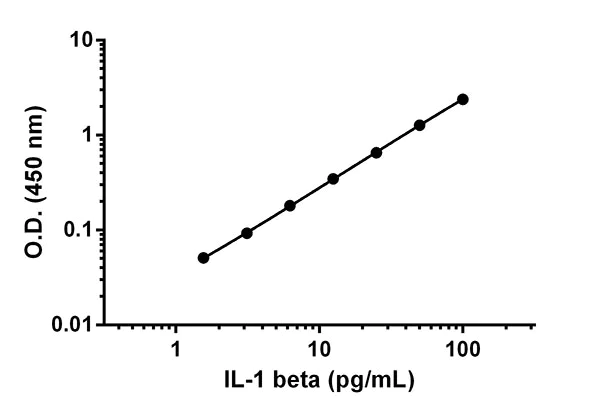

Example of IL-1 beta standard curve in Sample Diluent NS.

Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)

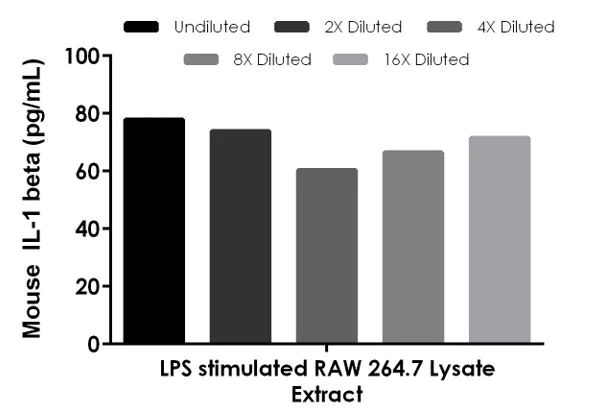

Interpolated concentrations of native IL-1 beta in mouse LPS-stimulated RAW 264.7 extract based on a 50 μg/mL extract load.

The concentrations of IL-1 beta were measured in duplicate and interpolated from the IL-1 beta standard curve and corrected for sample dilution. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). The mean IL-1 beta concentration was determined to be 70 pg/mL in LPS stimulated RAW 264.7 Lysate.

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)

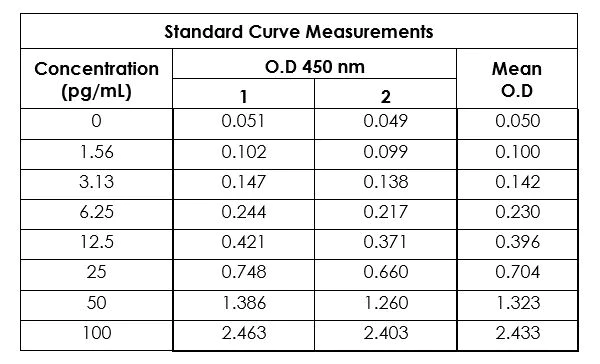

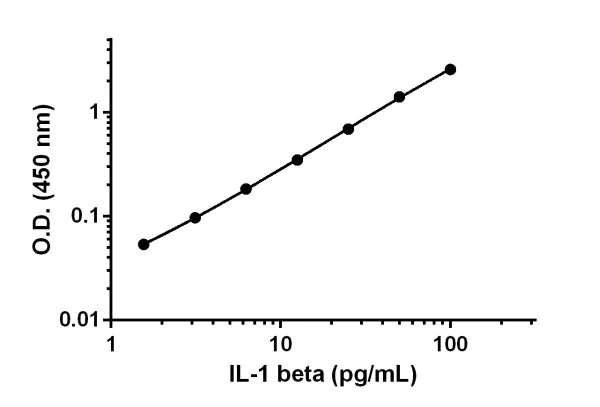

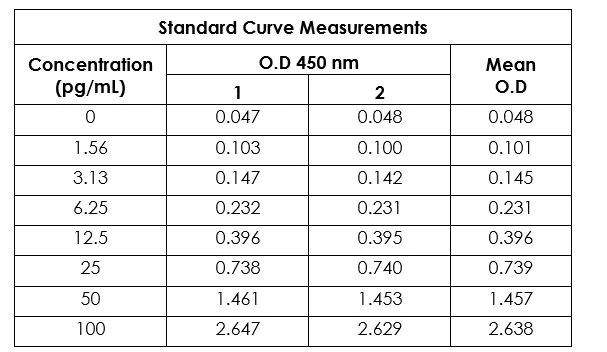

Example of mouse IL-1 beta standard curve in Sample Diluent NS.

The IL-1 beta standard curve was prepared as described. Raw data values are shown in the table. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • sELISA

Supplier Data

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)

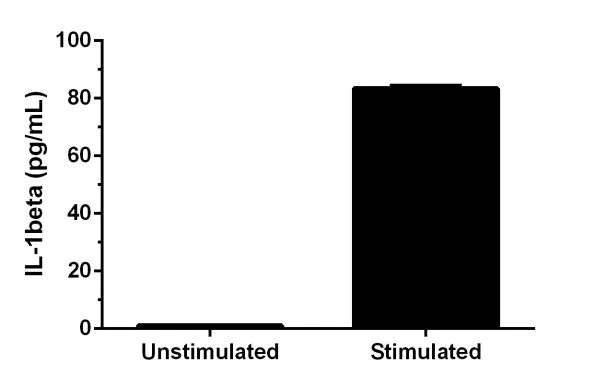

Comparison of secreted IL-1 beta in unstimulated and LPS stimulated RAW264.7 cells.

RAW264.7 cells were grown in the absence (unstimulated) or presence of 5 μg/mL Lipopolysaccharide (LPS) (stimulated) for 48 hours. IL-1 beta was measured in 2-fold diluted cell culture supernatants of unstimulated and LPS stimulated RAW264.7 and cell culture media. Measured values were interpolated from the IL-1 beta Standard Curve diluted in Sample Diluent NS and corrected for dilution factor. Mean of duplicate values +/-SD are graphed : 1.1 pg/mL unstimulated, 83.5 pg/mL stimulated. There was no detectable signal in media.

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • sELISA

Lab

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)

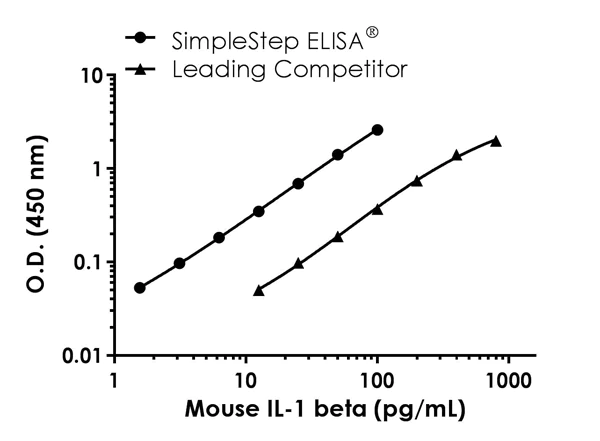

Mouse IL-1 beta standard curve comparison data.

Standard curve comparison between mouse IL-1 beta SimpleStep ELISA® kit and traditional ELISA kit from leading competitor. SimpleStep ELISA kit shows a 4-fold increase in sensitivity.

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • sELISA

Lab

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)

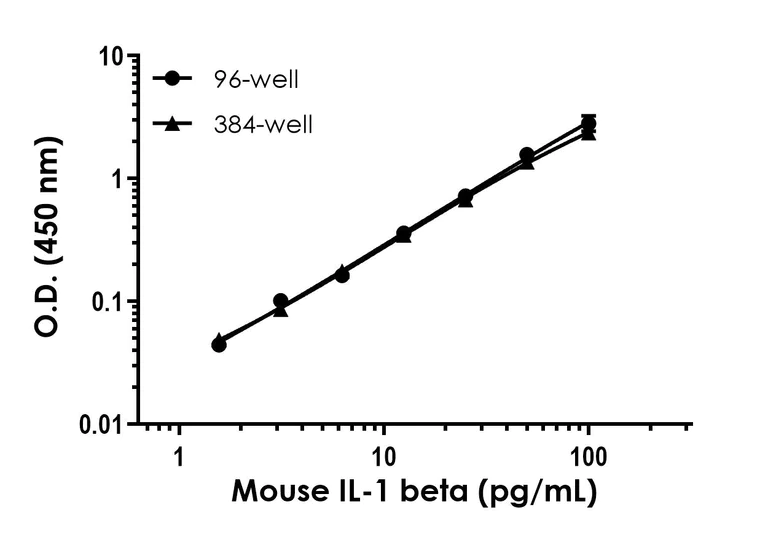

Example of mouse IL-1 beta standard curve in Sample Diluent NS in 96-well vs. 384-well plate.

Example of mouse IL-1 beta standard curve in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • sELISA

Lab

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)

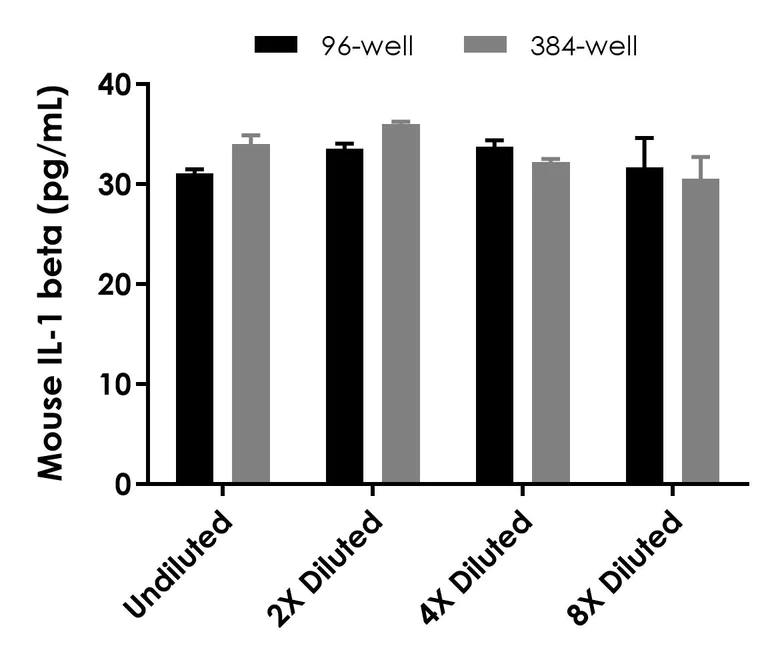

Interpolated concentrations of mouse IL-1 beta in RAW264.7 cell extract in 96-well vs. 384-well plates.

Interpolated concentration of native IL-1 beta was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 1,000 µg/mL RAW264.7 cell extract (1 µg/mL LPS, 48hr). The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • sELISA

Lab

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)

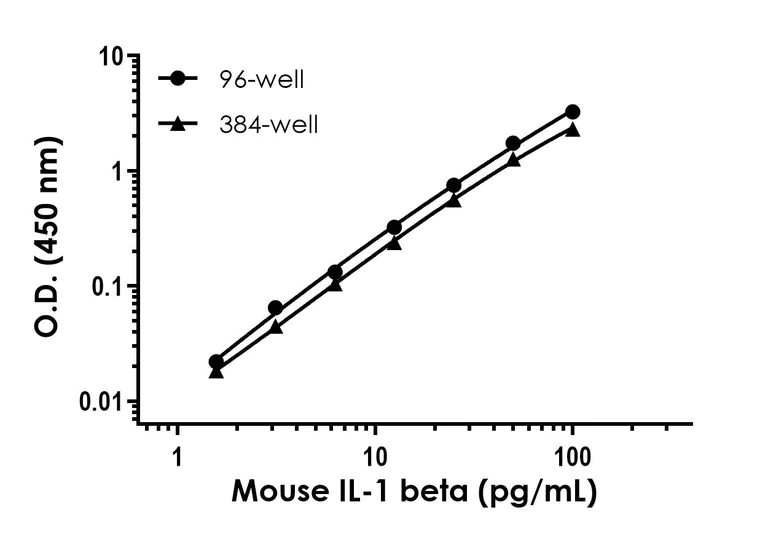

Example of mouse IL-1 beta standard curve in 1X Cell Extraction Buffer PTR in 96-well vs. 384-well plate.

Example of mouse IL-1 beta standard curve in 96-well vs. 384-well plate. Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)
  • sELISA

Lab

Sandwich ELISA - Mouse IL-1 beta ELISA Kit (AB197742)

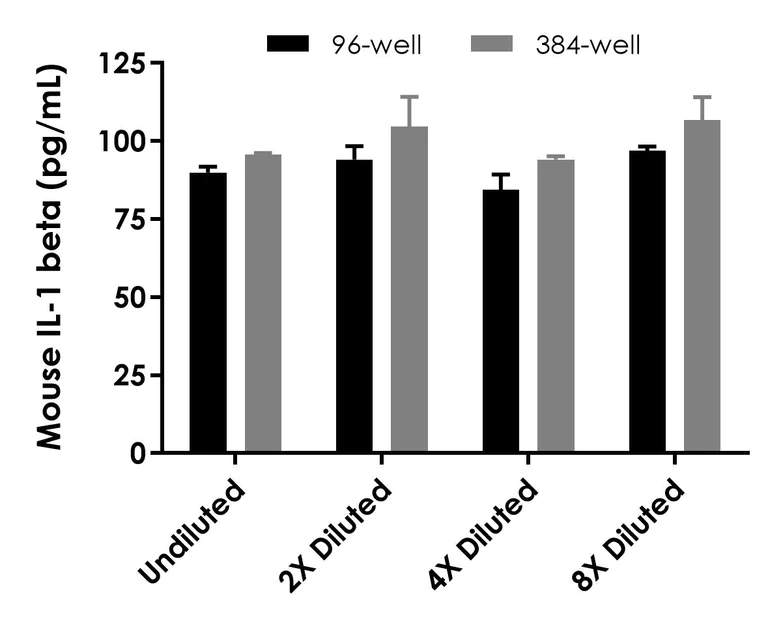

Interpolated concentrations of mouse IL-1 beta in stimulated RAW264.7 cell culture supernatant in 96-well vs. 384-well plates.

Interpolated concentration of native IL-1 beta was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 100% stimulated RAW264.7 cell culture supernatant (1 µg/ml LPS, 48hr). The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in Sample Diluent NS.

Key facts

Detection method

Colorimetric

Sample types

Cell culture extracts, Cell culture supernatant, Citrate plasma, Serum, Tissue Extracts, Urine

Reacts with

Mouse

Assay type

Sandwich (quantitative)

Sensitivity

= 1 pg/mL

Range

1.56 - 100 pg/mL

Assay time

1h 30m

Assay Platform

Microplate (12 x 8 well strips)

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column
style
left-column

Product details

Mouse IL-1 beta ELISA Kit ab197742 is a rapid single-wash 90-min ELISA kit to measure cell culture extracts, cell culture supernatant, tissue extracts, urine, serum and plasma. This SimpleStep ELISA® sensitivity is 1 pg/mL.

How the assay works

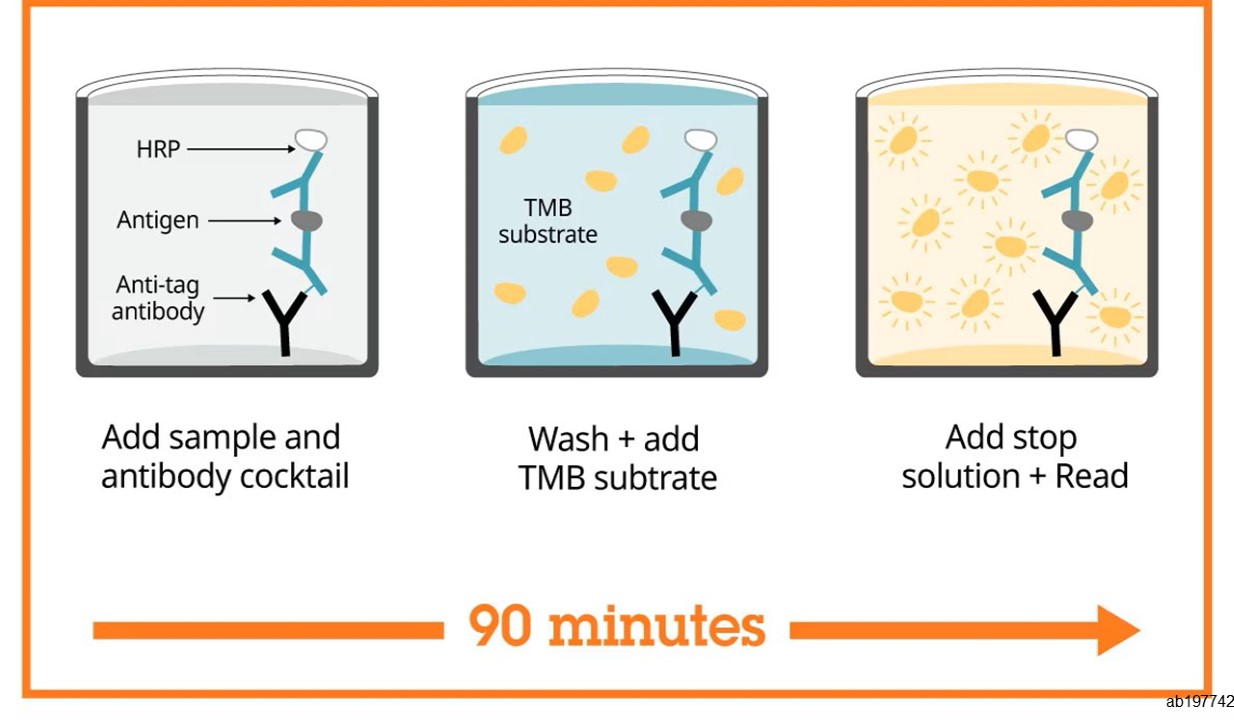

SimpleStep ELISA® employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Assay Specificity
This kit recognizes both native and recombinant mouse IL-1 beta protein in serum, plasma, and cell culture supernatant, cell and tissue extract samples only. Mouse brain, kidney, liver and lung homogenates were tested but no signal was detected. Plasma (EDTA) and plasma (heparin) samples have not been tested with this kit.

Mouse IL-1 beta ELISA Kit ab197742 protocol summary:
1. Mix: add samples/standards to the wells together with the capture and detector antibody cocktail. Incubate for 1 hr at room temperature
2. Wash
3. Add TMB development solution - incubate for 10 min
4. Add stop solution
5. Read the results on a plate reader at 450nm

How other researchers are using Mouse IL-1 beta ELISA Kit ab197742
Mouse IL-1 beta ELISA Kit ab197742 has been used to study inflammation in various physio-pathological contexts such as liver disease(1), diabetes(2), and Alzheimer's Disease(3).

References:
(1)Ai-Lei Xu et al. 2024, PMID: 37902450,
(2)Lili Shi et al. 2023, PMID: 38169591,
(3)Guodong Huang, et al. 2023, PMID: 36325883

Save your precious samples
Our 384-well Mouse IL-1 beta ELISA Kit only requires a maxmum of 12.5µL

Design your own immunoassay
We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation
- Mouse IL-1beta Antibody Pair - BSA and Azide free ab241673
- Anti-IL-1 beta antibody [EPR16805-1] - BSA and Azide free (Capture) ab242452
- Anti-IL-1 beta antibody [EPR16805-57] - BSA and Azide free (Detector) ab242703

Related and recommended products
Mouse IL-1 β ELISA kit ab197742 is commonly used to measure IL-1 beta as a marker of inflammation.

Other ELISA kits to measure inflammatory markers include:
- Mouse IL-6 ELISA kit ab222503
- Mouse TNF alpha ELISA kit ab208348
- Mouse IL-18 ELISA kit ab216165

IL-1 beta (IL-1β) is a 17.5 kDa cytokine protein of the Interleukin 1 family. IL-1β is secreted by macrophages and other cell types in response to inflammatory agents or infection. IL-1β plays a role in a number of cellular processes, including immune responses, bone remodeling, apoptosis and inflammatory pain hypersensitivity.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.
